Zebra ZT61046-T010100Z
| Brand | Zebra 2019 |
| Model | ZT61046-T010100Z |
| Released Year | 2019 |
| Type | Printers |
| Series | Zt610 |
| Item Weight | 62 pounds |
| Maximum Color Print Resolution | 600 x 600 |
| Status | Active |
Quick view
Overview

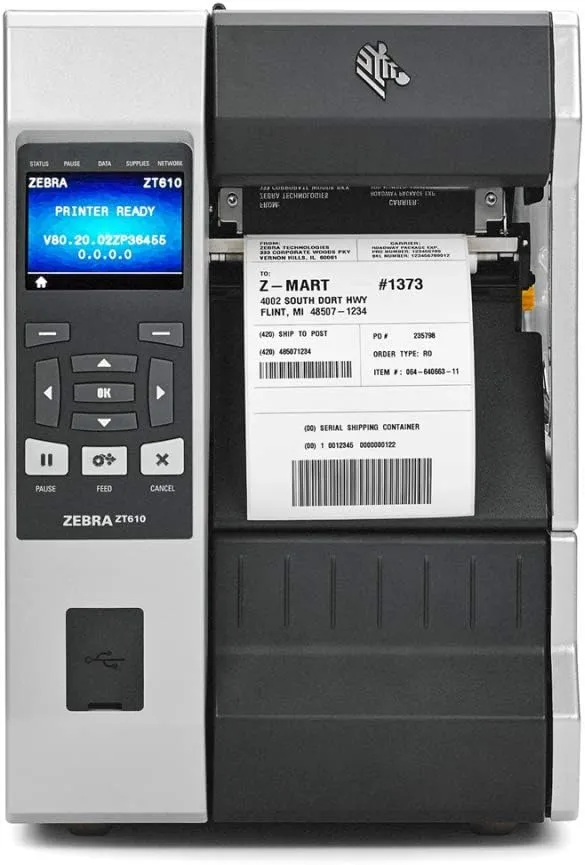

The Zebra ZT610 is a robust industrial label printer featuring advanced thermal printing technology designed for high-volume operations.
It supports both direct thermal and thermal transfer printing methods, allowing flexibility for various labeling needs.
The printer includes a durable all-metal frame and high-speed processor for reliable and efficient performance in demanding environments.
The ZT610 features an intuitive color LCD interface for easy status monitoring and configuration, facilitating seamless integration.
Connectivity options include USB, Ethernet, Serial, and optional Wi-Fi and Bluetooth, ensuring versatile deployment possibilities.
Print resolutions of 203, 300, and 600 dpi enable high-quality barcode and text output suitable for diverse applications.
Specifications
| Print media | Labels |
| Max Input Sheet Capacity | 100 |
| Maximum Color Print Resolution | 600 x 600 |
| Sheet Size | 4 inches |
| Maximum Black and White Print Resolution | 600 dpi |
| Warranty Type | limited warranty |
| Color Depth | 1 bpp |
| Dual-sided printing | No |
| Max copy resolution black-white | 600 dpi |
| Duplex | Simplex |
| Hardware Interface | Ethernet, USB |
| Ink Color | black |
| Resolution | 600 x 600 |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Number of Drivers | 2 |
| Processor Count | 1 |
| Series Number | 610 |
| Total Ethernet Ports | 1 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| Printer Ink Type | Thermal |
| Package Dimensions | 20 x 15 x 10 inches |
| Item Weight | 62 pounds |
| Item model number | ZT61046-T010100Z |
| Date First Available | March 1, 2019 |
| Manufacturer | Zebra |
| Printer Type | Industrial Thermal Printer |
| Print Method | Direct Thermal and Thermal Transfer |
| Print Speed | Up to 14 inches per second |
| Print Resolution | 203 dpi, 300 dpi, 600 dpi |
| Max Print Width | 4.09 inches (104 mm) |
| Max Print Length | 39.9 inches (1013 mm) |
| Processor | 32-bit ARM Cortex-A9 |
| Memory | 512 MB RAM, 512 MB Flash |
| Display | 4.3-inch color LCD with touch interface |
| Connectivity | USB 2.0, Ethernet, Serial; Optional Wi-Fi and Bluetooth |
| Media Types Supported | Continuous, die-cut, notch, black-mark, tag stock, wristbands |
| Media Width | 0.75 to 4.5 inches |
| Media Thickness | 0.0023 to 0.01 inches |
| Ribbon Type | Wax, wax/resin, resin; ribbon width 1.57 to 4.33 inches |
| Dimensions | 11.6 x 14 x 16.5 inches (W x D x H) |
| Weight | 28.7 lbs (13 kg) |
| Operating Temperature | 40°F to 105°F (4.4°C to 40.6°C) |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Certifications | FCC Class A, CE, Energy Star |
Images
Key Advantages
The ZT610 offers fast print speeds up to 14 ips, enhancing productivity in busy work environments.
Its modular design simplifies maintenance and reduces downtime with easy access to internal components.
Supports wide media types and sizes, providing flexibility for different labeling needs.
Robust build quality and enhanced reliability minimize service interruptions and extend device lifespan.
Advanced connectivity options allow integration into existing network infrastructures with ease.
The user-friendly interface and extensive software compatibility streamline operation and management tasks.
Limitations
The ZT610's industrial-grade design results in a relatively large physical footprint, limiting usability in space-constrained offices.
Operating noise levels may be higher compared to desktop thermal printers, potentially affecting quiet environments.
The printer requires specific ribbon and media types, limiting the use of generic consumables.
High initial investment cost may not be justified for low-volume printing needs.
Some advanced features and options may require additional purchases or upgrades, increasing total cost of ownership.
Users unfamiliar with industrial printers might face a learning curve during the initial setup and configuration process.
FAQ
What printing technologies does the Zebra ZT610 support?
The Zebra ZT610 supports both direct thermal and thermal transfer printing methods.
What are the available print resolutions of the ZT610?
It offers print resolutions of 203, 300, and 600 dpi.
Which connectivity options are included with the ZT610?
Standard connectivity includes USB, Ethernet, and Serial ports, with optional Wi-Fi and Bluetooth modules.
Is the Zebra ZT610 suitable for low volume printing?
The ZT610 is designed for high-volume industrial printing, and may not be cost-effective for low volume tasks.
Can I use generic ribbons and media with the ZT610?
The ZT610 requires specific compatible ribbons and media to ensure optimal print quality and device performance.
Is the ZT610 still supported by Zebra?
As of now, the ZT610 is an actively supported product and not discontinued.
Does the printer have a user-friendly interface?
Yes, it features a color LCD display with intuitive controls for easy operation.
