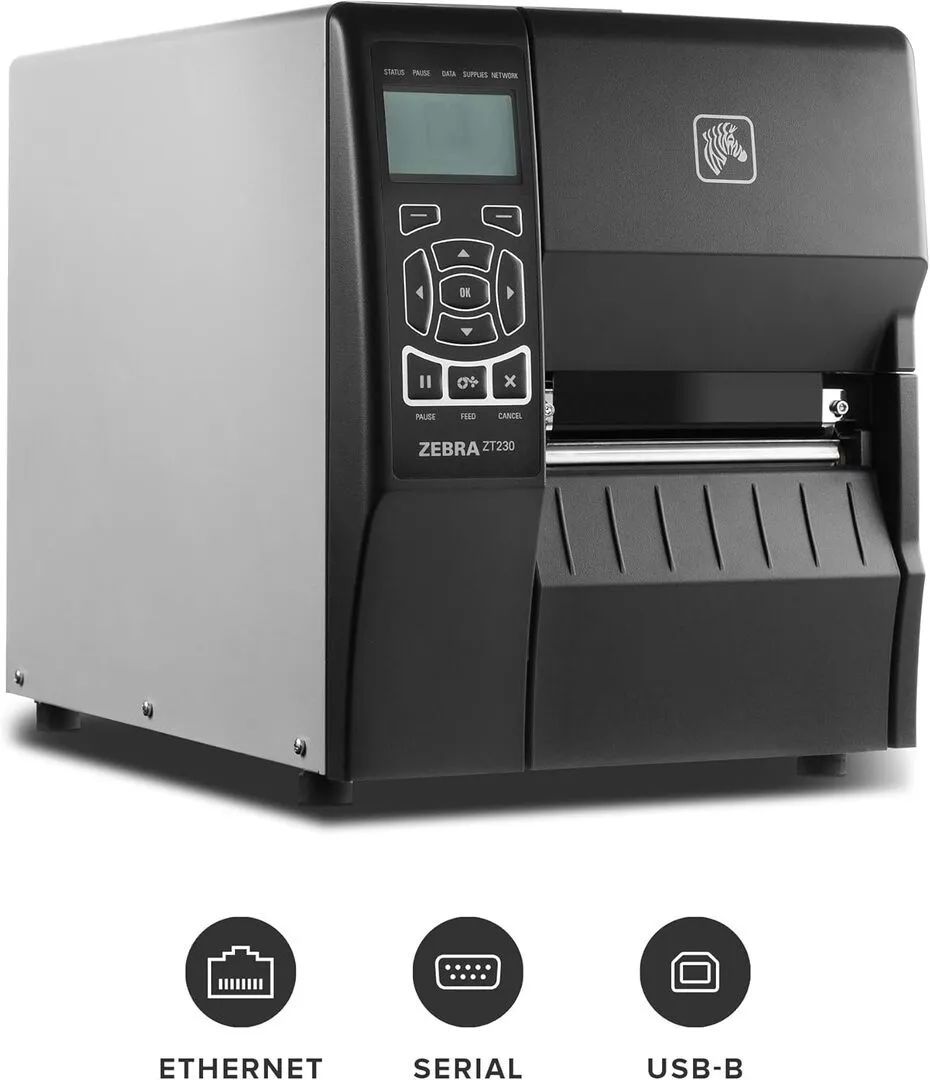

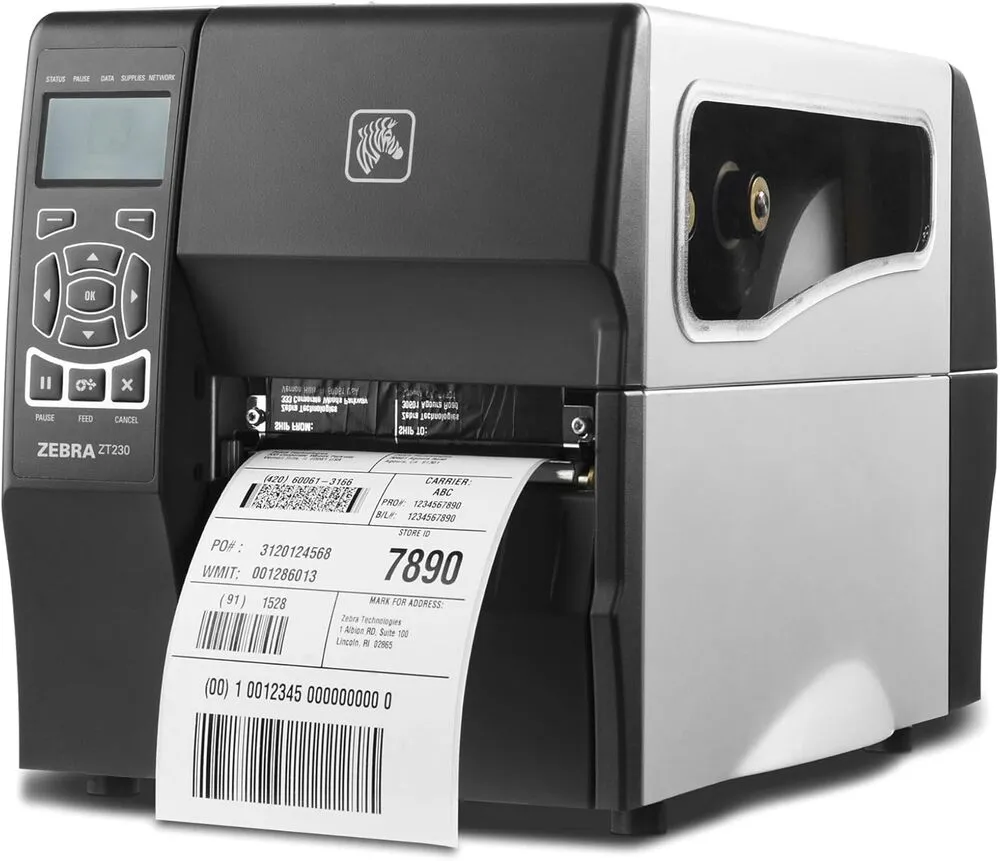

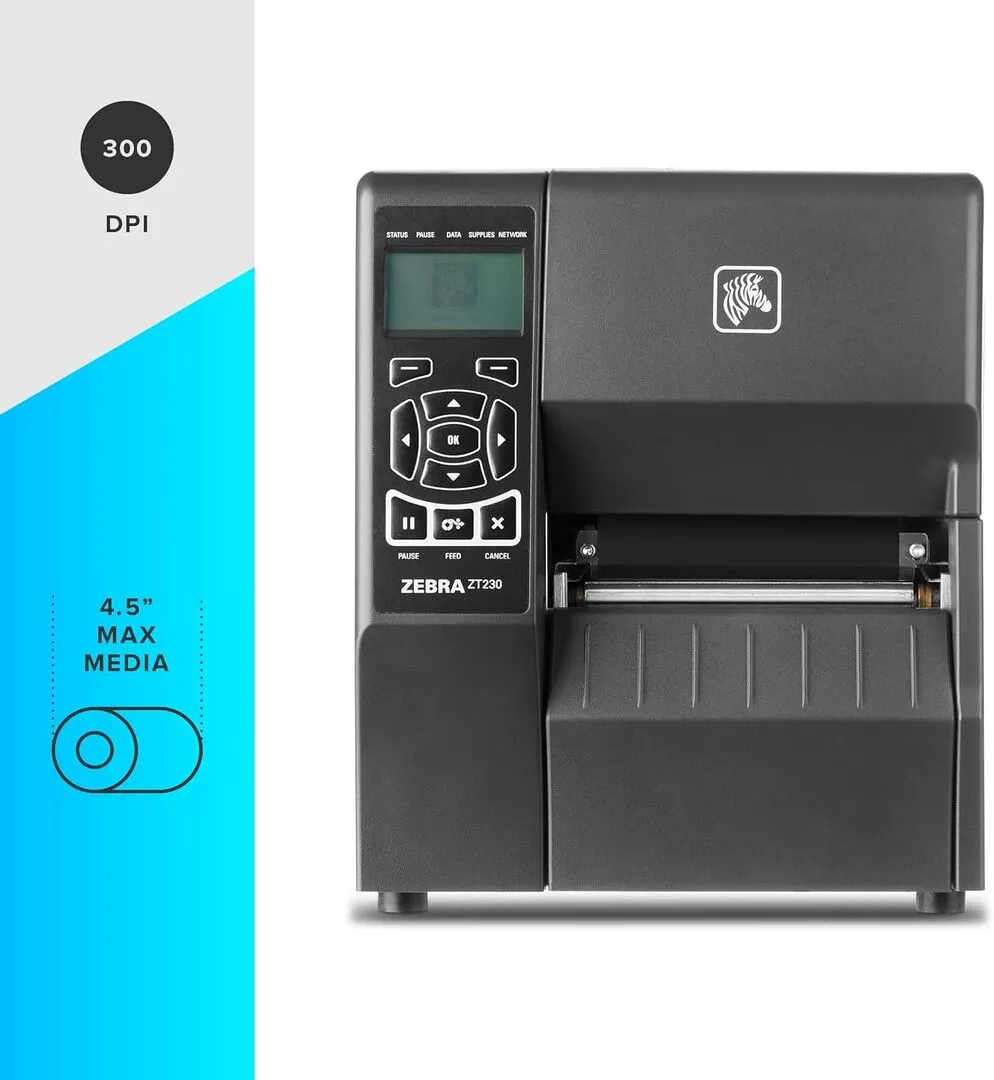

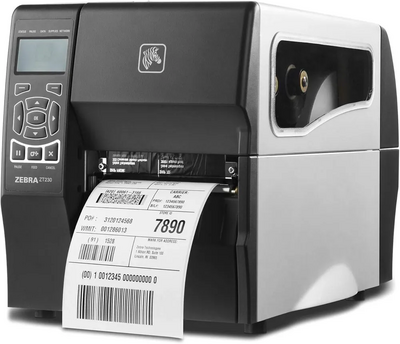

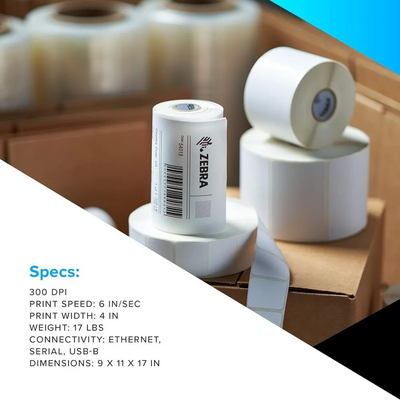

Zebra ZT23043-T01200FZ image

Zebra ZT23043-T01200FZ

Quick information
Brand Zebra 2013
Model ZT23043-T01200FZ
Released Year 2013
Type Printers
Series ZT230
Item Weight 22 pounds
Maximum Color Print Resolution 300 x 300
Product Dimensions 20.2 x 12.4 x 13.8 inches
Status Active
Quick view
Full specs Images

Overview

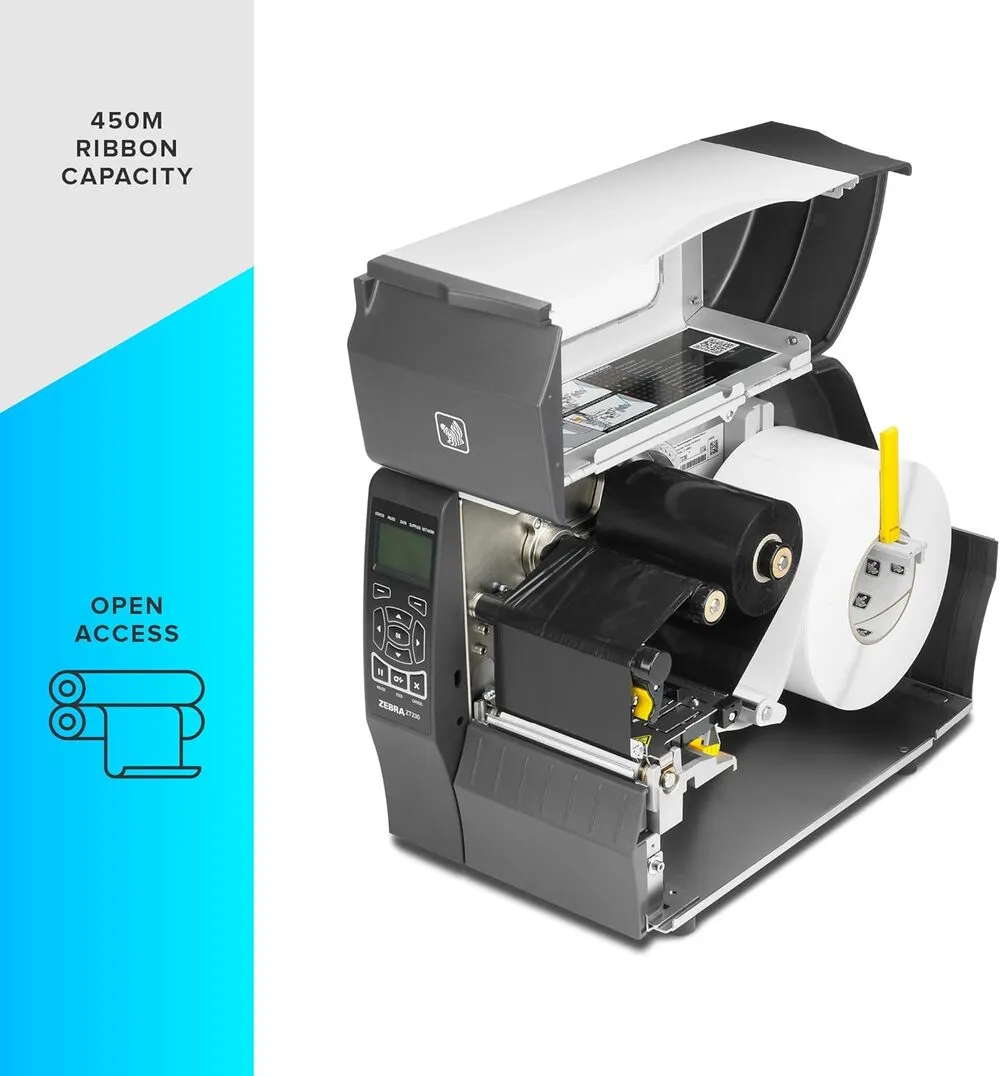

The Zebra ZT23043-T01200FZ is part of the Zebra ZT230 series of industrial printers designed for medium-duty printing applications. It utilizes thermal transfer and direct thermal printing technologies capable of producing high-resolution images with 203 dpi. The printer features a modular design allowing easy maintenance and integration within various office and industrial environments. Connectivity options often include USB, serial, and Ethernet ports to support diverse networking needs. With a maximum print width of up to 4.09 inches, it supports various media types including labels, tags, and wristbands. The printer’s user interface incorporates an LCD screen with intuitive controls to streamline operational workflows.

Its robust build ensures reliability in demanding applications such as manufacturing, logistics, and healthcare. The ZT230 series emphasizes enhanced print speed and precision, presenting a balance between cost-effectiveness and performance. Users benefit from the printer’s compatibility with Zebra Link-OS for device management and remote diagnostics capabilities.

Specifications

Print media Labels
Max Input Sheet Capacity 11
Display Type LCD
Compatible Devices Laptops
Maximum Color Print Resolution 300 x 300
Sheet Size 4.5 inches
Maximum Black and White Print Resolution 300 dpi
Warranty Type Limited Warranty
Color Depth 1 bpp
Dual-sided printing No
Max copy resolution black-white 300 dpi
Duplex Simplex
Hardware Interface USB
Resolution 300 x 300
Additional Printer functions Print Only
Output sheet capacity 11
Series Number 230
Total USB Ports 1
Printer Ink Type Thermal
Memory Storage Capacity 64 MB
Product Dimensions 20.2 x 12.4 x 13.8 inches
Item Weight 22 pounds
Item model number ZT23043-T01200FZ
Date First Available November 6, 2013
Manufacturer ZEBRA
Printer Type Industrial Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 4.09 inches (104 mm)
Maximum Print Speed Up to 6 inches per second (152 mm/s)
Processor 32-bit RISC
Memory 64 MB SDRAM, 128 MB Flash

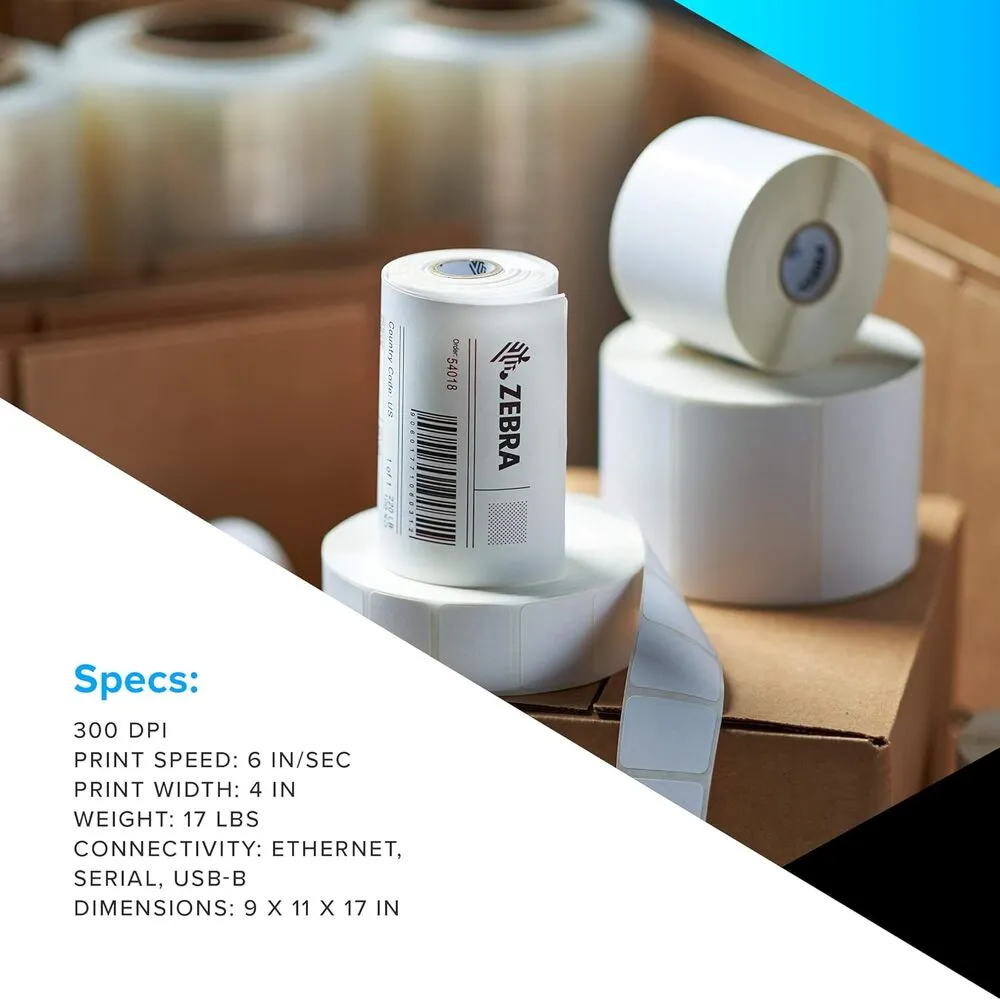

Media Types Labels, Tags, Wristbands
Media Width 0.75 inch to 4.5 inches (19 mm to 114 mm)
Media Thickness 0.0023 inch to 0.01 inch (0.058 mm to 0.25 mm)
Media Roll Size Up to 8 inches (203 mm) O.D.
Media Sensing Fixed reflective sensor; movable transmissive sensor
Connectivity USB 2.0, Serial RS-232, Ethernet 10/100 Mbps
Display Backlit LCD with 4 buttons
Dimensions 11.5 in (W) x 17.7 in (D) x 11.0 in (H)
Weight Approximately 15 lbs (6.8 kg)
Power Supply 90-265 VAC, 47-63 Hz
Operating Temperature 40°F to 105°F (4.4°C to 41°C)
Storage Temperature -40°F to 140°F (-40°C to 60°C)
Operating Humidity 10% to 90% non-condensing
Supported Languages Zebra Programming Language (ZPL), EPL
Certifications FCC Class A, UL, CE, CCC

Key Advantages

The ZT23043-T01200FZ offers high print quality with a resolution of 203 dpi suitable for clear labeling requirements. Its versatile connectivity options facilitate seamless integration with existing office electronics systems. The durable construction supports continuous operation in industrial environments, reducing downtime. Modular components simplify maintenance, decreasing operational costs. Energy-efficient Design helps in lowering power consumption. The printer supports a wide range of media types and sizes, enhancing flexibility for different application needs.

Limitations

The print resolution is limited to 203 dpi, which may not satisfy users needing ultra-high definition printing. It has a maximum print width of approximately 4.09 inches, restricting larger format labels. The device does not natively support wireless connectivity such as Wi-Fi or Bluetooth in all configurations. Upgrade options for memory and processing speed are limited compared to more advanced models. The user interface, while functional, may lack some modern touchscreen conveniences. Additionally, the printer's speed, while efficient, can be slower than high-end industrial printers in the Zebra lineup.

FAQ

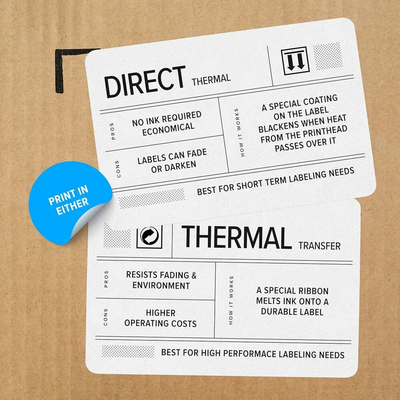

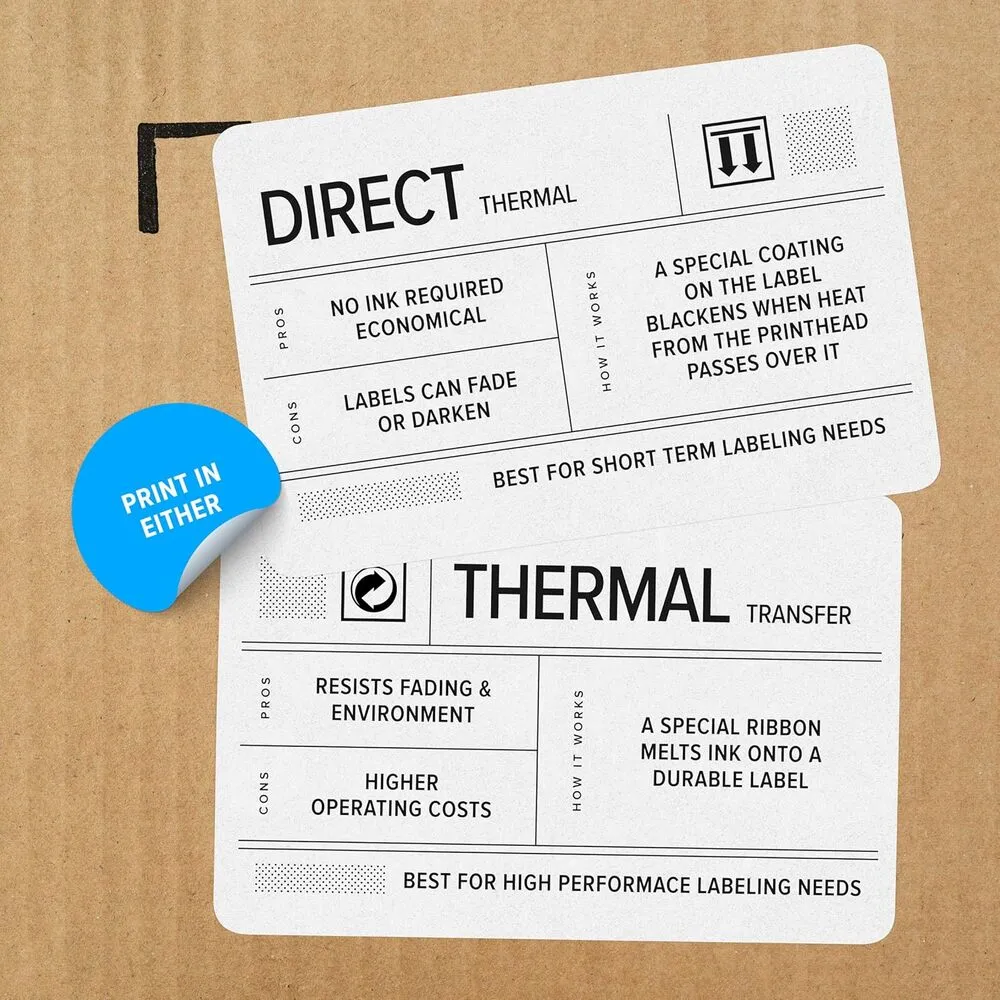

The printer uses thermal transfer and direct thermal printing technologies.

The maximum print resolution is 203 dpi.

This model typically lacks native wireless options like Wi-Fi or Bluetooth.

It supports various media including labels, tags, and wristbands.

Yes, it features a rugged design suitable for medium-duty industrial environments.

Standard connectivity includes USB, serial, and Ethernet ports.

Yes, it supports Zebra Link-OS for remote device management and diagnostics.
