Zebra QLn420
Brand | Zebra 2012 |
Model | QLN420, QN4AUCA0M0000 |
Released Year | 2012 |
Type | Printers |
Series | Qln |
Status | Active |
Quick view
Overview

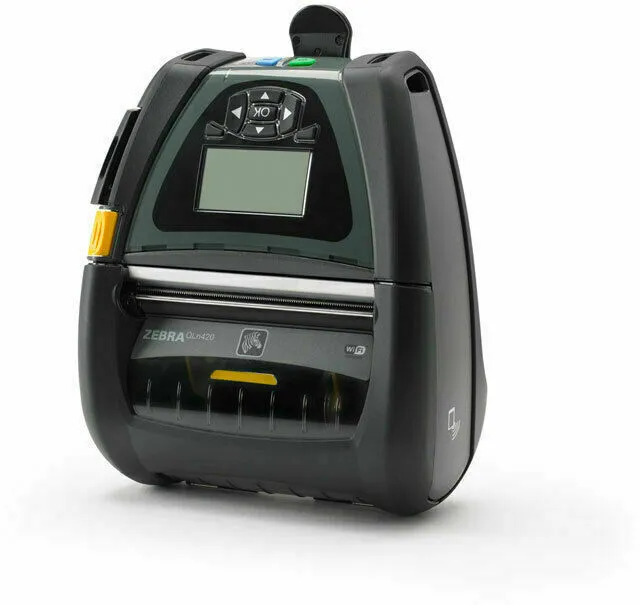

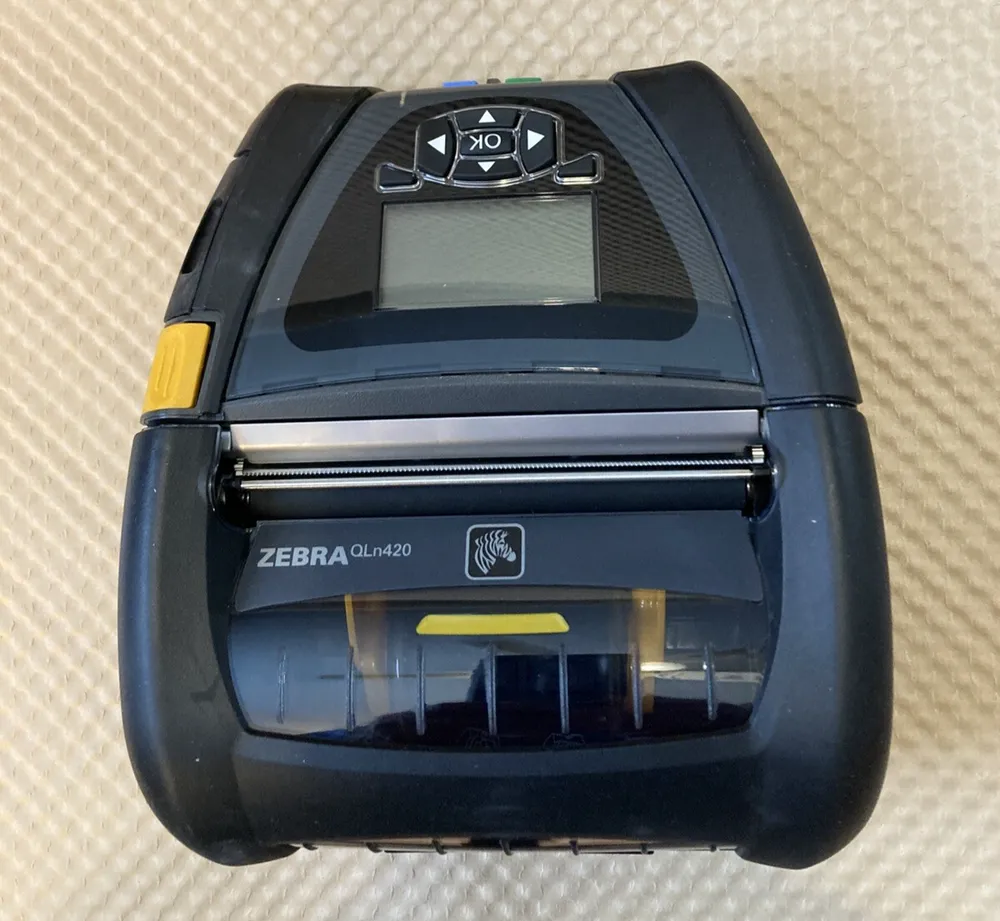

The Zebra QLn420 is a compact mobile label printer designed for efficient on-the-go printing within various industries. It incorporates direct thermal printing technology, enabling printing without ink or toner, primarily for labels and receipts. The device supports advanced connectivity options including Bluetooth, Wi-Fi, and USB, facilitating integration with numerous mobile and desktop devices. Its robust design supports operation in demanding environments, meeting IP54 standards for dust and moisture resistance. The QLn420 features a 203 dpi print resolution, producing sharp and clear labels up to 4 inches wide. Additionally, its user interface includes a color LCD display and intuitive buttons for easy navigation and printer status monitoring.
This mobile printer accommodates battery-powered operation with a high-capacity rechargeable lithium-ion battery, enhancing its portability for field use. With onboard memory options and compatibility with multiple programming languages such as ZPL (Zebra Programming Language), it offers flexible label format management and customization. Overall, it balances performance, durability, and connectivity, making it suitable for logistics, retail, manufacturing, and healthcare applications.
Specifications
MPN | QLN420, QN4AUCA0M0000 |
UPC | 0783555026366 |
Model | QLn420 |
Memory | 128 MB Flash; 64 MB SDRAM |
Technology | Thermal |
Connectivity | USB 2.0, Wireless 802.11b/g/n (Wi-Fi), Bluetooth 3.0 |
Output Type | Black & White |
Features | Portable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Product Line | Zebra QLn |
Printer Type | Mobile Direct Thermal Printer |
Print Width | 4.1 inches (104 mm) |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Display | 2.3-inch color LCD display with button interface |
Battery | Rechargeable 7.2V Lithium-ion 3250 mAh high capacity battery |
Durability | IP54 certified dust and water resistant; 6 ft (1.83 m) drop survival |
Supported Languages | Zebra Programming Language (ZPL), CPCL, EPL |
Media Types | Direct thermal labels, receipts, tags, wristbands |
Media Width | 1.00 in to 4.12 in (25.4 to 104.6 mm) |
Media Roll Diameter | Up to 2.6 inches (66 mm) |
Operating System Compatibility | Windows, Android, iOS (via SDKs and apps) |
Weight | 1.6 lbs (0.73 kg) including battery |
Dimensions | 6.75 in x 3.75 in x 2.75 in (171 mm x 95 mm x 70 mm) |
Images
Key Advantages
The Zebra QLn420 offers exceptional mobility with a lightweight and ergonomic design that enables easy transport and one-handed operation. Its durable construction meets IP54 standards, ensuring reliable performance in harsh environments with resistance to dust and moisture. The printer supports multiple connectivity options including Wi-Fi and Bluetooth, allowing seamless integration with various devices and networks. Featuring a high-resolution 203 dpi print head, it delivers sharp, clear labels essential for barcode scanning and product identification. The rechargeable battery provides extended operation, minimizing downtime during shifts, and the user-friendly interface with color LCD enhances usability. Additionally, its compatibility with Zebra’s Link-OS ecosystem provides enhanced management and diagnostic capabilities through mobile apps and software suites.
Limitations
Despite its strengths, the QLn420's 203 dpi resolution might not suffice for applications requiring ultra-high definition printing. The device primarily supports direct thermal printing, limiting use to thermal-sensitive media and eliminating options for color or thermal transfer printing. Battery life, while generally sufficient, can vary with usage intensity and may necessitate frequent charging during heavy print volumes. The printer's maximum print width of 4 inches may be restrictive for some labeling requirements needing wider formats. Firmware updates and configuration may require some technical knowledge or proprietary Zebra software, which can be a barrier for inexperienced users. Additionally, the device lacks integrated NFC or cellular connectivity, which some contemporary mobile printers now offer for enhanced wireless options.
FAQ
What types of connectivity does the Zebra QLn420 support?
The Zebra QLn420 supports USB, Bluetooth, and Wi-Fi connections, enabling flexible integration with various mobile and desktop devices.
What is the print resolution of the QLn420 printer?
The printer features a 203 dpi print resolution, suitable for clear barcode and label printing.
Can the QLn420 print color labels?
No, the QLn420 uses direct thermal printing technology, which only supports monochrome (black-and-white) prints on thermal-sensitive media.
Is the Zebra QLn420 suitable for harsh environments?
Yes, it has an IP54 rating making it resistant to dust and moisture, suitable for demanding industrial environments.
What is the maximum print width supported by the QLn420?
The maximum print width is 4 inches (approximately 104 mm).
Does the QLn420 support barcode printing?
Yes, it supports a wide range of barcode symbologies and is optimized for effective barcode label printing.
Is the Zebra QLn420 still available for purchase?
The QLn420 is currently still available and has not been officially discontinued.
