Zebra ZD611t
| Brand | Zebra 2023 |
| Model | ZD611t |
| Released Year | 2023 |
| Type | Printers |
| Series | ZD611 |
| Item Weight | 3.59 pounds |
| Maximum Media Size |
|
| Maximum Color Print Resolution |
|
| Product Dimensions | 9.56 x 5.46 x 6.66 inches |
| Status | Active |
Quick view
Overview
The Zebra ZD611t is a high-performance desktop thermal transfer printer designed to deliver reliable label printing solutions for office environments. It supports 4-inch print width and offers a print speed of up to 8 inches per second, utilizing direct thermal and thermal transfer technologies. The printer is equipped with a 203 dpi or optional 300 dpi print resolution, ensuring crisp, clear text and barcode quality. Connectivity options include USB, Serial, Bluetooth, and optional Wi-Fi, facilitating easy integration into existing systems. A user-friendly 4.3-inch color LCD touchscreen enhances configurability and monitoring. Its durable design includes a metal frame and elements that enable long-term, maintenance-friendly operation ideal for medium-duty printing jobs.
Specifications
| Printer Type | Thermal Transfer and Direct Thermal Printer |
| Print Width | 4.09 inches (104 mm) |
| Print Speed | Up to 8 inches per second (203 mm/s) |
| Print Resolution | 203 dpi (8 dots/mm) standard, optional 300 dpi (12 dots/mm) |
| Media Type | Labels, tags, continuous roll, fan-fold, linerless media |
| Media Width | 0.75 inch to 4.65 inches (19 mm to 118 mm) |
| Connectivity | USB 2.0, Serial, Bluetooth, optional Wi-Fi |
| Display | 4.3-inch color LCD touchscreen |
| Dimensions | 8.7 x 9.3 x 6.7 inches (221 x 237 x 171 mm) |
| Weight | 7.5 lbs (3.4 kg) |
| Processor | 32-bit ARM processor |
| Memory | 256 MB Flash, 128 MB SDRAM |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | External universal switching power supply (100-240V AC) |
| Barcode Symbologies | Code 39, Code 128, UPC, EAN, 2D barcodes including QR Code and Data Matrix |
| Maximum Media Size |
|
| Print media | Labels |
| Max Input Sheet Capacity |
|
| Compatible Devices | PC |
| Maximum Color Print Resolution |
|
| Maximum Black and White Print Resolution |
|
| Warranty Type | Limited Warranty |
| Dual-sided printing | No |
| Max copy resolution color |
|
| Max copy resolution black-white | 300 dpi |
| Duplex | Simplex |
| Hardware Interface | Bluetooth |
| Ink Color |
|
| Additional Printer functions | Print Only |
| Control Method | Touch |
| Processor Count | 1 |
| Series Number | 611 |
| Total Ethernet Ports | 1 |
| Total USB Ports |
|
| UPC |
|
| Printer Ink Type |
|
| Product Dimensions | 9.56 x 5.46 x 6.66 inches |
| Item Weight | 3.59 pounds |
| Item model number | ZD611t |
| Date First Available | February 8, 2023 |
| Manufacturer | ZEBRA |
| Included Components | 1 x Zebra Printer |
| Number of Trays | 1 |
| Specific Uses For Product | Office |

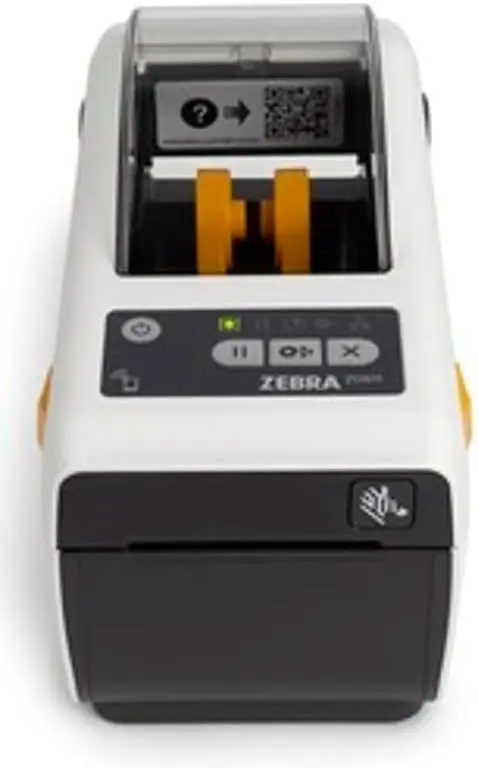

Images
Key Advantages
The Zebra ZD611t offers exceptional print quality with up to 300 dpi resolution for detailed labels. It combines thermal transfer technology for long-lasting label durability and direct thermal printing for quick job completion. The device features multiple connectivity options, including Bluetooth and optional Wi-Fi, enabling flexible deployment. Its intuitive touchscreen interface simplifies user interaction and printer management. A robust metal frame construction ensures greater reliability and lifespan in intensive use scenarios. Additionally, it supports a wide variety of media types for versatile labeling applications.
Limitations
Despite strong reliability, the ZD611t is limited by its 4-inch print width, which may not suffice for larger label needs. The printer is designed primarily for medium volume printing, so high-volume industrial environments might require more heavy-duty printers. Its cost and complexity may be higher compared to basic direct thermal printers due to thermal transfer capabilities. The optional Wi-Fi module adds to deployment cost and initial setup complexity. Media loading for thermal transfer ribbons may have a steeper learning curve for new users. Firmware updates require Zebra's specific tools and can be a limitation for users seeking easy third-party enhancements.
FAQ
What printing technologies does the Zebra ZD611t support?
The Zebra ZD611t supports both thermal transfer and direct thermal printing technologies.
What is the maximum print speed of the ZD611t?
The maximum print speed is up to 8 inches per second on the ZD611t.
Which connectivity options are available on the Zebra ZD611t?
Connectivity options include USB, Serial, Bluetooth, and optional Wi-Fi.
What is the maximum print resolution supported by the ZD611t?
The printer supports print resolutions of 203 dpi standard and an optional 300 dpi variant.
Is the Zebra ZD611t suitable for high-volume industrial printing?
No, it is primarily designed for medium volume desktop printing and may not fit high-volume industrial needs.
Does the ZD611t have a user-friendly interface?
Yes, it features a 4.3-inch color LCD touchscreen for easy operation and configuration.
Can the ZD611t print on different media types?
Yes, it supports a wide variety of label media compatible with thermal transfer printing.
