Zebra ZT 411
| Brand | Zebra 2017 |
| Model | ZT41143-T0E0000Z |
| Released Year | 2017 |
| Type | Printers |
| Series | Z |
| Status | Active |
Quick view
Overview
The Zebra ZT411 is a high-performance industrial label printer designed for office and industrial environments requiring precision and durability. It supports both thermal transfer and direct thermal printing technologies, enabling versatile media usage. The printer is equipped with a 4.3-inch color touch LCD interface for intuitive operation and easy configuration. It offers fast print speeds up to 14 inches per second and high-resolution printing options up to 600 dpi for detailed barcode and graphics output. Connectivity options include USB, serial, Ethernet, and optional wireless capabilities, ensuring flexible integration into various networks. The ZT411 supports a wide range of media types and sizes, with adjustable media handling to optimize label alignment and reduce wastage.
Specifications
| Printer Type | Industrial thermal transfer and direct thermal printer |
| Print Speed | Up to 14 inches per second (355 mm/sec) |
| Print Resolution | 203 dpi standard; optional 300 dpi or 600 dpi |
| Display | 4.3-inch full-color LCD touch screen |
| Connectivity | 10/100Base-TX, Bluetooth, Ethernet (RJ-45), Serial (RS-232), USB 2.0, Wireless |
| Memory | 256 MB RAM memory / 512 MB Flash memory |
| Media Width | 0.79 inches to 4.5 inches (20 mm to 114 mm) |
| Media Type | Labels, tags, continuous, fanfold, die-cut, black mark |
| Ribbon Width | 1.57 inches to 4.33 inches (40 mm to 110 mm) |
| Ribbon Length | Up to 450 meters |
| Dimensions | 10.4 in. W x 19.2 in. D x 13.7 in. H (265 mm x 488 mm x 348 mm) |
| Weight | 36 lb (16.33 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Emulations | ZPL, ZPL II, EPL, XML |
| Power Supply | 100-240VAC, 3A, 50-60Hz |
| Safety Certifications | UL, CE, FCC |
| Supported Scanning Sizes | N/A |
| Roll outside diameter | 203 mm |
| Grayscale Depth | N/A |
| Color Depth | 1 Bit |
| Output Type | Black & White |
| MPN | ZT41143-T0E0000Z |
| Item Length | 19.5 inches (495 mm) |
| Technology | Thermal transfer and direct thermal |
| Item Height | 12.75 inches (324 mm) |
| Features | Networkable, Wireless |
| Item Width | 10.6 inches (269 mm) |
| Input Type | Monochrome |
| Supported Paper Size | widths up to 4.09 inches, engths up to 39 inches, compatible with roll-fed or fanfold media on 3-inch cores |
| Type | Label Printer |
| Maximum Resolution | 300 x 300 DPI |
| Image Sensor | N/A |
| Model | ZT 411 |
| Scanning Resolution | N/A |
| Black Print Speed | 14 ips |
| Country/Region of Manufacture | United States |
| Product Line | Zebra Z |

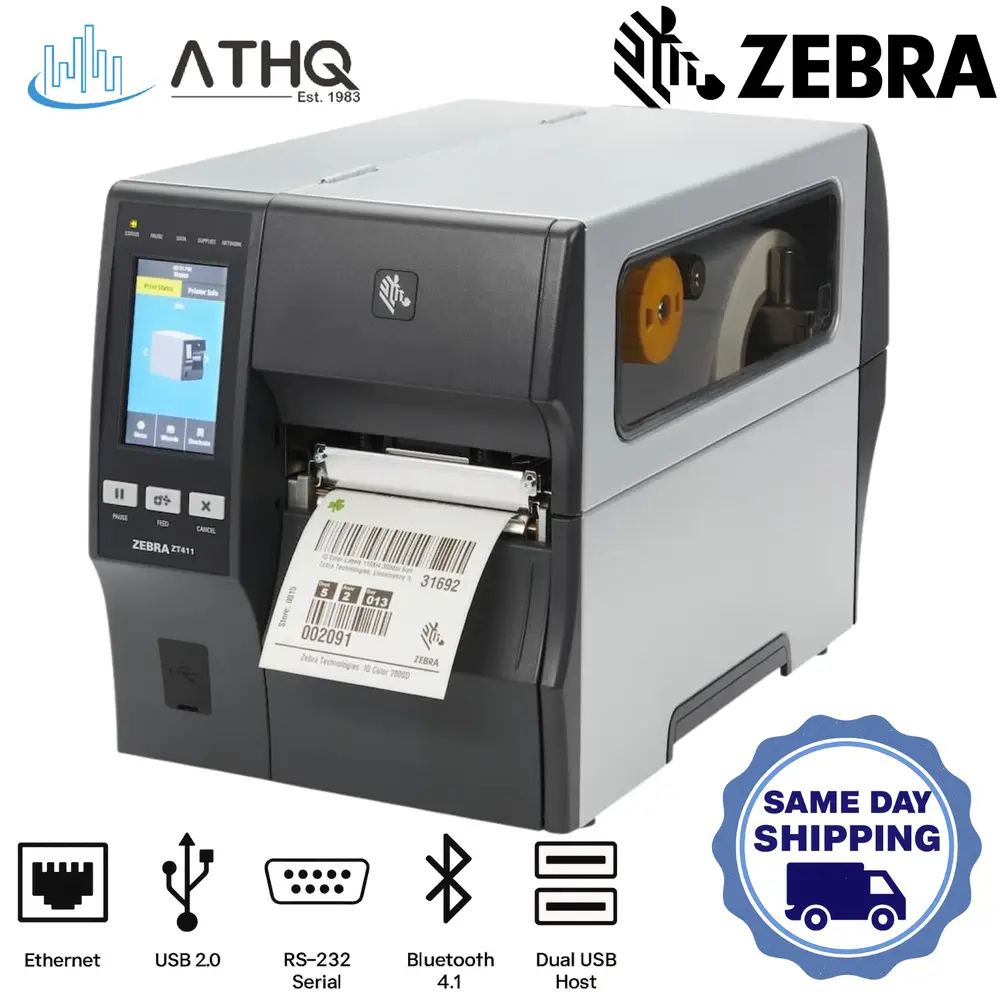

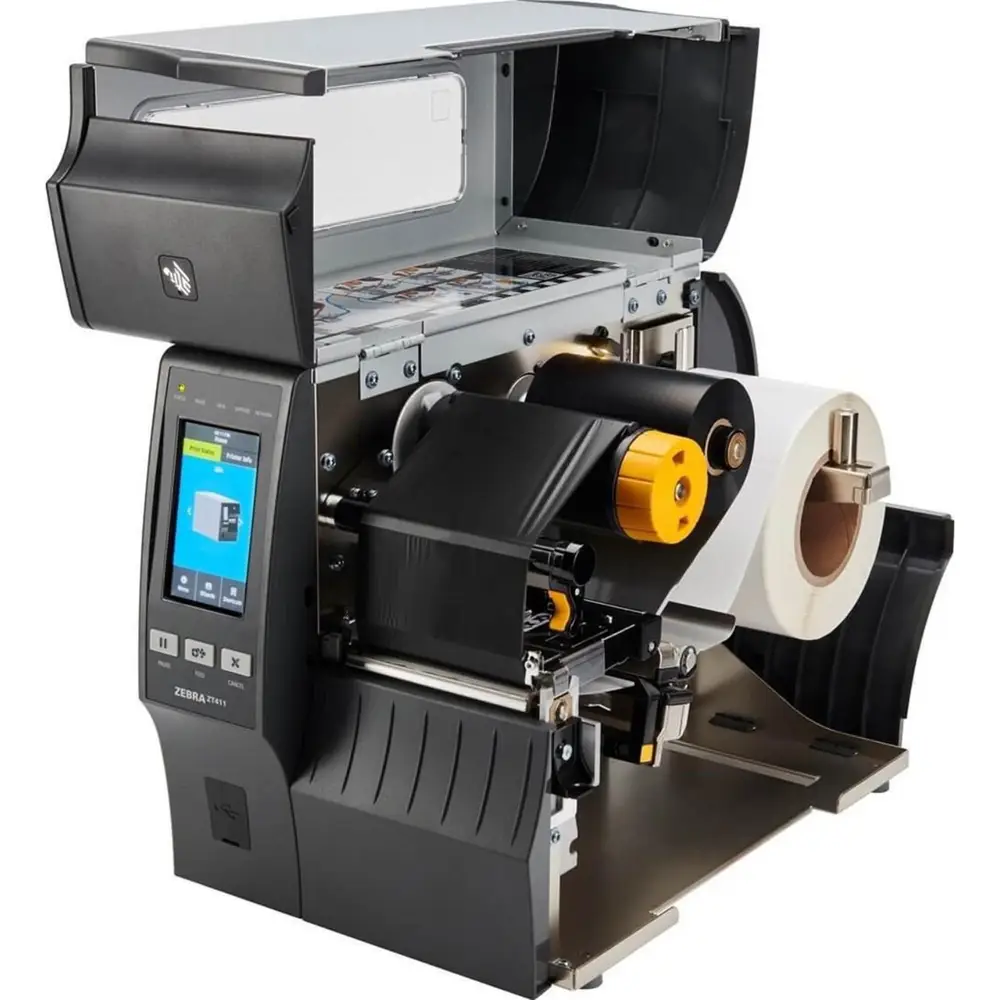

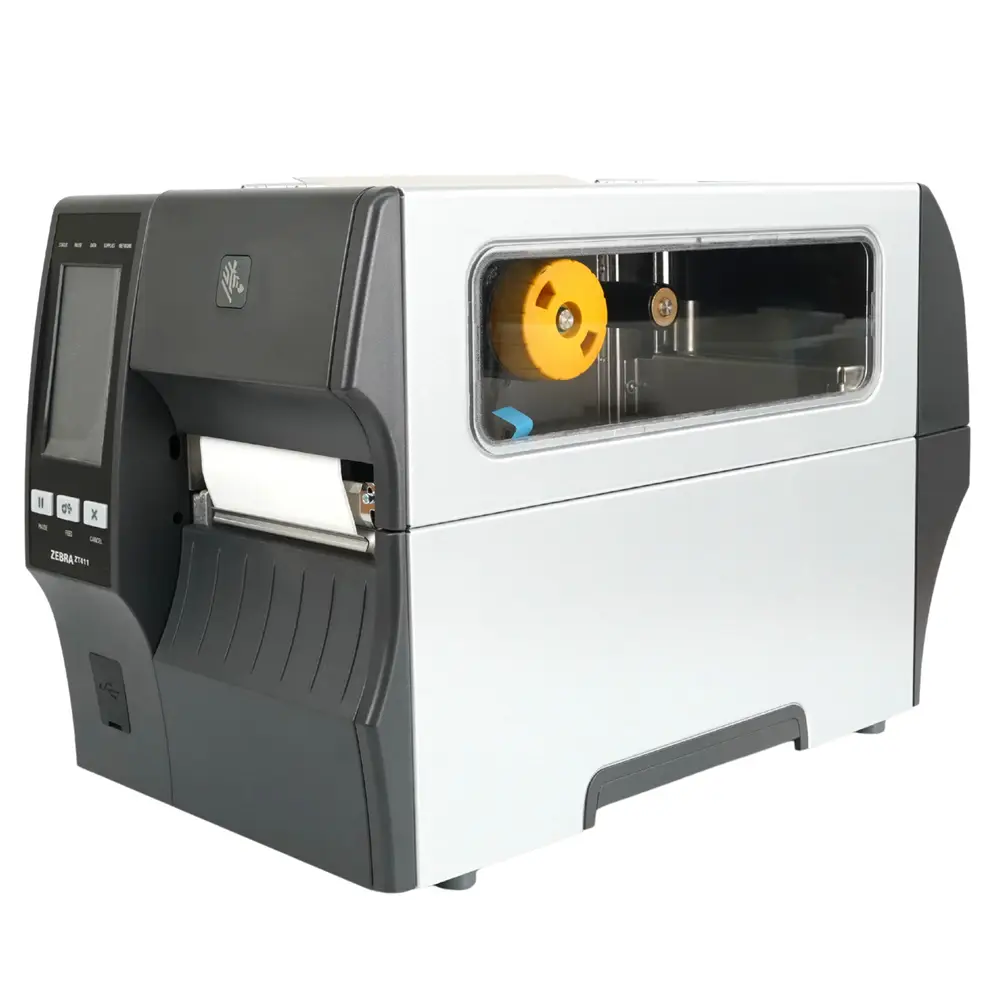

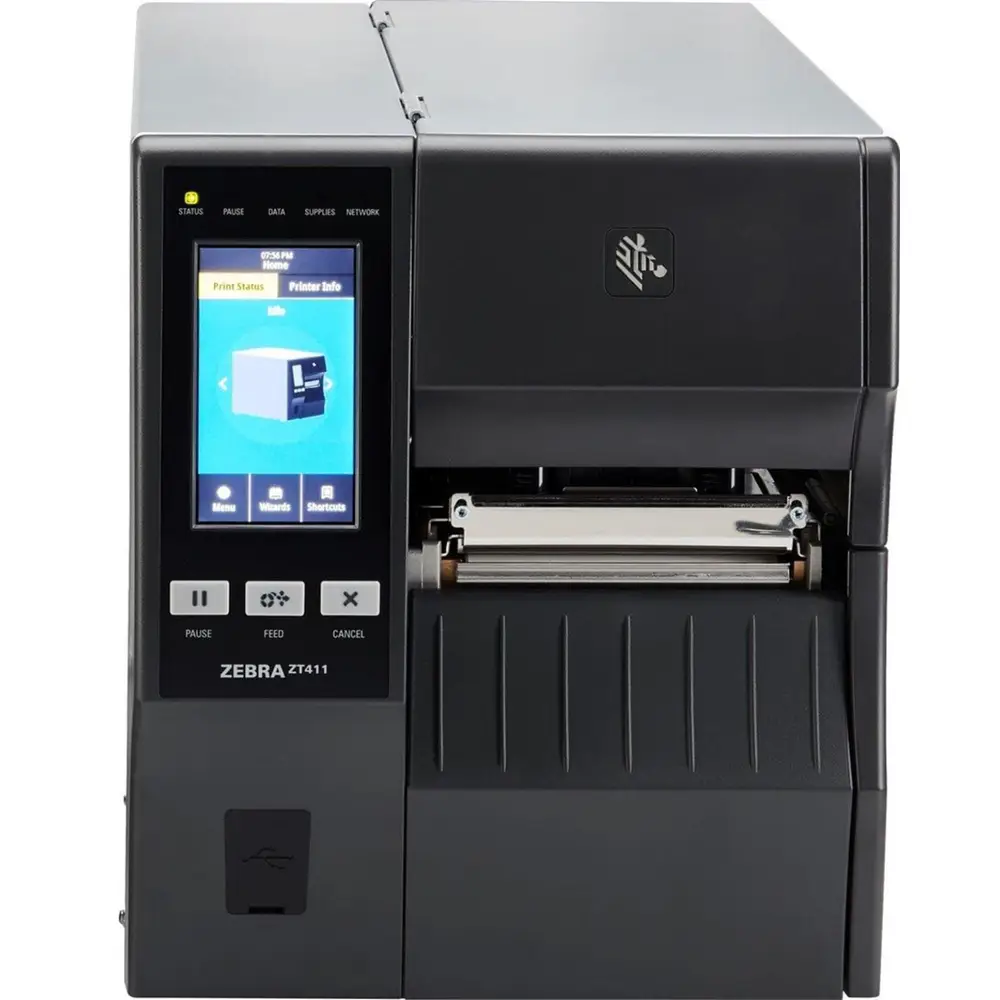

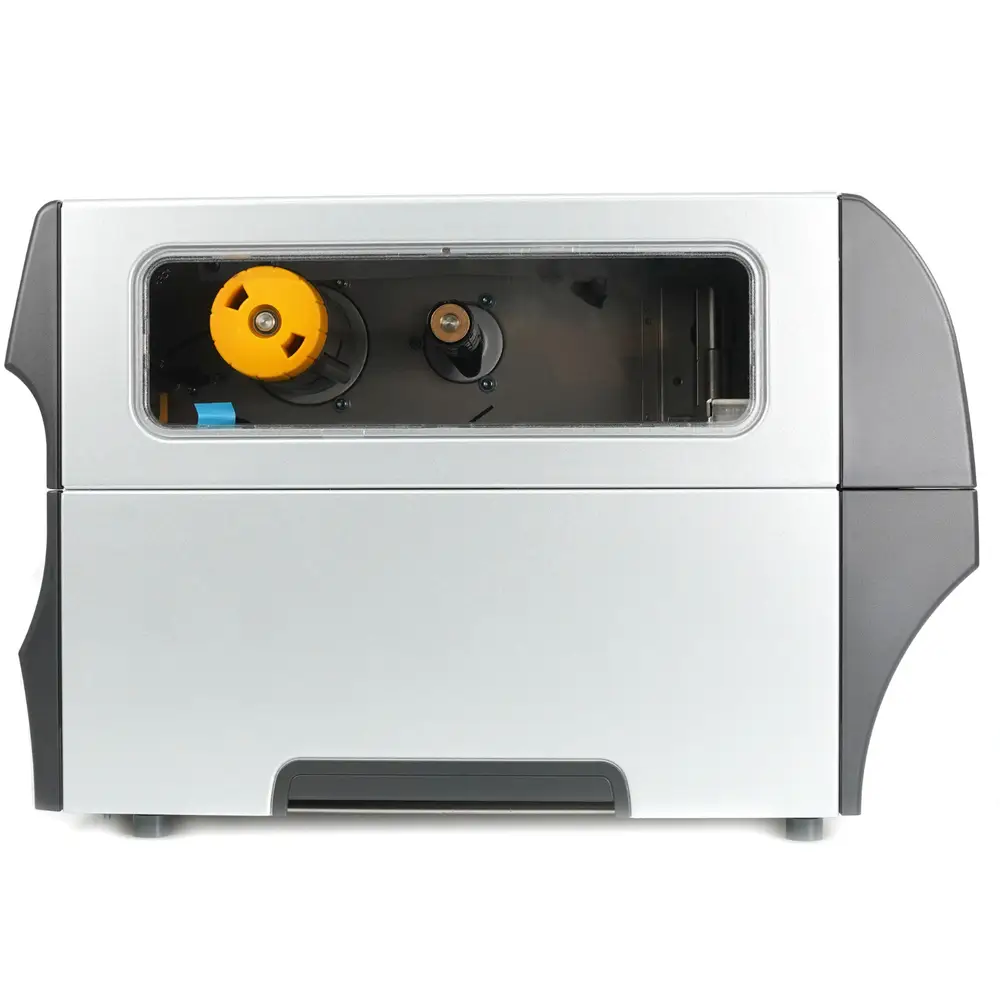

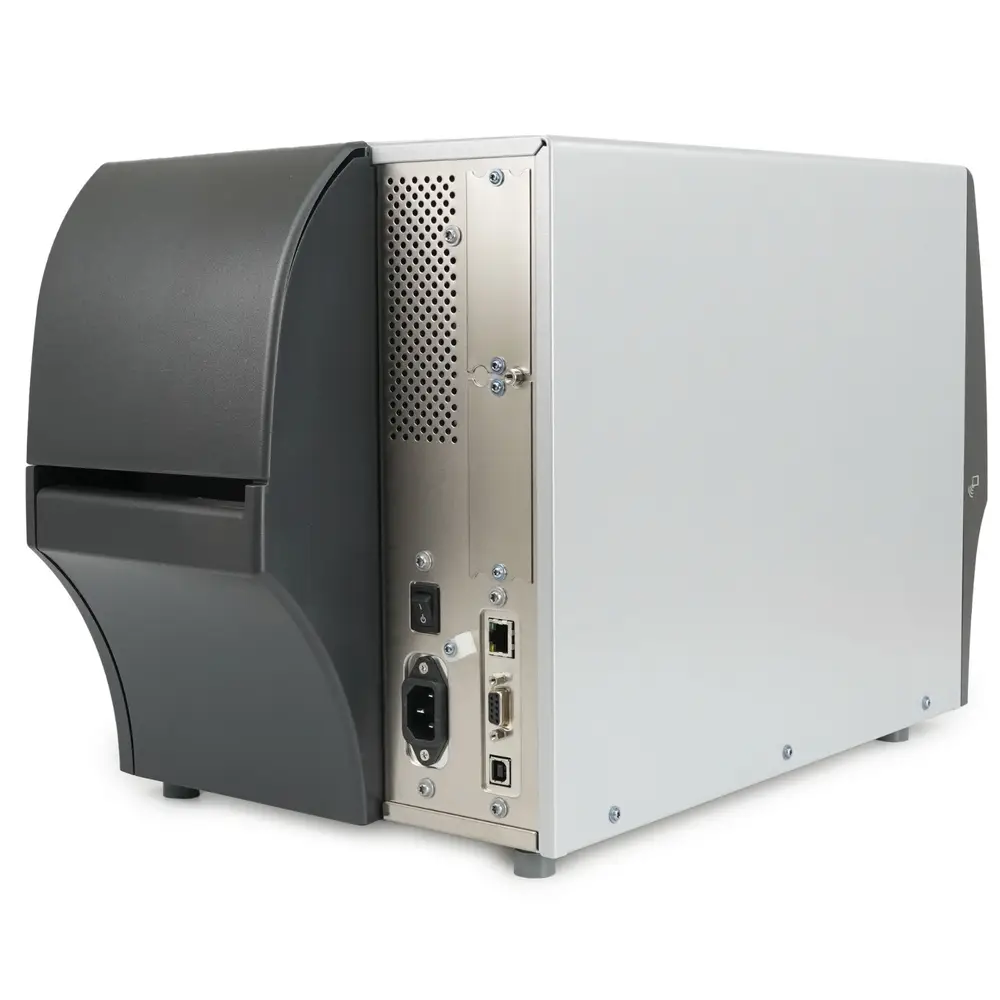

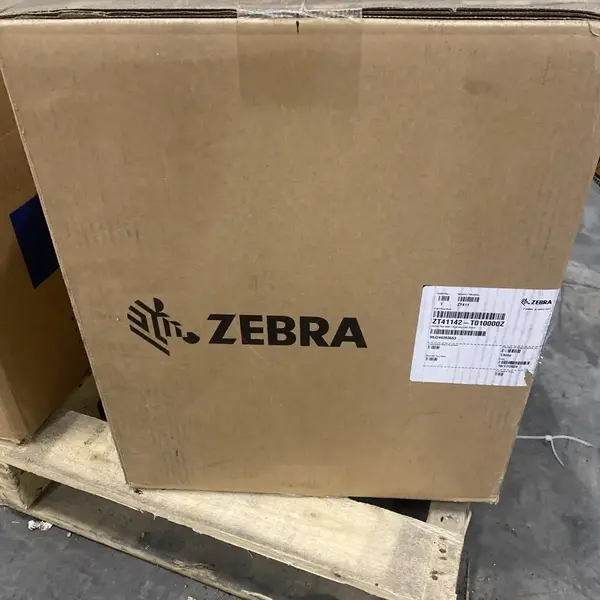

Images
Key Advantages
The Zebra ZT411 offers robust construction suitable for challenging industrial environments. Its wide connectivity options allow seamless integration with existing IT infrastructures. The color touch display significantly enhances user experience by simplifying navigation and configuration changes. High print speeds improve operational efficiency during large volume labeling tasks. The printer supports multiple barcode symbologies and advanced emulation languages, enhancing compatibility with diverse applications. Additionally, its modular design allows easy maintenance and component upgrades, extending device lifespan.
Limitations
Despite its strengths, the ZT411 printer is relatively heavy and bulky, which may limit portability. The initial setup complexity can be high for users unfamiliar with industrial printers. Replacement parts and media cost can be higher than standard office printers. Some advanced features require optional accessories increasing overall investment. The printer requires a stable power source and is not suited for battery operation. Limited firmware updates might restrict compatibility with future software enhancements.
FAQ
What printing technologies does the Zebra ZT411 support?
The Zebra ZT411 supports both direct thermal and thermal transfer printing technologies, allowing flexibility in media usage.
What is the maximum print resolution of the ZT411?
The maximum print resolution available on the ZT411 is 600 dpi, suitable for high-detail labels and barcodes.
Which connectivity options are available on the ZT411?
Connectivity options include USB, serial, Ethernet, and optional wireless interfaces such as Wi-Fi and Bluetooth.
Can the ZT411 handle different sizes of label media?
Yes, the printer features adjustable media handling to accommodate various label widths and lengths.
Is the ZT411 suitable for harsh industrial environments?
Yes, it is designed with a rugged metal frame to withstand demanding industrial conditions.
Does the ZT411 support multiple barcode types?
The printer supports a broad range of barcode symbologies, including 1D and 2D barcodes.
Is the ZT411 still supported by Zebra?
As of now, the ZT411 is not discontinued and continues to receive support from Zebra.
