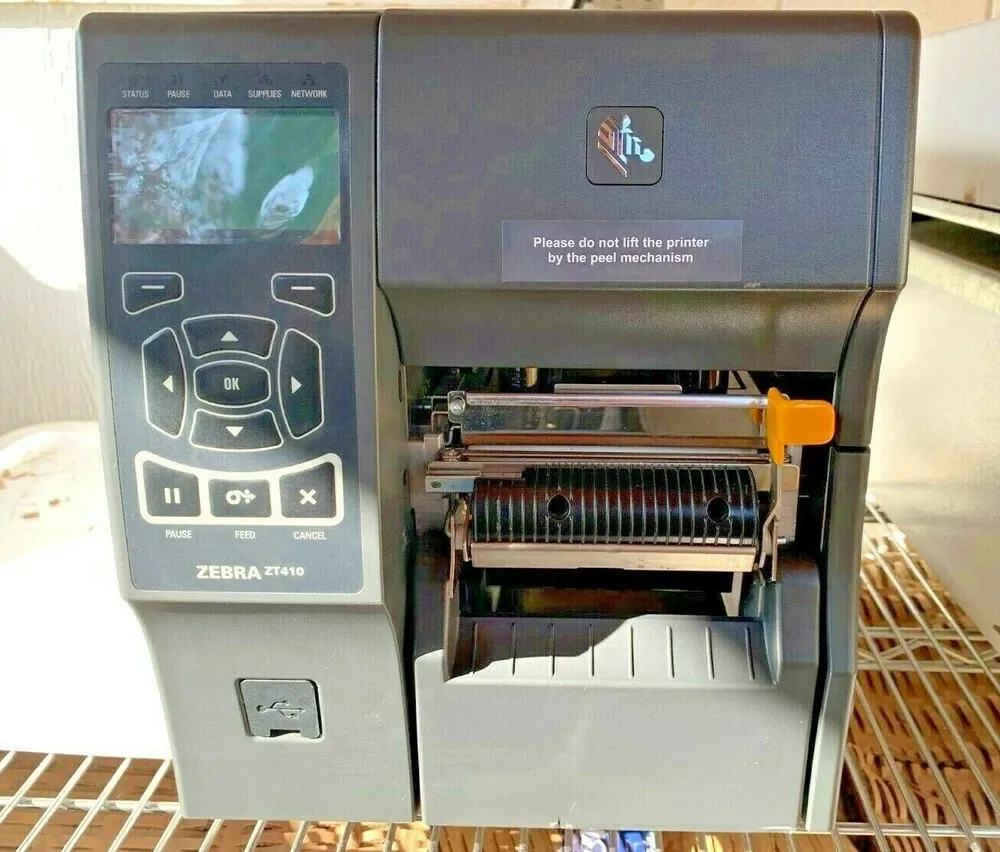

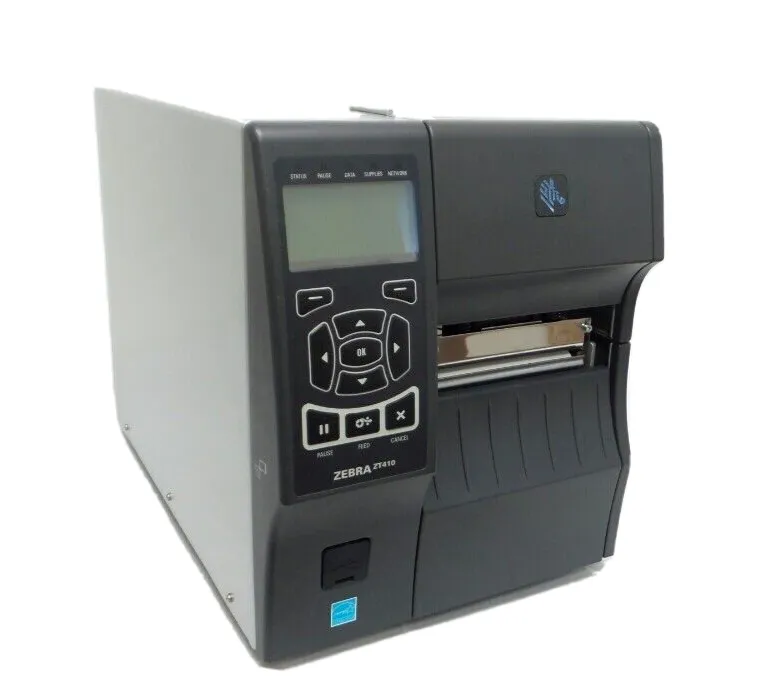

Zebra ZT410 image

Zebra ZT410

Quick information
Brand Zebra 2016
Model ZT410
Released Year 2016
Type Printers
Series Zt410
Status Active
Quick view
Full specs Images

Overview

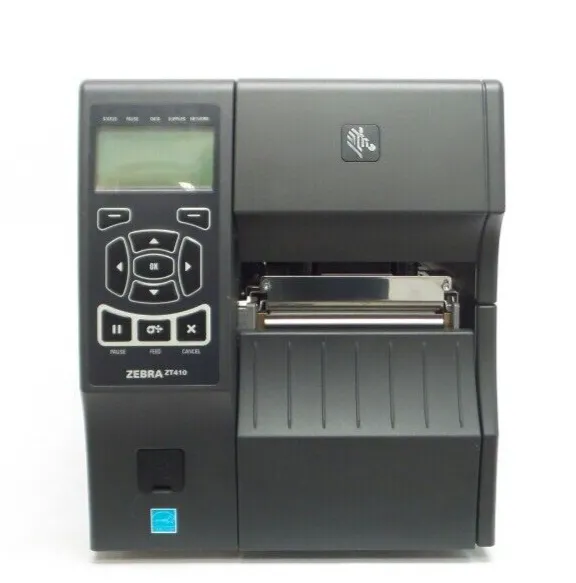

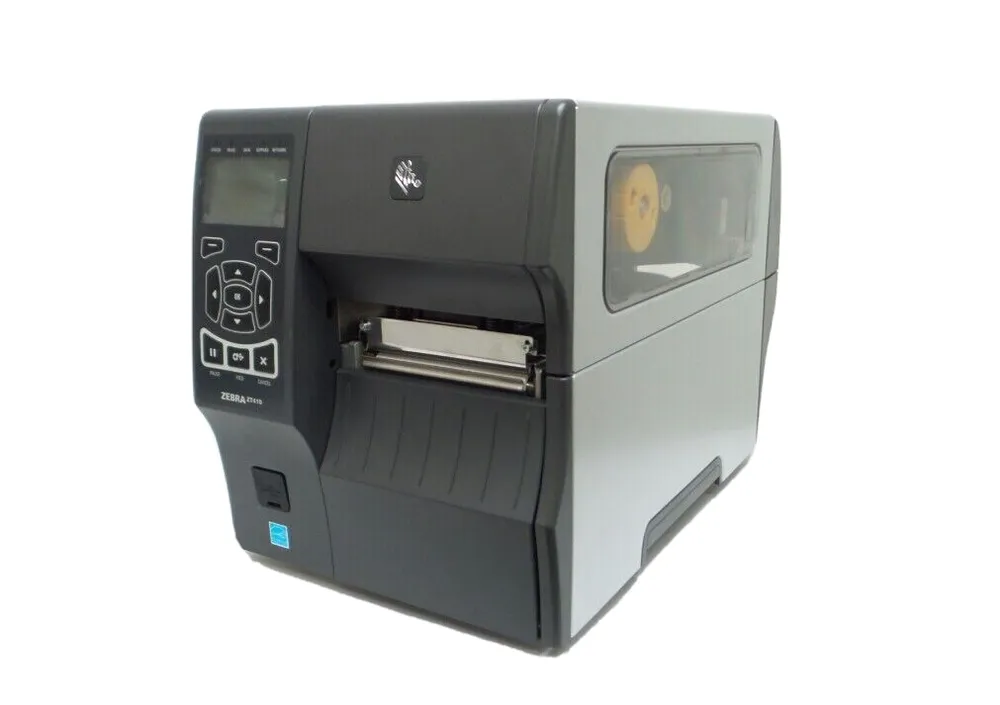

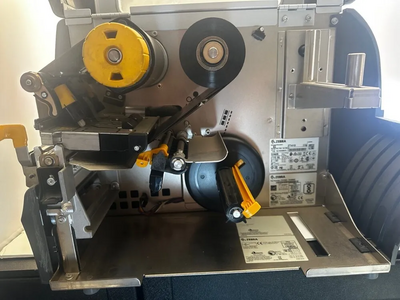

The Zebra ZT410 is an industrial label printer designed for high-volume environments, offering durable and reliable printing performance. It supports printing resolutions of 203 dpi and 300 dpi to accommodate varying label quality needs. The printer is equipped with a variety of connectivity options including USB, Serial, Ethernet, and dual-band Wi-Fi to ensure flexible integration. The ZT410 accommodates media widths up to 4.09 inches and supports a printing width of 4.09 inches as well, perfect for medium-sized labels. It features a rugged metal frame and an intuitive icon-based LCD interface for easy operation. With its modular design, the ZT410 allows for quick replacement of printheads and media, minimizing downtime in busy environments.

Specifications

Non-Domestic Product No
Type Label Printer
Technology
  • Thermal
  • Direct Thermal/Thermal Transfer
Maximum Resolution
  • 203 x 203 DPI
  • 300dpi
Custom Bundle No
Model ZT410
Connectivity
  • 10/100Base-TX, Bluetooth, Ethernet (RJ-45), Serial (RS-232), USB 2.0
  • Serial
  • Ethernet (RJ-45)
  • USB 1.0/1.1
  • USB 2.0
Features Networkable
MPN ZT41042
Modified Item No
Product Line
  • Zebra ZT410
  • ZT400 Series
UPC Does not apply
Printer type Industrial thermal transfer and direct thermal printer
Print resolution 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Maximum print width 4.09 inches (104 mm)
Maximum print length 39 inches (991 mm) continuous or 203 dpi setting
Print speed Up to 14 inches (356 mm) per second at 203 dpi
Processor 32-bit RISC processor
Memory 512 MB Flash, 256 MB SDRAM
Media sensors Transmissive and reflective sensors, adjustable
Media width supported 0.79 inches (20 mm) to 4.5 inches (114 mm)
Media types supported Roll-fed, die-cut, continuous, fan-fold, synthetic labels

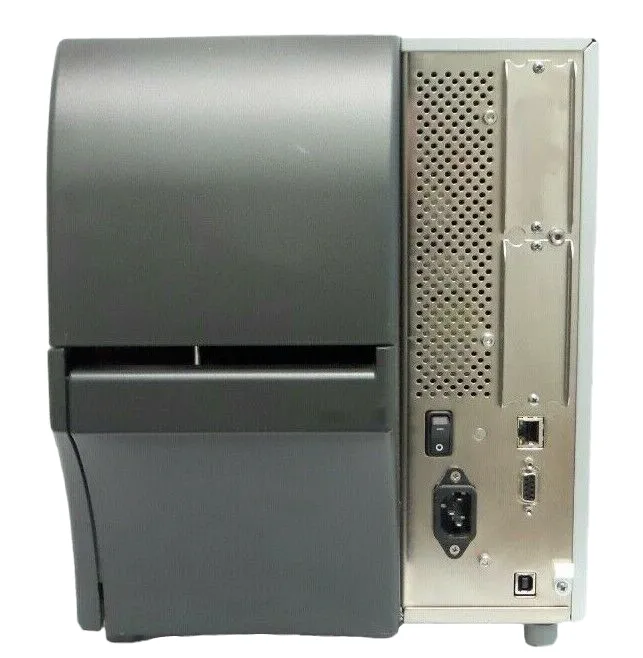

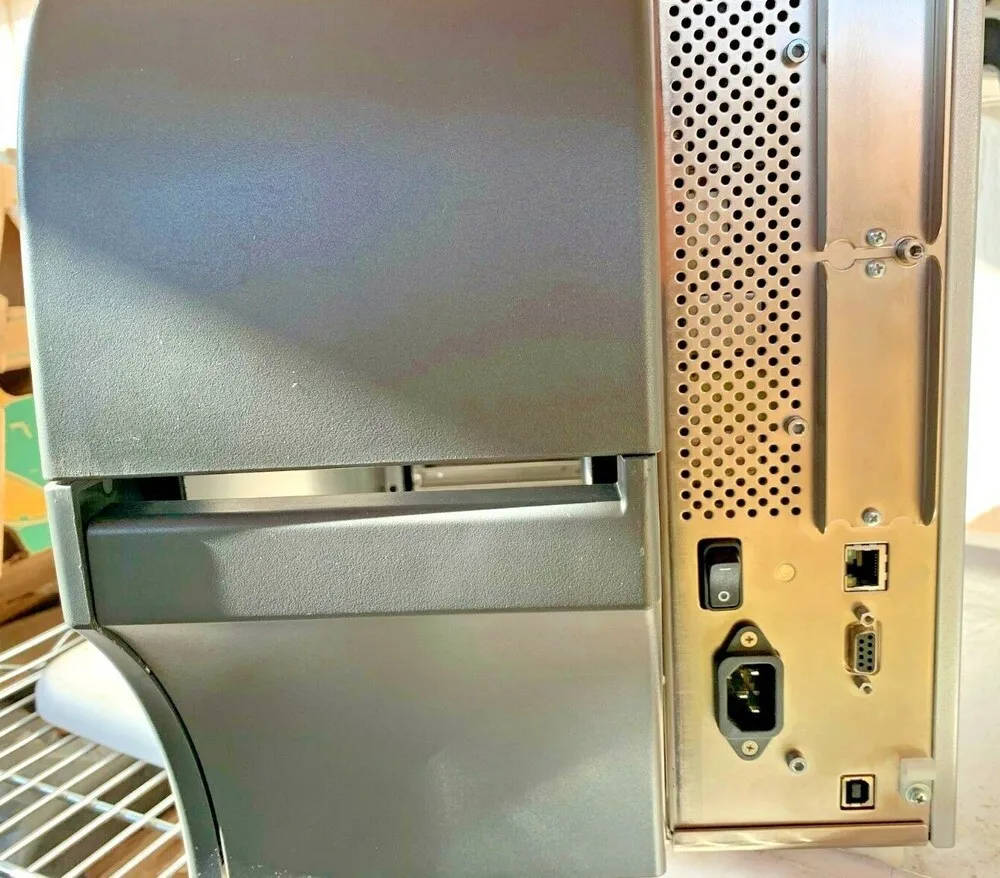

Connectivity options USB 2.0, RS-232 Serial, 10/100 Ethernet, optional 802.11ac Wi-Fi, Bluetooth v4.0
Display 4.3-inch full color LCD with touch and icons
Operating system compatibility Windows 10, 8, 7, Mac OS X, Linux
Dimensions (W x H x D) 10.6 x 11.8 x 18.4 inches (269 x 300 x 468 mm)
Weight 26 lbs (11.8 kg)
Power External universal power supply 100-240 VAC, 47-63 Hz
Environmental specs Operating temperature: 40°F to 105°F (5°C to 40°C), Storage temperature: -40°F to 140°F (-40°C to 60°C)
Certifications FCC Class A, UL, CE, RoHS
Supported programming languages ZPL, EPL, XML
Firmware Link-OS environment
Black Print Speed 14 ips

Key Advantages

The Zebra ZT410 boasts a rugged metal chassis, providing enhanced durability in harsh industrial settings. It offers dual print resolution options (203 dpi and 300 dpi), giving versatility depending on application needs. The printer supports various connectivity options including Ethernet and Wi-Fi for seamless network integration. Its color LCD display with intuitive user interface simplifies operation and configuration. The modular design enables fast replacement of parts, decreasing maintenance time. The printer is compatible with Zebra's Link-OS environment, allowing advanced remote management and software integration.

Limitations

While robust, the ZT410 printer is relatively bulky compared to desktop models, making it less ideal for very compact workspaces. The initial setup and configuration can be complex for users unfamiliar with industrial printers. Although Wi-Fi is available, connection stability depends on network conditions and may require IT support. The cost of consumables and replacement parts may be higher than some entry-level printers. It does not support color label printing, being limited to monochrome thermal transfer or direct thermal printing. Additionally, the printer lacks touchscreen capability, relying on buttons and LCD navigation which may be less user-friendly for some operators.

FAQ

The Zebra ZT410 supports both thermal transfer and direct thermal printing technologies.

The maximum print width supported by the ZT410 is 4.09 inches (104mm).

Yes, the ZT410 offers optional dual-band Wi-Fi (802.11ac) connectivity along with standard Ethernet and USB ports.

The printer can produce print resolutions of either 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm).

As of now, the Zebra ZT410 is still in production and supported by Zebra Technologies.

Yes, the printer is compatible with a wide range of third-party thermal transfer and direct thermal media adhering to its specifications.

The ZT410 is compatible with Zebra's Link-OS software platform, enabling remote monitoring, configuration, and firmware updates.
