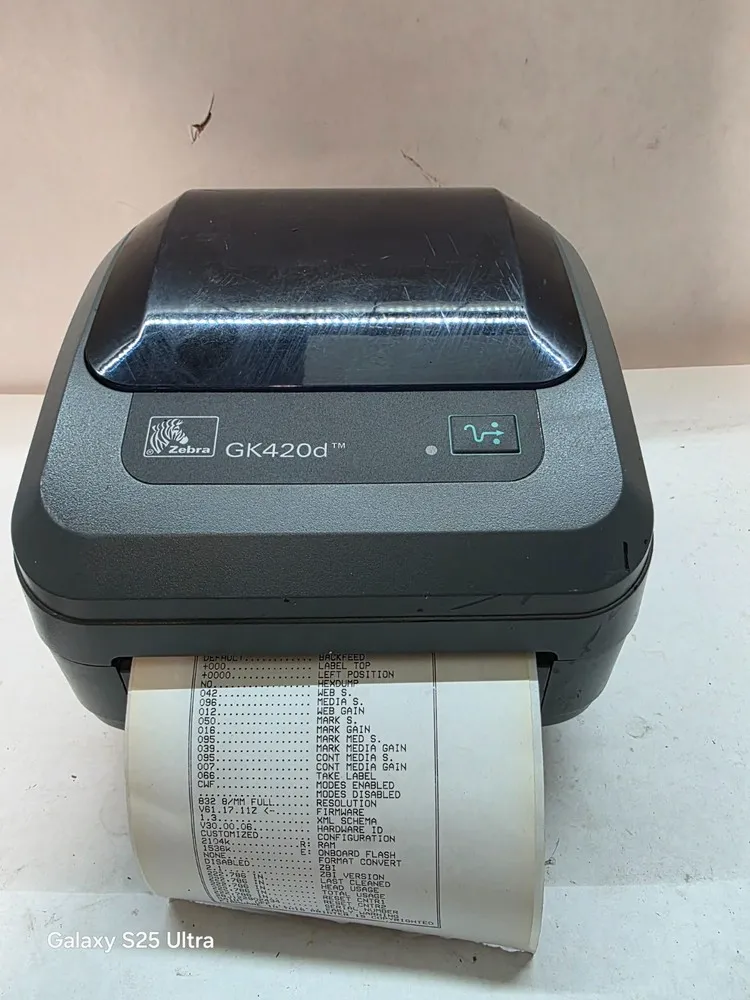

Zebra GK420d
Brand | Zebra 2008 |
Model | GK42-202510-000 |
Released Year | 2008 |
Type | Printers |
Series | Gk |
Status | Discontinued |
Quick view
Overview
The Zebra GK420d is a direct thermal desktop printer engineered to provide reliable and high-quality label printing solutions for office and retail environments.
It features a print resolution of 203 dpi, enabling clear, crisp barcode and text printing for various applications.
The printer supports a maximum print width of 4.09 inches and a print speed up to 5 inches per second, balancing speed and precision for label production.

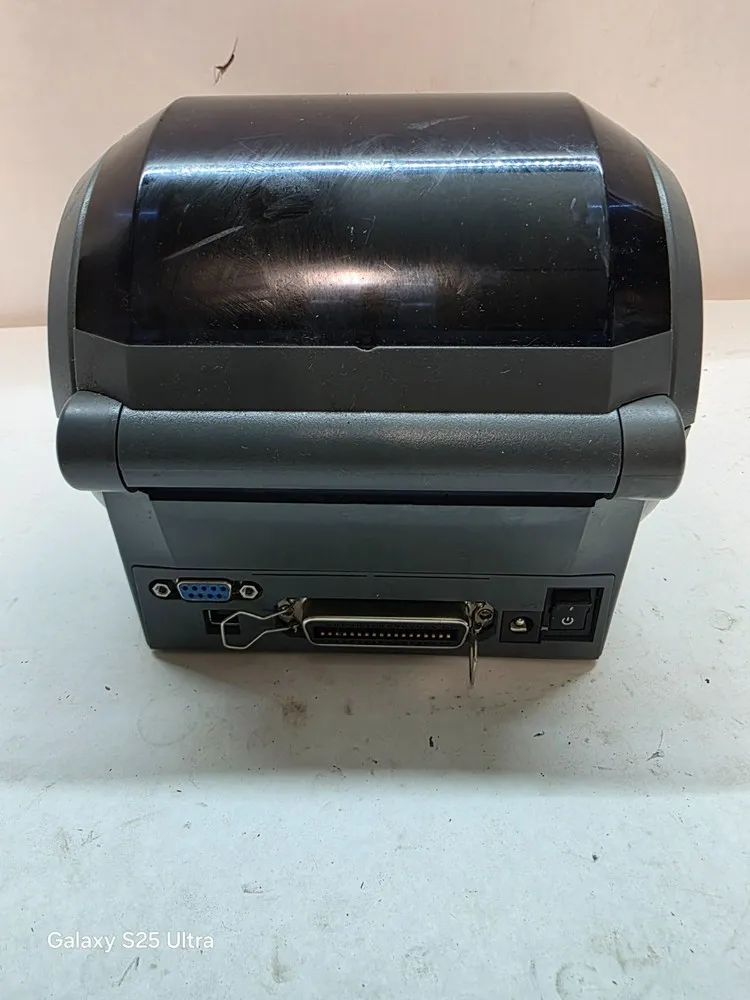

Connectivity options include USB, serial, and parallel interfaces, allowing flexible integration with existing systems.
The compact design facilitates easy placement in space-constrained environments, while the easy-to-load media mechanism helps reduce downtime.
Compatible with a variety of label and tag media, the GK420d excels in environments requiring straightforward thermal printing without thermal transfer ribbons.
Specifications
Printer Type | Direct Thermal Desktop Printer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 5 ips (127 mm/s) |
Memory | 8 MB |
Media Type | Direct thermal labels and tags |
Media Width | 0.75 inches to 4.25 inches (19 mm to 108 mm) |
Media Thickness | 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm) |
Media Sensors | Transmissive and reflective sensors |
Interfaces | USB 1.1, RS-232 Serial, Centronics Parallel |
Dimensions | 7.8 in (W) x 7 in (H) x 10 in (D) (198 mm x 178 mm x 254 mm) |
Weight | About 6.2 lbs (2.8 kg) |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Power Supply | External power supply, 100-240 VAC |
Emulations | ZPL, EPL |
Supported Fonts | Built-in bitmap fonts, including scalable and downloadable fonts |
Input Type | Monochrome |
Output Type | Black & White |

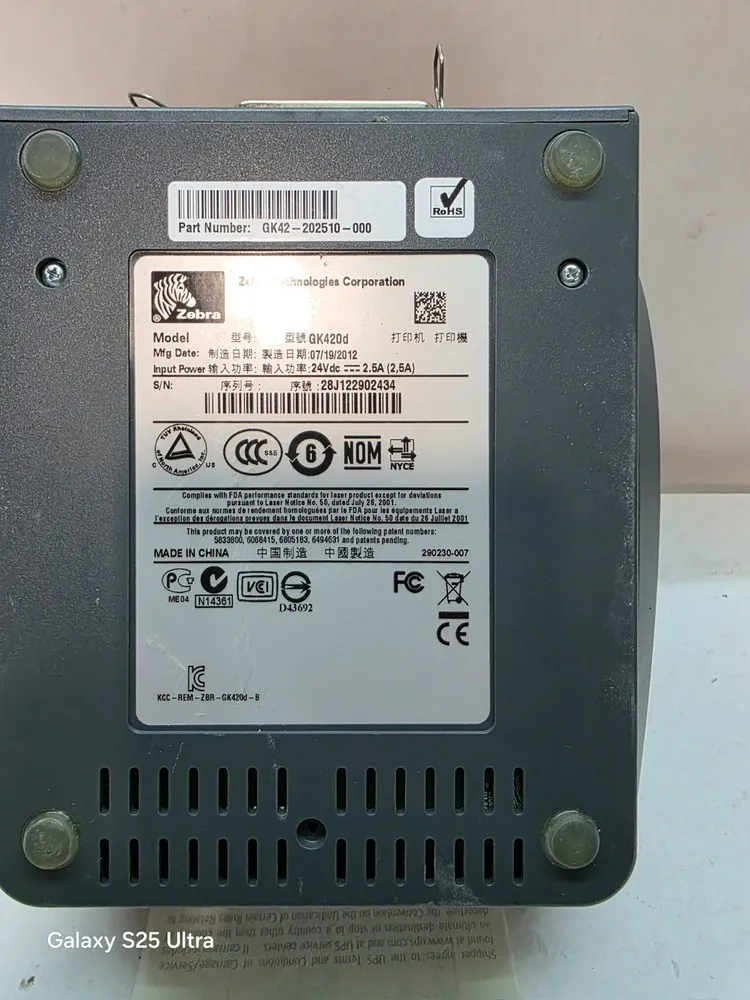

MPN | GK42-202510-000 |
Supported Paper Size | Max Label Width: 4.25" |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | GK420d |
Connectivity | Parallel (IEEE 1284), Serial (RS-232C), USB 2.0 |
Features | Portable |
Black Print Speed | 5 ips |
Product Line | Zebra GK |
Images
Key Advantages
Compact and Space-Saving Design: Fits easily into tight office environments without sacrificing performance.
Ease of Use: Simple drop-in media loading minimizes operator training and downtime.
Versatile Connectivity: USB, serial, and parallel ports allow flexible device integration.
Cost-Effective Operation: Direct thermal printing eliminates the need for ink or ribbon consumables.
Reliable Performance: Durable print mechanism delivers consistent print quality for everyday label needs.
Wide Range of Supported Media: Compatible with various label sizes and types suitable for different applications.
Limitations
Direct Thermal Technology Limitations: Prints may fade over time when exposed to heat or sunlight, unsuitable for long-term label storage.
Print Resolution: At 203 dpi, it may not support ultra-fine graphics or small fonts as needed for some specialized uses.
Print Speed: Moderate speed may not be ideal for high-volume printing environments.
Limited Color Options: Only monochrome (black and white) printing supported since it uses direct thermal technology without ribbon.
No Wireless Connectivity: Lacks built-in Wi-Fi or Bluetooth, which may require additional adapters for modern network setups.
Discontinued Model: As an older device, spare parts and technical support may be limited.
FAQ
What type of printing technology does the Zebra GK420d use?
The Zebra GK420d utilizes direct thermal printing technology, which does not require ink or ribbon but prints images directly on heat-sensitive media.
What is the maximum print resolution of the GK420d?
The maximum print resolution of the GK420d is 203 dots per inch (dpi).
Which connectivity options are available on the GK420d printer?
The printer supports USB, serial, and parallel port interfaces for connectivity.
Can the GK420d print in color?
No, the GK420d supports only monochrome printing since it uses direct thermal technology.
Is the Zebra GK420d still being manufactured?
No, the Zebra GK420d has been discontinued and is no longer in production.
What types of media can the GK420d handle?
It supports a variety of direct thermal labels and tags in widths up to 4.09 inches.
How fast can the GK420d print labels?
The GK420d can print at speeds up to 5 inches per second.
