Zebra ZD620
Brand | Zebra 2017 |
Model | ZD620d, ZD62042-D01F00EZ |
Released Year | 2017 |
Type | Printers |
Series | Zd |
Status | Active |
Quick view
Overview
The Zebra ZD620 series is a high-performance desktop thermal printer designed for office and industrial environments. It features advanced connectivity options including USB, Ethernet, and Bluetooth, allowing seamless integration into existing networks. The printer supports both direct thermal and thermal transfer printing methods for durable label outputs. With a print speed of up to 8 inches per second and a print resolution of up to 300 dpi, it delivers sharp and clear barcodes, text, and graphics. The device incorporates an easy-to-use interface with an LCD screen and supports ZPL, EPL, and other popular printer command languages. Its compact size and robust build make it suitable for space-constrained work areas requiring reliable and fast label printing.
The ZD62042-D01F00EZ model is a specific configuration within the series featuring Bluetooth and Wi-Fi connectivity. A variety of media sizes and types are supported, enhancing flexibility. It includes advanced ribbon handling for thermal transfer models, improving efficiency and reducing waste. Firmware upgrade capabilities via USB and network facilitate maintenance and future enhancements. The printer is compliant with industry standards including ENERGY STAR and offers integration with Zebra's printer management tools. Overall, the ZD620 series provides versatile and dependable printing solutions for logistics, healthcare, retail, and manufacturing sectors.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 256 MB |
MPN | ZD620d, ZD62042-D01F00EZ |
Supported Paper Size | Max Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZD620 |
Connectivity | Bluetooth, Ethernet (RJ-45), Serial (RS-232C), USB 2.0 |
Features | Networkable, Portable |
Black Print Speed | 8 ips |
Product Line | Zebra ZD |
Printer type | Desktop Thermal Printer |
Printing method | Direct Thermal and Thermal Transfer |
Print resolution | 203 dpi / 300 dpi / 600 dpi (optional) |
Maximum print speed | 8 inches per second |
Connectivity interfaces | USB 2.0, USB Host, Ethernet, Bluetooth LE, 802.11ac Wi-Fi (model dependent) |
Media types supported | Labels, tags, receipts, continuous, fan-fold, black mark, die-cut |
Media width | 0.585 inches to 4.65 inches (15 mm to 118 mm) |
Media thickness | 0.0025 to 0.01 inches (0.0635 to 0.254 mm) |
Ribbon type (thermal transfer) | Wax, wax/resin, resin |
Ribbon length | 74 m (243 ft) and 300 m (984 ft) options |
Display | 3.5 inch full-color touch LCD |
Printer languages | ZPL, EPL, XML, CPCL |
Dimensions (W x H x D) | 7.4 in x 6.7 in x 8 in (188 mm x 170 mm x 202 mm) |
Weight | Approx. 3.6 kg (8 lbs) |
Operating temperature | 40°F to 105°F (5°C to 40°C) |
Storage temperature | -40°F to 140°F (-40°C to 60°C) |
Power supply | External 110V or 220V power supply |
Certifications | ENERGY STAR qualified, RoHS compliant |

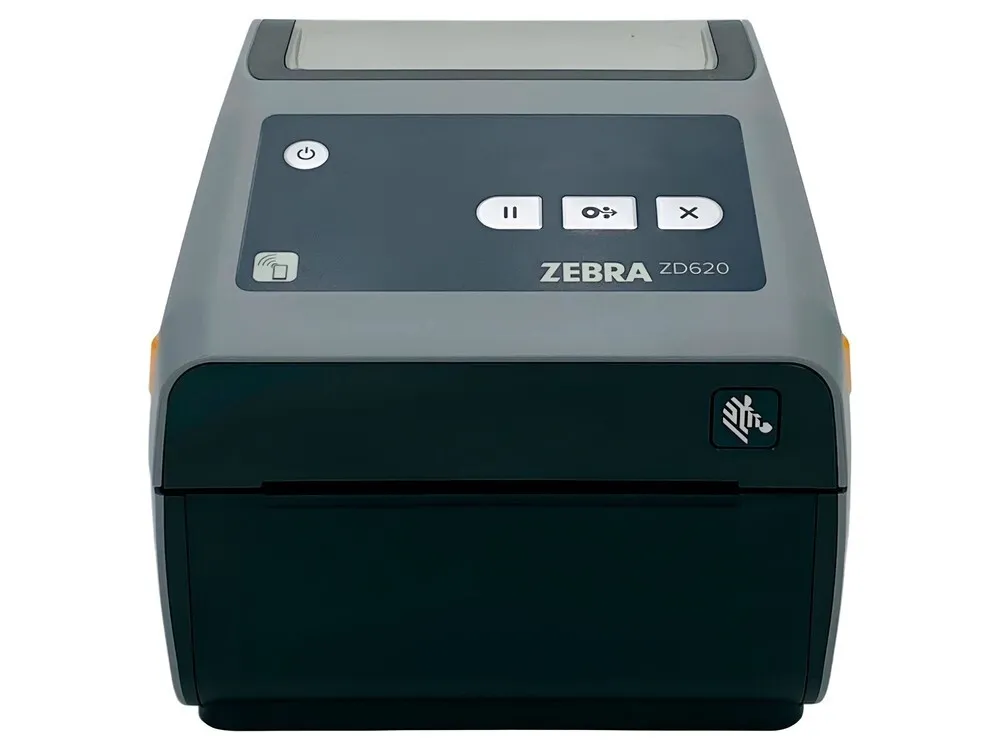

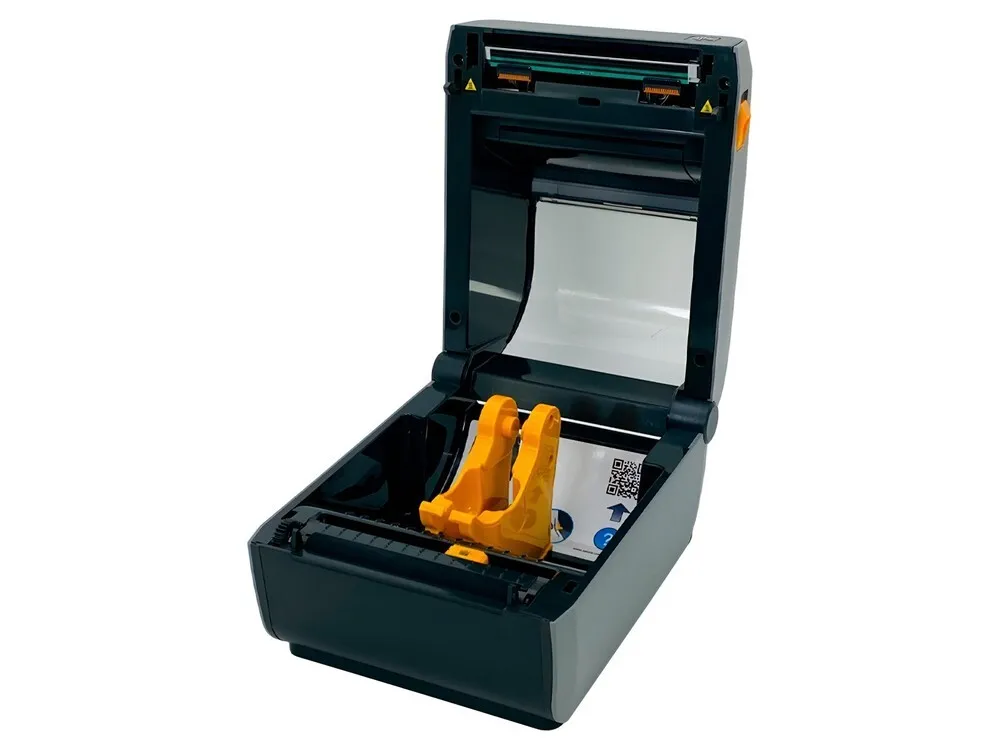

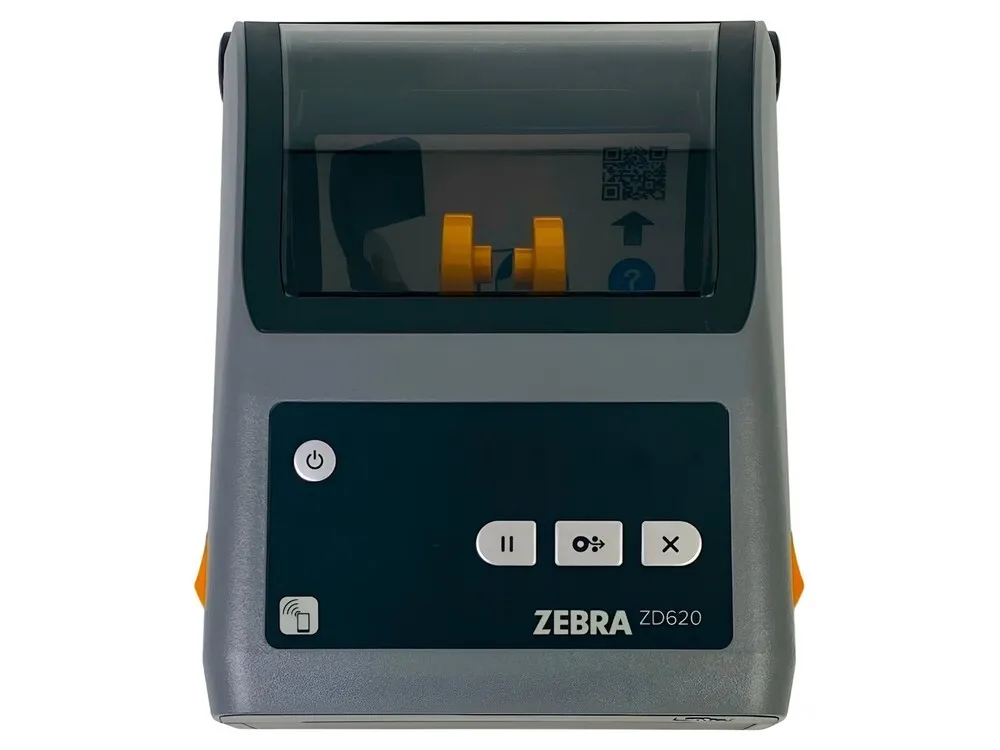

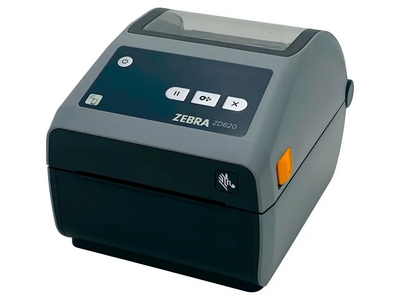

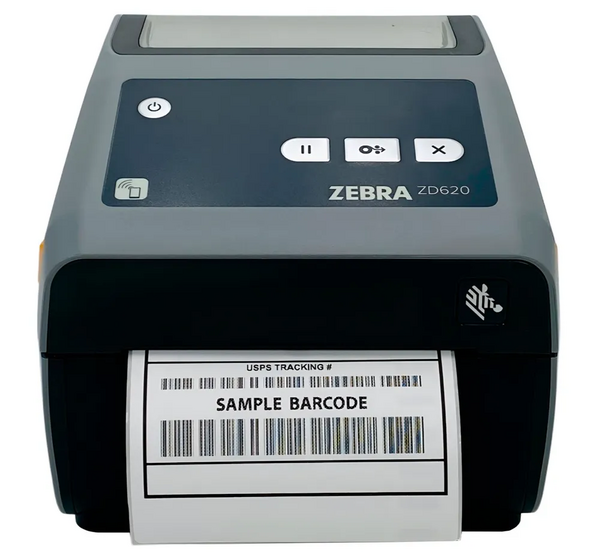

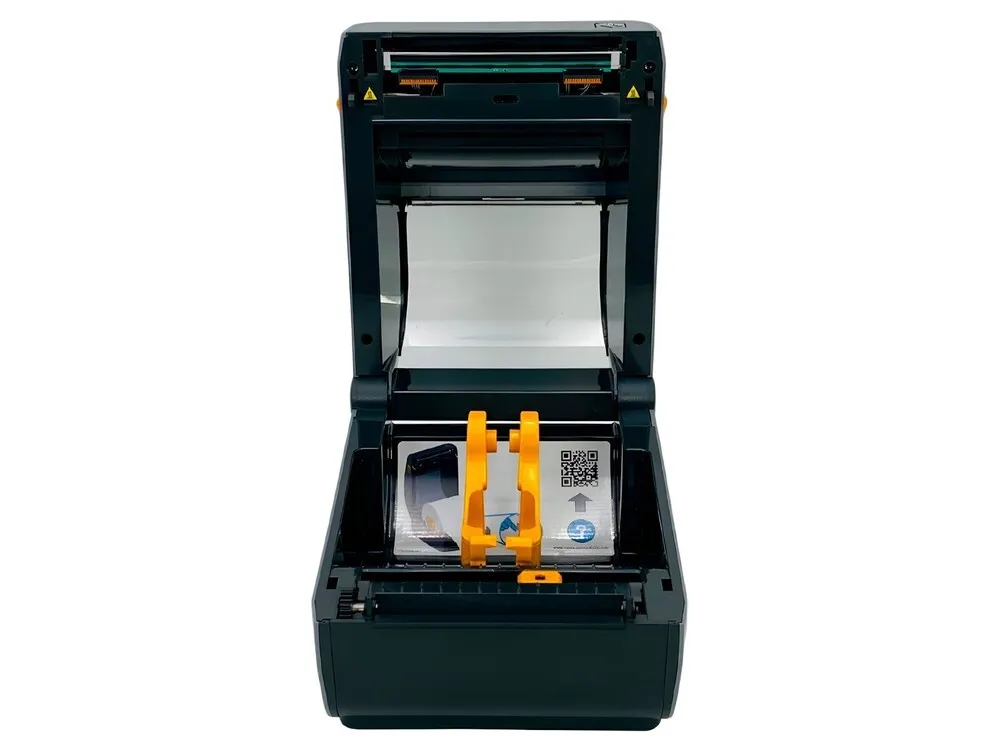

Images
Key Advantages
The Zebra ZD620 offers high print speeds up to 8 IPS, increasing productivity in demanding environments.
It supports multiple connectivity options including USB, Ethernet, Bluetooth, and Wi-Fi for versatile deployment.
High resolution print options (203, 300, and 600 dpi) ensure precise label clarity and quality.
The printer supports popular languages like ZPL and EPL enabling compatibility with a wide range of applications.
Its intuitive LCD display and easy ribbon/media loading reduce downtime and simplify operation.
Compact and durable design fits small workspaces while withstanding industrial usage.
Limitations
The ZD620 series primarily supports thermal printing only, limiting use cases that require other print technologies.
Its media capacity is smaller compared to larger industrial printers, needing more frequent media replenishment.
Higher cost models with 600 dpi print resolution may be less accessible for small businesses on a budget.
The device requires proprietary Zebra ribbons for thermal transfer printing, which can increase operational expenses.
While connectivity is broad, some legacy interfaces like parallel or serial ports are not supported.
Software setup and integration may require technical knowledge to fully utilize advanced features.
FAQ
What print resolutions are available on the Zebra ZD620?
The Zebra ZD620 series offers print resolutions of 203 dpi, 300 dpi, and an optional 600 dpi for extremely detailed printing.
Does the ZD620 support wireless connectivity?
Yes, select models including the ZD62042-D01F00EZ come equipped with Bluetooth and Wi-Fi capabilities.
What types of printing does the Zebra ZD620 support?
The printer supports direct thermal printing as well as thermal transfer printing for enhanced durability.
Is the ZD620 compatible with other Zebra printers in terms of media and supplies?
Yes, the ZD620 uses many of the same media and ribbons compatible with earlier Zebra desktop printers, but always confirm compatibility.
What printer languages does the ZD620 support?
The ZD620 supports Zebra Programming Language (ZPL), Eltron Programming Language (EPL), and XML among others.
What are the typical applications for the Zebra ZD620 printer?
It is used extensively in manufacturing, healthcare, logistics, retail, and office environments for barcode and label printing.
Can the ZD620 be upgraded with additional connectivity options?
Yes, the printer supports modular connectivity options that can be added to suit network requirements including Ethernet and wireless modules.
