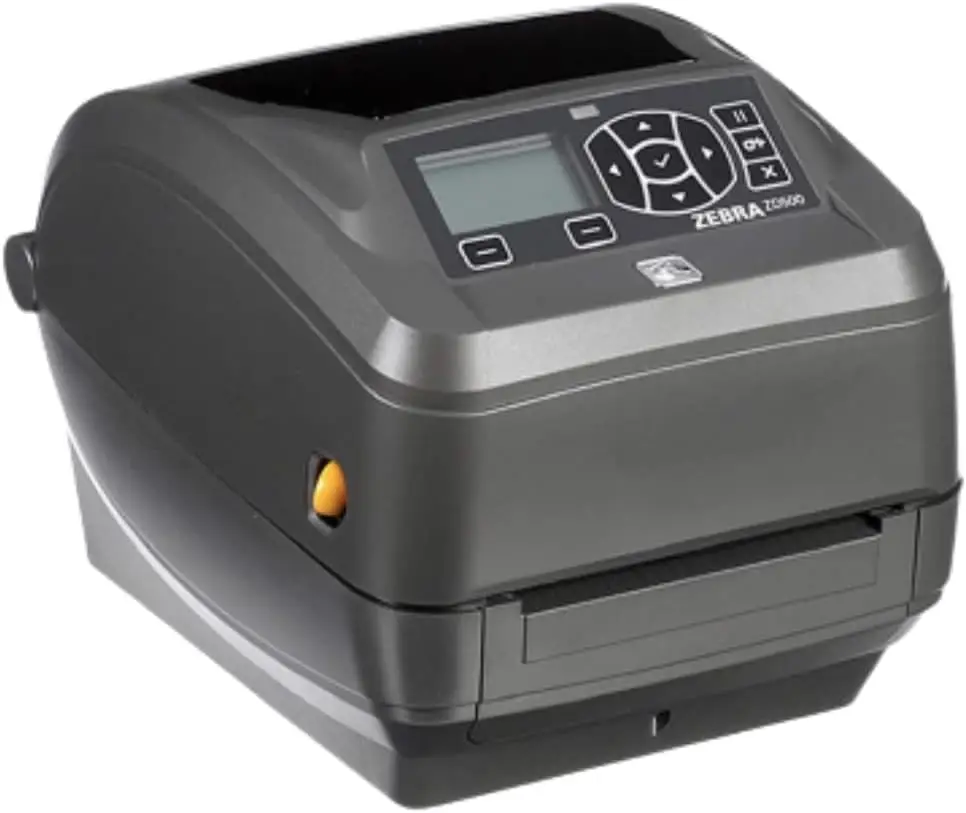

Zebra ZD500t
| Brand | Zebra 2019 |
| Model | ZD500t |
| Released Year | 2019 |
| Type | Printers |
| Series | ZD500 |
| Printing Technology | Thermal Transfer |
| Item Weight | 6.09 pounds |
| Product Dimensions | 10 x 7.6 x 7.5 inches |
| Status | Active |
Quick view
Overview
The Zebra ZD500t is a thermal transfer desktop printer designed with robust performance for office and industrial environments. It supports multiple connectivity options such as USB, Serial, and optional Ethernet or Wi-Fi interfaces for flexible integration. The printer offers a maximum print resolution of 300 dpi, allowing for crisp and clear label printing with detailed barcode and text quality. It features a compact design with user-friendly media loading mechanisms including intuitive drop-in label and ribbon loading. The ZD500t uses a versatile print width of up to 4.09 inches, optimal for a wide array of label sizes in asset tracking, shipping, and inventory management. Its processing speed and memory capacity (256 MB Flash and 128 MB SDRAM) enable efficient handling of complex label formats and graphic printing tasks.
Specifications
| Printing Technology | Thermal Transfer |
| Print Resolution | 300 dpi |
| Maximum Print Width | 4.09 inches (104 mm) |
| Print Speed | Up to 6 inches per second |
| Memory | 256 MB Flash, 128 MB SDRAM |
| Connectivity | USB 2.0, Serial RS-232, Optional Ethernet, Optional Wi-Fi |
| Media Types | Labels, Tags, Receipts |
| Media Width | 1.00 to 4.25 inches (25.4 to 108 mm) |
| Ribbon Width | 1.3 to 4.33 inches (33 to 110 mm) |
| Dimensions (W x H x D) | 7.9 x 7.5 x 11.8 in (200 x 191 x 300 mm) |
| Weight | 7.5 lbs (3.4 kg) |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Power Supply | External Power Supply - 100-240V AC, 50-60 Hz |
| Print Languages Supported | ZPL, EPL, XML |
| User Interface | LCD Display with Buttons |
| Accessories | Peeler, Cutter, External Roll Support |
| Print media | Labels |
| Max Input Sheet Capacity | 11 |
| Compatible Devices | Laptops |
| Sheet Size | 4.25 inches |
| Maximum Black and White Print Resolution | 300 dpi |
| Warranty Type | 90 days limited warranty |
| Dual-sided printing | No |
| Max copy resolution black-white | 300 dpi |
| Duplex | Simplex |
| Hardware Interface | USB |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Total Ethernet Ports | 1 |
| Total USB Ports | 1 |
| UPC | 760575541314 |
| Product Dimensions | 10 x 7.6 x 7.5 inches |
| Item Weight | 6.09 pounds |
| Item model number | ZD500t |
| Is Discontinued By Manufacturer | No |
| Date First Available | July 22, 2019 |
| Manufacturer | Zebra |
Images
Key Advantages
Zebra ZD500t delivers high-quality thermal transfer printing with 300 dpi resolution ensuring precise label details. It boasts an easy-to-use media handling system reducing downtime during cartridge changes. The device offers wide connectivity choices including USB, Serial, Ethernet, and Wi-Fi making it adaptable to various IT infrastructures. Its compact footprint suits limited workspace environments without compromising on performance. The printer supports a range of media types and widths, enhancing versatility for diverse labeling applications. Zebra’s Link-OS environment provides enhanced printer management and integration capabilities for streamlined operations.
Limitations
The ZD500t, while versatile, is not suitable for very high-volume industrial printing compared to larger industrial printers. The need for thermal transfer ribbon imposes an additional consumable cost and occasional maintenance compared to direct thermal models. It lacks color printing capability, limiting use to monochrome labels only. Some optional connectivity modules like Wi-Fi are add-ons, increasing initial investment. The printer's maximum print speed is moderate relative to heavy-duty enterprise label printers, which may impact very fast-paced production environments. Its compatibility is primarily optimized for Zebra's proprietary media and supplies, which may limit third-party consumables usage.
FAQ
What type of printing technology does the Zebra ZD500t use?
The Zebra ZD500t uses thermal transfer printing technology, which requires a ribbon to transfer ink onto labels.
What is the maximum print resolution of the ZD500t?
The printer offers a maximum print resolution of 300 dots per inch (dpi).
Can the ZD500t connect to a wireless network?
Yes, wireless connectivity is optional via add-on Wi-Fi modules.
What kind of media can the ZD500t print on?
It supports a variety of media types including labels, tags, and receipts with widths up to 4.09 inches.
Is the ZD500t suitable for high-volume industrial printing?
No, the ZD500t is designed primarily for desktop use and may not be ideal for very high-volume industrial environments.
Does the ZD500t print in color?
No, it only prints in monochrome using thermal transfer technology.
What are the main connectivity options available on the ZD500t?
The ZD500t includes USB and Serial as standard; Ethernet and Wi-Fi connectivity are available as optional add-ons.
