Zebra S4M Stripe
| Brand | Zebra 2010 |
| Model | S4M00-2001-0700T, Barcode |
| Released Year | 2010 |
| Type | Printers |
| Series | S4M |
| Status | Discontinued |
Quick view
Overview

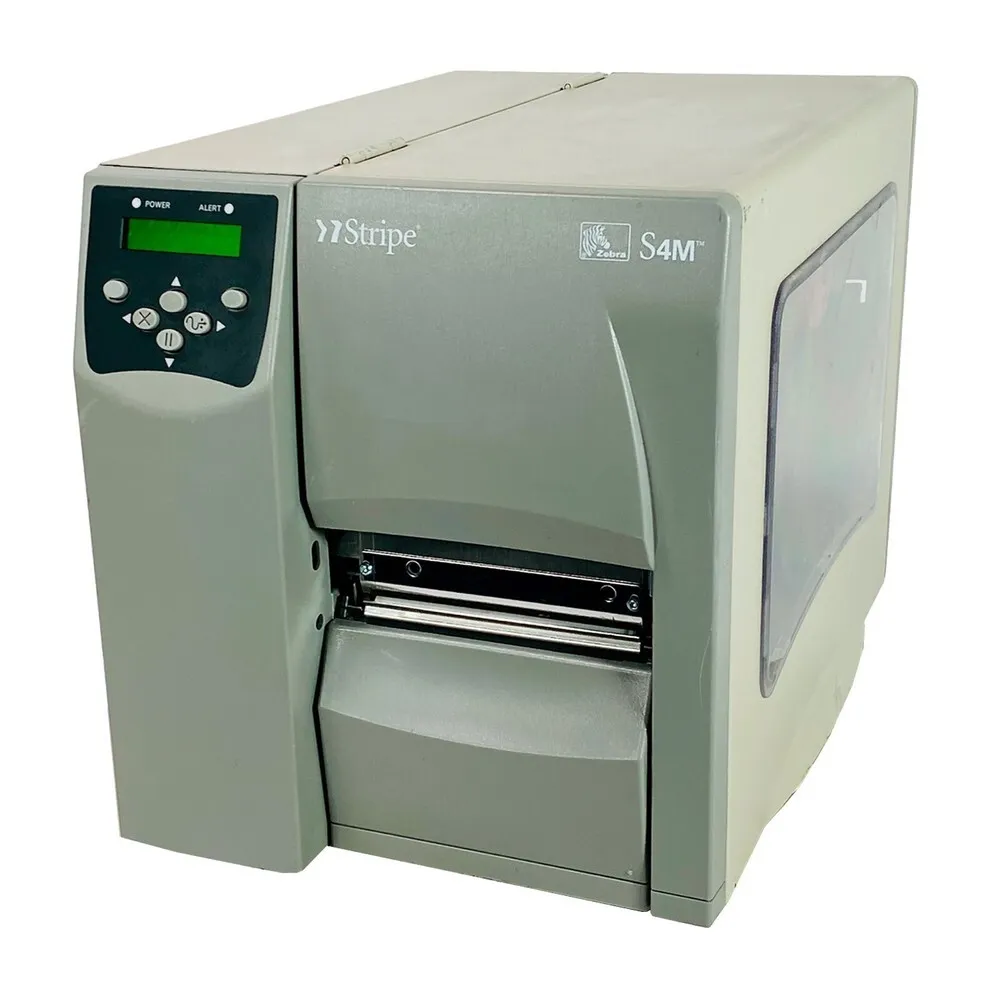

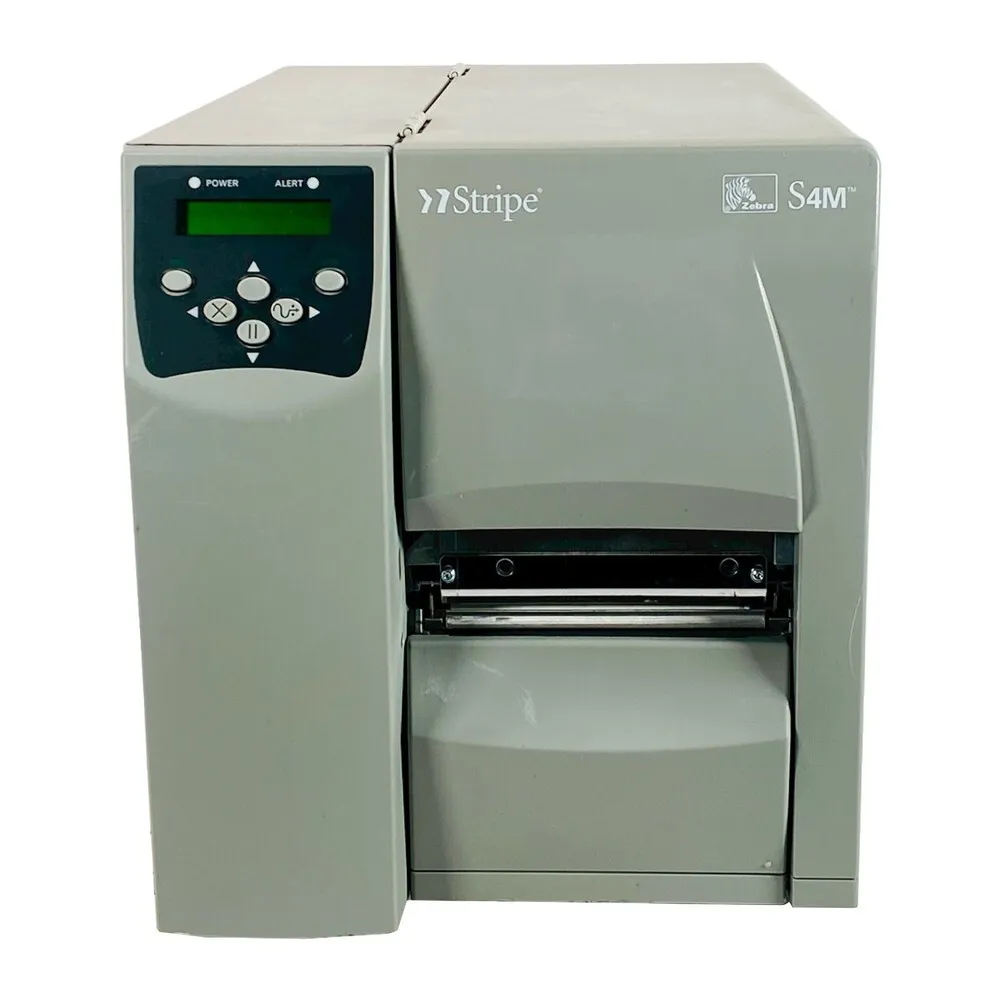

The Zebra S4M Stripe is a mid-range industrial barcode printer designed for durable labeling in various applications including manufacturing and logistics. It supports direct thermal and thermal transfer printing methods, using ribbons to produce long-lasting labels. The printer is equipped with a resolution of 203 dpi (dots per inch), which balances print quality and speed effectively. Featuring a print width of 4 inches and a print speed up to 5 inches per second, the S4M Stripe prioritizes efficiency and clarity. The device includes multiple connectivity options such as serial, parallel, and USB interfaces to ensure compatibility with various host systems. Its construction features a rugged metal frame designed to withstand harsh industrial environments, promoting longevity and reliability.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 8 MB SDRAM, 4 MB Flash |
| MPN | S4M00-2001-0700T, Barcode |
| Max. Resolution | 203 dpi |
| Supported Paper Size | Label Width: 4.50" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Printer Type | Industrial Thermal Transfer and Direct Thermal Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | S4M Stripe |

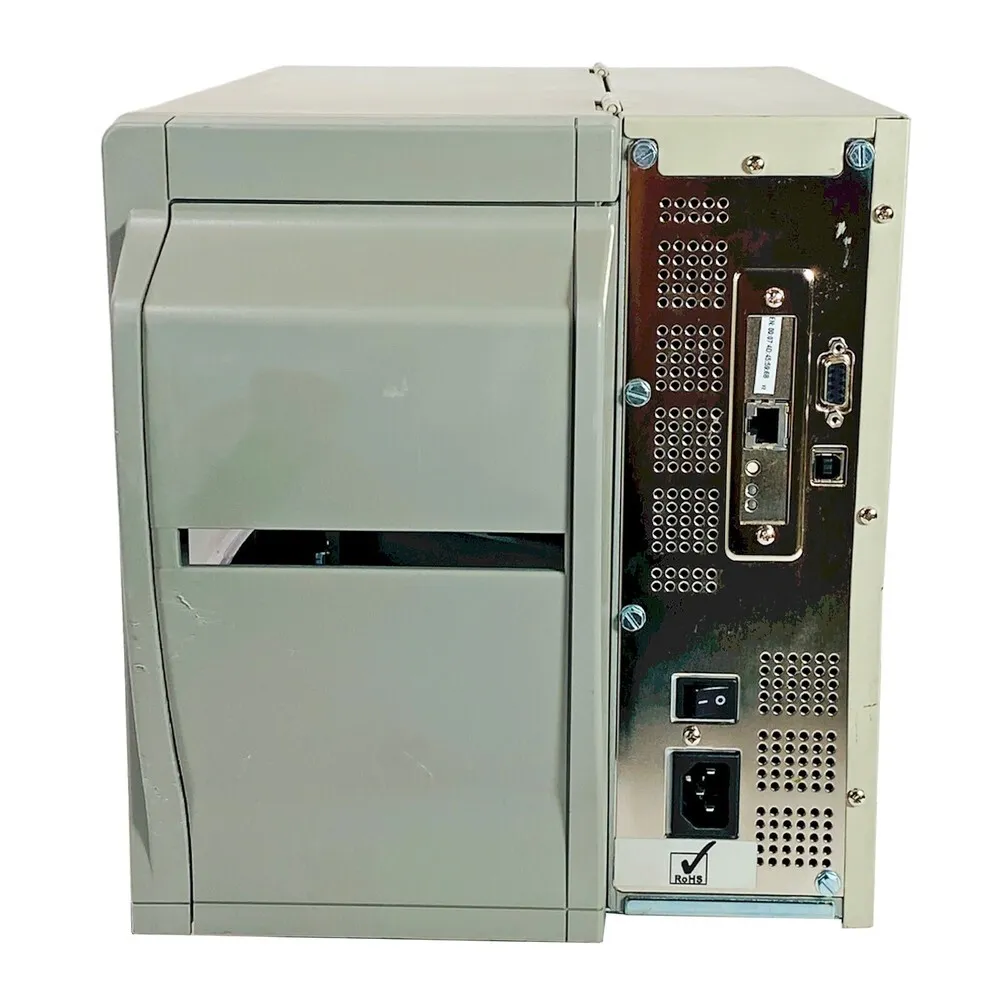

| Connectivity | RS-232 Serial, Parallel, USB 1.1 |
| Features | Networkable |
| Black Print Speed | 6 ppm |
| Product Line | S4M |
| UPC | 728891562963 |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Maximum Print Speed | 5 inches per second (127 mm/s) |

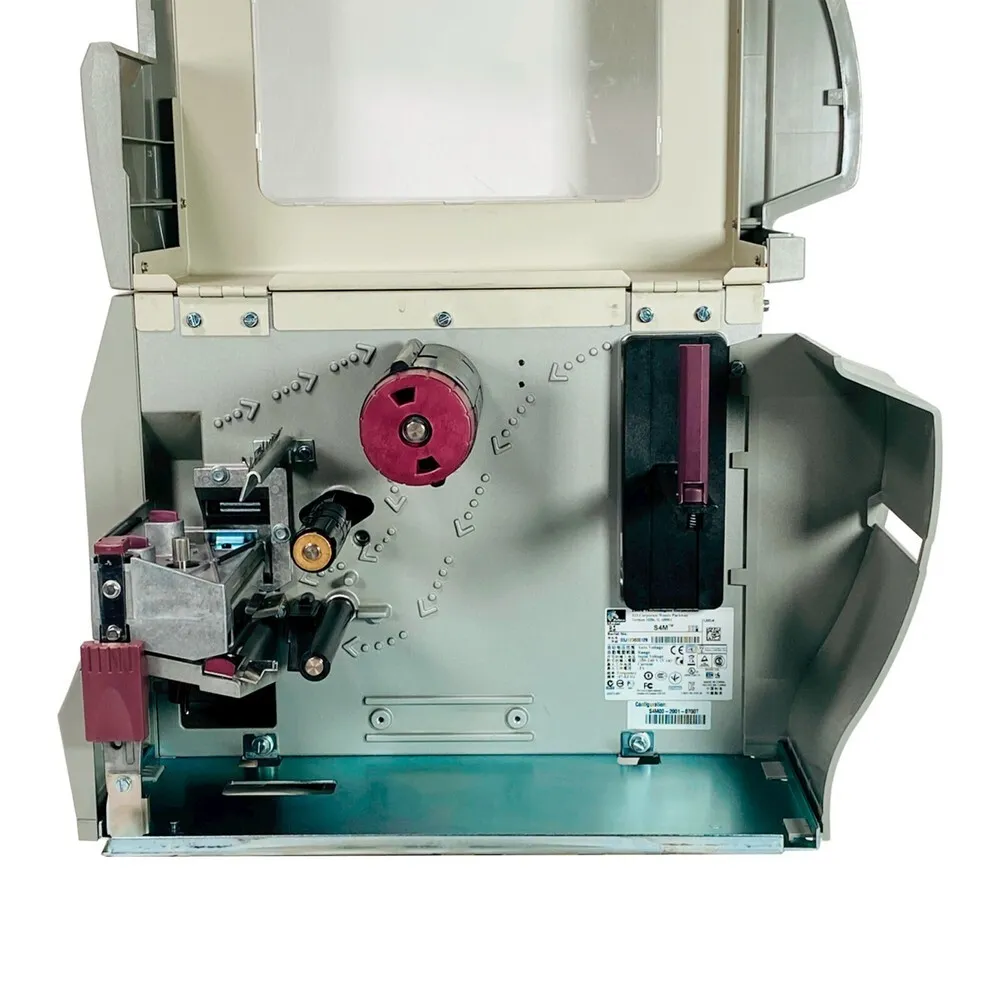

| Media Handling | Roll-fed media, die-cut or continuous labels, tags and tickets, media width 1 to 4.5 inches |
| Ribbon Type | Wax, wax/resin, resin |
| Dimensions (HxWxD) | 10.5 x 8.5 x 15.3 inches (267 x 216 x 388 mm) |
| Weight | About 20 lbs (9.1 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |

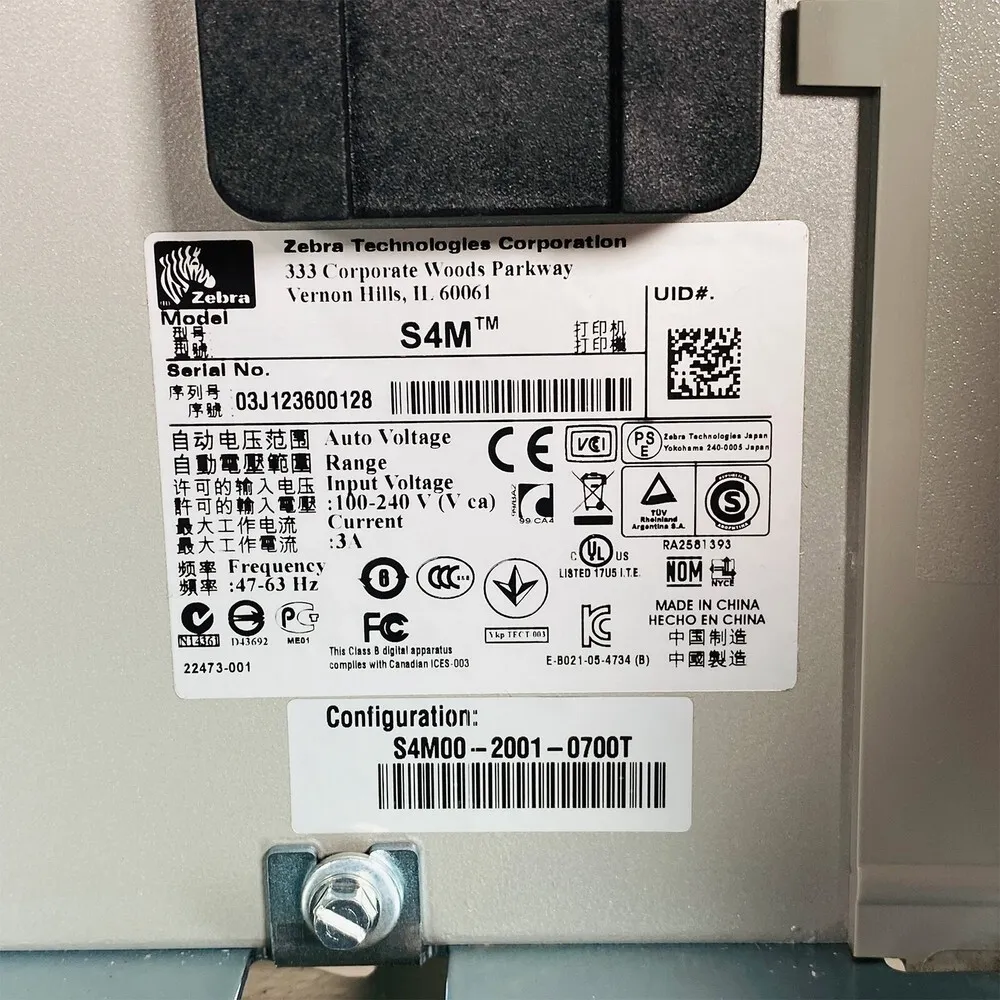

| Power Supply | 100-240 VAC, 50-60 Hz universal power supply |
| Emulations | ZPL, ZPL II |
| Status Indicators | LED indicators for status, pause, and error conditions |
| Mounting | Desktop or shelf mount industrial design |
Images
Key Advantages
The Zebra S4M Stripe offers robust build quality suitable for industrial environments, enhancing device durability. Its flexible media handling supports a wide range of label sizes and types, increasing operational versatility. The printer's thermal transfer printing technology produces highly durable and smudge-resistant labels ideal for various applications. Multiple interface options provide easy integration into existing network and computing environments. User-friendly features such as quick media loading reduce downtime during label replacement cycles. Additionally, its mid-range price point delivers an excellent balance between performance and cost efficiency for businesses.
Limitations
The Zebra S4M Stripe operates with a maximum print resolution of 203 dpi, which may not meet the needs for extremely high-resolution label printing. While functional, its print speed is moderate compared to newer high-end industrial printers. Some legacy connectivity protocols may limit direct integration with the latest systems without adapters. The printer's size and weight, although rugged, make it less portable and more suited for stationary setups. Users may encounter limitations in firmware update capabilities compared to modern printers with more advanced software support. The device may also have a limited color printing capability as it is primarily designed for monochrome barcode printing.
FAQ
What types of printing technologies does the Zebra S4M Stripe support?
The Zebra S4M Stripe supports both direct thermal and thermal transfer printing technologies, allowing for versatile label production depending on the media and durability requirements.
What connectivity options are available on this printer?
It includes serial, parallel, and USB interfaces, enabling flexible connectivity to various computer systems and networks.
Is the Zebra S4M Stripe suitable for high-volume industrial printing?
Yes, it is designed as a mid-range industrial printer capable of reliable operation in demanding environments, suitable for medium to high volume printing tasks.
Can the printer handle different label sizes?
Yes, the printer supports a variety of label widths and lengths, accommodating diverse labeling needs.
Is this printer still in production?
No, the Zebra S4M Stripe has been discontinued but remains supported with parts and documentation for existing users.
What is the maximum print width and speed of the printer?
The maximum print width is 4 inches with a print speed of up to 5 inches per second, providing efficient label printing.
Does the Zebra S4M Stripe have any color printing capabilities?
No, this model primarily supports monochrome printing optimized for barcodes and text labels.
