Zebra 170XiII
Brand | Zebra 2007 |
Model | 170-401-00004 |
Released Year | 2007 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview

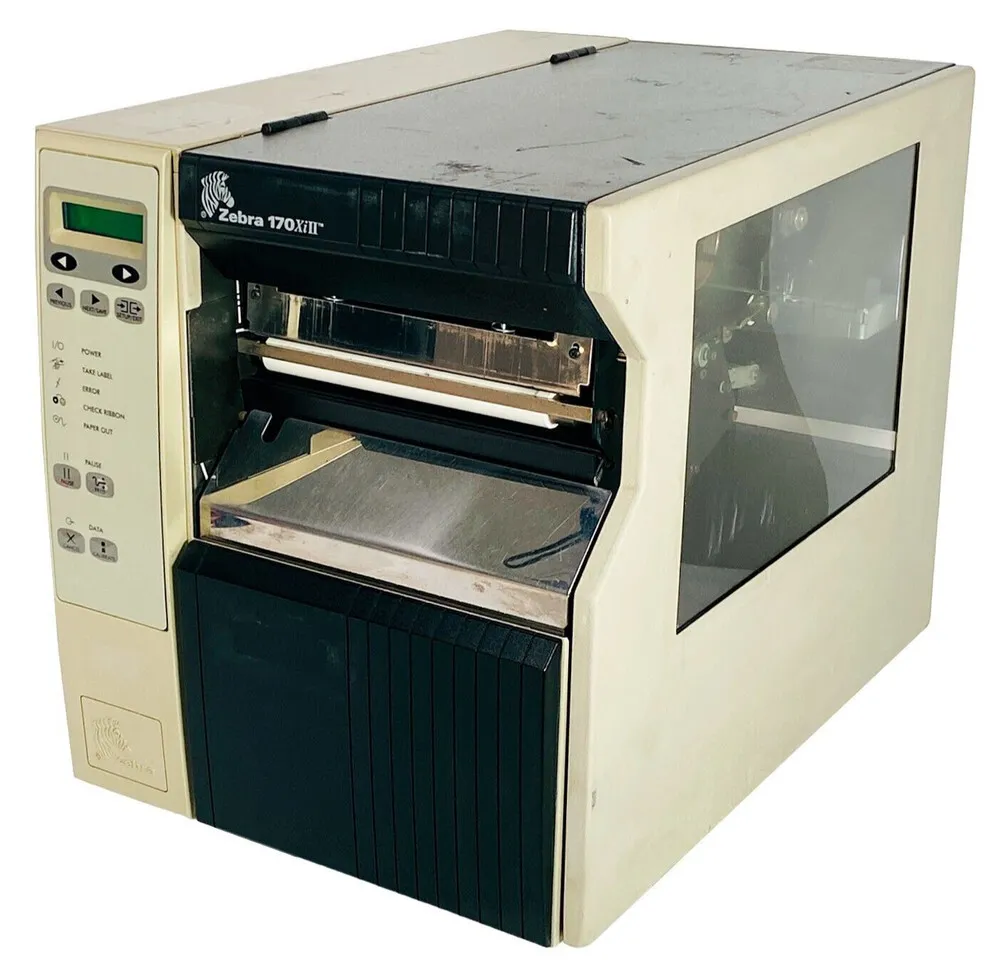

The Zebra 170XiII is an industrial-grade thermal transfer printer designed specifically for high-volume label printing in demanding environments. It supports both direct thermal and thermal transfer printing techniques, providing versatility for various labeling needs. This printer is equipped with an advanced 32-bit microprocessor that enables fast data processing and label throughput. The 170XiII features a robust metal frame construction for durability and long service life in industrial settings. It supports a maximum print width of 4.1 inches and can print at speeds up to 5 inches per second, accommodating efficient production workflows. Connectivity options include serial, parallel, and USB interfaces to ensure compatibility with a wide range of host systems.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 4 MB flash memory, 8 MB DRAM |
MPN | 170-401-00004 |
Supported Paper Size | Max. width: 7,1 in |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 300 x 300 DPI |
Model | 170XiII |

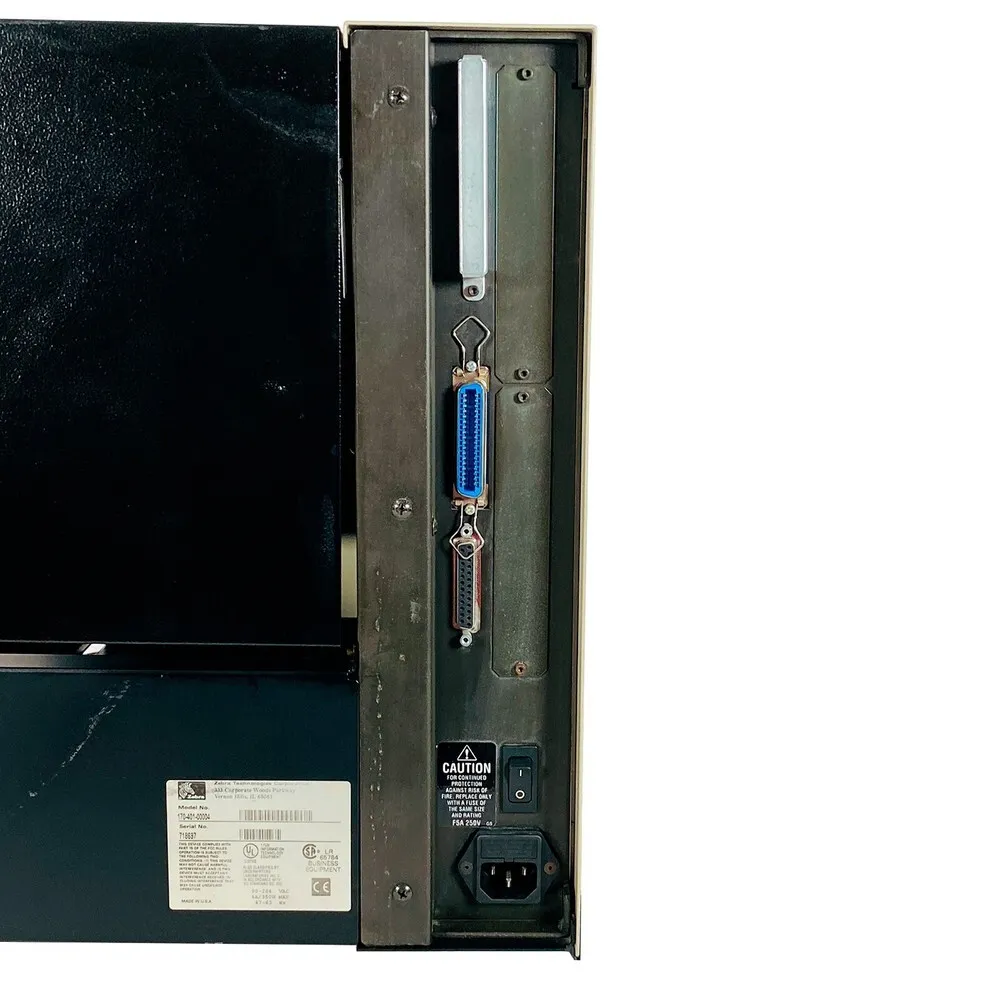

Connectivity | Serial, Parallel, USB |
Features | UPS Firmware |
Black Print Speed | 8 in./Sec |
Country/Region of Manufacture | United States |
Product Line | Zebra Z |
UPC | Does not apply |
Print Technology | Thermal Transfer and Direct Thermal |
Print Width | 4.1 inches (104 mm) |
Print Speed | Up to 5 inches per second (127 mm/s) |
Processor | 32-bit microprocessor |
Media Types | Continuous, die-cut, notch, black mark, tag stock |
Resolution | 203 dpi (8 dots/mm) |
Physical Dimensions | 15.5 in W x 16.5 in D x 14.35 in H |
Weight | Approximately 32 pounds (14.5 kg) |
Display | Basic LCD for status |
Power Supply | External power supply, 100-240V AC |
Operating Temperature | 40°F to 104°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Certified Languages | EPL and ZPL |
Warranty | Typically 1 year limited warranty |
Images
Key Advantages
The Zebra 170XiII offers exceptional reliability for continuous and heavy-duty printing needs, making it ideal for industrial use. Its durability is enhanced by a metal chassis that withstands harsh operating conditions. The printer supports multiple media types and widths, allowing flexibility in label design and application. Its fast print speed reduces wait times and improves overall productivity. The integrated real-time clock and battery backup enable time and date stamping for better inventory and shipping tracking. Additionally, the Zebra 170XiII is compatible with a variety of printing languages like EPL and ZPL, supporting legacy applications seamlessly.
Limitations
One limitation of the Zebra 170XiII is its relatively large size and weight, which may reduce portability for some users. The device requires periodic maintenance and careful handling due to its mechanical components and industrial usage. Compared to newer models, it lacks modern connectivity options such as wireless or Ethernet as standard, which could affect integration in contemporary networked environments. The printer's display interface is basic, offering limited user interaction capabilities without additional software. Moreover, the requirement for specific ribbon types for thermal transfer printing may add to consumable costs. Finally, replacement parts and support could be challenging as this model is older and may be considered discontinued by the manufacturer.
FAQ
What types of printing does the Zebra 170XiII support?
The Zebra 170XiII supports both direct thermal and thermal transfer printing methods, allowing for flexible media usage.
What is the maximum print width of the Zebra 170XiII?
The maximum print width supported is 4.1 inches (104 mm).
Is the Zebra 170XiII still supported by Zebra Technologies?
The Zebra 170XiII is considered a discontinued product and might no longer receive official support or updates.
What connectivity options does this printer provide?
It provides serial, parallel, and USB connectivity interfaces for compatibility with various host devices.
Can the 170XiII handle high-volume printing?
Yes, it is designed as an industrial printer capable of handling large print volumes efficiently.
Does it support modern printing languages?
Yes, it supports EPL and ZPL programming languages commonly used in Zebra printers.
What kind of maintenance is required for this printer?
Regular cleaning of printheads, timely replacement of ribbons and media, and inspection of mechanical parts are recommended.
