Zebra LP2824
Brand | Zebra 2000 |
Model | LP-2824 |
Released Year | 2000 |
Type | Printers |
Series | Lp |
Status | Discontinued |
Quick view
Overview
The Zebra LP2824 is a compact direct thermal printer designed primarily for label printing in office and retail environments. It employs direct thermal printing technology, which requires no ink or toner by heating specially coated thermal paper. The printer supports a maximum print width of 2.36 inches and can print at speeds up to 4 inches per second, optimized for small to medium volume label production.
Connectivity is typically via serial or parallel ports with optional USB, allowing versatile integration with point-of-sale systems and inventory management software. The printer supports EPL and ZPL programming languages, facilitating easy label formatting and barcode generation. It features a sturdy and compact desktop design with a clamshell mechanism for easy media loading and low maintenance requirements.
Specifications
MPN | LP-2824 |
Model | LP2824 |
Memory | 2 MB Flash, 1 MB SDRAM |
Technology | Thermal |
Connectivity | Serial (RS-232), Parallel, USB (optional) |
Output Type | Black & White |
Features | Portable, Networkable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 4 ppm |
Product Line | Zebra LP |
Printer Type | Direct Thermal Printer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Width | 2.36 inches (60 mm) |
Print Speed | 4 inches per second (102 mm/s) |
Supported Languages | Zebra Programming Language (ZPL), EPL |
Media Types Supported | Direct thermal labels, tags, continuous paper, wristbands |
Maximum Label Length | 39 inches (991 mm) |
Dimensions (W x D x H) | 7.9 x 7.6 x 5 inches (200 x 193 x 127 mm) |
Weight | 3.3 lbs (1.5 kg) |
Power Supply | External power supply (100-240V) |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Status Indicators | LED status indicators for power and error |

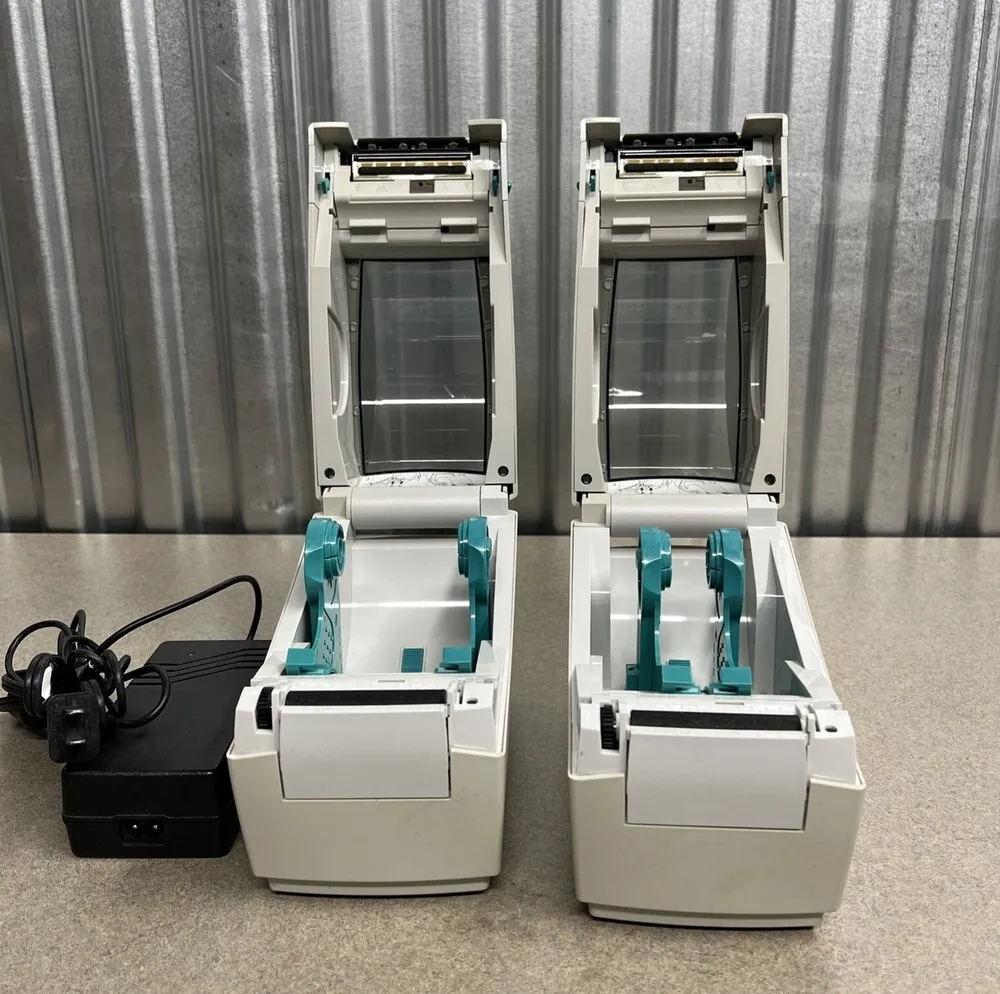

Media Load | Clamshell design for easy media loading |
Images
Key Advantages
Zebra LP2824 offers straightforward operation with minimal user intervention due to direct thermal technology eliminating the need for consumables like ink ribbons. Its compact design fits well in limited workspace environments. The printer handles a variety of label types and sizes, making it versatile for different labeling needs.
High reliability and fast printing speed increase productivity in office or retail settings. Extensive compatibility with Zebra's label design software and multiple communication options enhance integration flexibility.
Limitations
The LP2824 uses direct thermal printing which limits label durability and exposure to heat or light can cause fading. It is less suitable for long-term or outdoor label applications compared to thermal transfer printers.
The resolution is limited to 203 dpi, which may not be suitable for very high detail barcode printing. The connectivity options are somewhat dated, with many units lacking native USB ports without adapters. Media capacity is limited, requiring frequent reloads in high volume environments.
FAQ
What type of printing technology does the Zebra LP2824 use?
The Zebra LP2824 uses direct thermal printing technology, which prints by applying heat to thermal paper without the need for ink or ribbons.
Is the Zebra LP2824 still in production?
No, the Zebra LP2824 has been discontinued and replaced by newer models with enhanced features.
What are the connectivity options available on the LP2824?
The printer typically supports serial and parallel ports, with USB connectivity available on certain versions or through adapters.
What label sizes can the LP2824 print?
It supports printing labels with a maximum width of 2.36 inches (60mm), suitable for many standard office and retail labeling needs.
Does the LP2824 support barcode printing?
Yes, it supports EPL and ZPL programming languages, which allow printing of a wide range of barcode formats.
What resolution does the Zebra LP2824 offer?
The LP2824 offers a print resolution of 203 dots per inch (dpi), sufficient for standard labels and barcodes.
Is the LP2824 suitable for long-lasting labels?
Since it uses direct thermal printing, labels are sensitive to heat and light exposure and are not ideal for long-term or outdoor use.
