Zebra Gx430t
Brand | Zebra 2005 |
Model | GX43-102510-000 |
Released Year | 2005 |
Type | Printers |
Series | G |
Status | Discontinued |
Quick view
Overview
The Zebra GX430t is a thermal transfer printer designed for medium-duty printing applications, utilizing direct thermal and thermal transfer technology. It supports fast printing speeds up to 4 inches per second ensuring efficient label production. The printer features a 300 dpi print resolution providing high-quality, sharp barcode and text output suitable for small labels and detailed graphics. It offers compatibility with various media types and sizes, equipped with a 32-bit processor for quick data processing. Connectivity options include USB, serial, and parallel ports with optional Ethernet, allowing flexible integration into existing IT environments. The device supports multiple printer languages for broad compatibility with enterprise applications and label design software.
Specifications
MPN | GX43-102510-000 |
UPC | 0617957943023 |
Model | Zebra GX430t |
Technology | Thermal |
Connectivity | USB 2.0, Serial RS-232, Parallel, Optional Ethernet |
Output Type | Black & White |
Features | Portable, Networkable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 300 x 300 DPI |
Black Print Speed | 16 ppm |
Product Line | Zebra G |
Print Method | Thermal Transfer / Direct Thermal |
Print Resolution | 300 dpi (12 dots/mm) |
Print Speed | Up to 4 inches per second (102 mm/sec) |
Max Print Width | 4.09 inches (104 mm) |
Media Width | 0.75 inch to 4.25 inches (19 mm to 108 mm) |
Memory | 8 MB SDRAM, 4 MB Flash |
Processor | 32-bit RISC CPU |
Operating Systems Supported | Windows, Linux, Mac OS |
Printer Languages | ZPL, ZPL II, CPCL |
Display | 2 LEDs for status |
Dimensions | 8.2 in (W) x 7.9 in (H) x 10.1 in (D) (208 mm x 200 mm x 257 mm) |
Weight | 6.5 lbs (2.95 kg) |
Power Supply | Power supply included; 100-240 V, 50-60 Hz |
Media Types | Continuous, die-cut, black mark, fanfold, tags |
Discontinued | Yes |

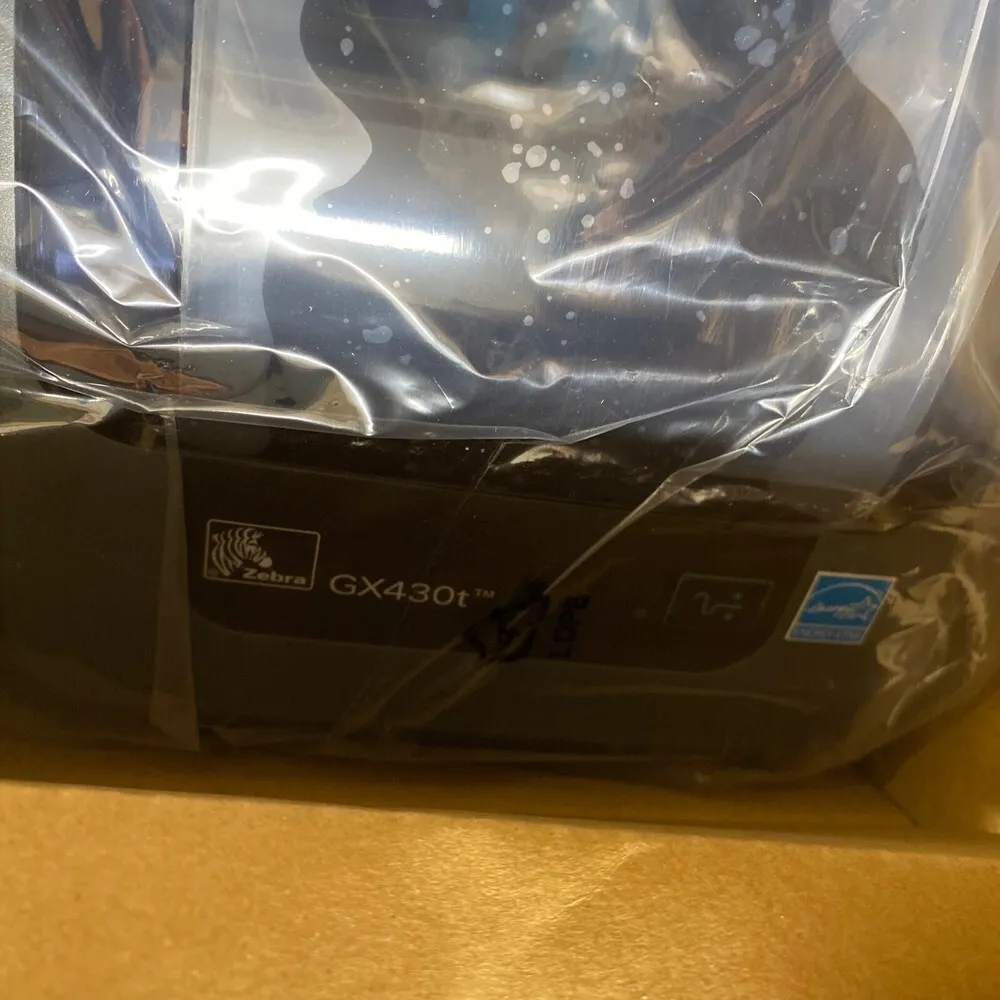

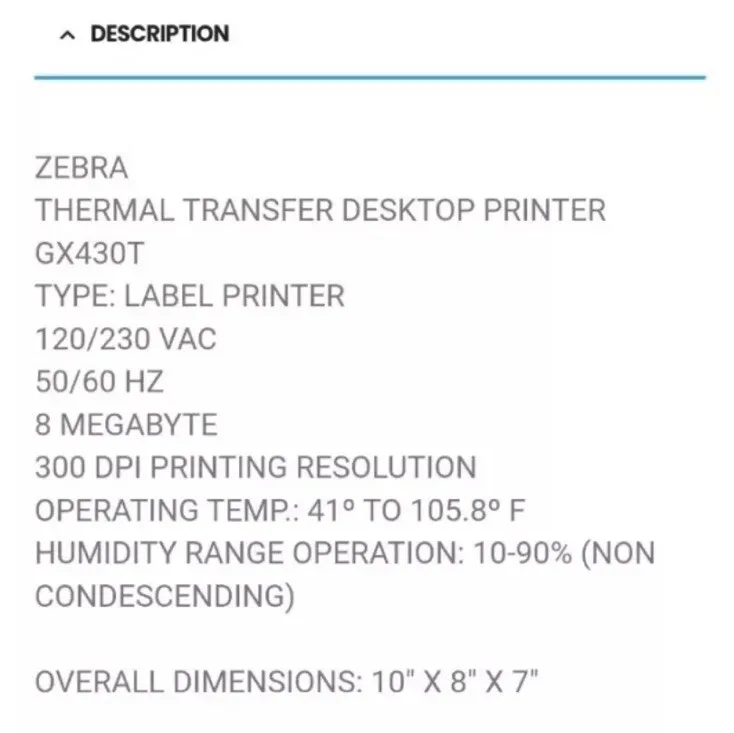

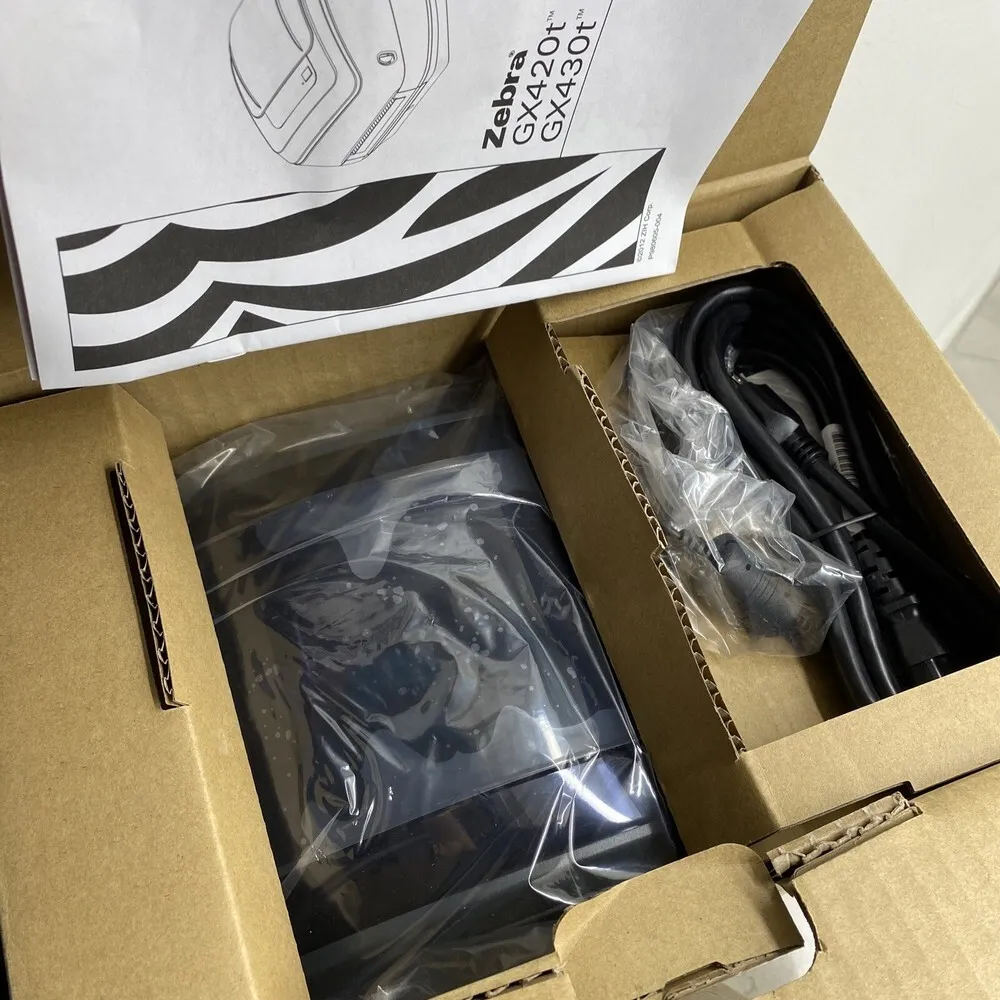

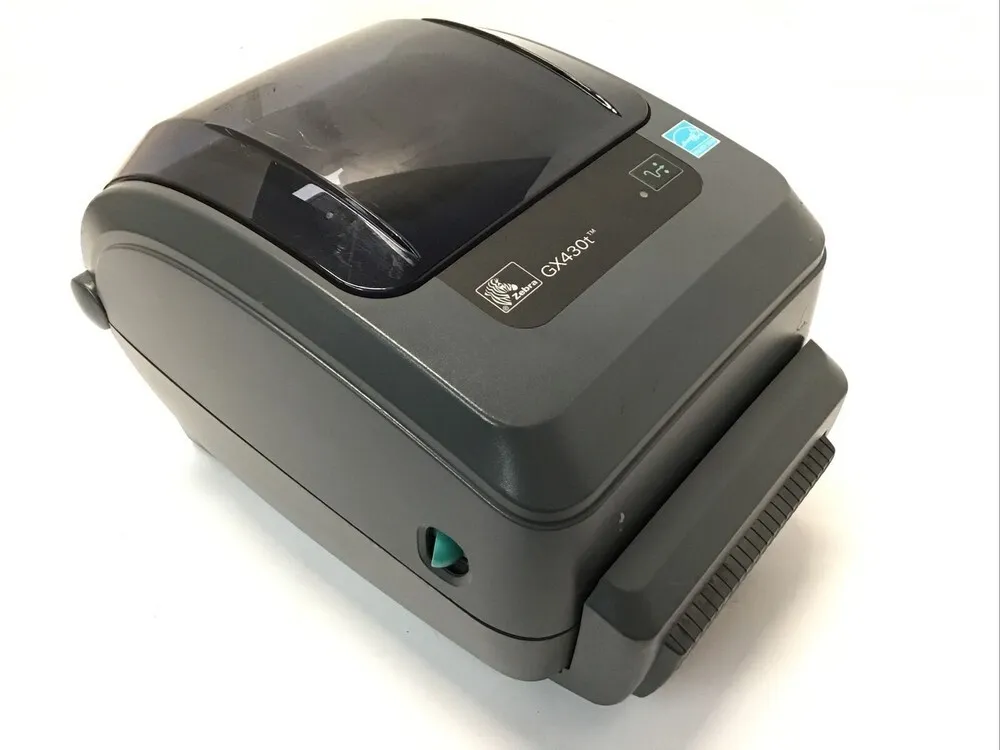

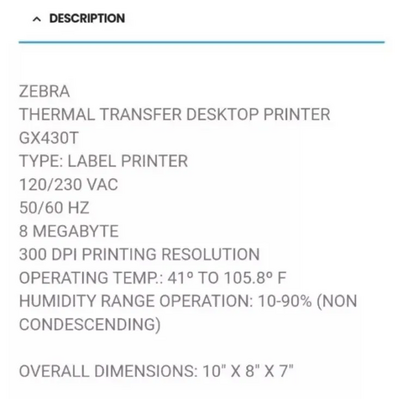

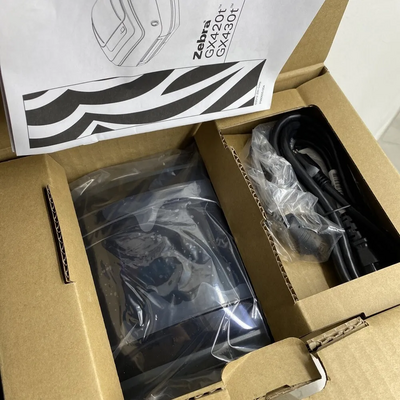

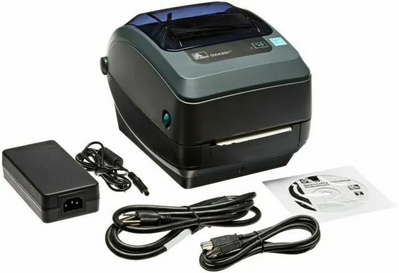

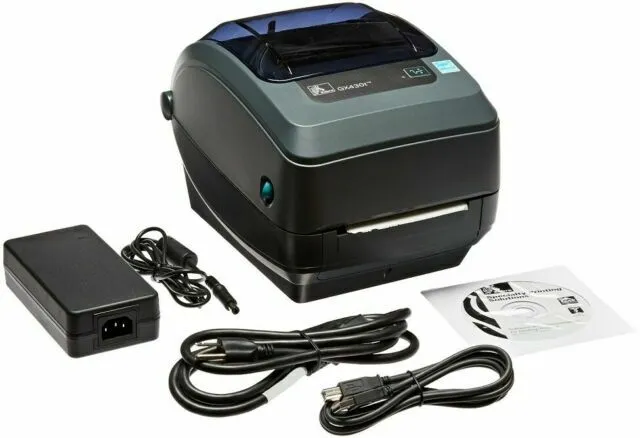

Images
Key Advantages
The GX430t offers superior print resolution at 300 dpi, ideal for detailed barcode and label printing. It has a compact design suitable for office environments without occupying excessive space. The printer supports both thermal transfer and direct thermal media, enhancing media versatility. Its print speed of up to 4 inches per second balances quality and efficiency across various applications. Multiple connectivity options simplify integration with diverse computer systems and networks. Additionally, the printer is backed by Zebra's reliable build quality ensuring durability and consistent performance in demanding printing tasks.
Limitations
The Zebra GX430t is limited by its medium print speed compared to higher-end industrial printers, which may impact high-volume demands. It supports a maximum media width of 4.25 inches, restricting its use for larger label formats. The printer lacks native wireless connectivity requiring additional accessories for network flexibility. It does not support color printing, being restricted to monochrome thermal printing only. The device's memory is modest, potentially limiting complex label designs or extensive data storage on the printer. Lastly, being an older model, driver or software updates may be less frequent than newer Zebra printers.
FAQ
What print technology does the Zebra GX430t use?
The Zebra GX430t uses thermal transfer and direct thermal printing technologies.
What is the maximum print resolution of the GX430t?
It has a maximum print resolution of 300 dpi, delivering sharp and detailed prints.
Is the Zebra GX430t still supported?
The GX430t has been discontinued but Zebra may offer limited support and replacement parts.
What media sizes can the GX430t handle?
It supports media widths up to 4.25 inches, suitable for most standard labels.
Does the printer support wireless connectivity?
By default, the GX430t does not support wireless connectivity, but network cards can be added.
What are typical applications for the GX430t printer?
Common uses include barcode labels, shipping labels, and small product identification tags.
What connectivity options are available on the GX430t?
It includes USB, serial, and parallel ports with optional Ethernet connectivity.
