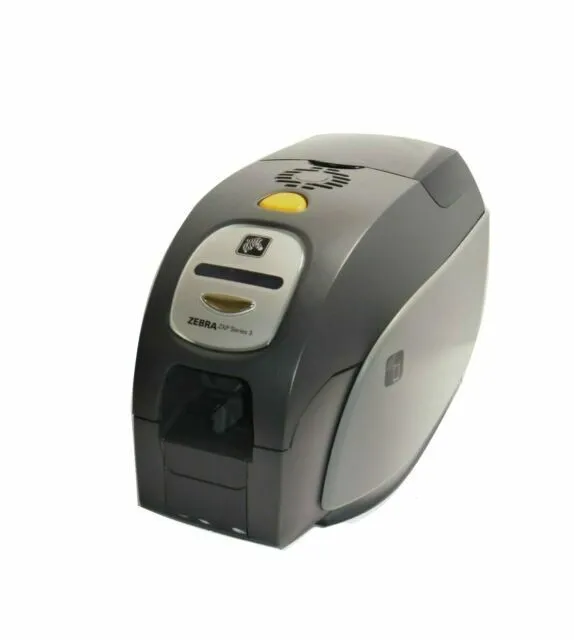

Zebra Zxp series 3 image

Zebra Zxp series 3

Quick information
Brand Zebra 2013
Model Z31-00000200US00, Z3100000200US00
Released Year 2013
Type Printers
Series Z
Printing Technology Dye-sublimation thermal transfer
Status Active
Quick view
Full specs Images

Overview

The Zebra ZXP Series 3 is a mid-range office plastic card printer designed for high-quality, reliable card printing. It uses dye-sublimation thermal transfer technology to produce vibrant and durable images on various card stocks. The printer supports edge-to-edge color printing and monochrome options for versatility. It features USB and optional Ethernet connectivity to seamlessly integrate into office environments. The printer's print speed can reach up to 225 cards per hour in monochrome mode and up to 150 cards per hour in color. Compact and robust, the Series 3 is ideal for moderate volume card issuance in sectors such as education, retail, and healthcare.

Specifications

MPN Z31-00000200US00, Z3100000200US00
UPC 0994735739208
Model Zebra ZXP Series 3
Technology Thermal
Connectivity USB 2.0 standard, Optional Ethernet
Scanning Resolution 200x300 DPI
Color Depth 12 Bit
Output Type Color
Features Portable
Input Type Color
Type ID Card Printer
Product Line Zebra Z
Printing Technology Dye-sublimation thermal transfer
Print Resolution 300 dpi (11.8 dots/mm)
Print Speed Up to 225 cards per hour (monochrome), up to 150 cards per hour (color)
Card Types Supported PVC, polyester, composite cards
Card Thickness 10 mil to 40 mil (0.25mm - 1.0mm)
Memory 32 MB SDRAM standard
Card Input Hopper Capacity 100 cards (30 mil thickness)
Card Output Hopper Capacity 30 cards (30 mil thickness)
Ribbon Types Zebra IX Series, YMCKO, YMCK, Monochrome ribbons
Dimensions 11.1 x 8.6 x 8.3 inches (282 x 219 x 211 mm)
Weight 6.2 kg (13.7 lbs)
Operating Temperature 60°F to 86°F (15°C to 30°C)
Power Supply 100-240VAC, 50-60Hz auto-switching

Key Advantages

The Zebra ZXP Series 3 offers fast, edge-to-edge card printing with exceptional color quality. It supports a wide range of card materials, including PVC, polyester, and composite cards. The printer's modular design allows for easy ribbon swapping and cleaning, minimizing downtime. Connectivity options include USB standard and optional Ethernet, providing flexible networking. It uses Zebra's IX Series ribbons, which deliver sharp images and reliable performance. The printer is compact and has low power consumption, making it suitable for office environments.

Limitations

The ZXP Series 3 has limited onboard memory compared to more advanced models, which can affect batch printing performance. It is not suitable for extremely high-volume printing demands beyond moderate office use. The printer does not support dual-sided printing as a standard feature and requires additional modules for this capability. It primarily targets medium-volume card printing and may not be ideal for highly specialized industrial applications. Print resolution is capped at 300 dpi, which is lower compared to newer high-definition card printers. Consumable costs may be higher than generic alternatives due to Zebra's proprietary ribbon system.

FAQ

The Zebra ZXP Series 3 uses dye-sublimation thermal transfer technology for high-quality card printing.

Dual-sided printing is not included as a standard feature and requires an optional module.

The printer comes standard with USB connectivity and has an optional Ethernet interface for network integration.

It can print up to 225 cards per hour in monochrome mode and up to 150 cards per hour in color.

It supports printing on PVC, polyester, and composite plastic cards with thicknesses ranging from 10 to 40 mil.

As of now, the Zebra ZXP Series 3 is not discontinued and continues to be available in the market.

The Zebra ZXP Series 3 provides a print resolution of up to 300 dots per inch (dpi).
