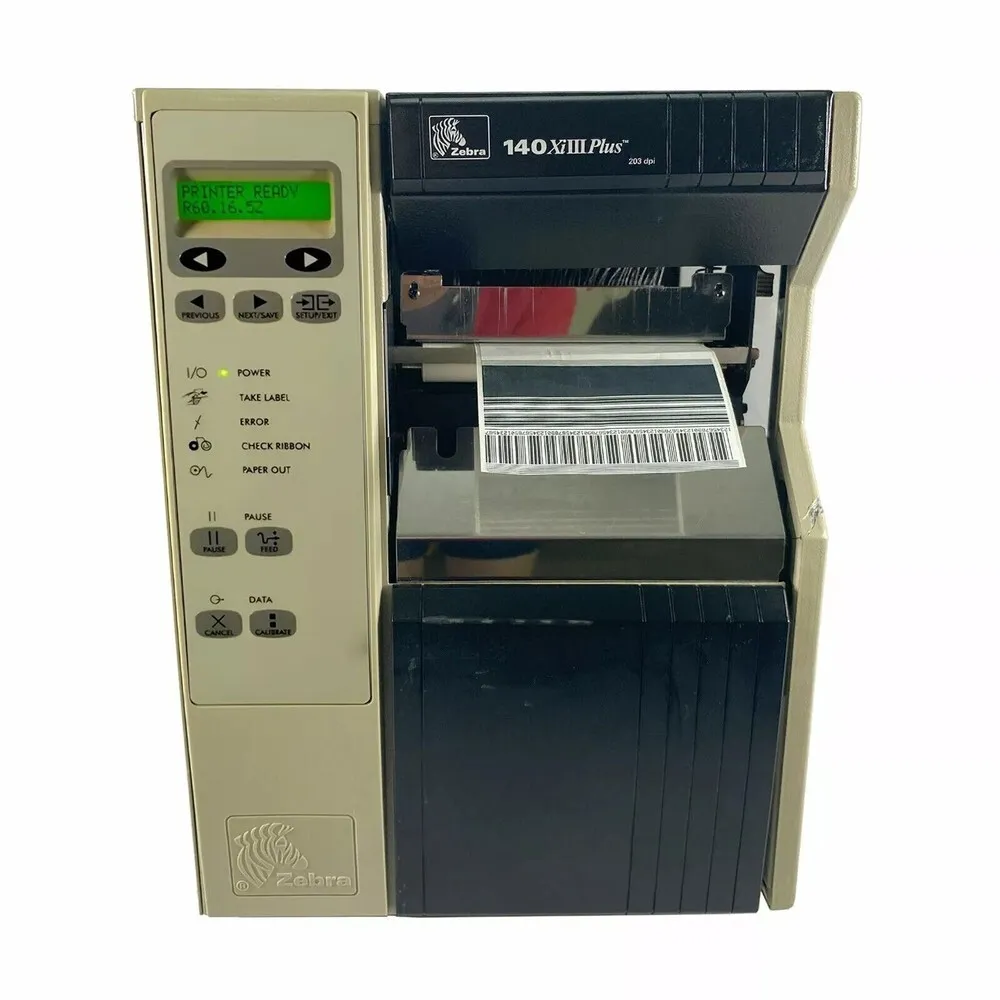

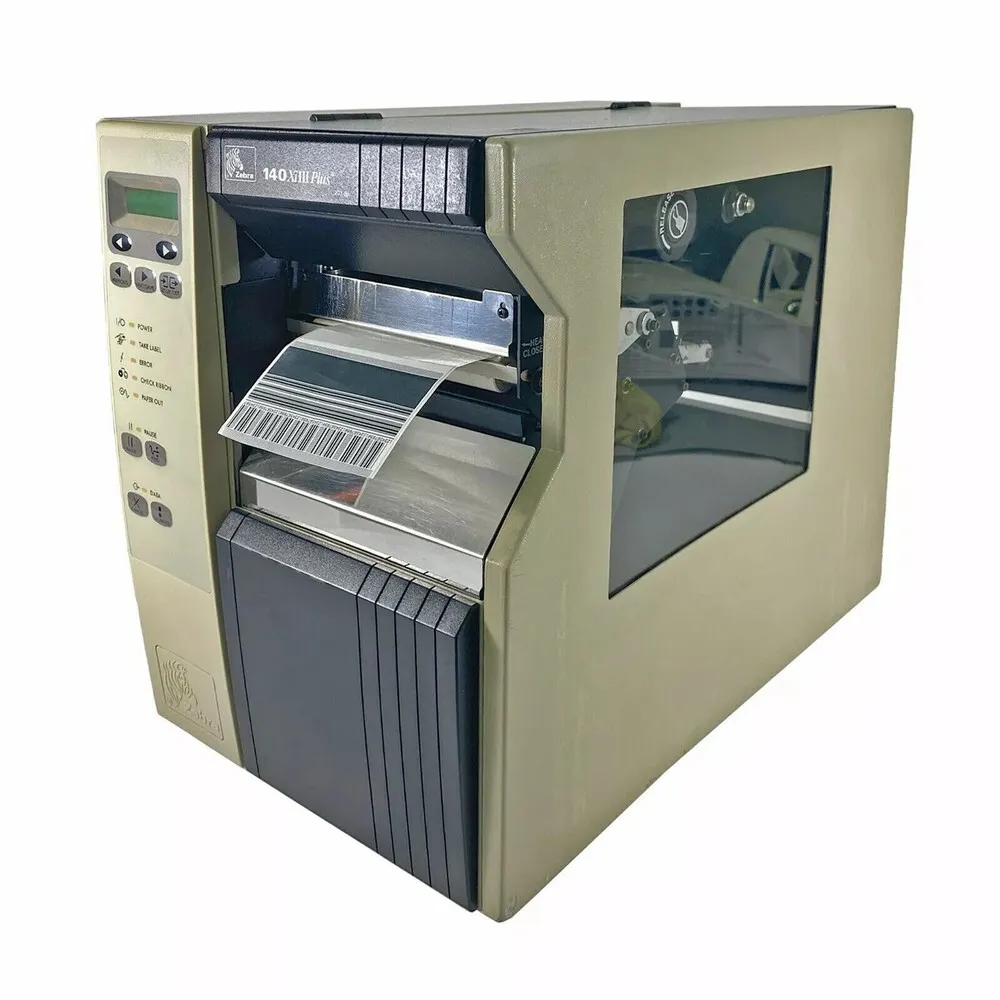

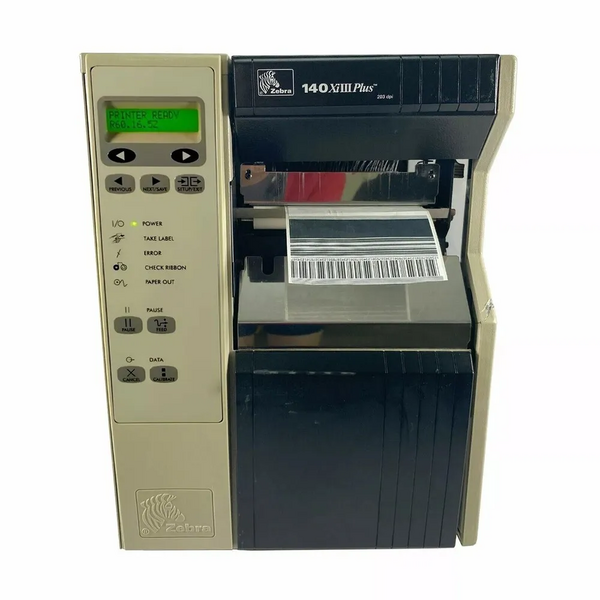

Zebra 140XiIII Plus
Brand | Zebra 2006 |
Model | 140-7A1-00000, Barcode |
Released Year | 2006 |
Type | Printers |
Series | Xi |
Status | Discontinued |
Quick view
Overview
The Zebra 140XiIII Plus is an industrial-grade barcode printer designed for high-volume and high-quality printing applications. Built with a robust metal frame, it supports resolutions of 203 and 300 dpi, enabling crisp barcode and label output. The printer uses thermal transfer and direct thermal printing technologies, allowing it to print on various media types including continuous, die-cut, and black mark labels. It offers fast print speeds up to 14 inches per second (depending on resolution), ideal for diverse industrial labeling needs. Connectivity options include serial, parallel, USB, and Ethernet interfaces, facilitating integration into existing workflows. The printer's user interface features a graphical LCD display with accessible menu navigation and programmable settings for enhanced operational control.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 16 MB DRAM, 8 MB Flash standard |
Custom Bundle | No |
MPN | 140-7A1-00000, Barcode |
Max. Resolution | 203 dpi |
Modified Item | No |
Supported Paper Size | Max. Label Width: 5.51" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | 140XiIII Plus |
Connectivity | Serial RS-232, Parallel, USB, Ethernet |
Features | UPS Firmware |
Black Print Speed | 12 ips |
Product Line | Zebra Xi |
UPC | Does not apply |
Print Method | Thermal Transfer and Direct Thermal |
Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Max Print Width | 4.09 inches (104 mm) |
Max Print Speed | 14 inches per second (at 203 dpi) |
Media Types | Continuous, die-cut, black mark, tags |
Display | Graphical LCD with 6-button control panel |
Dimensions (W x H x D) | 11.7 x 14.3 x 17.3 inches (297 x 364 x 439 mm) |
Weight | 36 lbs (16.3 kg) |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Power Supply | Auto-ranging 100-240 VAC, 50-60 Hz |
Fonts and Graphics | Zebra’s ZPL and ZPL II programming languages supported |
Ribbon Type | Wax, wax/resin, resin |
Discontinued | Yes |
Images
Key Advantages
Zebra 140XiIII Plus excels in delivering durable, reliable printing performance in demanding industrial environments. Its sturdy frame and rugged construction reduce downtime and maintenance frequency. The printer supports a wide variety of label sizes and types, enabling versatility across applications. High-resolution print heads ensure sharp barcode quality improving scan accuracy. Multiple communication ports offer flexible connectivity options for seamless system integration. Additionally, it features easy-to-use controls and tools that expedite setup and troubleshooting, enhancing user convenience and productivity.
Limitations
The 140XiIII Plus is comparatively larger and heavier than desktop printers, affecting portability. It requires periodic maintenance such as printhead cleaning and media path inspection to maintain print quality. Due to its industrial focus, the cost of the device and replacement parts may be higher than consumer-grade printers. The initial setup process can be complex for inexperienced users unfamiliar with industrial printer configurations. It has a limited color printing capability, since it is primarily designed for monochrome output. Firmware updates and driver support may be less frequent as the model ages, impacting compatibility with newer software environments.
FAQ
What printing technologies does the Zebra 140XiIII Plus support?
The printer supports both thermal transfer and direct thermal printing methods, allowing flexibility in media types used.
What are the maximum print resolutions available?
This model offers print resolutions of 203 dpi and 300 dpi, suitable for high-quality barcode printing.

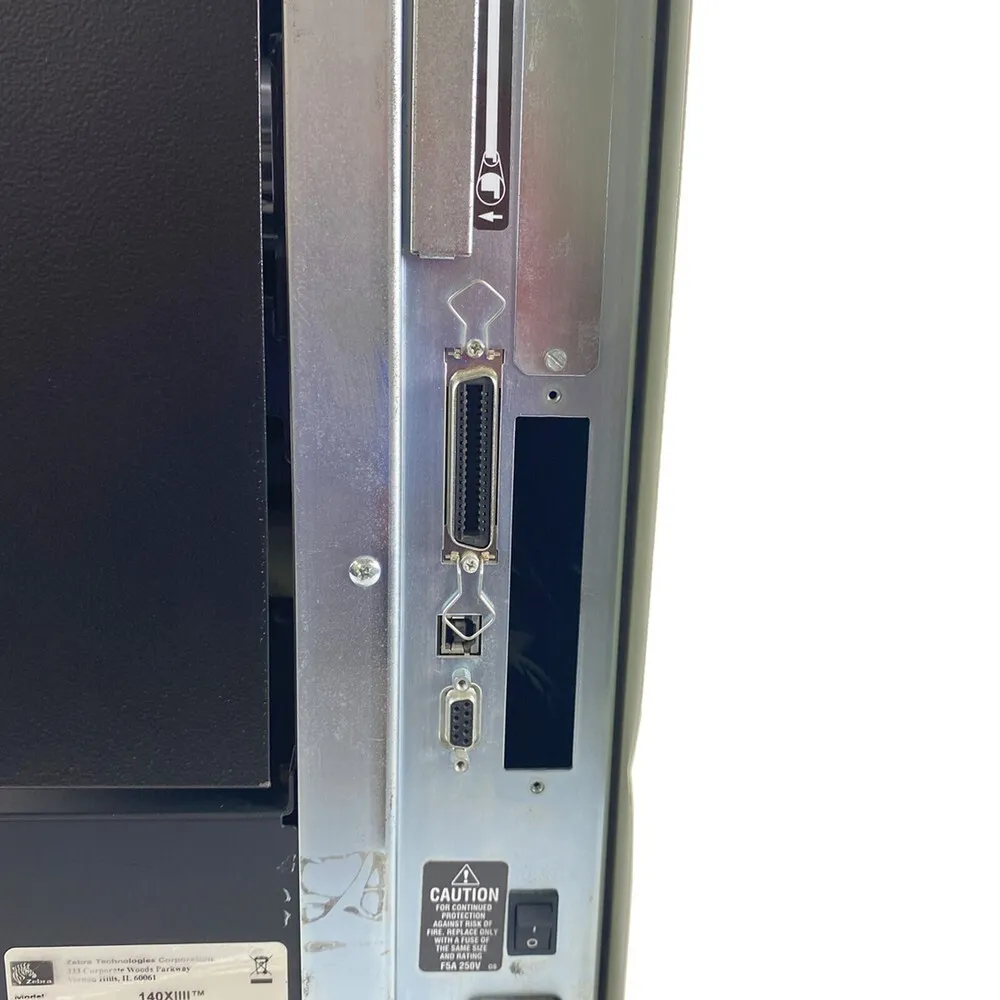

Which connectivity options are provided?
Connectivity options include serial, parallel, USB, and Ethernet ports for flexible network integration.
Is the Zebra 140XiIII Plus still in production?
No, this printer model has been discontinued but remains popular among legacy industrial printing applications.
What are common maintenance tasks for the 140XiIII Plus?
Typical maintenance includes printhead cleaning, media path inspections, and replacement of worn parts to ensure optimal print quality.
Can it print color labels?
No, this printer is designed primarily for monochrome (black and white) printing.
What types of labels can this printer handle?
It supports a variety of label types including continuous, die-cut, and black mark media in various sizes.
