Zebra 110Xi4
| Brand | Zebra 2011 |
| Model | 113-801-00000, Network LAN, Barcode |
| Released Year | 2011 |
| Type | Printers |
| Series | Xi |
| Status | Discontinued |
Quick view
Overview
The Zebra 110Xi4 is a high-performance industrial printer designed for barcode and label printing in demanding environments.
It features a robust metal frame construction that ensures durability and longevity in industrial settings.
The device supports print resolutions of up to 600 dpi, enabling high-quality, precise barcode and label printing.
Equipped with a 32-bit processor and 64 MB RAM, it provides efficient data processing and fast print speeds reaching up to 14 inches per second depending on resolution.
Connectivity options include Network LAN, USB, and Serial ports, allowing versatile integration within enterprise networks.
Designed to handle a variety of label materials and sizes, it supports widths up to 4.5 inches and includes an adjustable media sensor for different media types.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 64 MB SDRAM, 8 MB Flash |
| Custom Bundle | No |
| MPN | 113-801-00000, Network LAN, Barcode |
| Supported Paper Size | Max. Width: 4.5" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | 110Xi4 |
| Connectivity | Ethernet (10/100 Mbps), USB 2.0, Serial RS-232 |
| Features | Networkable |
| Black Print Speed | 14 ips |
| Product Line | Zebra Xi |
| UPC | 807027540683 |
| Print Method | Thermal Transfer and Direct Thermal |
| Resolution | 203 dpi, 300 dpi, 600 dpi |
| Print Speed | Up to 14 inches per second (varies by resolution) |
| Print Width | Up to 4.09 inches (104 mm) |
| Processor | 32-bit RISC CPU |
| Media Types Supported | Roll labels, fan-fold labels, continuous media, tags |
| Media Width | 1 inch to 4.5 inches (25.4 mm to 114 mm) |
| Media Thickness | 0.0023 in to 0.01 in (0.05842 mm to 0.254 mm) |
| Ribbon Type | Wax, wax/resin, resin |
| Display | Backlit LCD with control buttons |
| Dimensions | 10.5 in H x 14 in W x 19.5 in D (267 mm H x 356 mm W x 495 mm D) |
| Weight | Approximately 36 lbs (16.3 kg) |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Power Supply | Internal power supply 100-240 VAC, 50-60 Hz |

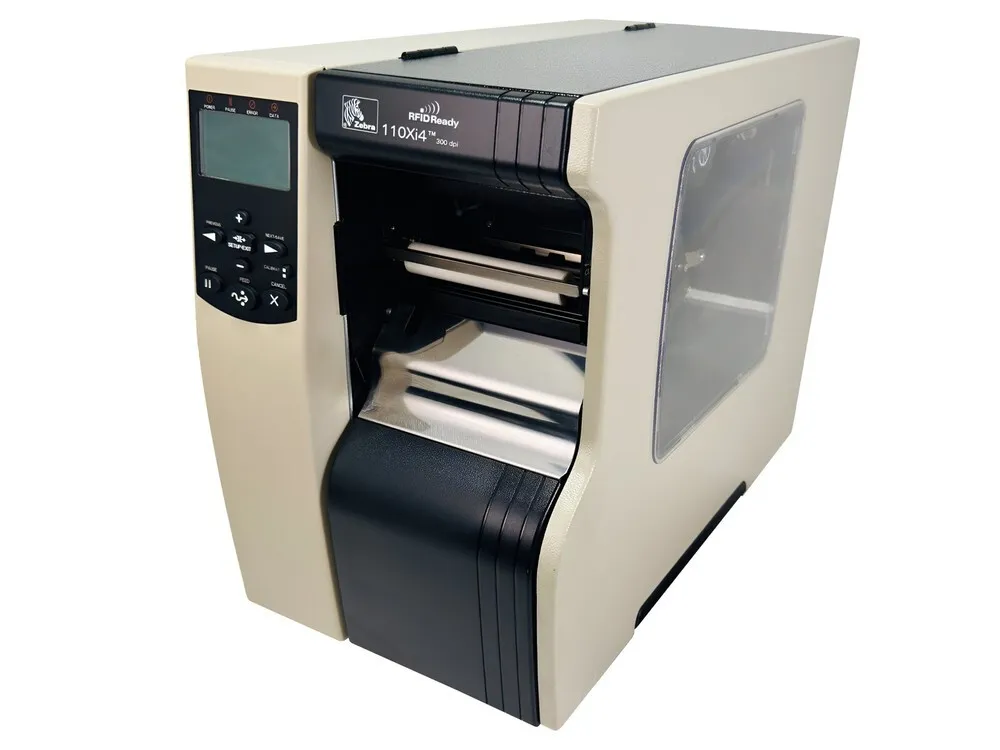

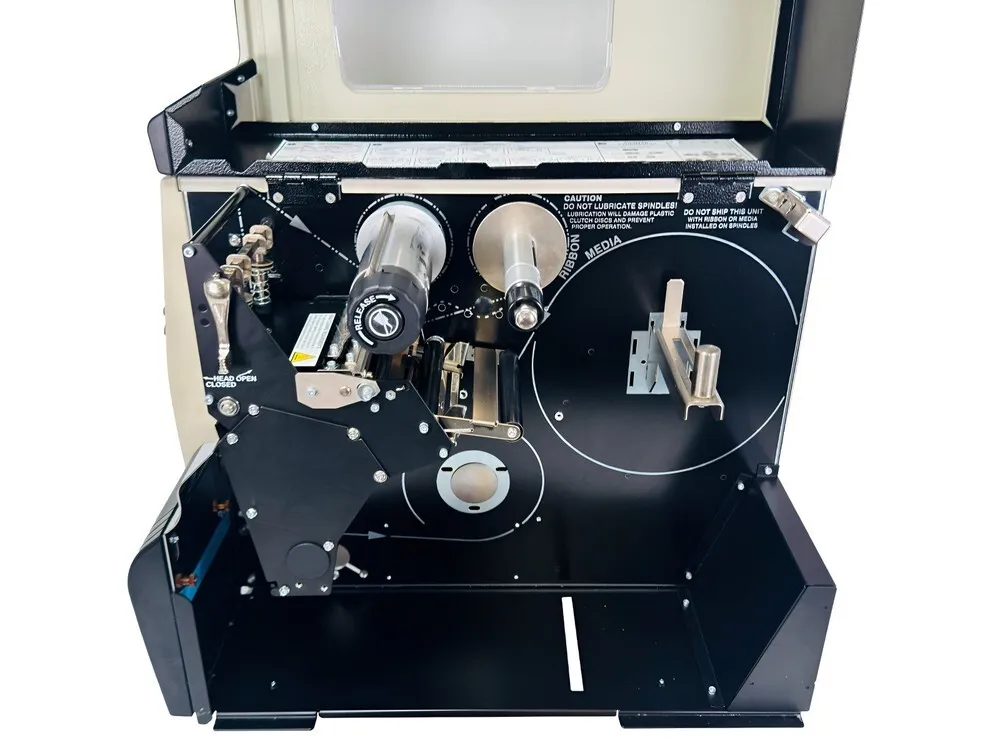

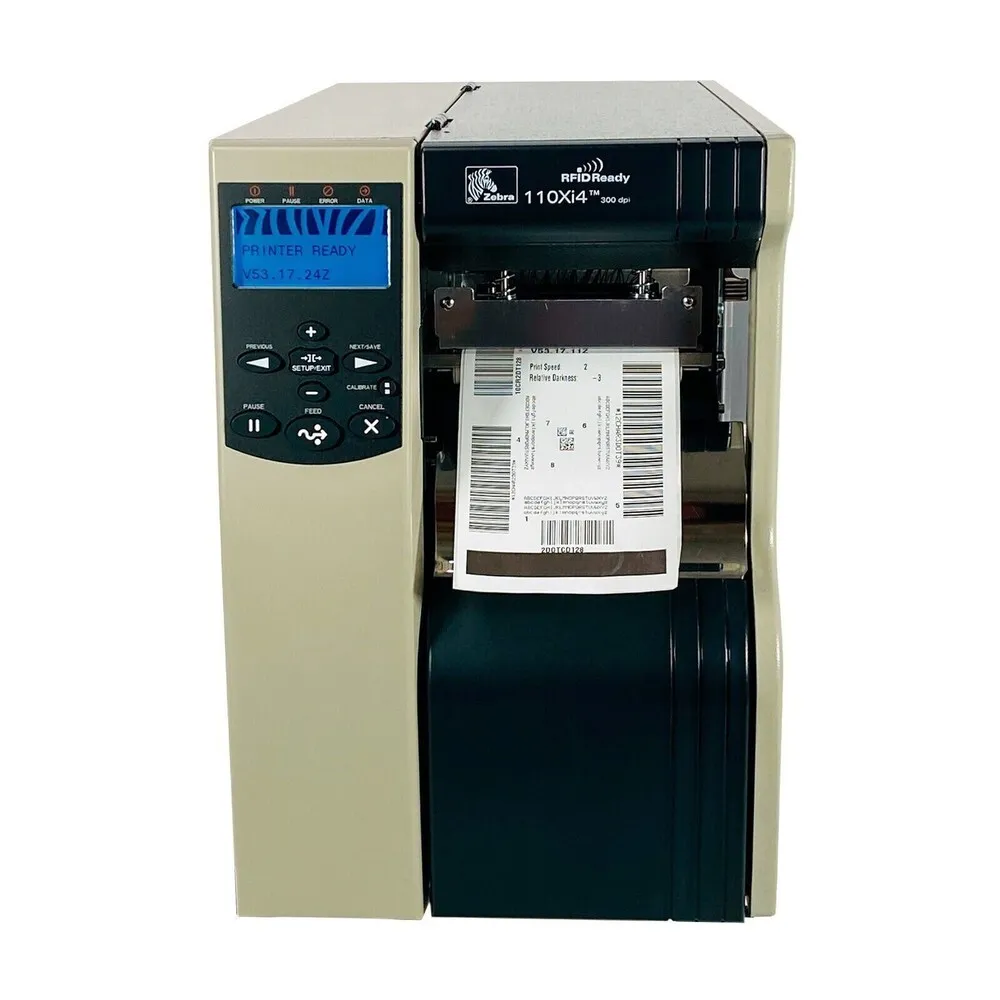

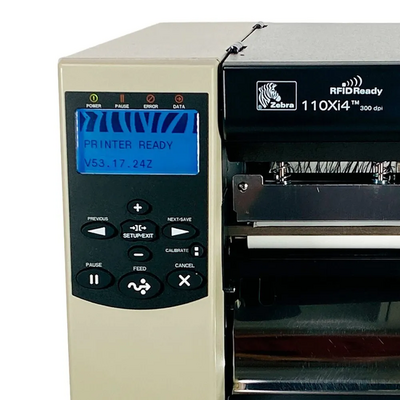

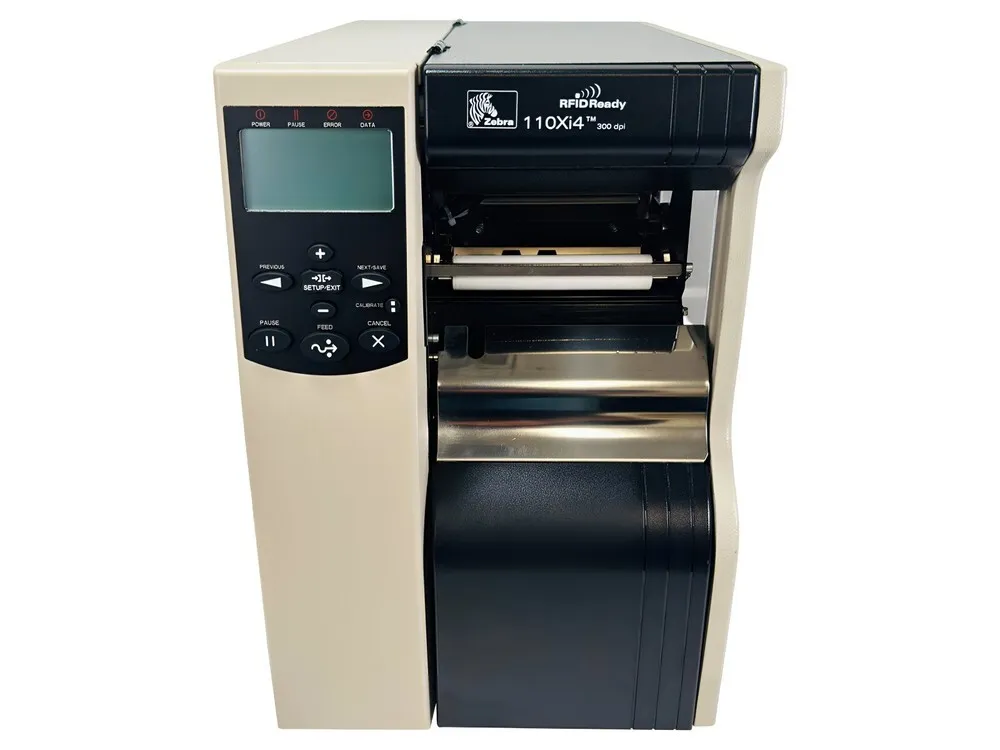

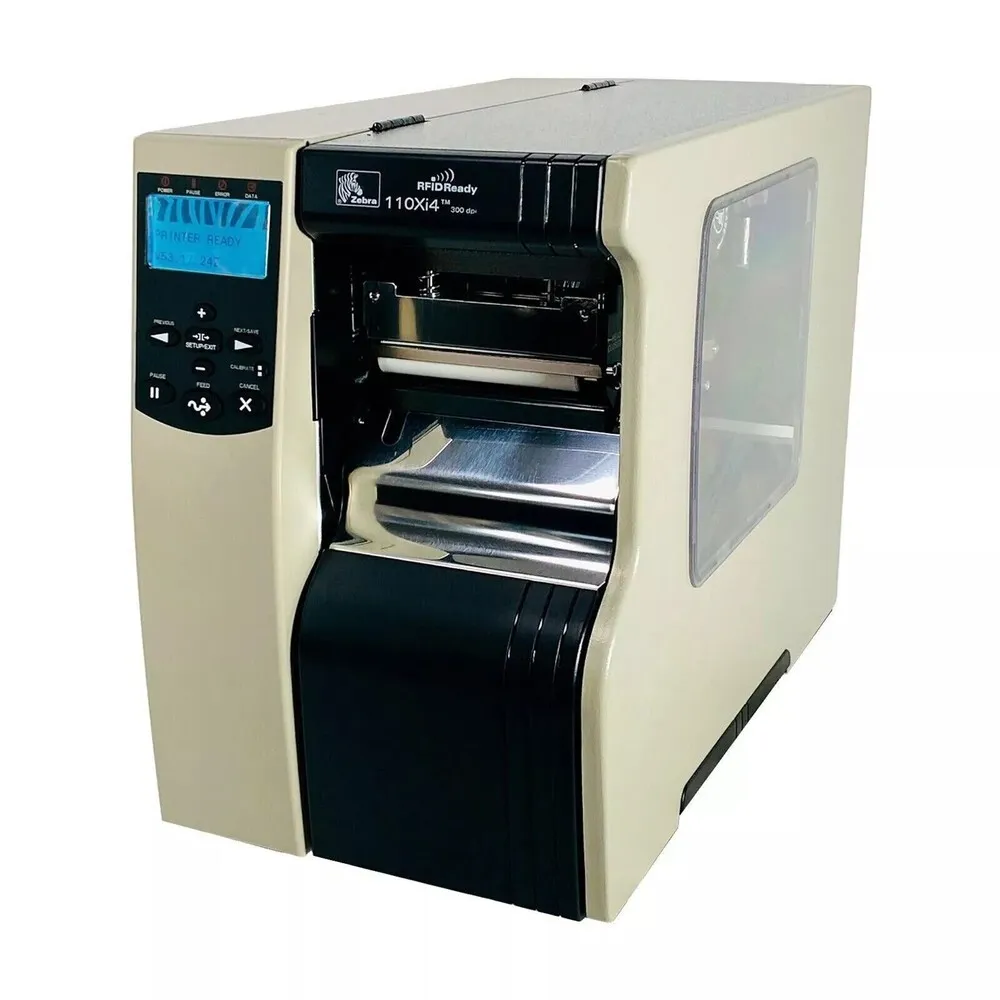

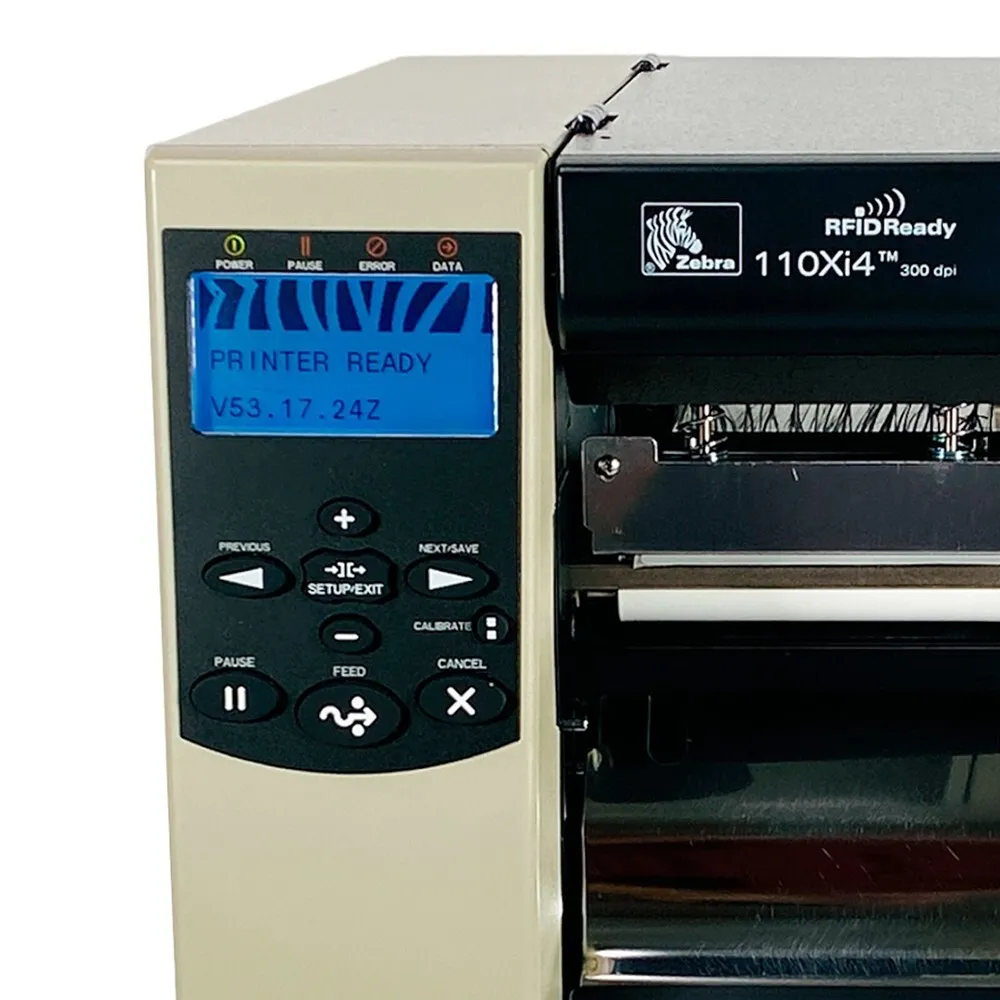

Images
Key Advantages
The robust metal construction provides excellent durability for industrial applications.
600 dpi resolution ensures sharp, clear barcode and text printing.
High print speed increases operational efficiency.
Multiple connectivity options including Network LAN enhance network integration.
User-friendly interface and configurable settings simplify operation and media loading.
Supports a broad range of media types and sizes for flexible printing solutions.
Limitations
The printer's complexity may require technical expertise for maintenance and setup.
Its relatively large size and weight may limit placement options in smaller workspaces.
Higher resolution printing at 600 dpi reduces print speed significantly compared to 203 or 300 dpi.
Initial investment and cost of ribbons and labels can be higher than desktop counterparts.
Limited onboard memory may restrict storage of large amounts of label formats.
Discontinued support limits availability of replacement parts and official firmware updates.
FAQ
What is the maximum print speed of the Zebra 110Xi4?
The maximum print speed is up to 14 inches per second at lower resolutions such as 203 dpi.
Does the 110Xi4 support network connectivity?
Yes, the printer supports Network LAN connectivity along with USB and Serial interfaces.
What print resolutions are available on this printer?
The 110Xi4 offers print resolutions of 203 dpi, 300 dpi, and 600 dpi.
Can the 110Xi4 handle different types of label materials?
Yes, it supports a variety of label and tag stock materials of varying sizes up to 4.5 inches wide.
Is the Zebra 110Xi4 still supported by the manufacturer?
No, the 110Xi4 model is discontinued and no longer supported with official updates or parts.
What memory does the 110Xi4 printer have?
It includes 64 MB of RAM and 8 MB of flash memory for label format storage.
What types of barcode symbologies can it print?
The printer supports all common linear and 2D barcode symbologies including Code 39, Code 128, QR codes, and Data Matrix.
