Intermec PM43
Brand | Intermec 2016 |
Model | Network LAN, Label, 710-129-001, PM43A11NA004120 |
Released Year | 2016 |
Type | Printers |
Series | Pm |
Printing Technology | Thermal Transfer and Direct Thermal |
Status | Active |
Quick view
Overview

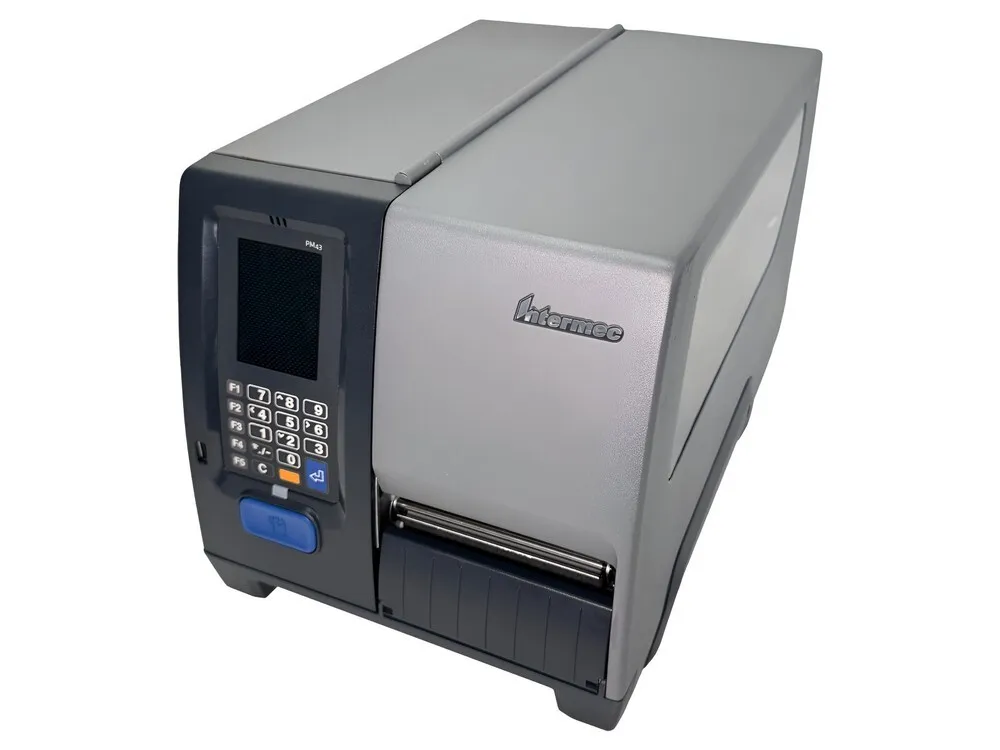

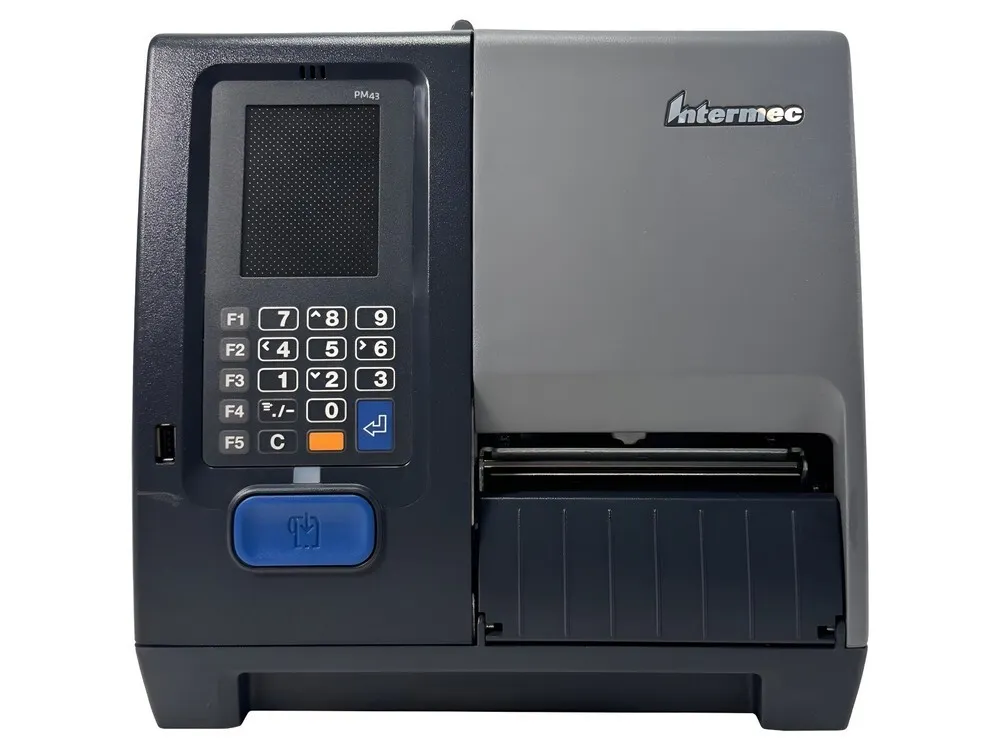

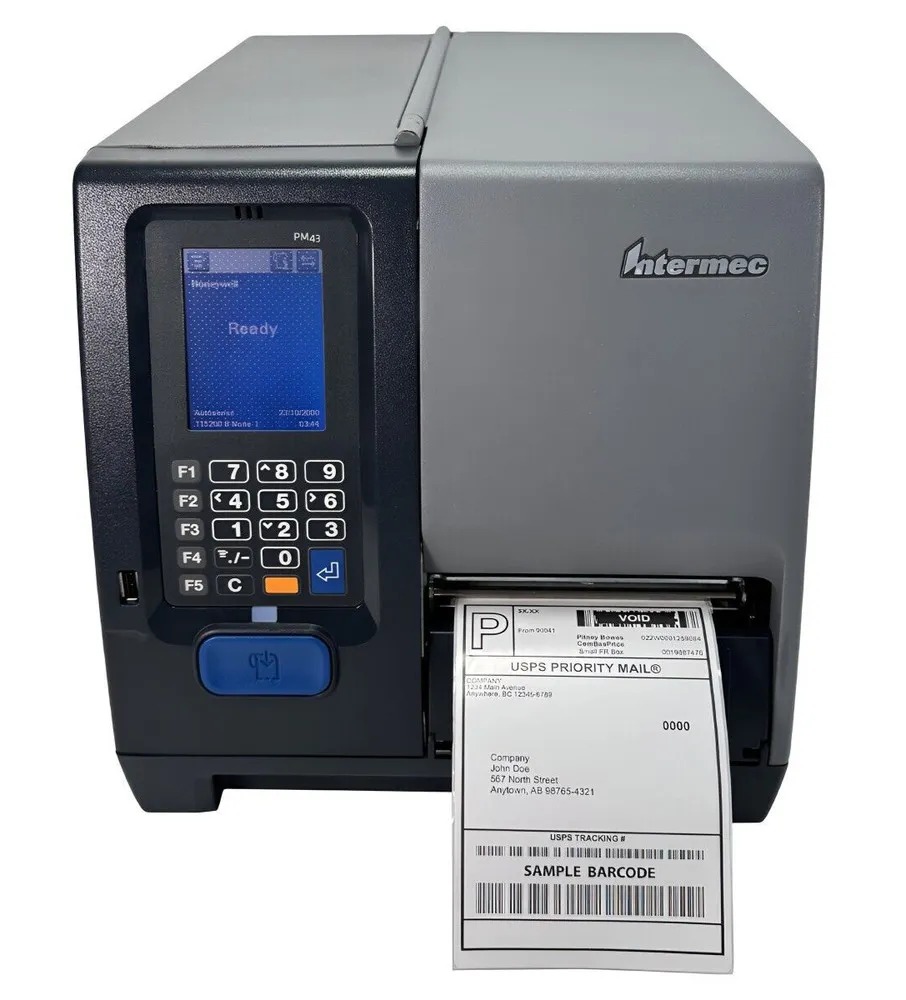

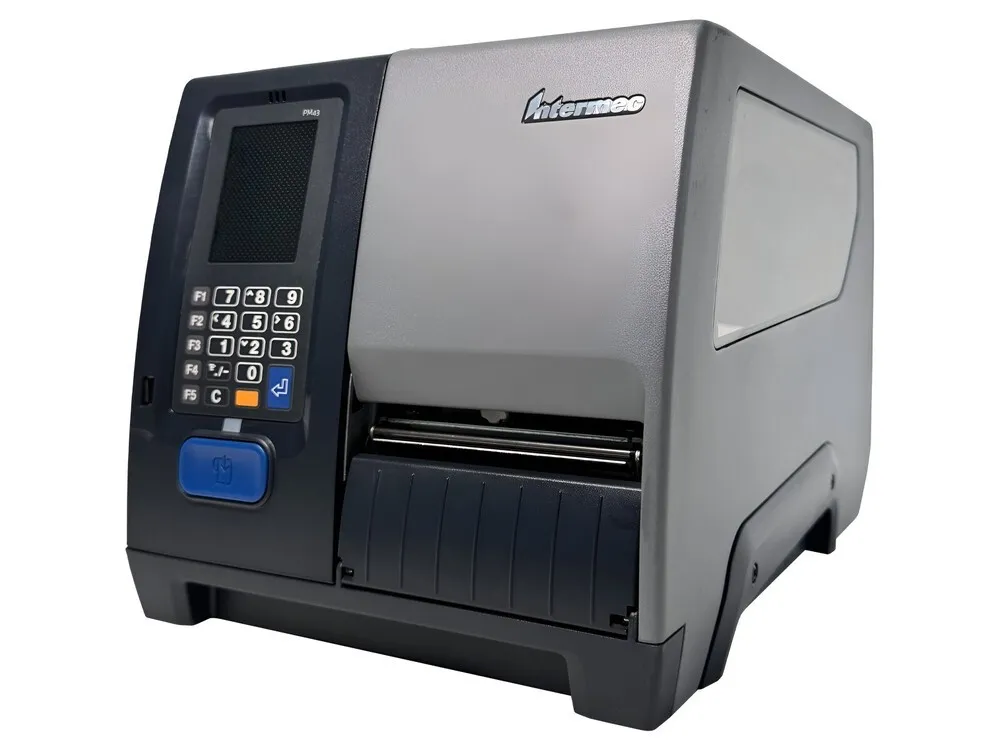

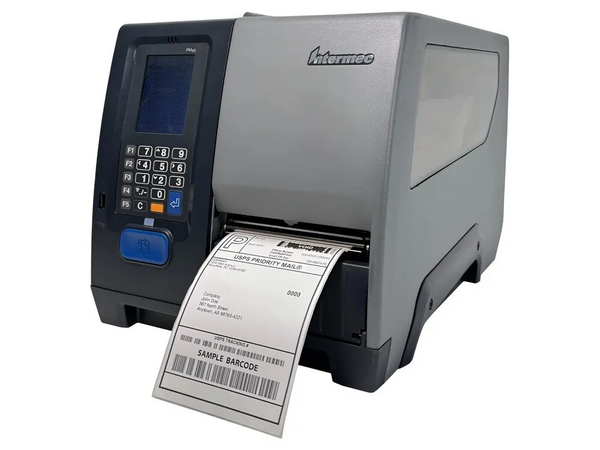

The Intermec PM43 is an industrial label printer designed for medium-duty applications, featuring reliable performance and flexible connectivity options including Network LAN. It supports various media types and sizes, optimizing printing accuracy and speed for barcode labels and tags. The printer accepts various printing languages such as IPL and supports thermal transfer and direct thermal printing technologies. Its robust construction includes a modular design facilitating simple maintenance and component replacement. Equipped with a 4.3-inch color touchscreen for easy operation and configuration, it integrates well with existing IT environments. The PM43's firmware offers advanced control features to streamline printing workflows in logistics, manufacturing, and retail sectors.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 256 MB RAM, 512 MB Flash |
MPN | Network LAN, Label, 710-129-001, PM43A11NA004120 |
Supported Paper Size | Maximum Label Width: 4.50" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 230 x 230 DPI |
Model | PM43 |
Connectivity | Ethernet LAN, USB 2.0, optional Wi-Fi, Serial (RS-232/RS-485) |
Features | Networkable |
Black Print Speed | 12 ips |
Product Line | Intermec PM |
UPC | Does not apply |
Printing Technology | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm), optional 300 dpi |
Maximum Print Width | 4.1 inches (104 mm) |
Maximum Print Speed | Up to 8 inches per second (203 mm/s) |
Processor | 533 MHz 32-bit RISC |

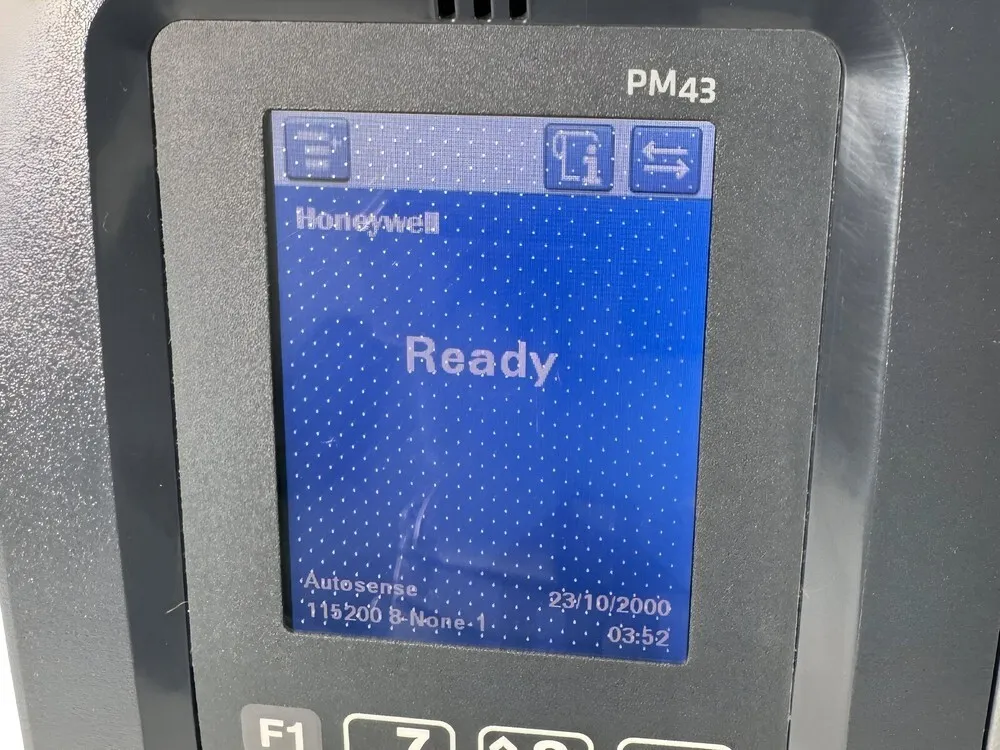

Display | 4.3 inch color LCD touchscreen |
Label Roll Capacity | Up to 8 inch (203 mm) diameter |
Media Types Supported | Continuous, die-cut, black mark, fanfold labels |
Software Compatibility | Compatible with Intermec Fingerprint, IPL, ZPL, and DPL printer languages |
Dimensions (WxDxH) | 263 mm x 429 mm x 287 mm |
Weight | 12.7 kg (28 lbs) |
Operating Temperature | 5°C to 40°C |
Energy Efficiency | ENERGY STAR certified |
Images
Key Advantages
The PM43 offers excellent print speed and quality with resolutions up to 300 dpi, ensuring crisp barcode and label outputs. It features multiple connectivity options including Ethernet, USB, and optional wireless modules enhancing network integration. The modular design simplifies upgrades and maintenance, reducing downtime. It supports a wide range of label media and ribbons, providing flexibility across applications. User-friendly touchscreen interface enables straightforward printer management and diagnostics. Additionally, it is ENERGY STAR certified, promoting energy efficiency and reduced operational costs.
Limitations
The device may experience limitations with very high-volume industrial environments where ultra-high printing speeds are critical. It lacks built-in Wi-Fi in some base models, requiring additional modules for wireless connectivity. The printer's footprint is relatively large compared to desktop label printers, which may limit placement options. Advanced color printing is not supported, focusing only on monochrome thermal printing. Initial setup and configuration may require technical expertise for integration into complex IT infrastructures. Consumable costs such as label and ribbon replacements can accumulate depending on usage intensity.
FAQ
What types of labels can the Intermec PM43 print?
The PM43 supports various label types including paper, synthetic, and specialty media suitable for barcode and RFID tags.
Does the PM43 support wireless connectivity?
Some models of the PM43 offer optional wireless modules, but base models primarily use Ethernet and USB.
What printing resolutions are available on the PM43?
The PM43 provides print resolutions of 203 dpi and 300 dpi for detailed and high-quality label prints.
Can the PM43 be integrated into existing IT network environments?
Yes, it supports various networking protocols including TCP/IP and offers Network LAN connectivity for seamless integration.
What is the maximum print speed of the PM43?
The PM43 can print at speeds up to 8 inches per second, depending on the resolution and media used.
Is the Intermec PM43 still in production?
No, the PM43 series is currently still in production and supported by the manufacturer.
What are the main communication ports available?
The printer comes equipped with Ethernet LAN, USB 2.0, and optional serial ports for flexible connectivity.
