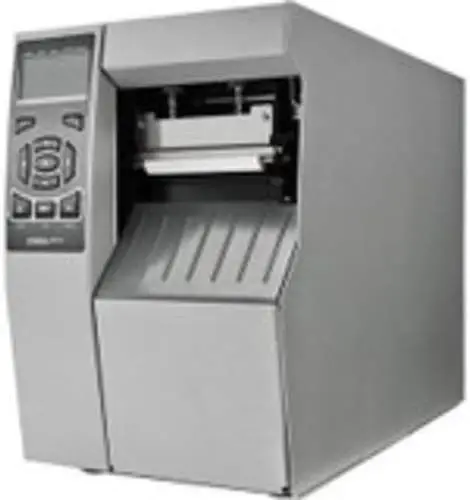

Zebra ZT51042-T010000Z
Brand | Zebra 2020 |
Model | ZT51042-T010000Z |
Released Year | 2020 |
Type | Printers |
Series | ZT500 |
Item Weight | 48 pounds |
Product Dimensions | 10.56 x 20.17 x 15.58 inches |
Status | Active |
Quick view
Overview
The Zebra ZT51042-T010000Z is an industrial thermal transfer and direct thermal printer designed for high-volume label printing in demanding environments. It features a robust metal frame construction that ensures durability and reliability under constant use. The model supports a print width of up to 4 inches (104 mm) and offers print speeds of up to 14 inches per second, suitable for various applications. It is equipped with multiple connectivity options including USB, Ethernet, and serial interfaces, facilitating seamless integration with different systems. The printer supports numerous barcode symbologies and text fonts, ensuring versatile labeling capabilities. The device is compatible with Zebra's Link-OS environment enabling remote management and diagnostics.
Specifications
Printer type | Industrial thermal transfer and direct thermal printer |
Print width | Up to 4.1 inches (104 mm) |
Print speed | Up to 14 inches per second (356 mm/s) |
Resolution | 203 dpi (8 dots per mm) standard; optional 300 dpi available |
Media handling | Roll-fed, continuous, die-cut, notch, and black mark media |
Connectivity | USB 2.0, Ethernet 10/100 Mbps, RS-232 serial |
Memory | 512 MB Flash, 256 MB SDRAM |
Display | LCD with intuitive menu interface |
Dimensions (W x H x D) | 10.5 x 13.5 x 20.25 inches (267 x 343 x 514 mm) |
Weight | Approx. 28 lbs (12.7 kg) |
Operating temperature | 40°F to 105°F (4.4°C to 40.5°C) |
Power supply | Auto-ranging external power supply (90-265 VAC) |
Supported barcode symbologies | Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR Code, Data Matrix |
Print media | Labels |
Max Input Sheet Capacity | 100 |
Sheet Size | 6 inches |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | 90 days limited warranty |
Dual-sided printing | No |
Wattage | 250 watts |
Max copy resolution black-white | 203 dpi |
Duplex | Simplex |
Hardware Interface | Bluetooth |
Ink Color | black |
Additional Printer functions | Print Only |
Control Method | App |
Total USB Ports | 1 |
Specific Uses For Product | Office |
UPC | 760575602077 |
Memory Storage Capacity | 512 MB |
Product Dimensions | 10.56 x 20.17 x 15.58 inches |
Item Weight | 48 pounds |
Item model number | ZT51042-T010000Z |
Date First Available | April 1, 2020 |
Manufacturer | Zebra |
Images
Key Advantages
The ZT51042-T010000Z provides exceptional durability with its all-metal frame construction, ideal for harsh industrial environments. It offers high-speed printing up to 356 mm/s (14 ips), increasing productivity. The printer supports both thermal transfer and direct thermal printing technologies, allowing flexibility in label media use. Multiple connectivity options, including USB, Ethernet, and serial ports, provide versatile integration with existing networks. Zebra's Link-OS features offer enhanced device management and remote troubleshooting capabilities. Additionally, its easy-to-use LCD interface simplifies setup and operation for users.
Limitations
The Zebra ZT51042-T010000Z, while robust, is relatively large and heavy compared to desktop printers, requiring significant workspace. It does not natively support wireless connectivity such as Wi-Fi or Bluetooth, limiting options for wireless printing. The initial cost can be higher than entry-level or desktop printers, making it less suitable for small-scale or low-volume applications. Media loading, although improved, may still require manual adjustment and some user training. Maintenance and parts replacement require technical knowledge due to its industrial-grade components. It is primarily designed for 4-inch wide labels, offering less versatility in label width options compared to some other models.
FAQ
What types of media can the Zebra ZT51042-T010000Z handle?
The printer supports thermal transfer and direct thermal media including labels, tags, and continuous rolls with widths up to 4 inches.
Does the ZT51042-T010000Z support wireless connectivity?
No, this model offers USB, Ethernet, and serial connectivity but does not include Wi-Fi or Bluetooth capabilities.
What is the maximum print speed of the Zebra ZT51042-T010000Z?
The printer can print at speeds up to 14 inches per second (356 mm/s).
Is the Zebra ZT51042-T010000Z suitable for harsh industrial environments?
Yes, it features a durable metal frame designed to withstand heavy industrial use and demanding conditions.
Can the printer be managed remotely?
Yes, it supports Zebra's Link-OS environment, which allows for remote management, configuration, and diagnostics.
What are common applications for this printer?
Typical applications include manufacturing, logistics, healthcare, and retail environments requiring high-volume and durable barcode label printing.
Is this model still supported by Zebra?
The Zebra ZT51042-T010000Z is currently in production and supported, with ongoing availability of parts and firmware updates.
