Zebra ZT411
| Brand | Zebra 2016 |
| Model | Barcode, ZT41143-T410000Z, 305, Ethernet, USB, Serial, Peeler Full Rewinder, Bluetooth |
| Released Year | 2016 |
| Type | Printers |
| Status | Active |
Quick view
Overview
The Zebra ZT411 is an industrial-grade barcode printer designed for high-volume labeling tasks. It features a robust metal frame and a modular design, allowing easy integration of various connectivity interfaces such as Ethernet, USB, Serial, and Bluetooth. The printer supports print speeds up to 14 inches per second and a maximum print width of 4.09 inches, optimized for demanding environments. It includes a high-resolution 203 dpi thermal transfer printhead with an optional 300 dpi variant for finer print quality. Additional features include advanced ribbon and media handling with options like peeler and full rewinder to facilitate efficient label application. The ZT411 implements precise sensor technology for media detection and supports various barcode symbologies for comprehensive labeling requirements.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 256 MB SDRAM, 512 MB Flash memory |
| MPN | Barcode, ZT41143-T410000Z, 305, Ethernet, USB, Serial, Peeler Full Rewinder, Bluetooth |
| Supported Paper Size | Max Label Width: 4.25" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | ZT411 |
| Connectivity | Ethernet 10/100 Mbps, USB 2.0, Serial RS-232, Bluetooth (optional) |
| Features | Networkable, Color touch display, Peeler, Rewinder |
| Black Print Speed | 14 ips |
| Product Line | Zebra |
| UPC | 696579826860 |
| Printer Type | Industrial Thermal Transfer / Direct Thermal Printer |
| Print Resolution | 203 dpi (8 dots/mm) standard, optional 300 dpi |
| Print Width | Up to 4.09 inches (104 mm) |
| Print Speed | Up to 14 inches per second (356 mm/s) |
| Media Handling | Peeler and full rewinder optional, adjustable media sensors |
| Dimensions (WxHxD) | 10.0 in x 14.5 in x 19.6 in (254 mm x 368 mm x 498 mm) |
| Weight | Approx. 24 lbs (10.9 kg) |
| Power Supply | Auto-ranging 90-264 VAC, 48-62 Hz |
| Operating Temperature | Operating: 40°F to 105°F (5°C to 40°C) |
| Supported Barcodes | 1D and 2D symbologies including Code 39, Code 128, QR Code, Data Matrix |
| Print Languages | ZPL, EPL compatible |

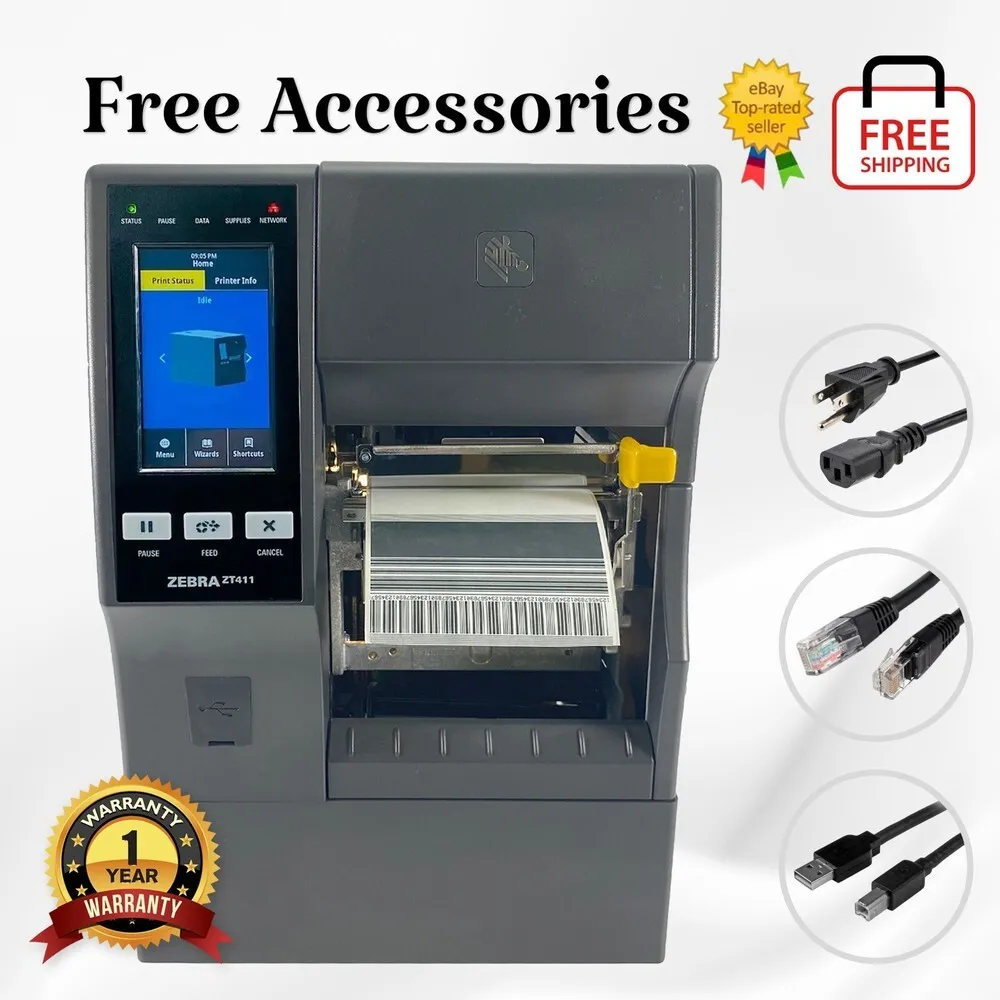

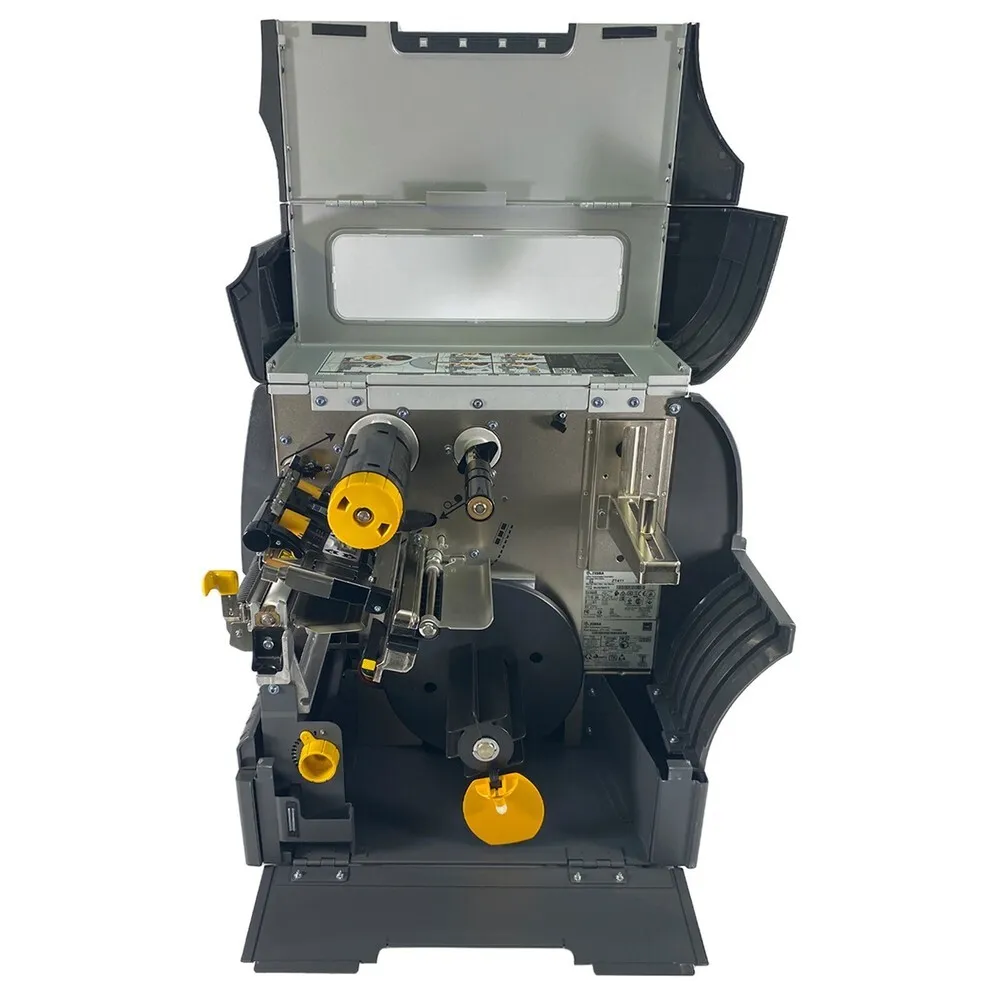

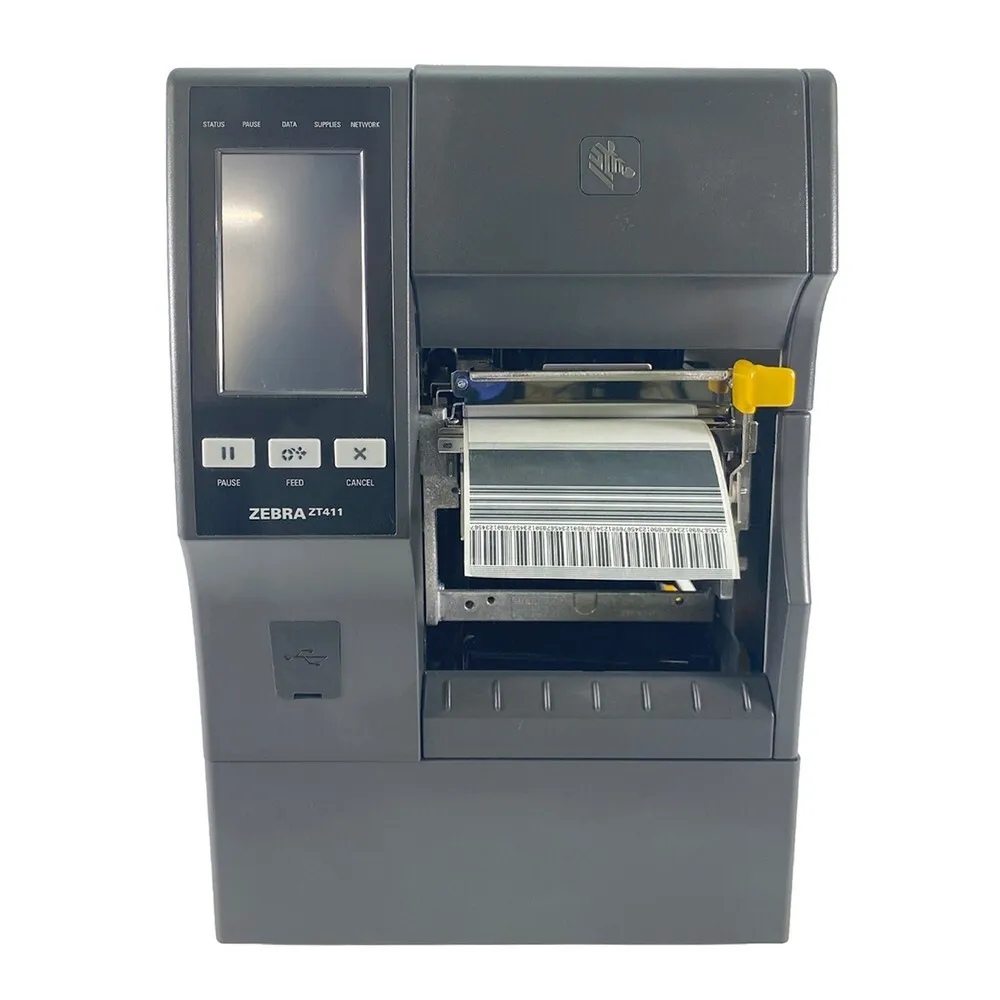

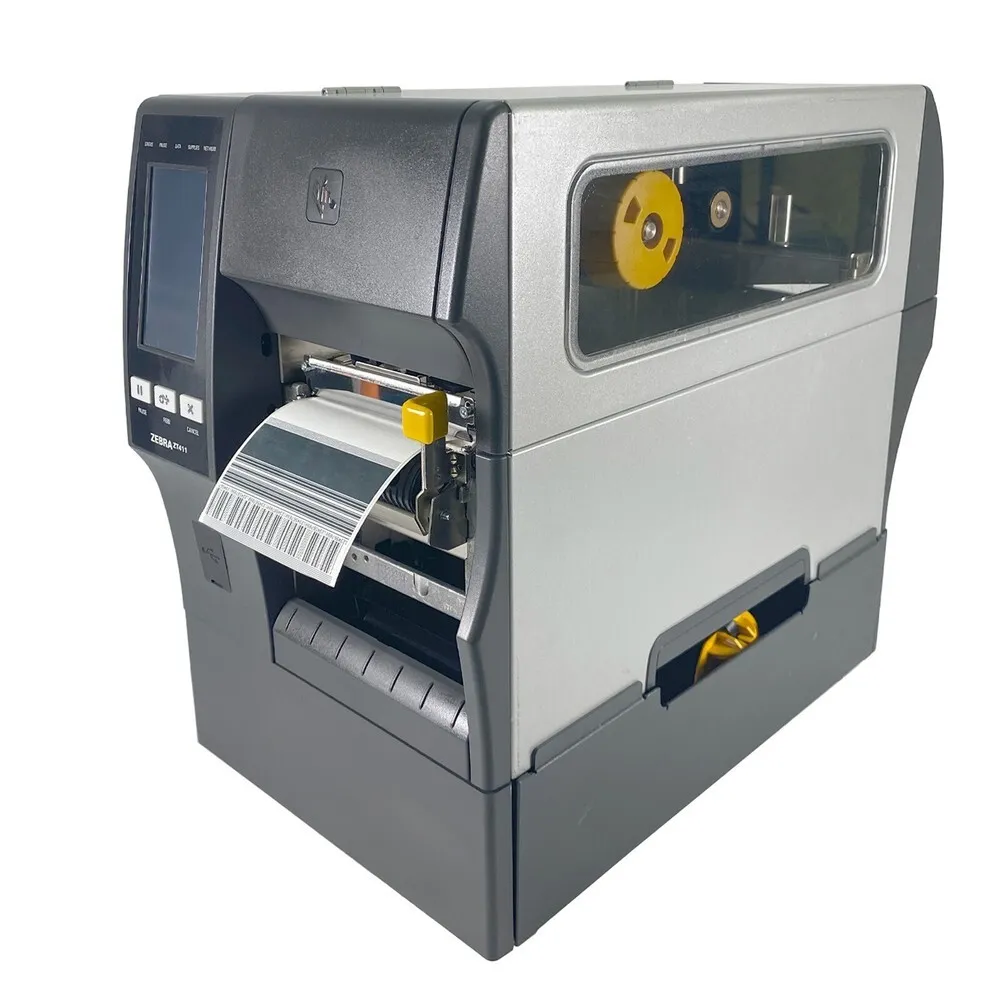

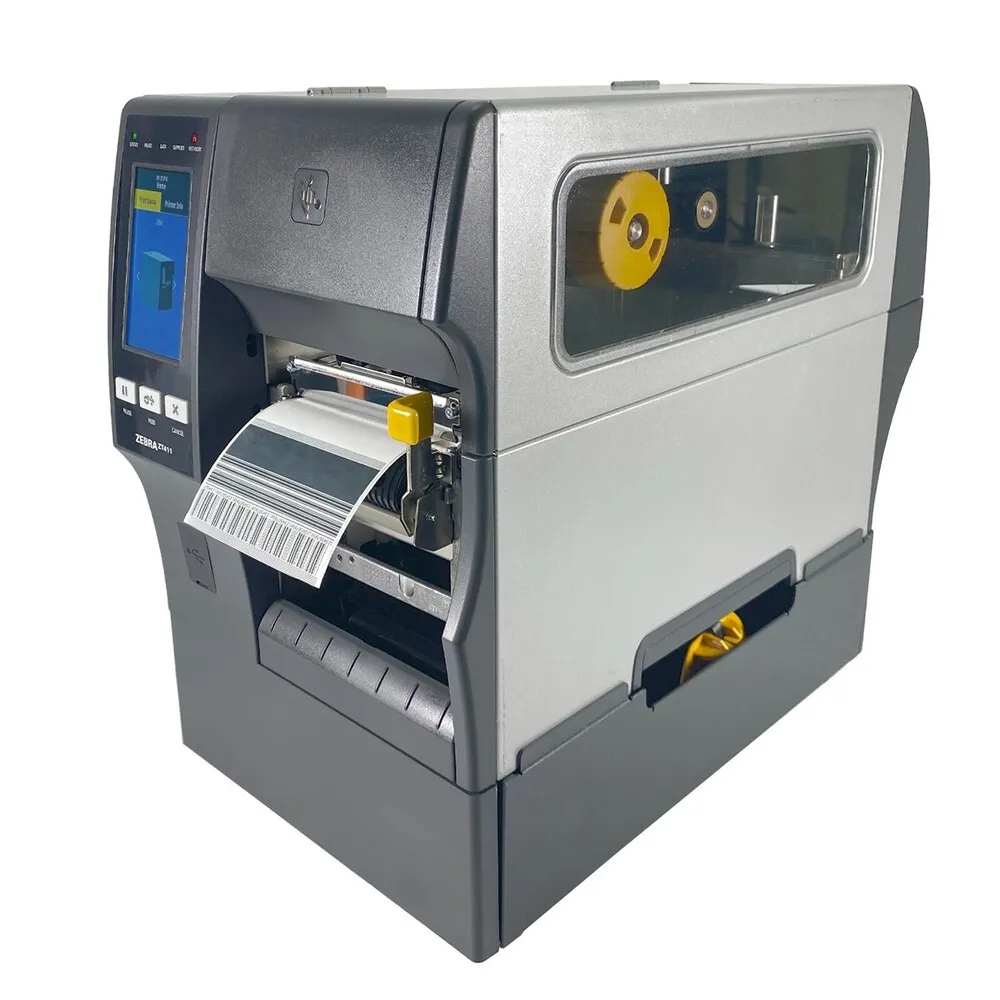

Images
Key Advantages
The Zebra ZT411 offers enhanced durability with its all-metal construction, making it suitable for industrial environments. Its varied connectivity options such as Ethernet, USB, Serial, and Bluetooth provide flexible integration into existing systems. The modular design allows easy upgrade and maintenance, minimizing downtime. High print speed and resolution options enable fast and sharp label printing, improving productivity. The inclusion of peeler and full rewinder functionalities supports streamlined label handling, reducing manual interventions. The printer's compatibility with a broad range of media and ribbons ensures versatility for various labeling applications.
Limitations
Despite its robust features, the Zebra ZT411 is relatively large and heavy, which may limit portability. It requires a stable power source and is not designed for mobile or light office use. The printer's high-performance components can lead to a higher initial investment compared to desktop printers. Some users may find the setup and configuration complex due to advanced options and industrial focus. The Bluetooth connectivity range is limited compared to other wireless technologies. Consumables like ribbons and media may have specific requirements that could increase operational costs.
FAQ
What types of connectivity does the Zebra ZT411 support?
The Zebra ZT411 supports Ethernet, USB, Serial, and Bluetooth connectivity, allowing versatile integration into various network environments.
What is the maximum print speed of the ZT411 printer?
The maximum print speed of the Zebra ZT411 is up to 14 inches per second, which is efficient for high-volume printing tasks.
Does the ZT411 support thermal transfer printing?
Yes, the Zebra ZT411 supports thermal transfer printing, ensuring durable and high-quality label outputs.
Can the ZT411 printer handle label peeling and rewinding?
Yes, it offers optional peeler and full rewinder modules to facilitate automatic label peeling and rewinding.
Is the Zebra ZT411 suitable for mobile use?
No, the ZT411 is an industrial printer designed for stationary setups and is not intended for mobile applications.
What print resolutions are available on the Zebra ZT411?
The standard print resolution is 203 dpi, with an optional 300 dpi printhead available for higher-quality printing requirements.
Is the Zebra ZT411 still in production?
Yes, the Zebra ZT411 has not been discontinued and remains available for purchase.
