Zebra ZT411 image

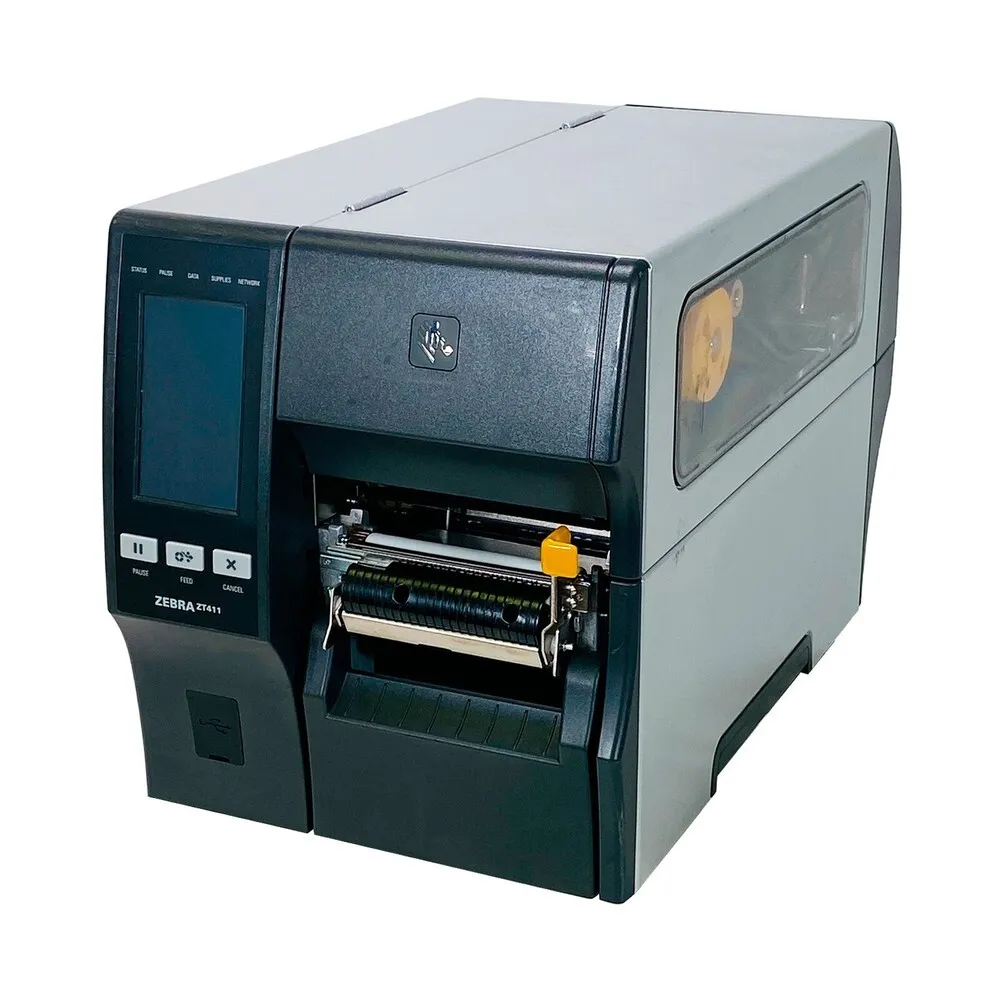

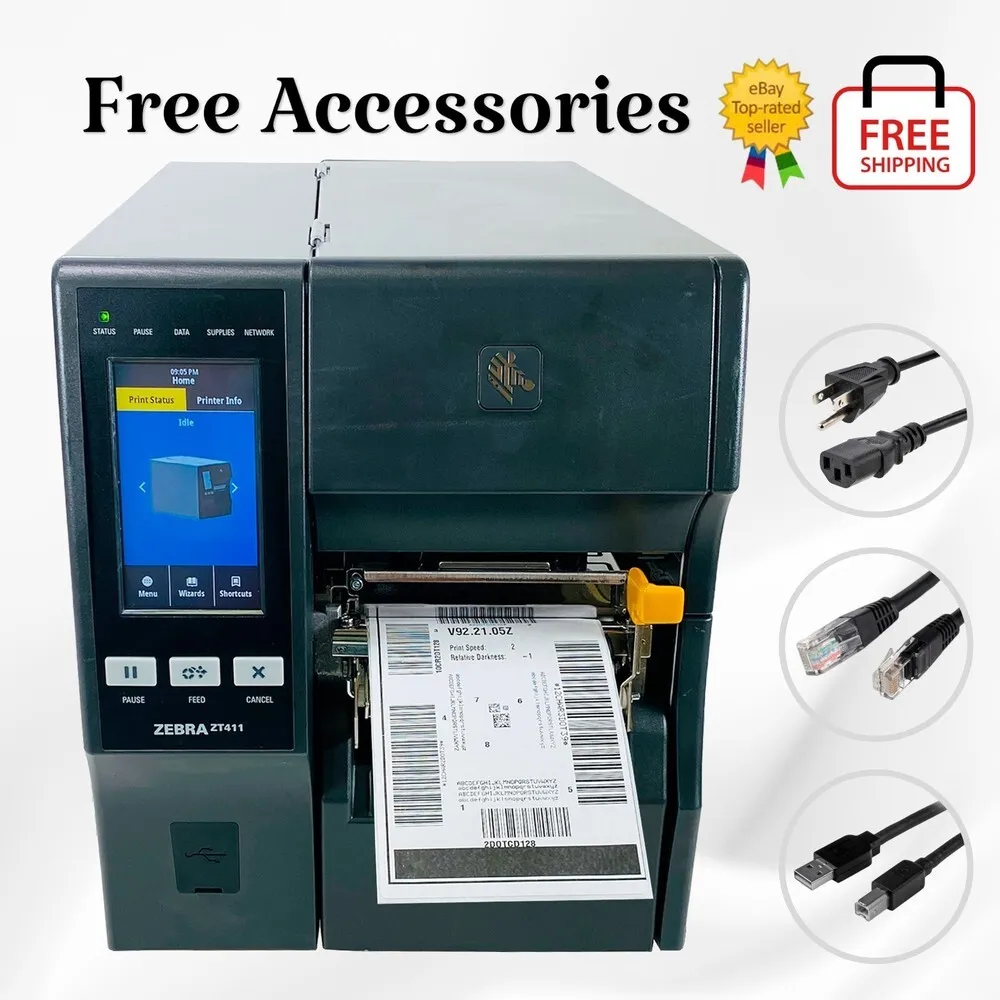

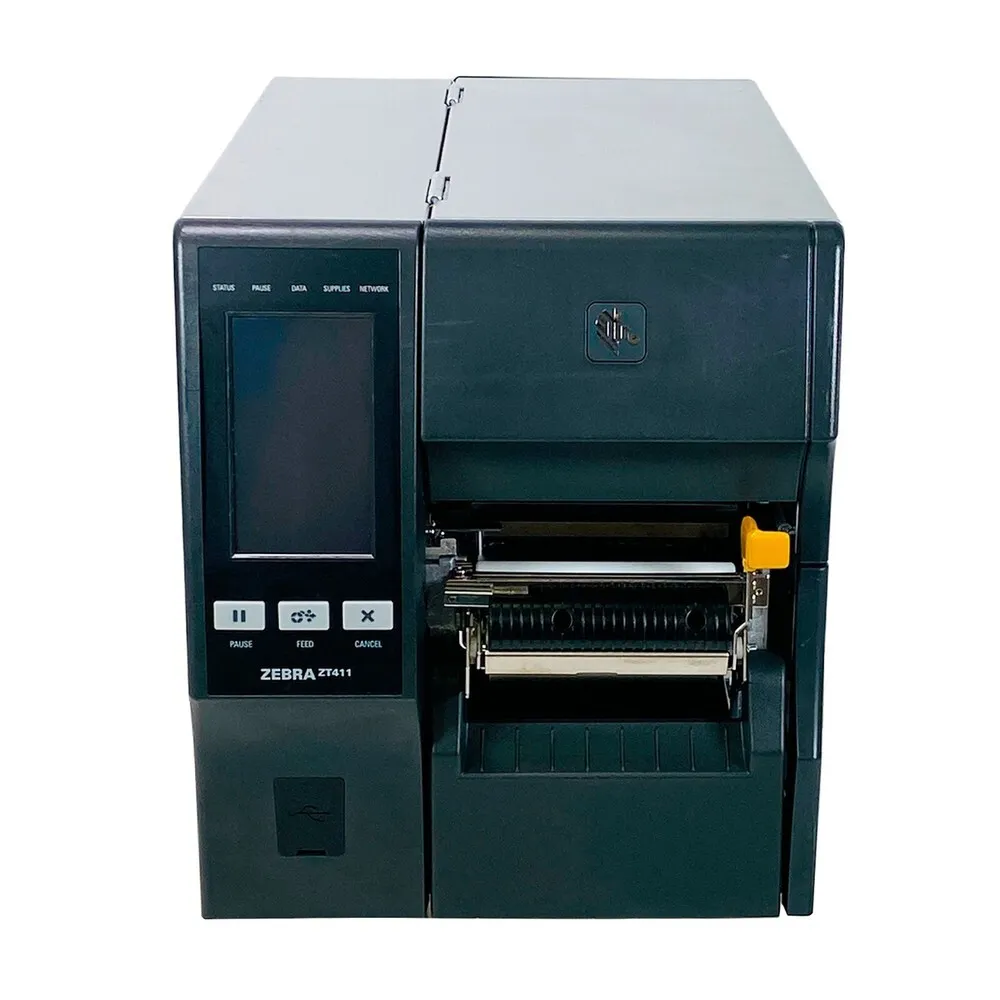

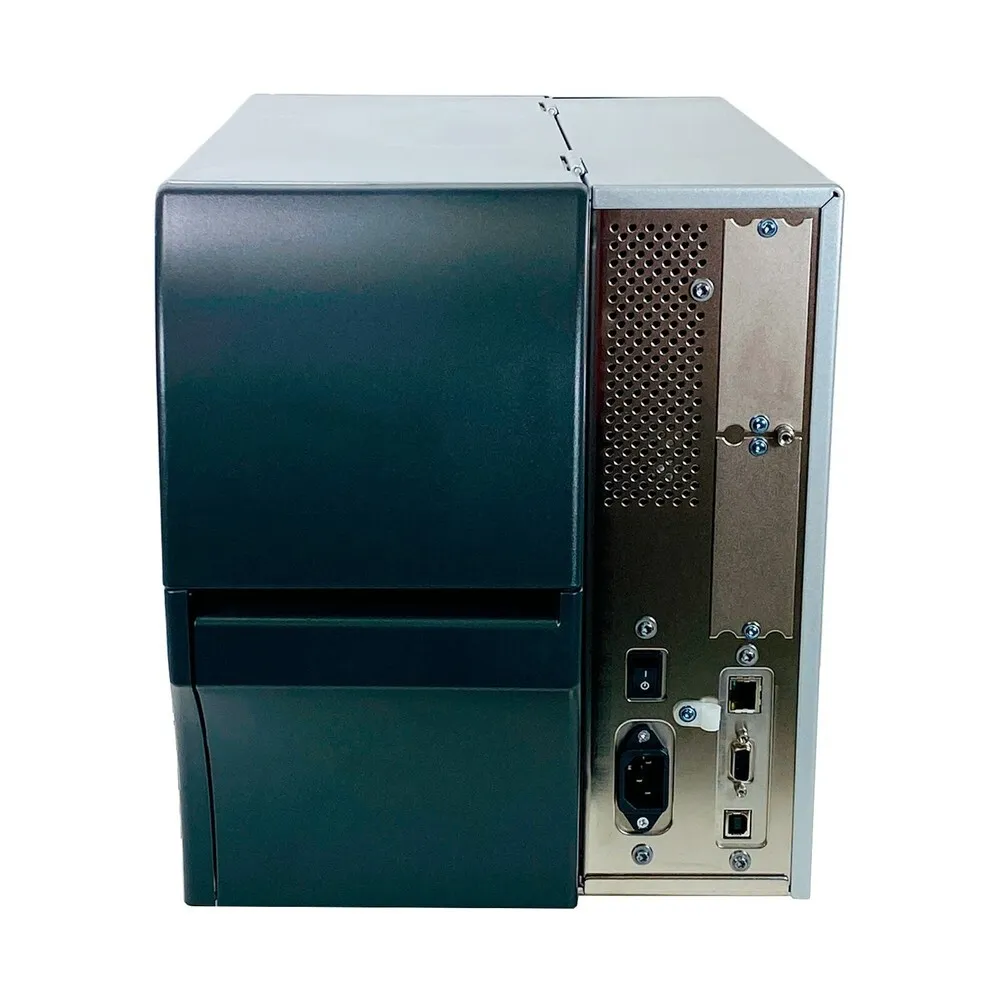

Zebra ZT411

Quick information
Brand Zebra 2017
Model Barcode, LAN Network, ZT41142-T310000Z, Liner Take-Up
Released Year 2017
Type Printers
Status Active
Quick view

Overview

The Zebra ZT411 is an industrial-grade barcode printer designed for high-volume printing applications in office and industrial environments. It features advanced thermal transfer technology for durable and crisp barcode labels. The device supports multiple connectivity options including Ethernet LAN, USB, and serial interfaces, facilitating seamless integration into existing network infrastructures.

The printer incorporates a user-friendly LCD interface for ease of navigation and configuration. It offers a maximum print resolution of 300 dpi, ensuring high-quality output suitable for complex barcode symbologies. The ZT411 supports a liner take-up accessory, which efficiently manages label backing for applications requiring a clean label feed process.

Constructed with a rugged metal frame, the ZT411 is built for durability and consistent performance in harsh environments. It supports multiple media types including continuous, die-cut, and black mark labels, enhancing its versatility across different use cases.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 512 MB Flash, 256 MB SDRAM
MPN Barcode, LAN Network, ZT41142-T310000Z, Liner Take-Up
Supported Paper Size Max Label Width: 4.25"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZT411

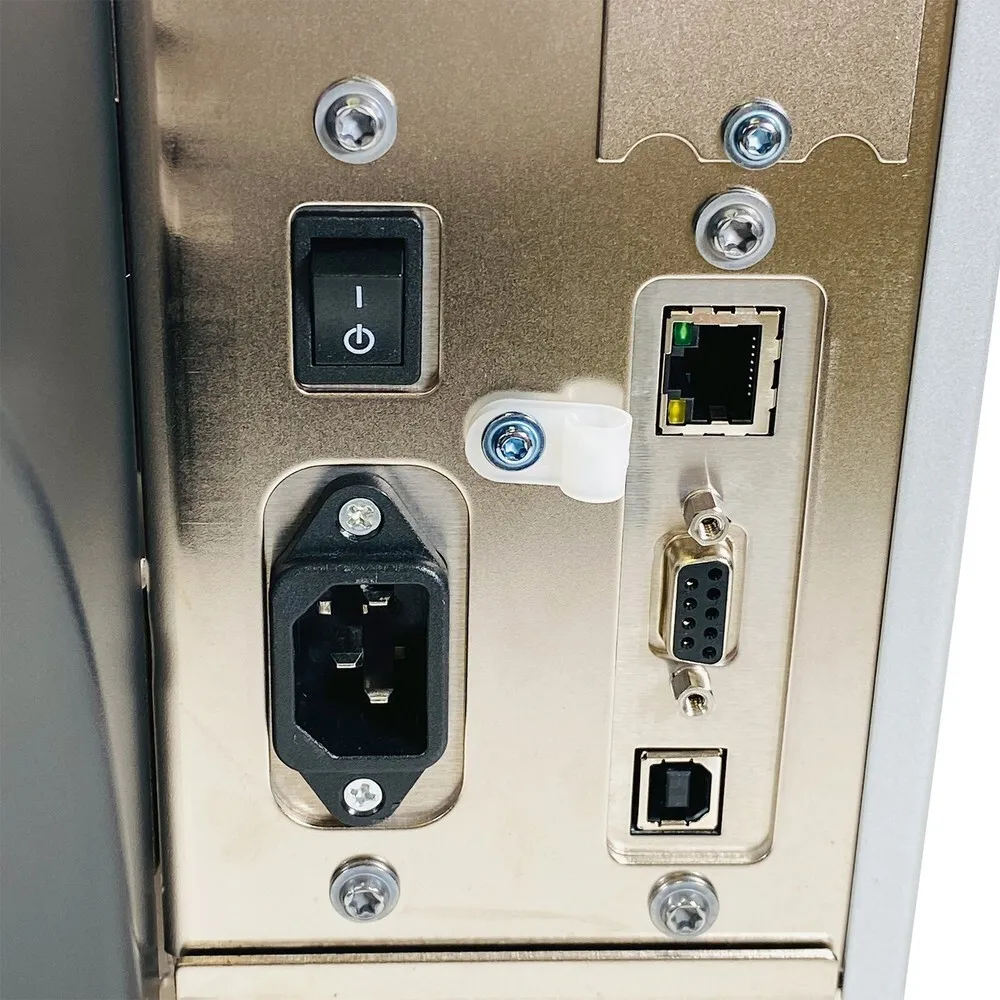

Connectivity Ethernet LAN, USB 2.0, Serial RS-232
Features Networkable, Color touch display, Peeler, Rewinder
Black Print Speed 14 ips
Product Line Zebra
Print Method Thermal Transfer and Direct Thermal
Resolution 300 dpi (12 dots/mm)
Print Width 4.09 inches (104 mm)
Print Speed Up to 14 inches per second
Media Types Supported Continuous, Die-cut, Black Mark
Media Width 1.00 inches to 4.5 inches (25.4 mm to 114 mm)
Label Roll Diameter 8.0 inches (203 mm) max

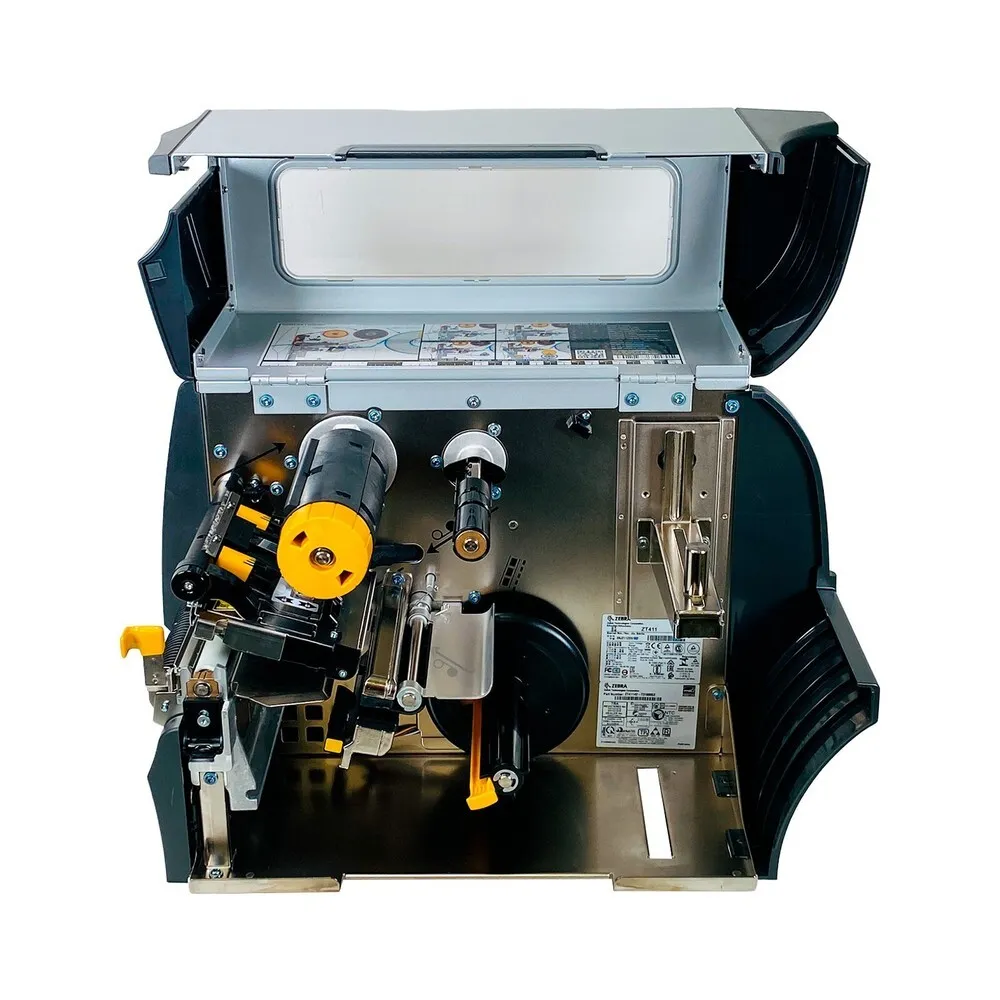

Liner Take-Up Supported (optional accessory)
Display 4.3 inch full-color LCD
Dimensions 10.5 x 20.0 x 14.0 inches (W x D x H)
Weight 28 lbs (12.7 kg)
Operating Temperature 40°F to 105°F (4.4°C to 40.5°C)

Key Advantages

The ZT411 provides precise printing with 300 dpi resolution, suitable for detailed barcode labels. It offers versatile connectivity options including LAN, USB, and serial, making it adaptable to various office setups. Its rugged construction ensures longevity and reliability in demanding environments. The inclusion of a liner take-up mechanism simplifies label handling and reduces waste. An intuitive LCD control panel allows for straightforward operation and quick printer setup. Additionally, it accommodates a wide range of media types, enhancing its functionality across various labeling requirements.

Limitations

The ZT411 printer is primarily designed for industrial and office environments, thus it may be over-specified for small-scale or low-volume printing needs. Its metal frame, while robust, contributes to a heavier device which reduces portability. The initial cost and maintenance of the printer can be higher compared to desktop label printers. It requires proper calibration and setup to fully leverage its print quality capabilities. Some advanced features may involve a learning curve for new users. While it supports LAN networking, additional configuration might be needed to integrate it into complex IT systems.
