Zebra ZD410 image

Zebra ZD410

Quick information
Brand Zebra 2015
Model ZD41022-D01M00EZ, ZD41022D01M00EZ
Released Year 2015
Type Printers
Status Active
Quick view
Full specs Images FAQ

Overview

The Zebra ZD410 is a compact thermal printer tailored for office and industrial applications requiring small label printing. It features direct thermal printing technology offering resolutions of up to 203 or 300 dpi for precise detail and barcodes. The printer supports a variety of media types including labels, tags, and receipts, with widths up to 2.2 inches. It offers USB, Serial, and optional Ethernet or Bluetooth connectivity for flexible integration. The device supports Zebra's ZPL and EPL programming languages, ensuring compatibility with existing Zebra printer environments. Its small footprint and fast print speed of up to 6 inches per second enhance productivity in tight spaces.

Specifications

MPN ZD41022-D01M00EZ, ZD41022D01M00EZ
Ean 0704660636226
GTIN 0704660636226
UPC 0704660636226, 0818228386901
Model ZD410
Technology Thermal
Connectivity USB 2.0, RS-232 Serial, Optional Ethernet, Bluetooth
Output Type Black & White
Features Printer
Type Label Printer
Maximum Resolution 203DPI
Weight 2.2 lbs (1.0 kg)
Height 6in
Width 4.5in
Length 8.6in
Custom Bundle No
Print Method Direct Thermal
Print Resolution 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Print Speed Up to 6 inches per second (152 mm/sec)
Maximum Print Width 2.2 inches (56 mm)
Media Types Labels, Tags, Receipts
Media Width 0.75 inches to 2.36 inches (19 mm to 60 mm)
Memory 512 MB Flash, 256 MB SDRAM
Supported Languages ZPL, EPL
Dimensions 5.9" W x 7.5" D x 5.9" H (150 mm x 191 mm x 150 mm)
Operating Temperature 40°F to 105°F (5°C to 40°C)
Power Supply External 100-240 VAC, 48W

Key Advantages

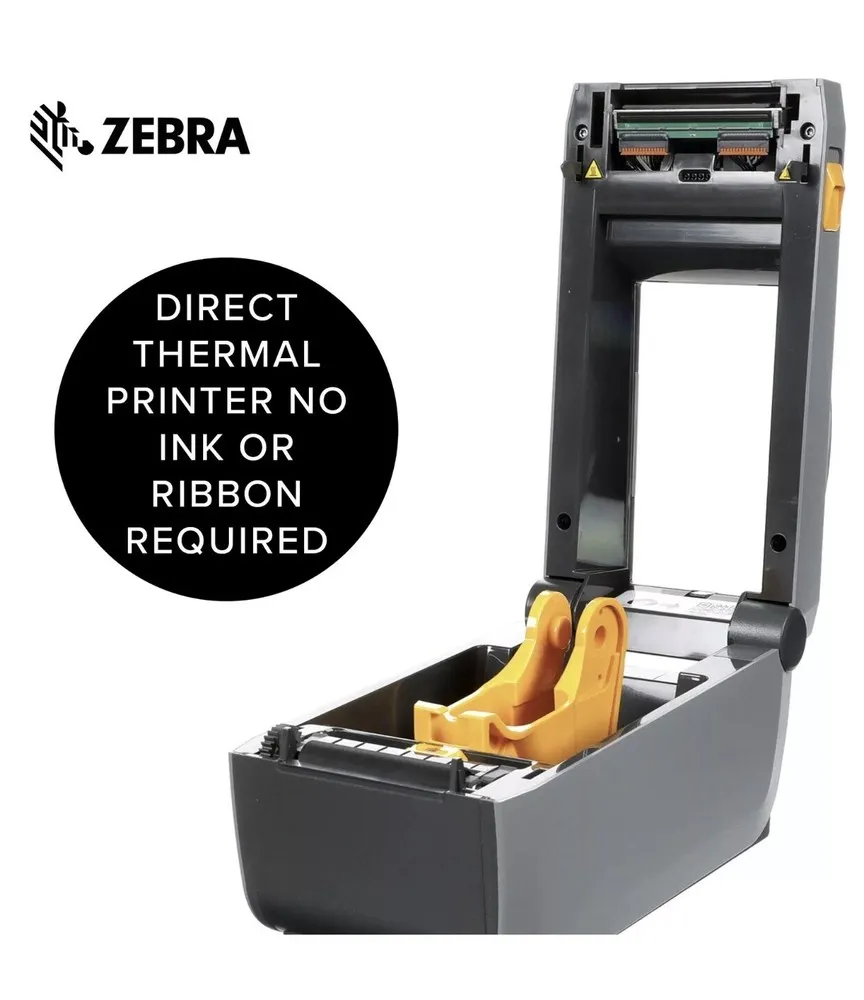

The ZD410's ultra-compact size fits well into limited workspaces. Its direct thermal technology eliminates the need for ink or ribbon, reducing maintenance. High-resolution printing (up to 300 dpi) ensures crisp barcode and text output. Multiple connectivity options including USB, Serial, Bluetooth, and Ethernet provide versatile installation. Quick printing speed supports efficient label production. User-friendly design with easy media loading improves workflow and reduces downtime.

Limitations

As a direct thermal printer, labels are susceptible to fading over time, especially when exposed to heat or sunlight. Media choices are limited compared to thermal transfer printers requiring ribbons. The maximum print width of 2.2 inches restricts larger label formats. It lacks some advanced enterprise features found in higher-end Zebra models. Memory capacity is basic, limiting storage of large label formats or graphics. Optional wireless connectivity can increase total cost and may require additional setup.
