Zebra ZT411
| Brand | Zebra 2016 |
| Model | Barcode, 305, LAN Network, ZT41143-T310000Z, Ethernet, Bluetooth |
| Released Year | 2016 |
| Type | Printers |
| Status | Active |
Quick view
Overview
The Zebra ZT411 is an industrial barcode printer designed for high-volume labeling tasks in various industries. It supports multiple connectivity options including LAN network, Ethernet, and Bluetooth, enabling easy integration into existing IT infrastructure. The printer utilizes advanced thermal transfer and direct thermal printing technologies to deliver durable, high-quality labels with resolutions up to 300 dpi. It features a robust metal frame construction for enhanced durability in demanding environments and includes a color LCD interface for intuitive operation. The device supports various media types and sizes, enhancing versatility for different labeling applications. Additionally, the ZT411 offers improved print speed and efficiency compared to its predecessors.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 512 MB SDRAM, 512 MB Flash |
| MPN | Barcode, 305, LAN Network, ZT41143-T310000Z, Ethernet, Bluetooth |
| Supported Paper Size | Max Label Width: 4.25" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | ZT411 |
| Connectivity | USB 2.0, Serial, Ethernet, Bluetooth, LAN Network |
| Features | Networkable, Color touch display, Peeler, Rewinder |
| Black Print Speed | 14 ips |
| Product Line | Zebra |
| UPC | 751492932422 |
| Printer Type | Industrial Barcode Printer |
| Print Technology | Thermal Transfer and Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Print Speed | Up to 14 ips (356 mm/s) at 203 dpi, up to 12 ips (304 mm/s) at 300 dpi |
| Processor | Dual-core 1 GHz |
| Display | 4.3-inch full color LCD touchscreen |
| Media Handling | Width: 0.79 in to 4.5 in (20 mm to 114 mm), Roll diameter up to 8 in (203 mm) |
| Sensors | Reflective, Transmissive, Head open, Ribbon out |
| Operating System | Link-OS |
| Dimensions (WxHxD) | 10.24" x 13.82" x 20.55" (260 mm x 351 mm x 522 mm) |
| Weight | 26 lbs (11.79 kg) |
| Power Supply | 90V–265V AC, 48–62 Hz |
| Certifications | FCC, CE, UL |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |

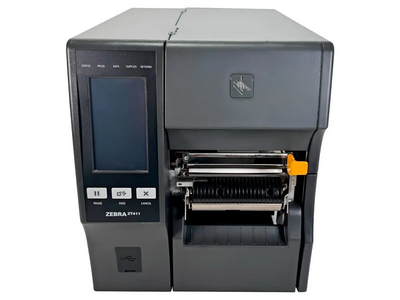

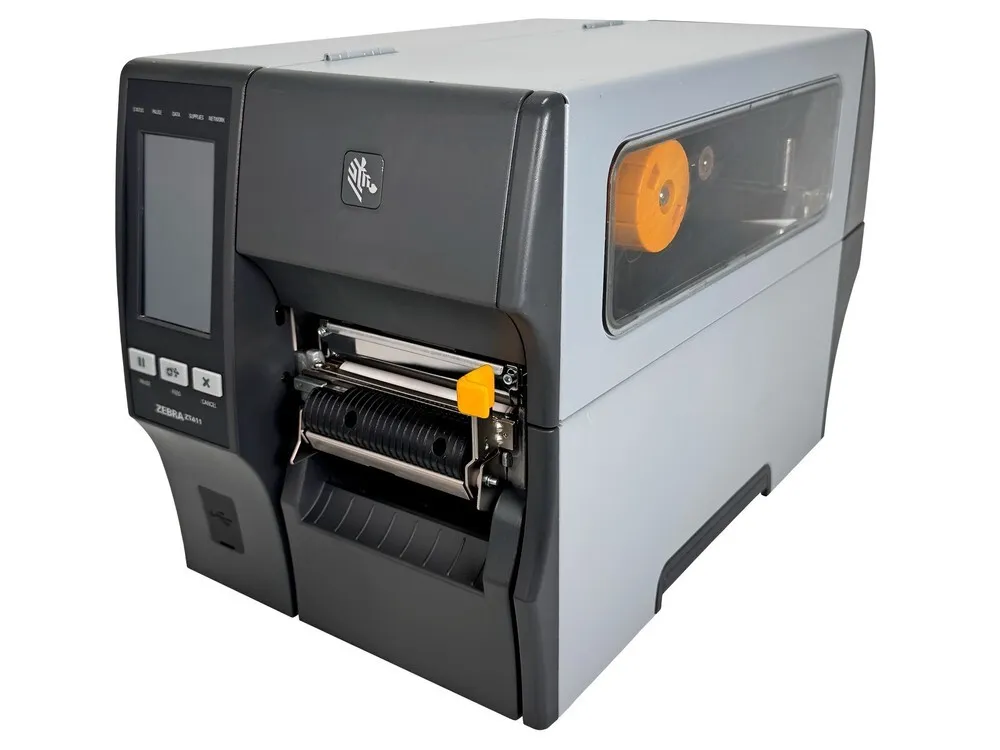

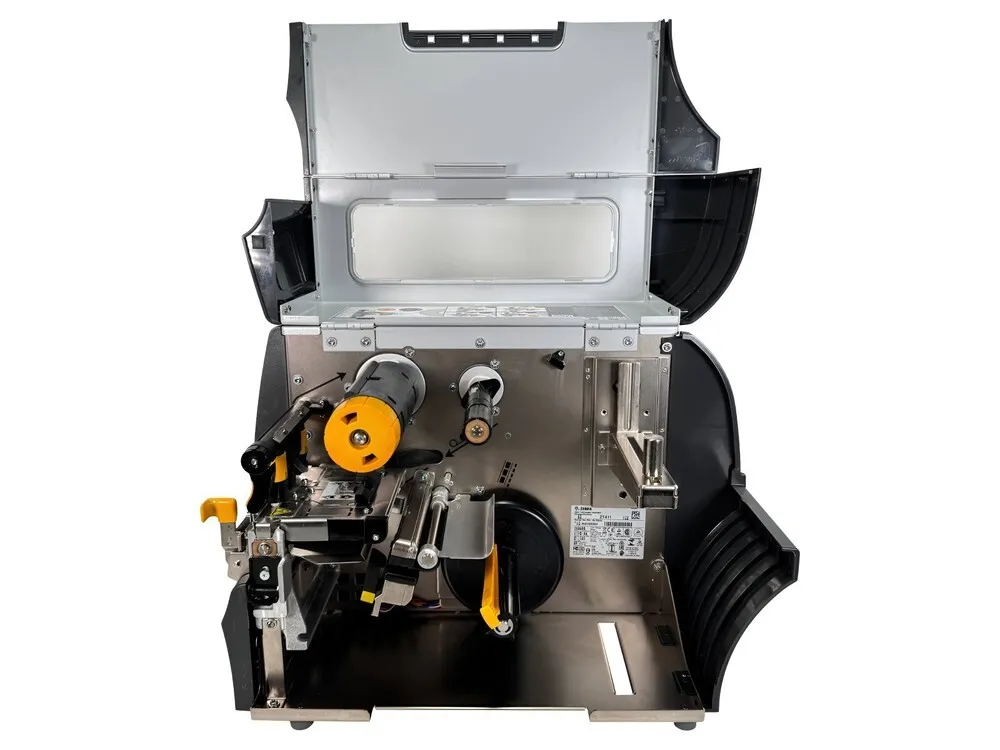

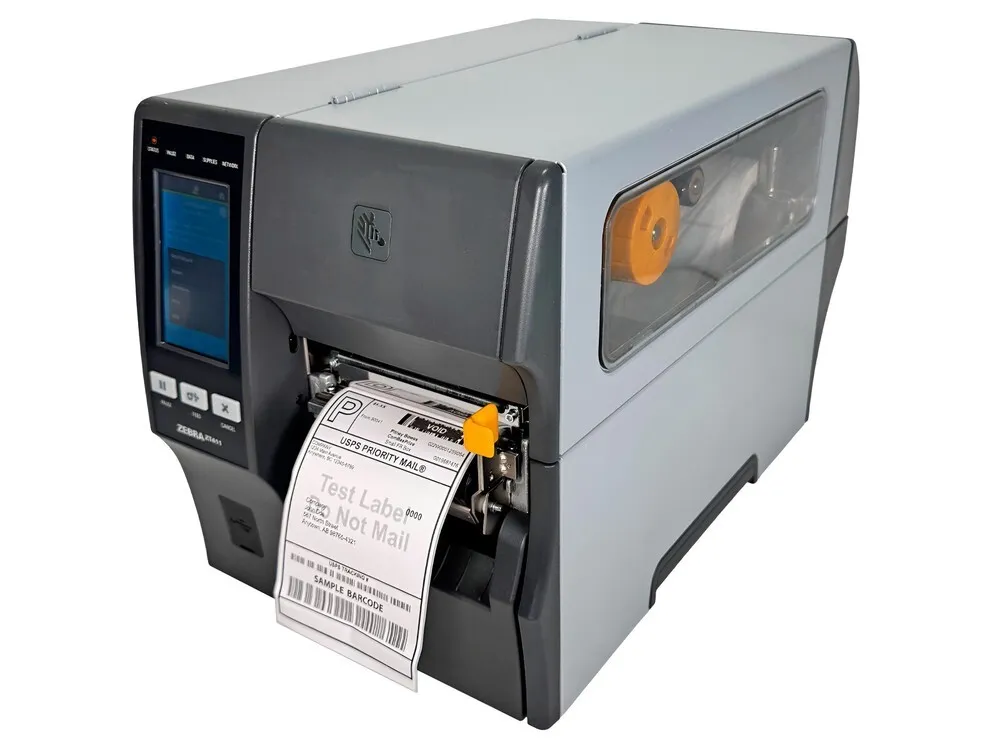

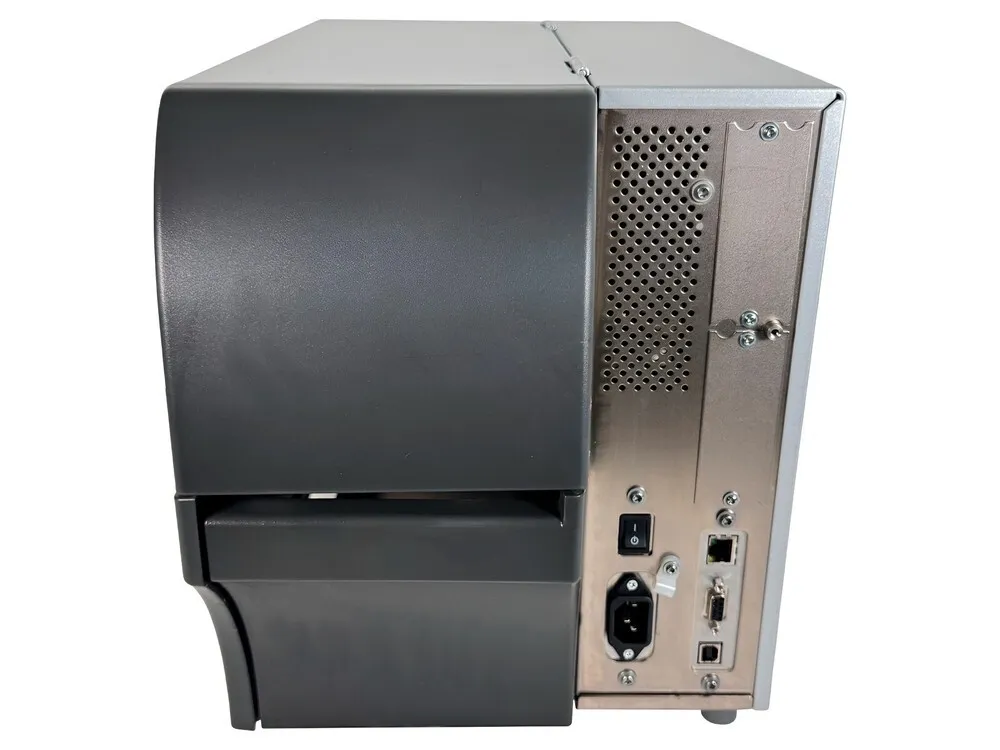

Images
Key Advantages
The ZT411 provides outstanding print speed suitable for large volume print jobs, improving operational efficiency. It offers flexible connectivity including LAN, Ethernet, and Bluetooth, which simplifies network integration. The durable metal frame design ensures the printer withstands harsh industrial environments. Its 4.3-inch color LCD display offers an intuitive user interface that reduces operator training time. The printer supports multiple media types and widths, making it highly versatile for various labeling needs. Energy-efficient design reduces power consumption during idle times, contributing to lower operational costs.
Limitations
The ZT411, while robust, is bulky and may require significant space in smaller workstations. Its higher initial cost might not be suitable for small businesses with limited printing needs. Some users might find firmware updates complicated without IT support. The Bluetooth connectivity, while available, may have limited range in environments with heavy interference. Consumables such as ribbons and labels specific to Zebra printers add to ongoing costs. Finally, the printer’s advanced features may be underutilized by users without sufficient technical expertise.
FAQ
What types of connectivity are supported by the Zebra ZT411?
The Zebra ZT411 supports LAN network, Ethernet, and Bluetooth connectivity, allowing seamless integration into various network environments.
What printing technologies does the ZT411 use?
It utilizes thermal transfer and direct thermal printing technologies to produce durable and high-quality barcodes and labels.
Is the Zebra ZT411 suitable for harsh industrial environments?
Yes, thanks to its metal frame construction, the ZT411 is built to withstand demanding and harsh industrial conditions.
What is the maximum print resolution of the ZT411?
The maximum print resolution is 300 dpi, allowing for detailed and precise barcode and text printing.
Does the printer support multiple label sizes?
Yes, it supports a range of media types and sizes, making it adaptable to different labeling requirements.
Is the printer still in production?
No, the Zebra ZT411 is not discontinued and remains available as part of the ZT400 series.
What display interface does the ZT411 have?
It features a 4.3-inch color LCD touchscreen for easy navigation and printer control.
