Zebra ZT410
Brand | Zebra 2018 |
Model | ZT41042-T01A000Z |
Released Year | 2018 |
Type | Printers |
Series | ZT400 |
Status | Active |
Quick view
Overview
The Zebra ZT410 is an industrial-grade thermal transfer and direct thermal printer designed for high-demand printing environments. It features a robust metal frame construction ensuring durability and long operational life. The printer supports high-resolution printing up to 300 dpi for sharp and precise output. It incorporates a fast print speed of up to 14 inches per second, suitable for heavy-duty label production. The ZT410 supports various media widths and types, including continuous, die-cut, and black mark labels. Connectivity options include USB, serial, Ethernet, and optional wireless interfaces, allowing flexible integration into existing office electronics and industrial setups.
Specifications
Release Year | 2018 |
Printer Type | Industrial Thermal Transfer / Direct Thermal Printer |
Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Print Width | Up to 4.09 inches (104 mm) |
Print Length | Up to 39.0 inches (991 mm) |
Print Speed | Up to 14 inches per second (356 mm/s) |
Media Types | Continuous, Die-cut, Notch, Black Mark, Tag stock |
Media Width | 1.0 inch to 4.5 inches (25.4 mm to 114 mm) |
Ribbon Type | Wax, wax/resin, resin |
Connectivity | Ethernet, Serial (RS-232), Bluetooth, USB |
Memory | 256 MB Flash, 128 MB SDRAM |
Display | Full-color LCD with intuitive menu |
Dimensions | 10.9 in (W) x 19.1 in (D) x 14.6 in (H) approx. |
Weight | 35 lbs (15.9 kg) approx. |
Operating Temperature | Operating: 40°F to 104°F (4.4°C to 40°C) |
Power Supply | Power supply: 100-240VAC, 50-60Hz auto-ranging |
Maximum Label Width | 4.49" |
Input Type | Monochrome |
Output Type | Black & White |
Color | Dark Grey |
MPN | ZT41042-T01A000Z |
Input Voltage | 110 VAC - 220 VAC |
Depth | 19.50” |
Maximum print width | 4” |
Series | ZT400 |
Type | Barcode Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Item Height | 12.75” |
Model | ZT410 |
Maximum print speed | 14 ips |
Media Thickness | 9.84 mil |
Maximum ribbon length | 450m |
Item Width | 10.6” |
Product Line | Zebra ZT410 |

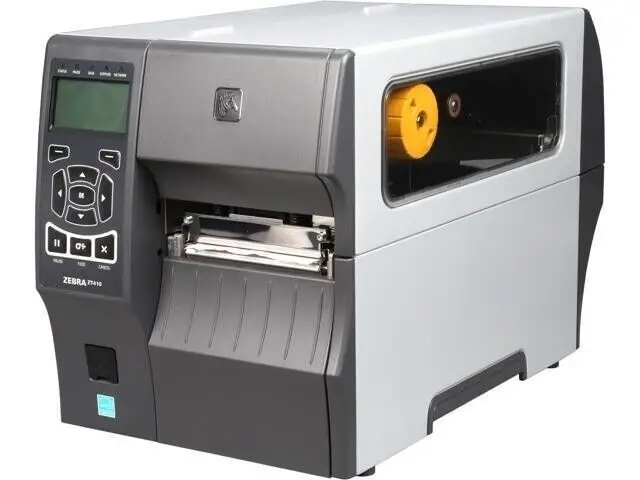

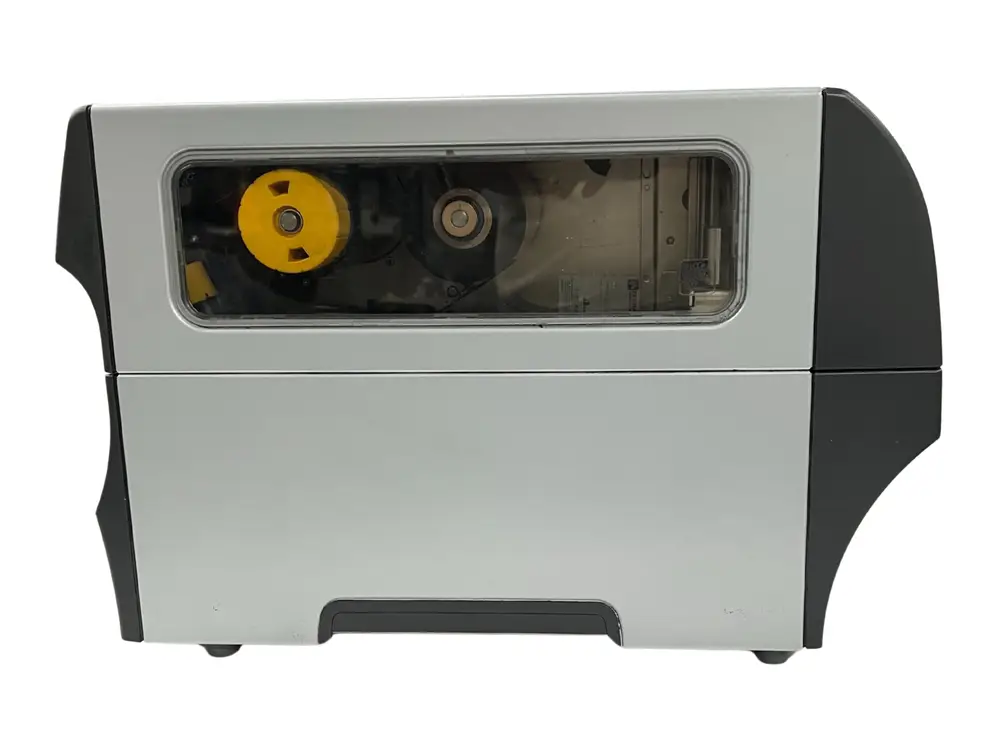

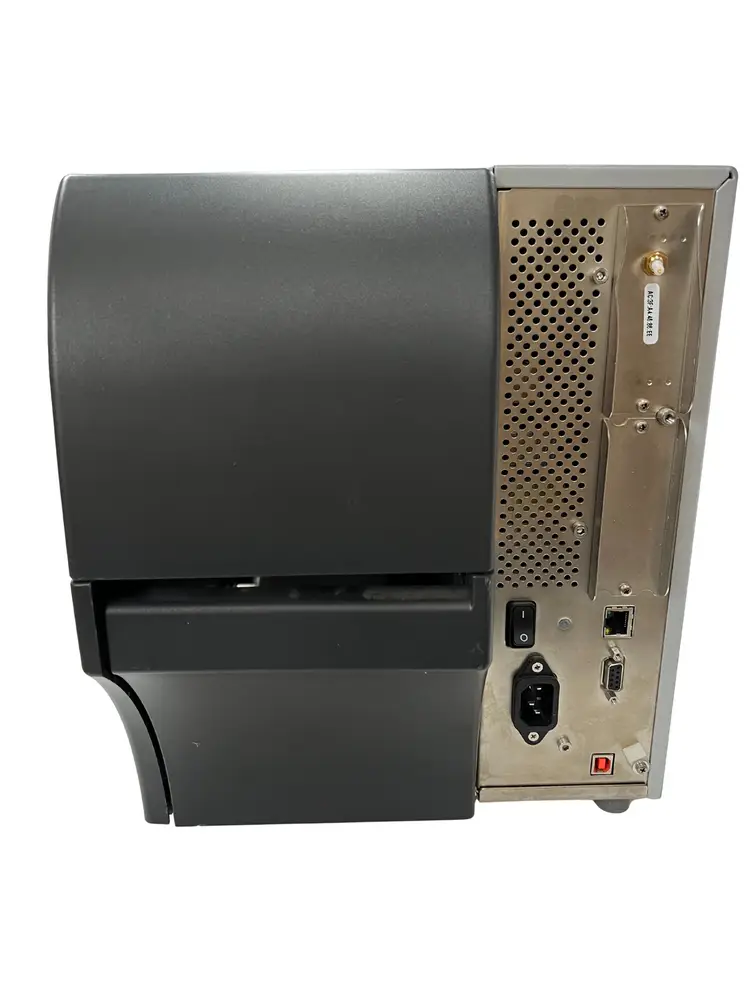

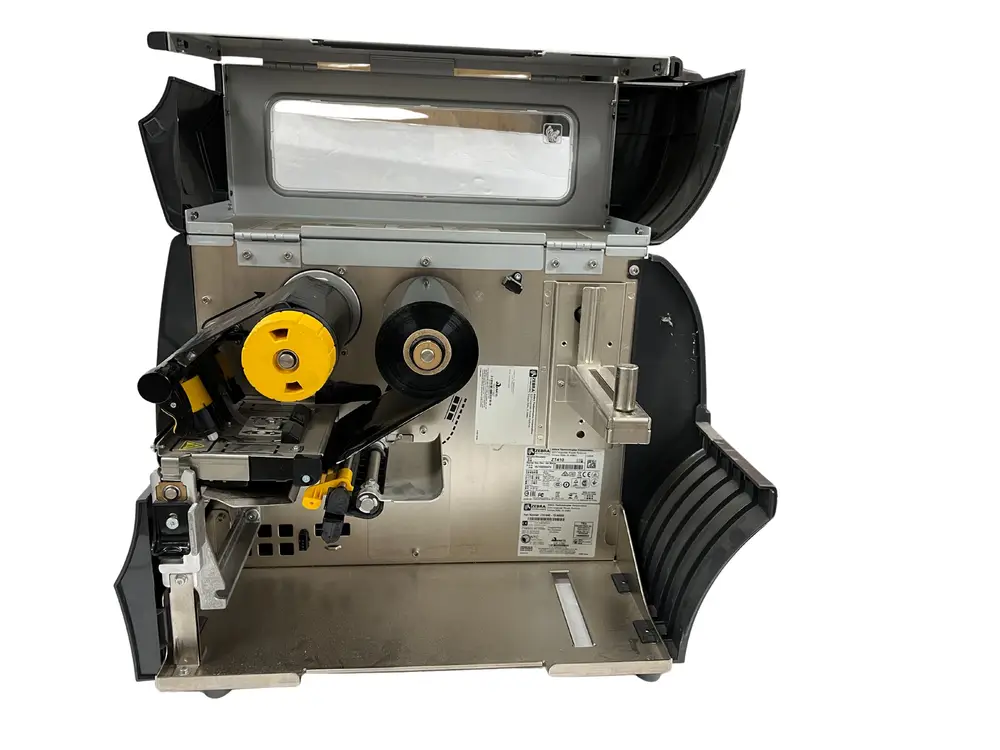

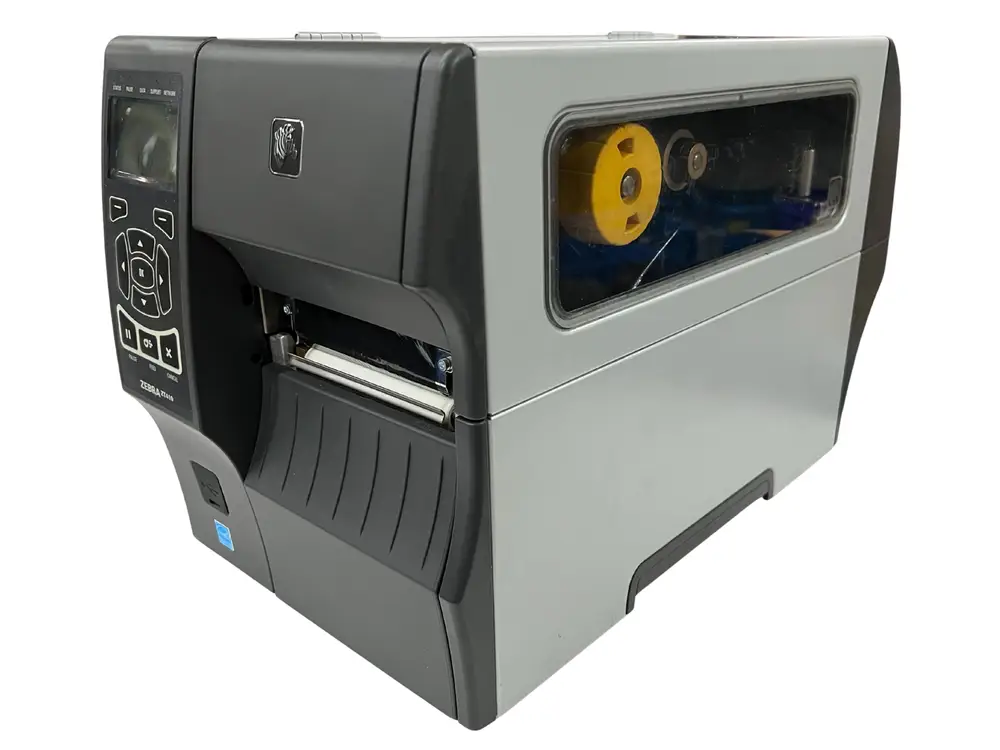

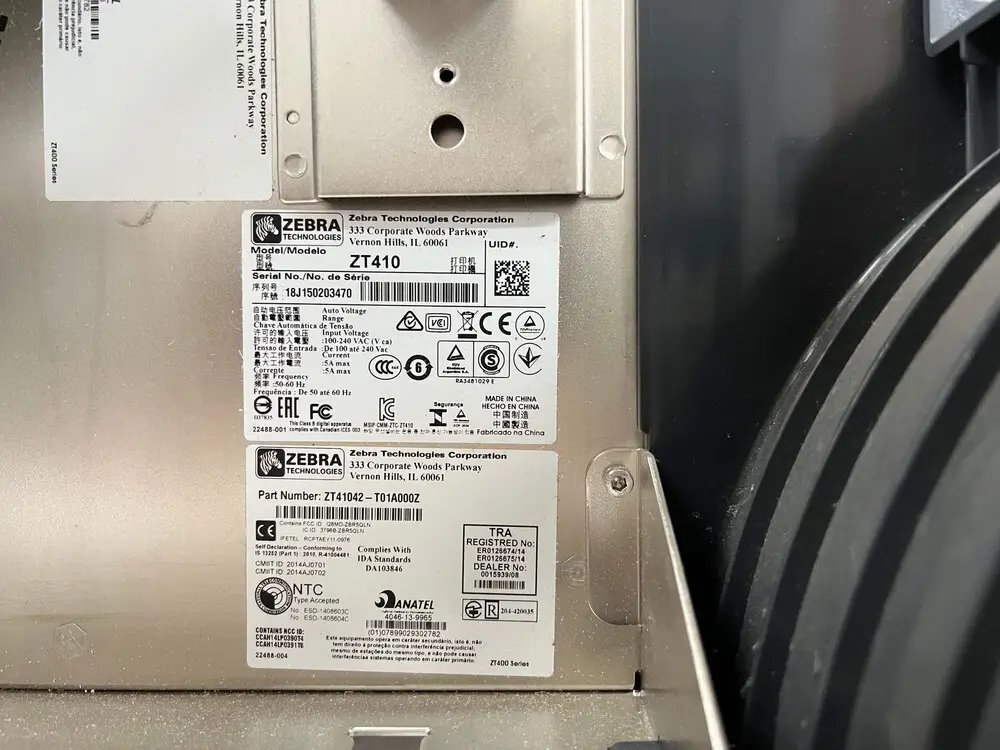

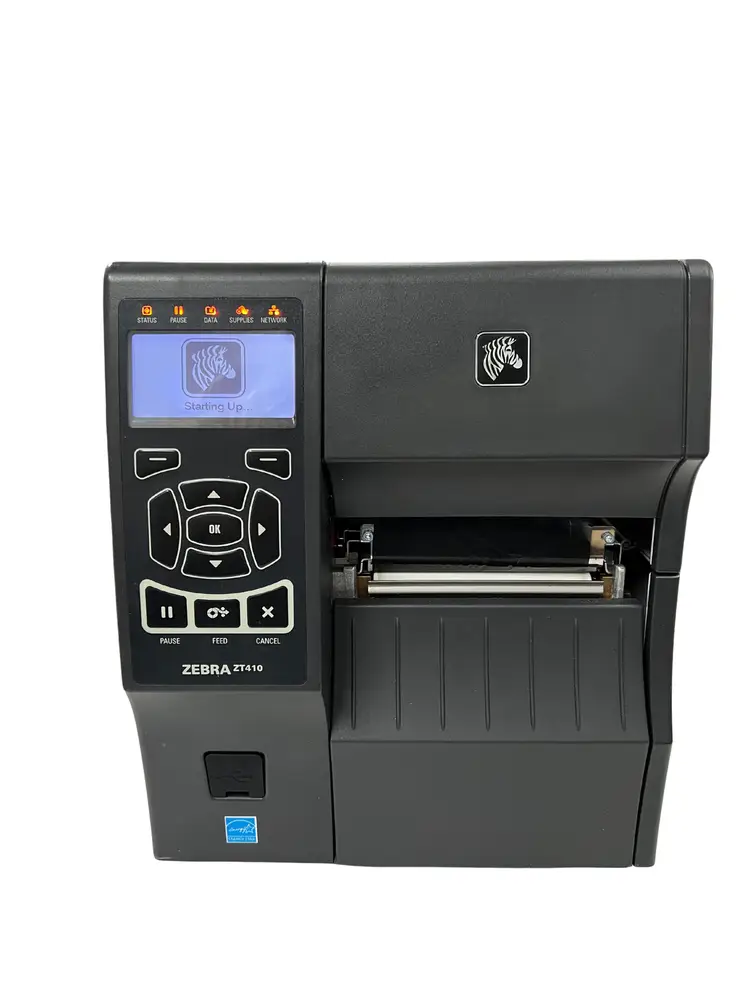

Images
Key Advantages
The ZT410 delivers exceptional build quality with a sturdy metal housing that withstands harsh industrial environments. It offers dual print technologies, direct thermal and thermal transfer, providing versatility for different labeling needs. High print speed combined with a 300 dpi resolution ensures both efficiency and high-quality output. The printer supports a wide range of media types and sizes, enhancing operational flexibility. Advanced connectivity options allow seamless network integration, improving workflow. User-friendly design with an intuitive interface simplifies operation and maintenance.
Limitations
The ZT410, while robust, is relatively bulky and may not be suitable for very compact workspace environments. Its industrial-focus means it requires occasional maintenance to keep optimal performance under heavy use. Initial cost and consumables such as ribbons for thermal transfer can be higher compared to desktop label printers. The device's complexity might require basic training for operators unfamiliar with industrial printers. Wireless connectivity is optional and may increase the total cost if needed. Firmware updates and software integration could be less frequent compared to mainstream desktop printer models.
FAQ
What print resolutions does the Zebra ZT410 support?
The Zebra ZT410 supports print resolutions of 203 dpi and 300 dpi, providing options for detailed and high-quality label printing.
What types of media can the ZT410 handle?
It can handle various media types including continuous, die-cut, notch, black mark, and tag stock media in widths from 1 inch to 4.5 inches.
Does the ZT410 support wireless connectivity?
Yes, wireless connectivity options such as Wi-Fi and Bluetooth are available as factory or field-installed options.
What printing technologies are supported by the ZT410?
The ZT410 supports both thermal transfer and direct thermal printing technologies.
What are the interface options for the Zebra ZT410?
Standard interfaces include USB 2.0, RS-232 serial, and 10/100 Ethernet, with optional Wi-Fi and Bluetooth available.
Is the Zebra ZT410 suitable for high-volume printing environments?
Yes, it's designed for industrial applications and can handle high-volume label printing with reliability.
What is the maximum print speed of the ZT410?
The maximum print speed is up to 14 inches (356 mm) per second, depending on print resolution and media type.
