Zebra ZT230 image

Zebra ZT230

Quick information
Brand Zebra 2014
Model ZT23042-T01A00FZ
Released Year 2014
Type Printers
Series Z
Status Discontinued
Quick view
Full specs Images FAQ

Overview

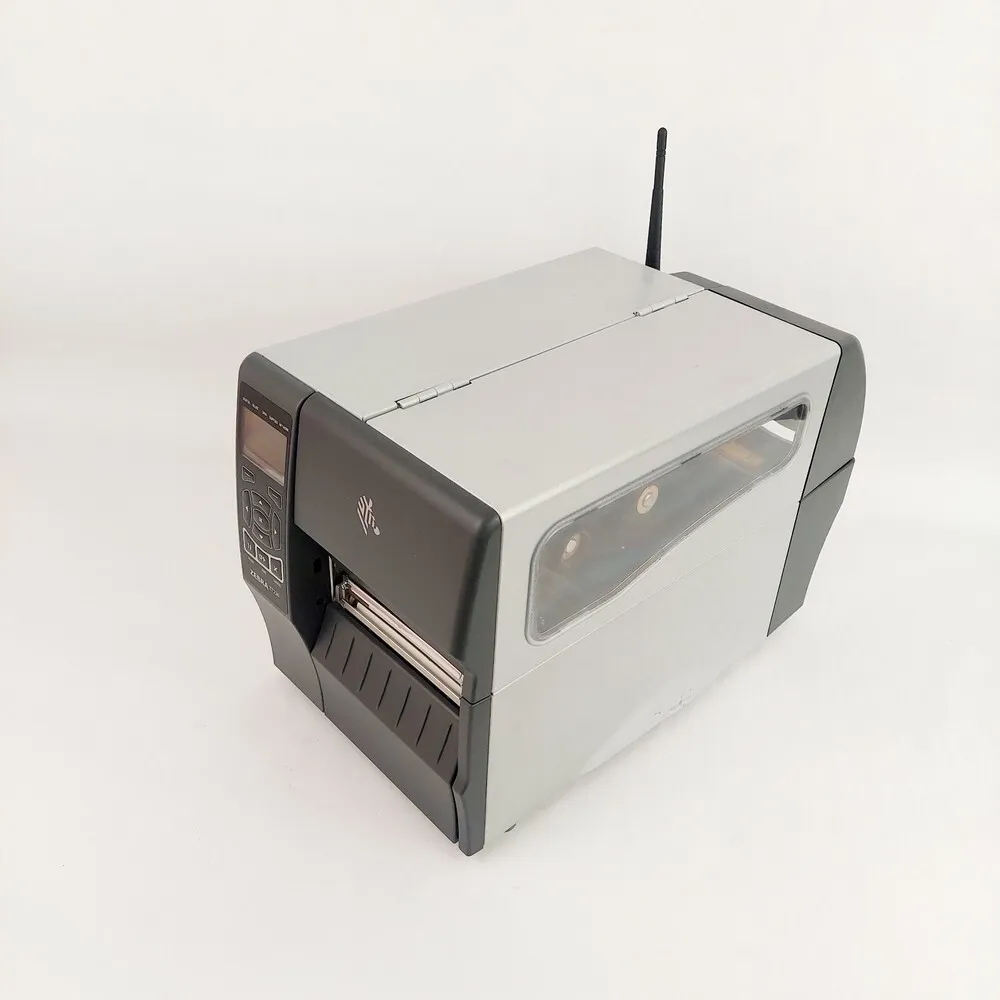

The Zebra ZT230 is an industrial-grade barcode and label printer optimized for medium-duty printing tasks in office and warehouse environments.

It employs direct thermal and thermal transfer printing technologies compatible with various label materials and ribbons.

The device supports print speeds up to 6 inches per second with a print resolution of 203 dpi, ensuring clear and reliable barcode and text output.

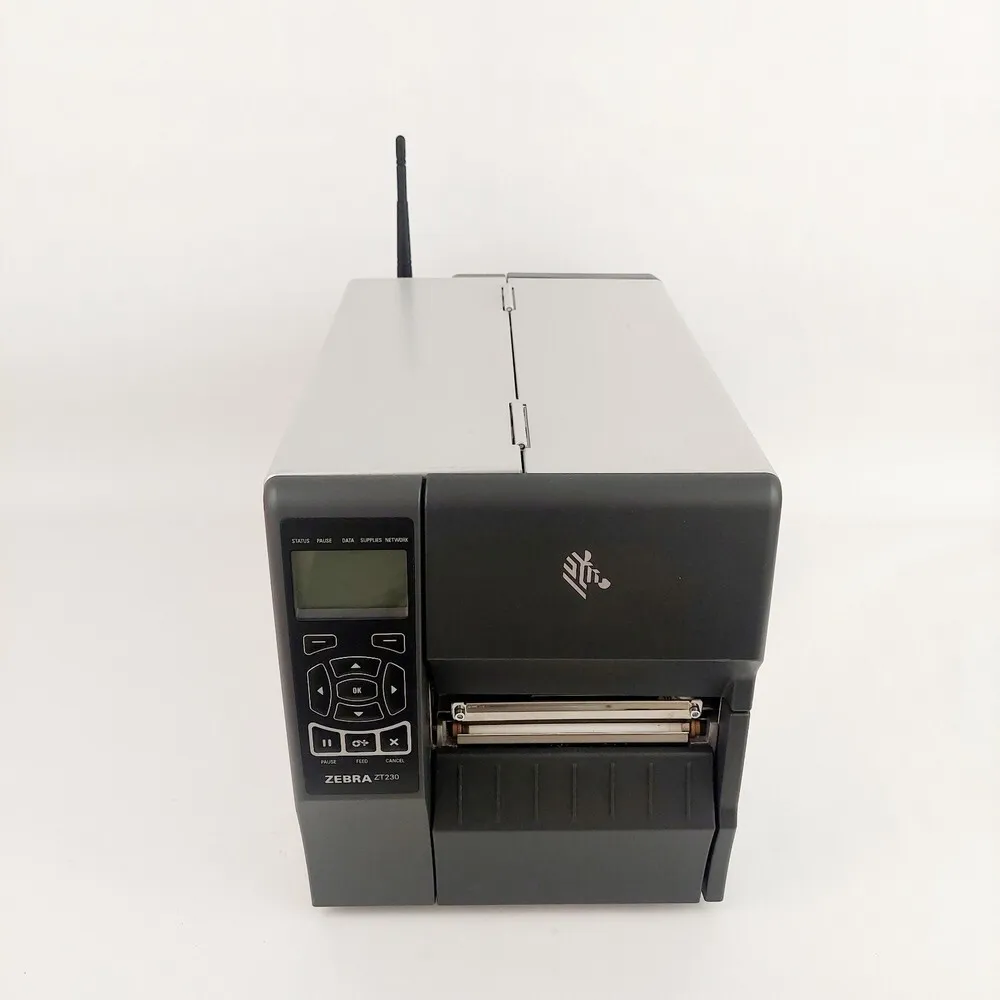

The ZT230 includes a user-friendly LCD interface with intuitive controls for easy configuration and operation.

Connectivity options include USB, Serial, and Ethernet ports, facilitating flexible integration in diverse network environments.

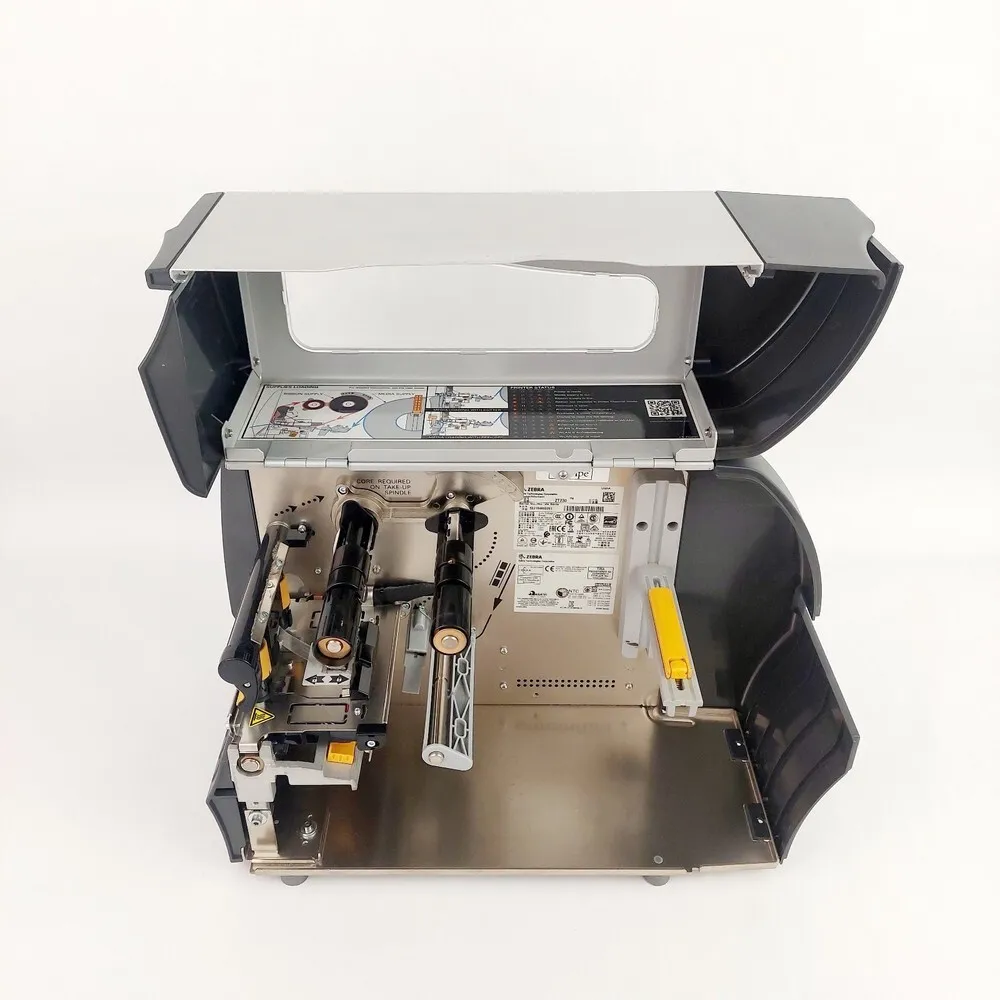

Its durable metal frame and straightforward design allow for easy maintenance and dependable printing performance.

Specifications

Input Type Monochrome
Output Type Black & White
MPN ZT23042-T01A00FZ
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZT230

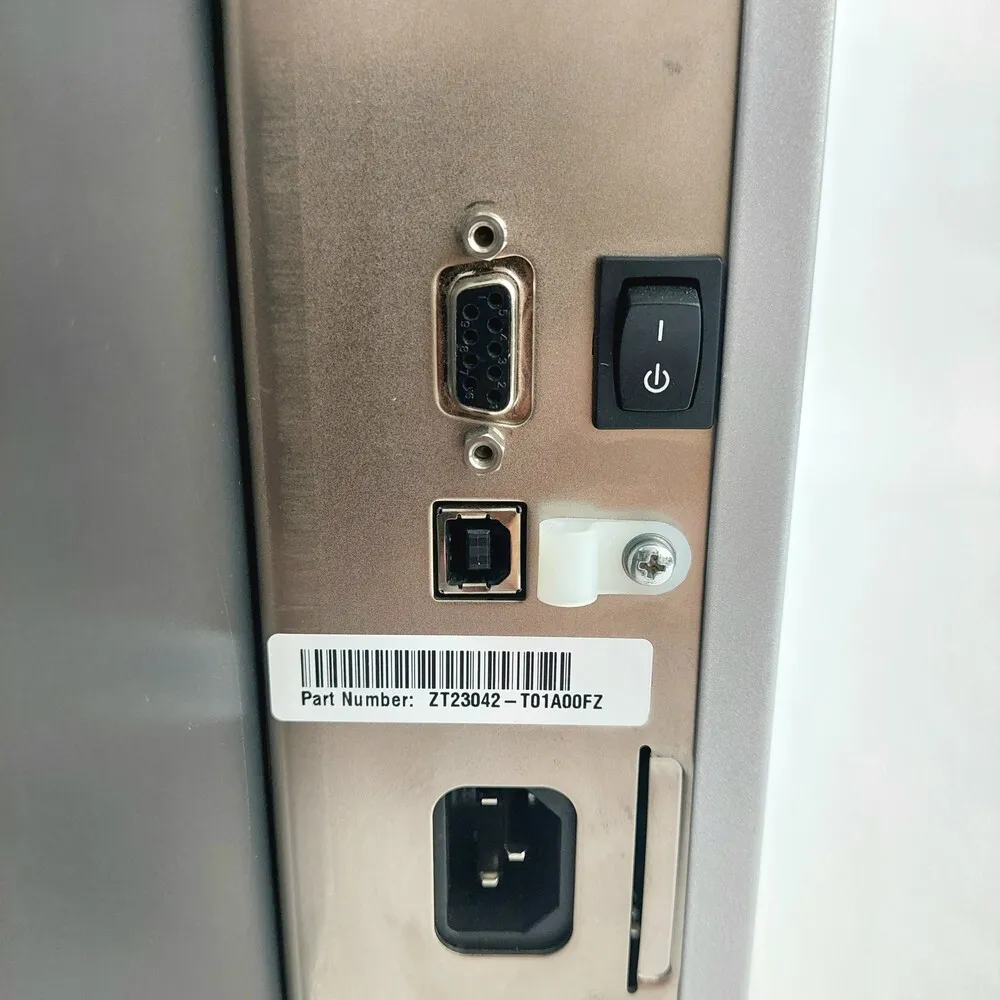

Connectivity USB 2.0, Serial RS-232, Ethernet 10/100 Mbps
Features Networkable, Portable
Product Line Zebra Z
UPC 760575021168
Printer Type Industrial Barcode Printer
Print Method Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Speed Up to 6 inches per second
Maximum Print Width 4.09 inches (104 mm)
Memory 8MB SDRAM, 4MB Flash
Media Types Labels, Tags, Continuous, Black Mark, Die-cut
Media Width 1.00 to 4.65 inches (25.4 to 118 mm)
Media Handling Roll-fed, Fanfold; Core sizes 0.5 in to 1.5 in
Ribbon Wax, Wax/Resin, Resin, Ribbon Length up to 450 m

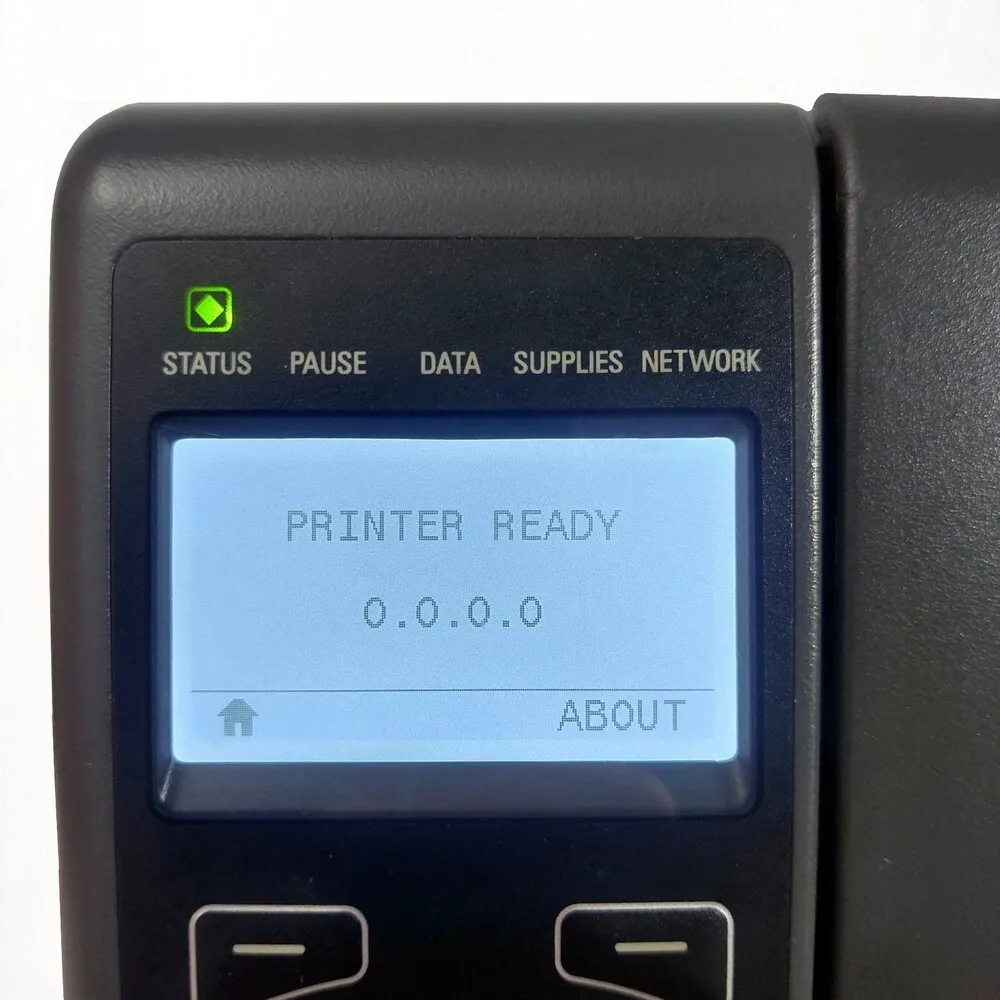

Display Backlit LCD with 4 buttons
Dimensions 19.8 x 11.1 x 14.0 inches (503 x 283 x 356 mm)
Weight 30 lbs (13.6 kg)
Operating Temperature 40°F to 105°F (5°C to 40°C)
Power Supply Internal Power Supply 100-240 VAC, 50-60 Hz

Key Advantages

The ZT230 offers excellent print quality at 203 dpi suitable for most barcode printing needs.

Its robust build supports reliability in industrial settings with medium workload volume.

Multiple connectivity interfaces enhance compatibility with various systems and workflows.

User-friendly LCD display and simple ribbon/label loading reduce downtime and operator training requirements.

Supports both direct thermal and thermal transfer printing for versatile label applications.

Compact design fits well in office environments while maintaining industrial printer durability.

Limitations

Print resolution is limited to 203 dpi, which may not meet the needs for extremely high-density barcode or graphic printing.

Maximum print speed is moderate at 6 ips, which might be insufficient for very high-volume production lines.

It does not support wireless connectivity such as Wi-Fi or Bluetooth natively.

Lacks advanced touchscreen interface available on newer printer models.

Limited memory capacity compared to more advanced industrial printers may restrict complex label formats.

Its firmware and software support might be less updated as it is an older series device.
