Zebra Zt230
| Brand | Zebra 2011 |
| Model | Industrial, 123100-201, Ethernet Network, Barcode, Peeler Rewinder |
| Released Year | 2011 |
| Type | Printers |
| Series | Zt |
| Status | Active |
Quick view
Overview
The Zebra ZT230 is an industrial-grade thermal transfer and direct thermal printer designed for medium-duty label printing applications. It supports Ethernet networking for seamless integration into business environments. The device offers advanced barcode printing capabilities, ensuring high-quality image and text output. Equipped with a peeler rewinder option, it enhances productivity by automating label dispensing and rewinding. The ZT230 supports a wide range of barcode symbologies and offers precise control over print speeds and resolutions. Its modular design allows for easy maintenance and upgrading, reducing downtime in critical operations.
The printer utilizes Zebra’s reliable print engine technology, combining durability with consistent print performance. Thermal transfer printing provides crisp labels resistant to smudging, fading, and environmental damage, ideal for industrial labeling needs. Integration with Zebra's Link-OS environment enables remote device management and diagnostics, improving operational efficiency and reducing service calls. Optimal for manufacturing, warehousing, and logistics, the ZT230 balances robustness with ease of use.
Specifications
| Input Type | Monochrome |
| Memory | Comes with 64 MB SDRAM, 128 MB flash memory |
| Output Type | Black & White |
| MPN | Industrial, 123100-201, Ethernet Network, Barcode, Peeler Rewinder |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Supported Paper Size | Max. Label Width: 4.50" |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | Zebra ZT230 |
| Connectivity | USB 2.0, Serial, Ethernet (10/100 Mbps) |
| Features | Industrial |
| Black Print Speed | 6 ips |
| Product Line | Zebra ZT |
| Printer Type | Industrial Thermal Transfer and Direct Thermal Printer |
| Print Width | 4.09 inches (104 mm) |
| Print Speed | Up to 6 inches per second |
| Print Resolution | 203 dpi (8 dots/mm) |
| Processor | 32-bit RISC processor |
| Supported Barcodes | Code 39, Code 128, EAN-13, UPC, QR Code, Data Matrix, PDF417, others |
| Label Handling | Peeler and Rewinder options available |
| Media Types | Continuous, die-cut, black mark, fan-fold, tags |
| Media Thickness | 0.0023 in to 0.010 in (0.058 mm to 0.254 mm) |
| Media Roll Diameter | Up to 8 inches (203 mm) |
| Ribbon | Thermal transfer ribbons, max length 450 meters |
| Dimensions | 13.3 in (W) x 17.5 in (D) x 11.5 in (H) |
| Weight | Approximately 21 lbs (9.5 kg) |
| Operating Temperature | 40°F to 105°F (4°C to 41°C) |
| Power Supply | Auto-ranging 100-240V AC |
| Operating System Compatibility | Windows, Linux, and others via Zebra drivers and SDKs |

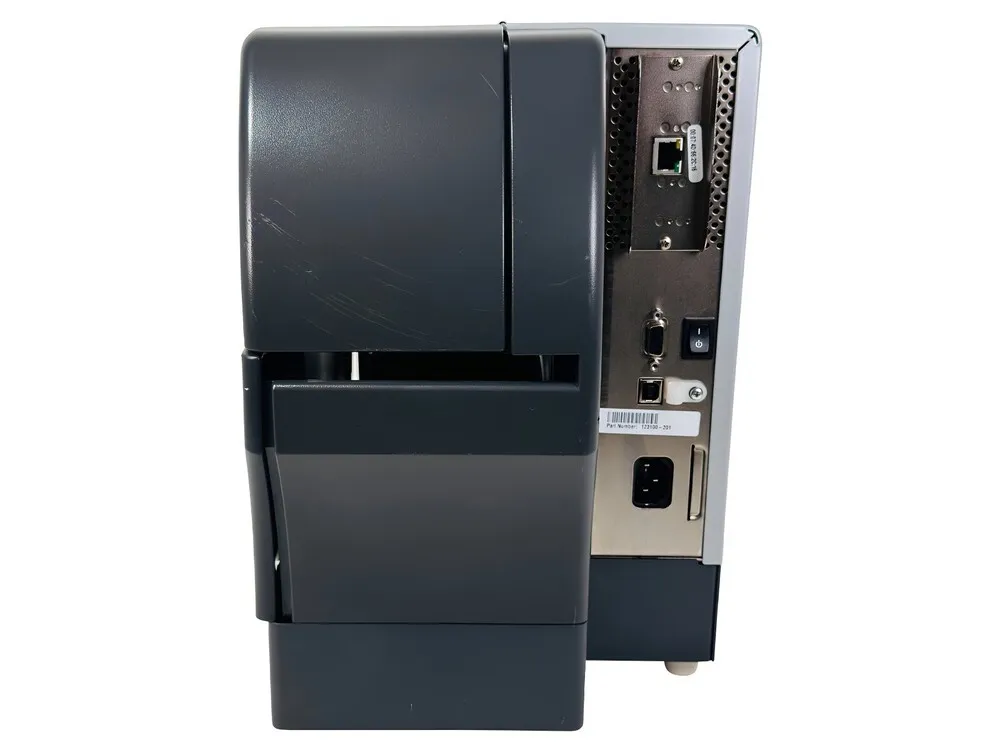

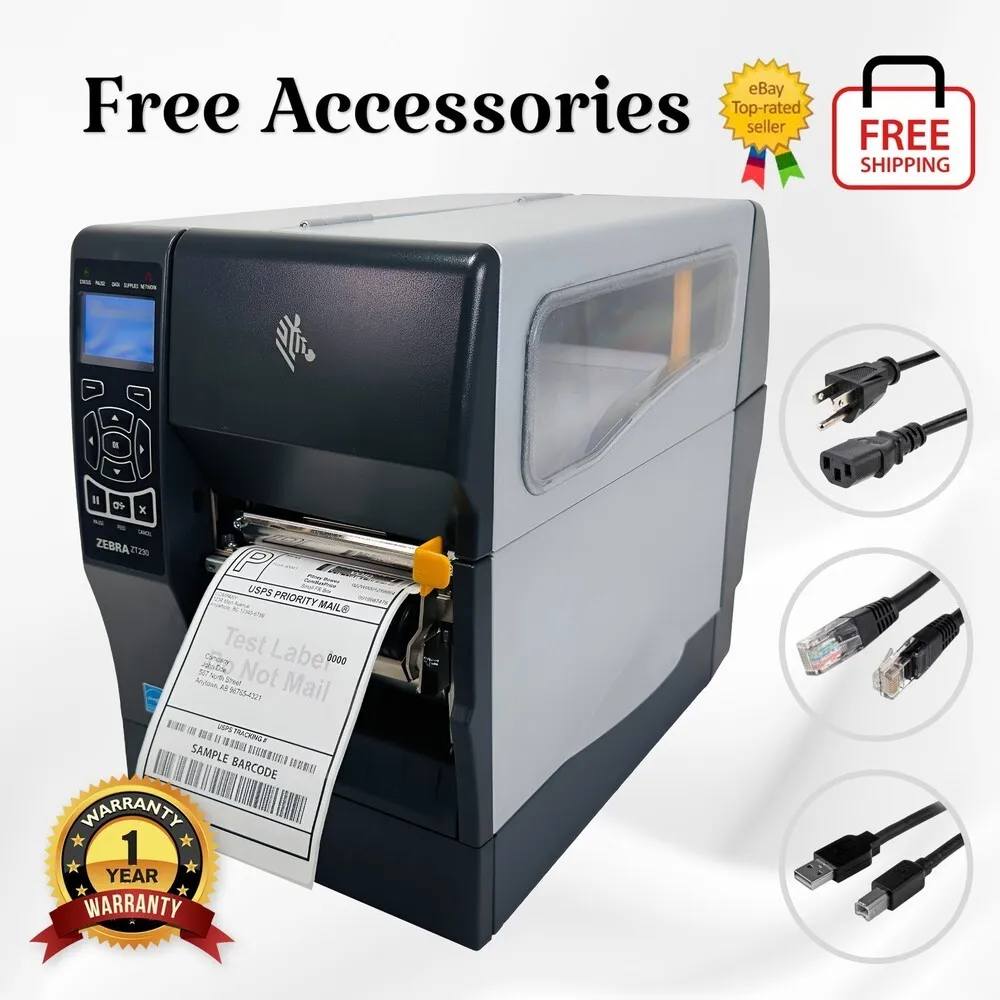

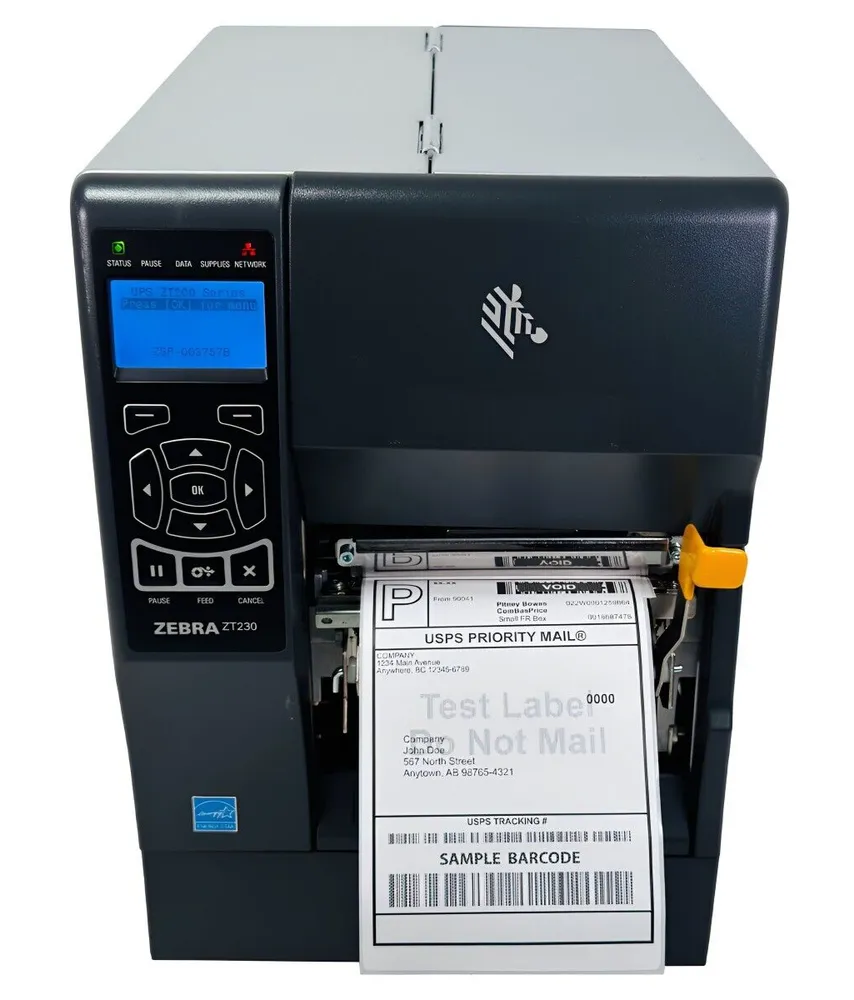

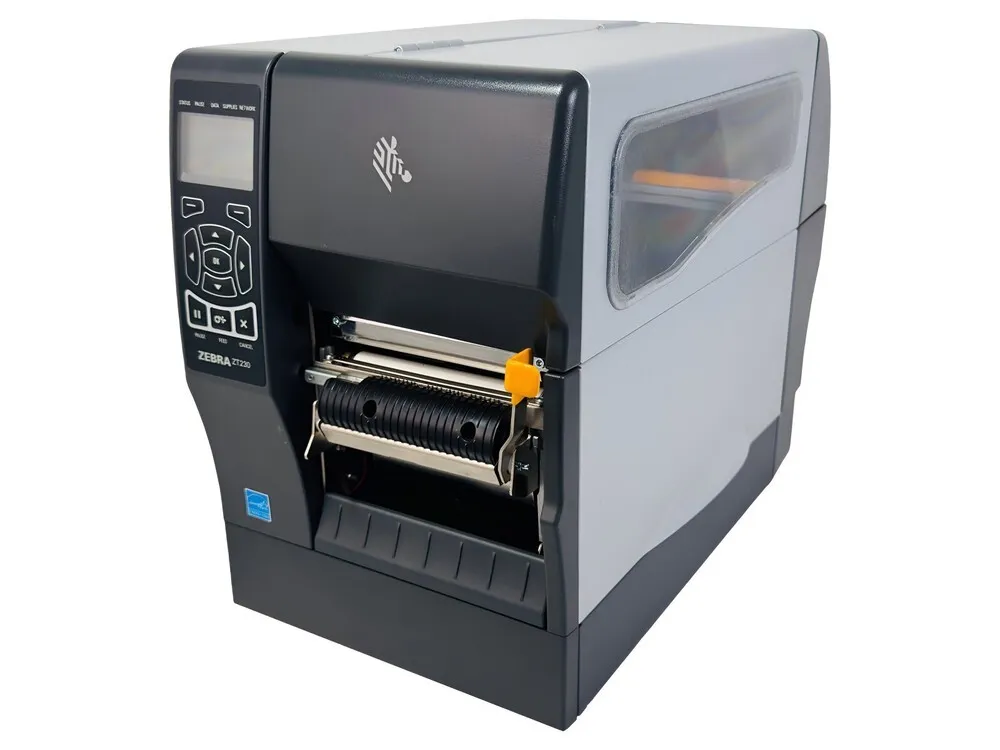

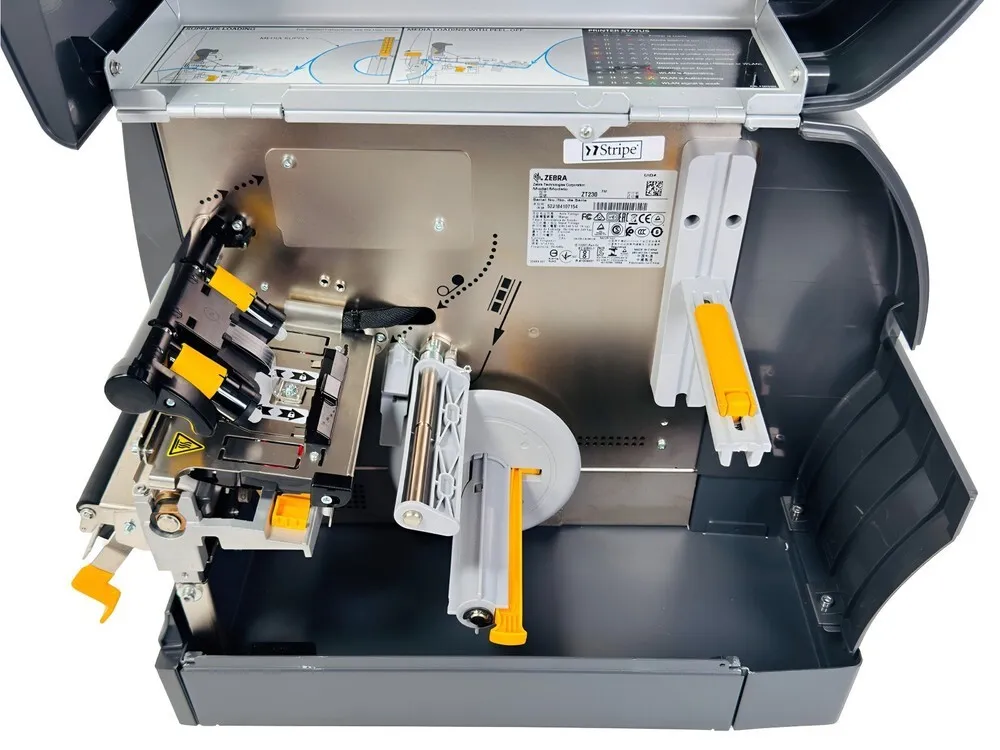

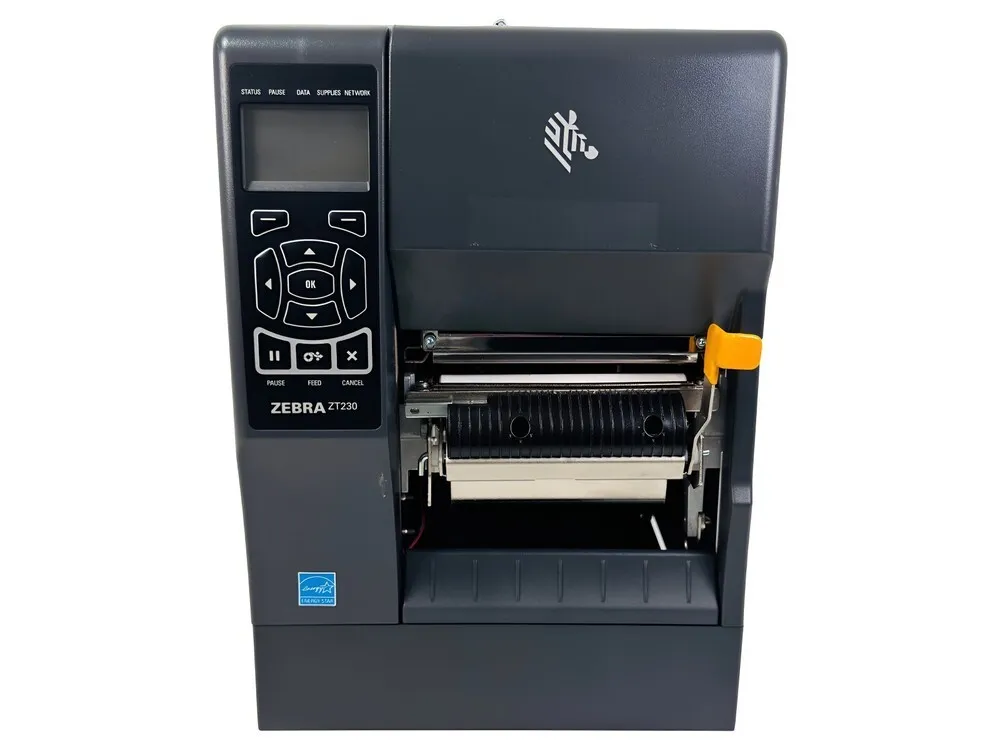

Images
Key Advantages
The Zebra ZT230 offers Ethernet network connectivity, ensuring fast and stable communication within enterprise environments. Its barcode printing capabilities cover diverse symbologies, meeting varied industry standards. The peeler rewinder accessory automates label application and management, boosting workflow efficiency. The printer's durable build supports continuous operation in industrial settings. Modular and user-serviceable components simplify maintenance and reduce downtime. Compatibility with Zebra’s Link-OS platform enhances device management and scalability for large printer fleets.
Limitations
The ZT230, being a mid-range industrial printer, may not provide the highest print speed compared to heavier-duty models. Its maximum print resolution and media width are limited relative to large-format printers. The built-in memory may constrain large or complex label formats without expansion options. Some advanced connectivity options like Wi-Fi or Bluetooth may require additional accessories. The device can be relatively bulky, requiring substantial workspace. Firmware updates and configurations depend on Zebra’s software tools, which may present a learning curve for new users.
FAQ
What types of media does the Zebra ZT230 support?
The Zebra ZT230 supports both thermal transfer and direct thermal media, including labels, tags, and continuous stock with widths up to 4 inches.
Does the ZT230 support network connectivity?
Yes, the model includes Ethernet network connectivity for integration within business and industrial networks.
Can the ZT230 print barcodes and what symbologies are supported?
Yes, it supports a wide array of barcode symbologies including Code 128, Code 39, UPC, EAN, and 2D barcodes such as QR codes and Data Matrix.
Is the peeler rewinder feature included in all models?
The peeler rewinder is an optional accessory that can be added to automate label dispensing and rewinding.
What is the maximum print speed of the ZT230?
The ZT230 can achieve print speeds up to 6 inches per second, depending on print resolution and media type.
Is the ZT230 compatible with Zebra’s Link-OS software?
Yes, the printer supports Link-OS, enabling remote management, configuration, and diagnostics.
What are the maintenance requirements for the ZT230?
The ZT230 features modular components such as the printhead and platen roller, which are user-replaceable to minimize downtime.
