Zebra Zq520
Brand | Zebra 2018 |
Model | ZQ520, ZQ52-AUE0000-RA |
Released Year | 2018 |
Type | Printers |
Series | Z |
Printing Technology | Direct Thermal |
Status | Active |
Quick view
Overview
The Zebra ZQ520 mobile printer is designed for industrial-grade mobile printing, offering robust performance in challenging environments. It supports wireless connectivity, including Bluetooth and Wi-Fi, ensuring seamless communication with various devices and systems. The printer features a 4-inch print width with high-resolution thermal printing technology that delivers sharp and clear labels and receipts. It is equipped with a long-lasting rechargeable battery suitable for extended use during shifts. The device supports various media types such as labels, receipts, and tags, enabling versatile applications. Zebra's Link-OS environment facilitates remote management and application development, enhancing the operational efficiency of the ZQ520.
Specifications
Input Type | Monochrome |
Memory | 512 MB Flash; 256 MB RAM |
Output Type | Black & White |
MPN | ZQ520, ZQ52-AUE0000-RA |
Item Length | 4in. |
Type | Mobile Printer |
Technology | Thermal |
Maximum Resolution | 230 x 230 DPI |
Model | Zebra ZQ520 |
Connectivity | USB 2.0, Bluetooth Classic 4.1, Bluetooth Low Energy, 802.11ac Wi-Fi |
Features | Portable |
Black Print Speed | 5 in/sec |
Country/Region of Manufacture | China |
Product Line | Zebra Z |
UPC | 0783555099339 |
Printing Technology | Direct Thermal |
Maximum Print Width | 4.1 inches (104 mm) |
Maximum Print Speed | 6 inches per second (152 mm/s) |
Print Resolution | 203 dpi (8 dots/mm) |
Battery | Rechargeable Li-ion, 3250 mAh |
Dimensions | 5.9" L x 3.4" W x 2.8" H (150 mm x 87 mm x 71 mm) |
Weight | 1.6 lbs (0.73 kg) |
Durability | IP54 rated; MIL-STD-810G drop tested |
Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
Media Types | Labels, Receipts, Tags |
Supported Label Roll Diameter | Up to 2.6 inches (66 mm) |
Model Numbers | ZQ520, ZQ52-AUE0000-RA |

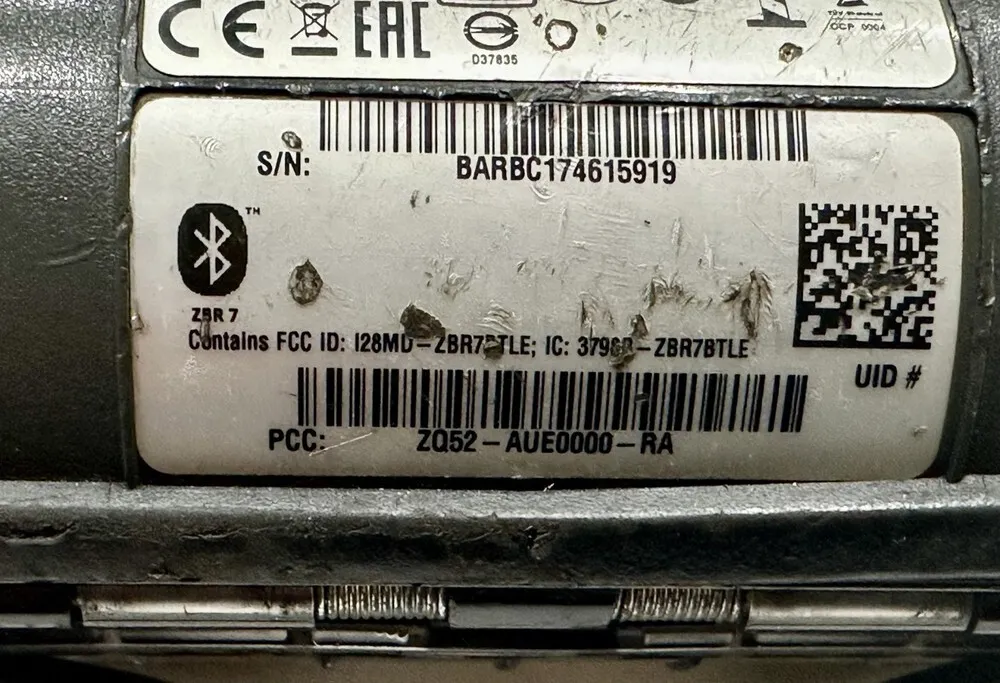

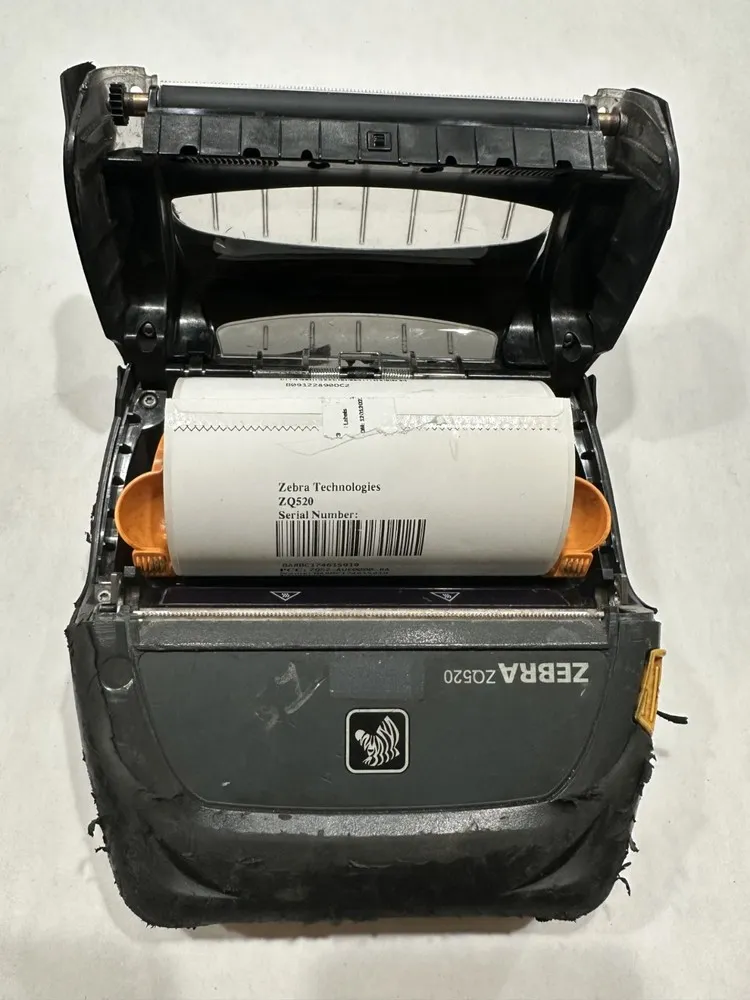

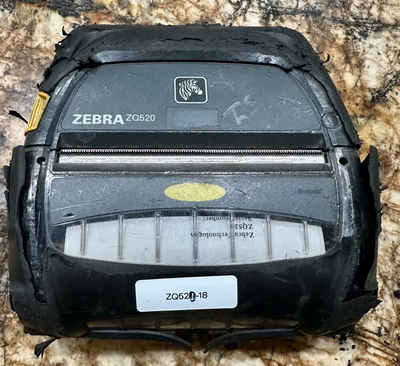

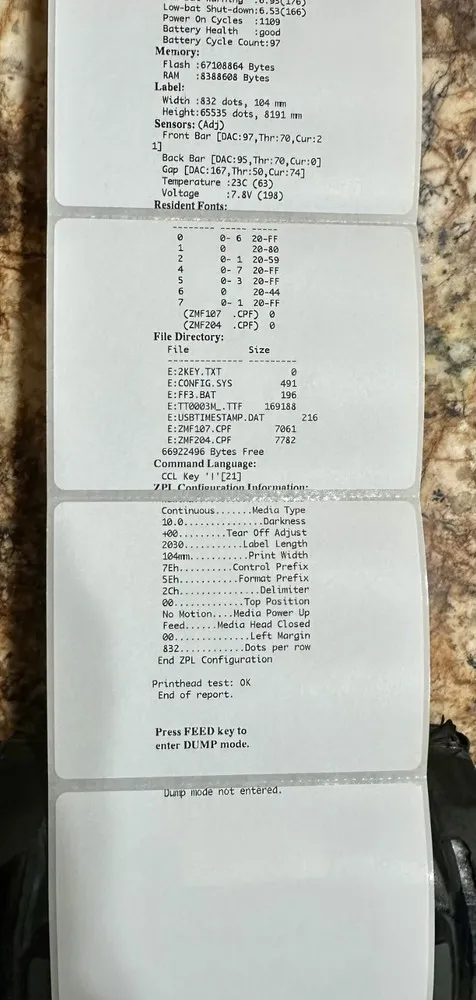

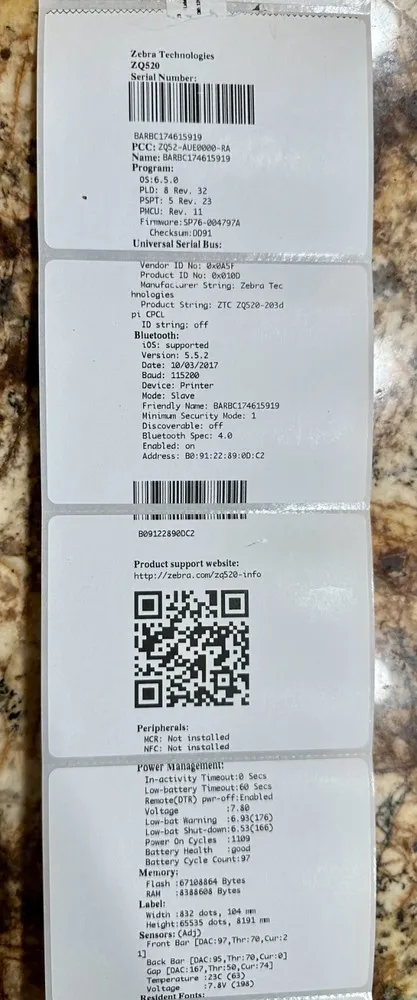

Images
Key Advantages
The ZQ520 boasts rugged design standards, offering IP54 sealing and military-grade drop protection, making it suitable for harsh industrial environments. Its fast print speed enhances productivity during peak usage times. The printer integrates seamless wireless options including Wi-Fi and Bluetooth, allowing flexible deployment scenarios. The advanced printhead technology ensures high-quality output with fewer print errors. Long battery life supports continuous mobile operations without frequent recharging. Additionally, the device supports easy integration with existing software ecosystems via Zebra's software development kits.
Limitations
The ZQ520's printing speed, while efficient, may not meet the requirements for extremely high-volume printing environments. Being a thermal printer, it is limited to monochrome printing and cannot print color labels. The device's weight and size, designed for durability, might be cumbersome for users requiring ultra-light mobile printers. Although it supports wireless communication, connectivity can be affected by interference in dense wireless environments. The cost of replacement parts and consumables can be relatively high compared to standard desktop printers. Lastly, the printer's advanced features may require specialized training for optimal use.
FAQ
What types of media does the Zebra ZQ520 support?
The ZQ520 supports a variety of media types including labels, receipts, and tags to fulfill diverse printing needs.
Is the Zebra ZQ520 suitable for outdoor use?
Yes, with IP54 sealing and military-grade drop specifications, the ZQ520 is ruggedized for outdoor and industrial environments.
What wireless connectivity options are available on the ZQ520?
The device supports Wi-Fi, Bluetooth Classic, and Bluetooth Low Energy for versatile wireless connections.
Can the ZQ520 print color labels?
No, the ZQ520 is a thermal printer and supports only monochrome printing.
What is the maximum print resolution of the ZQ520?
It provides a maximum print resolution of 203 dpi, ensuring clear and legible printing.
Does the printer support battery replacement in the field?
Yes, the ZQ520 features a user-replaceable battery that can be swapped easily to minimize downtime.
What software support is available for the ZQ520?
Zebra Link-OS environment and various SDKs allow for easy integration and remote device management.
