Zebra ZT23042-D01200FZ
Brand | Zebra 2010 |
Model | ZT23042-D01200FZ |
Released Year | 2010 |
Type | Printers |
Series | ZT230 |
Controller Type | Push Button |
Item Weight | 20.7 pounds |
Maximum Media Size | 8.0" x 203 mm |
Product Dimensions | 20.2"D x 12.4"W x 13.8"H |
Status | Active |
Quick view
Overview

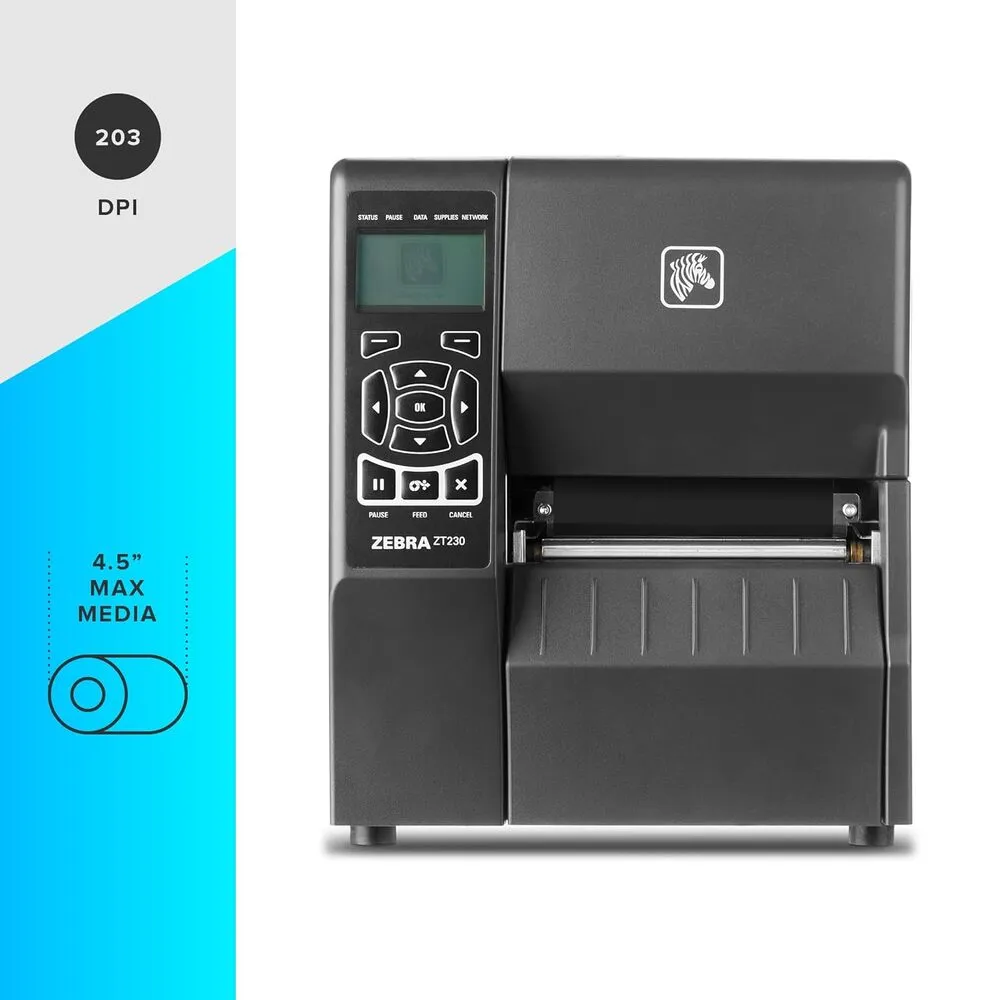

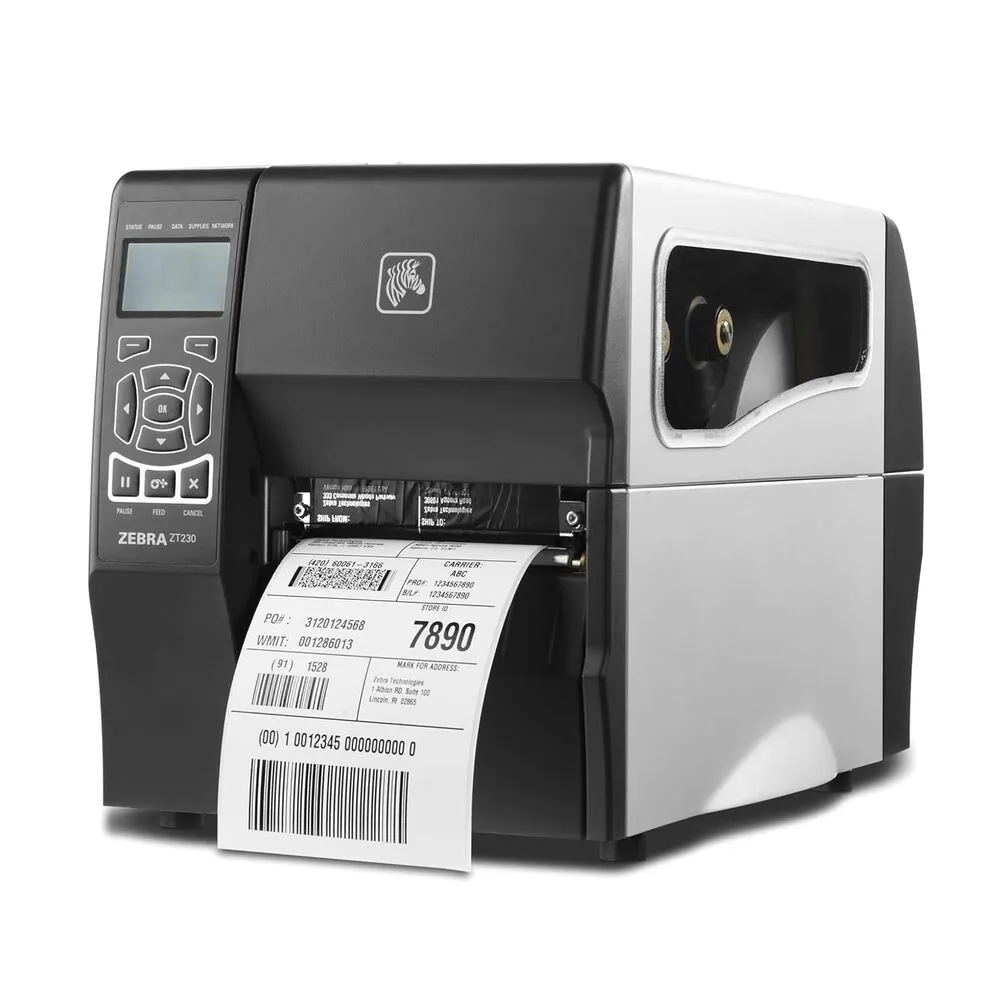

The Zebra ZT23042-D01200FZ is an industrial-grade thermal transfer printer engineered for high-volume printing applications in office and industrial environments. It features a robust metal frame and a streamlined design to ensure durability and ease of use. Equipped with a 4-inch print width and resolutions up to 203 dpi, it supports a range of barcode symbologies and label sizes. Connectivity options include USB, serial, and Ethernet interfaces, which provide flexible integration into existing networks. The printer supports direct thermal and thermal transfer printing methods, compatible with various media types. Its intuitive LCD graphical display enhances user interaction for setup and monitoring.

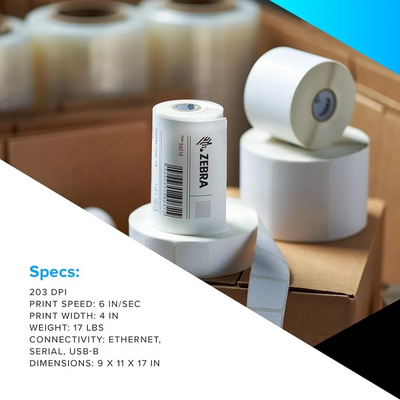

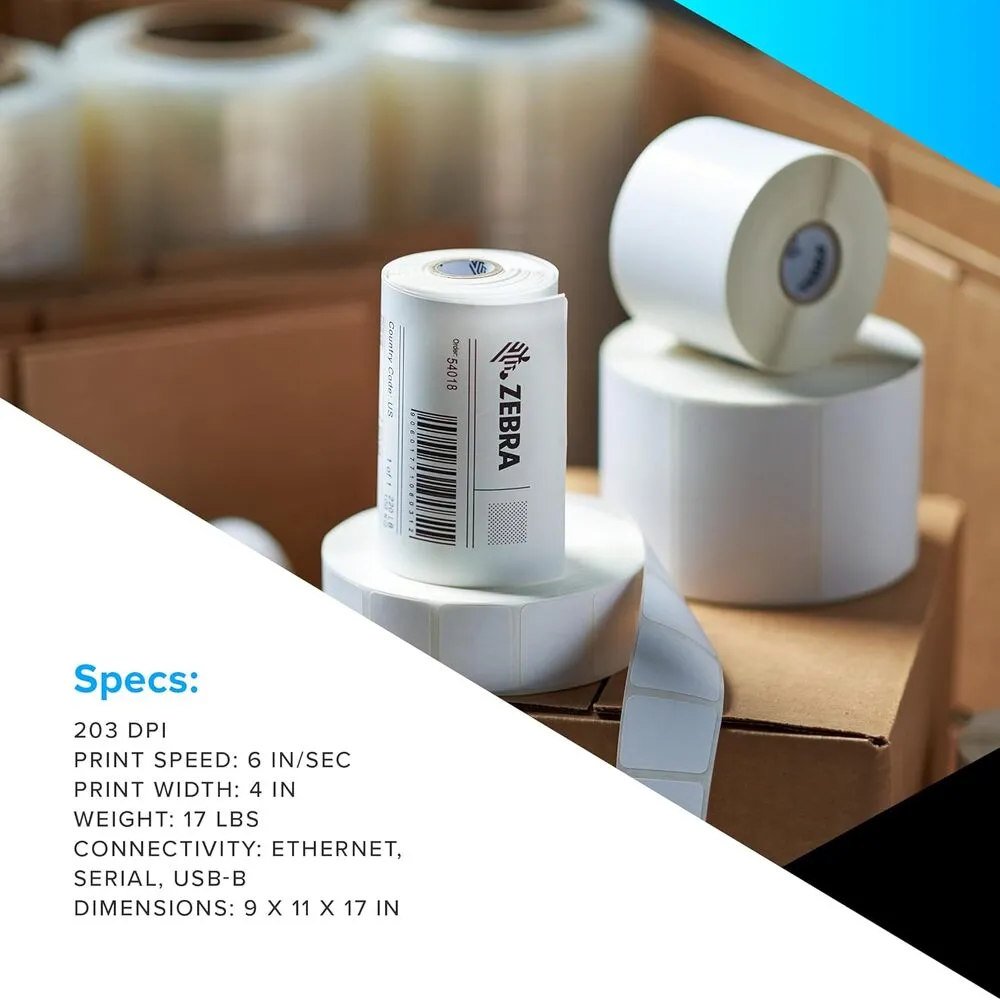

Specifications
Product Dimensions | 20.2"D x 12.4"W x 13.8"H |
Controller Type | Push Button |
Maximum Media Size | 8.0" x 203 mm |
Included Components | Thermal Printer, North American Power Cord |
Print media | Labels |
Max Input Sheet Capacity | 9 |
Max Copy Speed (Black & White) | 3.6E+2 ppm |
Display Type | LCD |
Compatible Devices | PC |
Sheet Size | 4.09 inches |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | limited warranty |
Dual-sided printing | No |
Max copy resolution black-white | 203 dpi |
Duplex | Simplex |
Hardware Interface | Ethernet |
Ink Color | black |
Resolution | 203 x DPI |
Additional Printer functions | Print Only |
Control Method | App |
Number of Drivers | 2 |
Processor Count | 1 |
Number of USB 2 Ports | 1 |
Total USB Ports | 1 |
UPC | 686897683832 |
Printer Ink Type | No Ink |
Memory Storage Capacity | 128 MB |
Item Weight | 20.7 pounds |
Manufacturer | ZEBRA |
Item model number | ZT23042-D01200FZ |
National Stock Number | 7490-01-621-4115 |
Is Discontinued By Manufacturer | No |
Date First Available | October 6, 2010 |
Printer type | Industrial Thermal Transfer and Direct Thermal Printer |
Print resolution | 203 dpi (8 dots/mm) |
Maximum print width | 4 inches (104 mm) |
Maximum print speed | 6 inches per second (152 mm/s) |

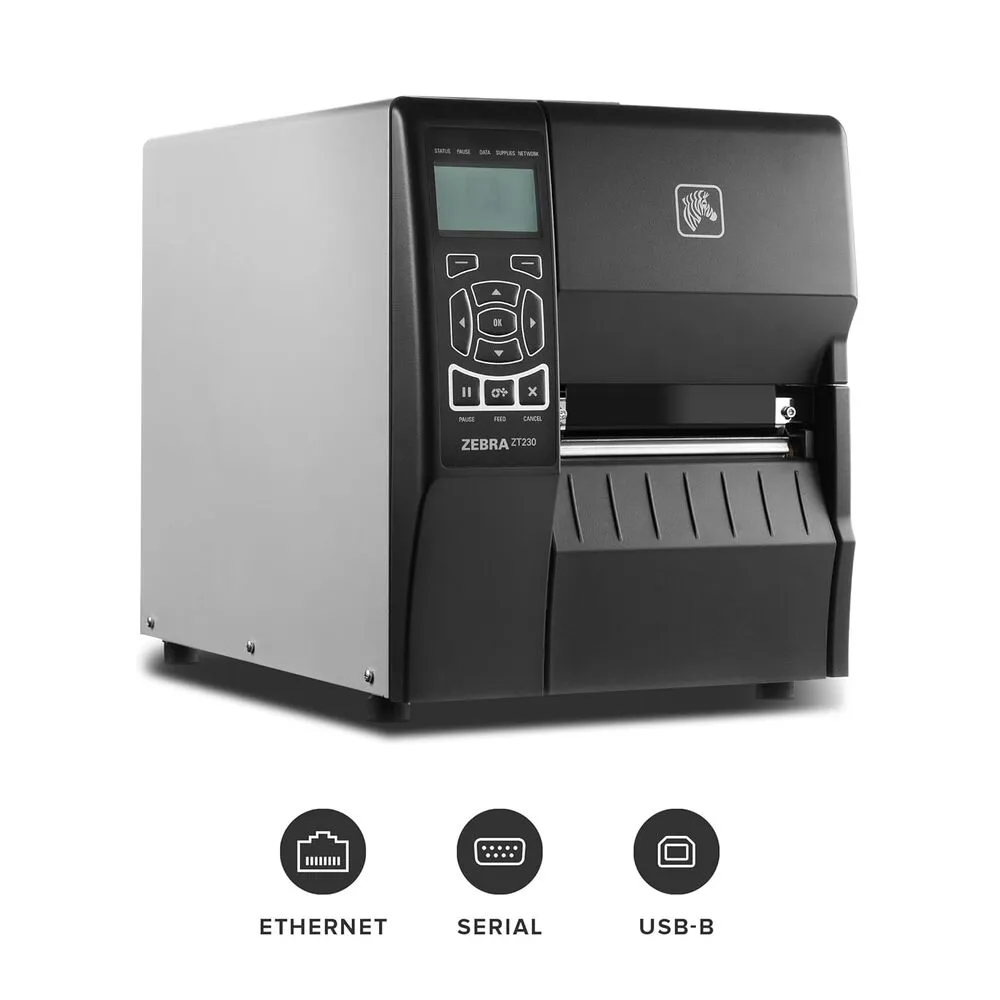

Connectivity options | USB 2.0, RS-232 Serial, Ethernet 10/100 Mbps |
Memory | 128 MB Flash, 128 MB SDRAM |
Display | LCD graphical display |
Dimensions (W x D x H) | 270 mm x 410 mm x 290 mm |
Weight | Approx. 6.5 kg |
Media types | Labels, tags, continuous paper |
Media width | Up to 4.5 inches (114 mm) |

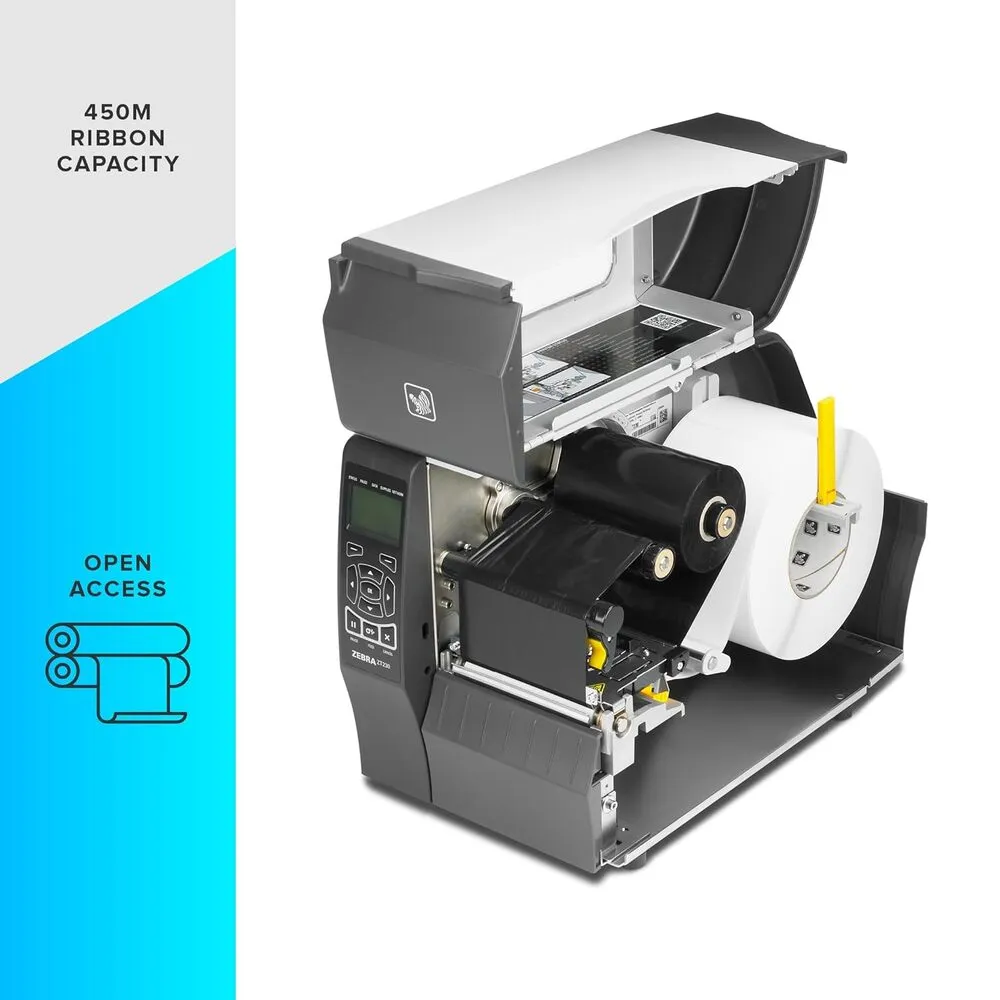

Ribbon length | Up to 300 meters |
Operating temperature | 5°C to 40°C (41°F to 104°F) |
Power supply | External power supply, 100-240V AC, 50/60 Hz |
Printer languages | ZPL, EPL |
Images
Key Advantages
This device boasts high reliability with industrial-grade construction ideal for continuous operation. It offers fast print speeds up to 6 inches per second, boosting productivity in demanding environments. The printer supports multiple connectivity options, enabling seamless integration with diverse systems. Its modular design simplifies maintenance and media loading, reducing downtime. Supports a wide variety of media materials and sizes, enhancing versatility for different labeling needs. The inclusion of advanced printer language support ensures compatibility with legacy and modern software applications.
Limitations
The print resolution of up to 203 dpi, while adequate for many applications, may be insufficient for ultra-fine graphics or extremely small text. The relatively modest 4-inch print width restricts labeling size compared to larger industrial printers. The absence of native wireless connectivity may limit flexibility in some office setups. Although durable, the metal housing adds weight making the unit less portable. The user interface, while functional, may require training for novice operators. Consumable media and ribbon costs can accumulate in high-volume environments impacting long-term operating expenses.
FAQ
What printing technologies does the Zebra ZT23042-D01200FZ support?

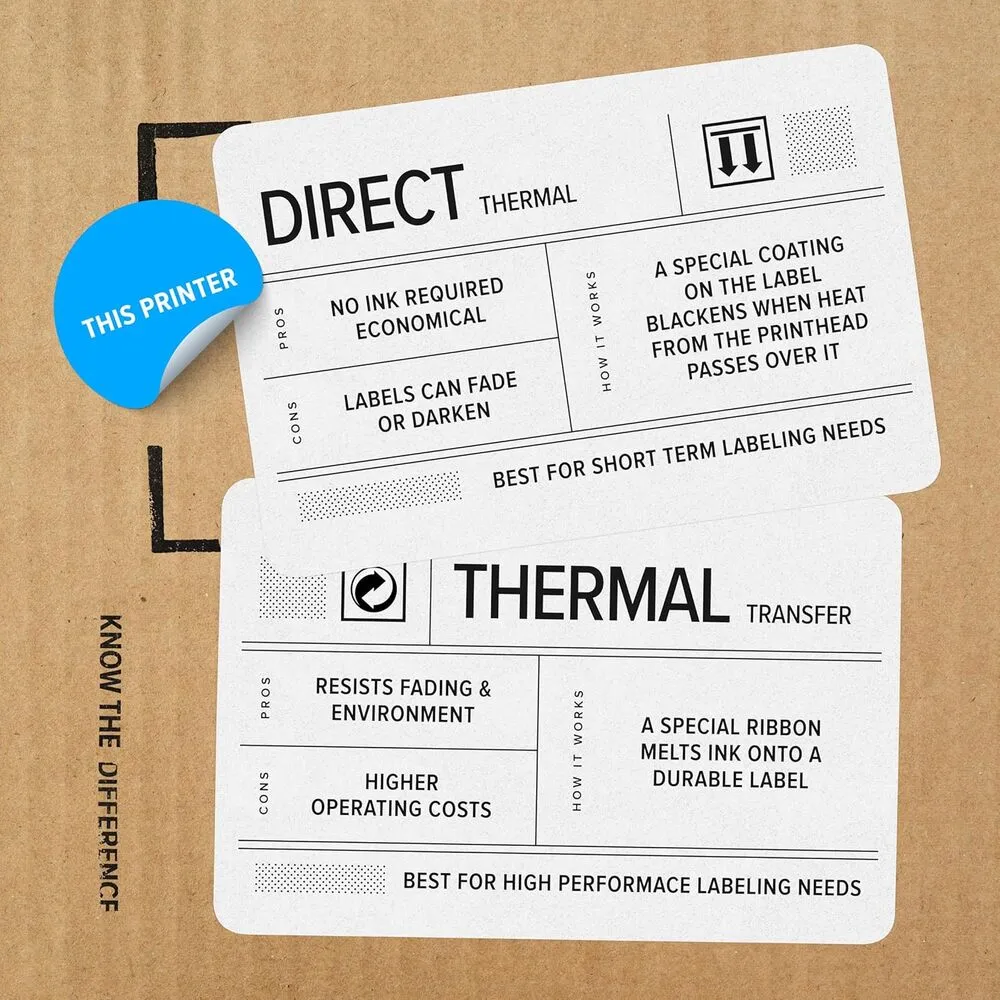

It supports both direct thermal and thermal transfer printing technologies.
What is the maximum print width and resolution of this model?
The maximum print width is 4 inches with a resolution of up to 203 dpi.
Does this printer have wireless connectivity options?
No, the ZT23042-D01200FZ model does not natively support wireless connectivity; it primarily uses USB, serial, and Ethernet interfaces.
Is the Zebra ZT23042-D01200FZ still supported by Zebra Technologies?
As of now, this model is still supported and has not been officially discontinued.
What types of media can be used with this printer?
It supports various media types including labels, tags, and continuous paper compatible with thermal transfer and direct thermal printing.
How does the printer handle connectivity with multiple devices?
Through Ethernet and serial connections, it can be networked and shared among several devices in a work environment.
Is there a display interface for printer configuration?
Yes, the device features an LCD graphical display for easy setup and monitoring.
