Zebra ZP450
Brand | Zebra 2006 |
Model | ZP450-0101-0000 |
Released Year | 2006 |
Type | Printers |
Series | Z |
Printing Technology | Direct Thermal |
Status | Discontinued |
Quick view
Overview
The Zebra ZP450 is a thermal label and receipt printer designed primarily for retail and office use. It employs direct thermal printing technology offering a print resolution of 203 dpi, producing clear and durable labels and receipts without the need for ink or ribbon. The printer supports print widths up to 4.09 inches (104 mm) and print speeds reaching 4 inches per second, suitable for moderate volume printing tasks. It utilizes a compact design with an easy-to-load media system supporting a range of paper and label types. Connectivity options include parallel and serial interfaces, facilitating integration with legacy and current systems. The device runs on Firmware that supports ZPL (Zebra Programming Language) and EPL (Eltron Programming Language), allowing versatile label formatting and printer control.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 4 MB Flash memory, 8 MB DRAM |

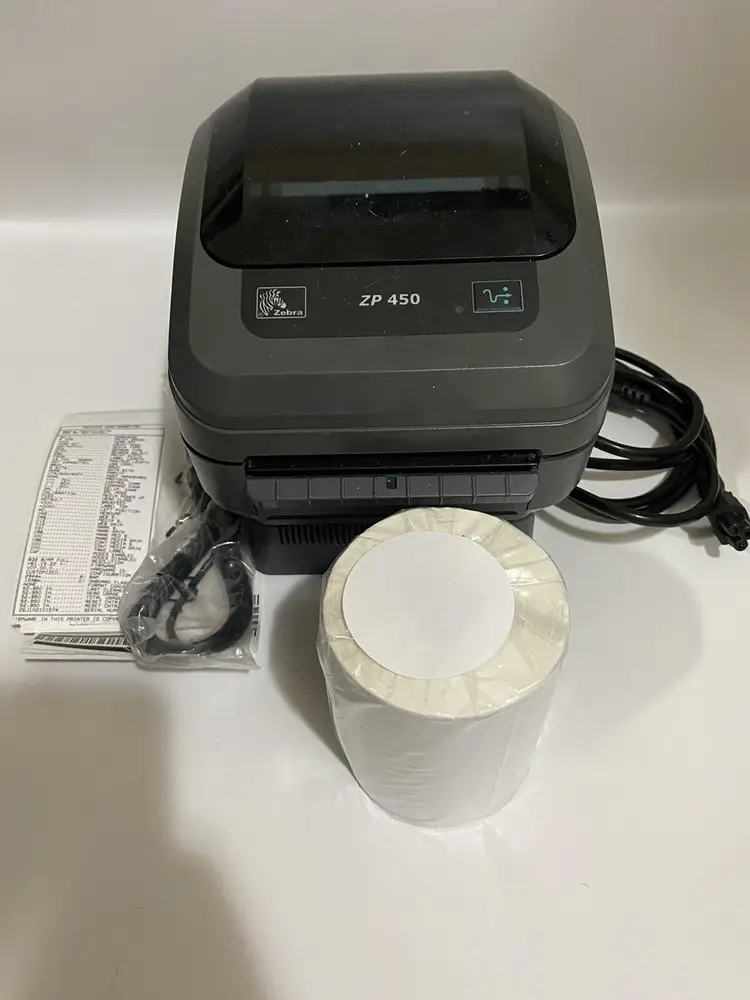

Bundle Description | Roll of labels included |
Custom Bundle | Yes |
UPC | 760707028775 |
MPN | ZP450-0101-0000 |
Supported Paper Size | A4 (210 x 297 mm) |
Type | Label Printer |
Print Speed (PPM) | 6 IPS |
Printer Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZP450 |

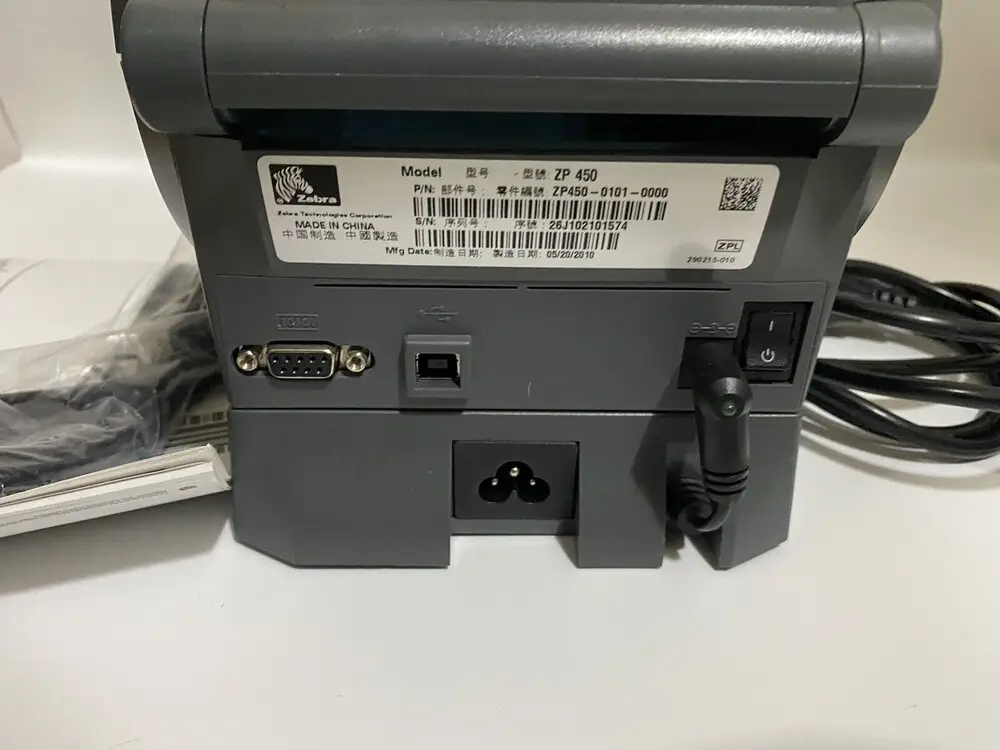

Connectivity | Cable, USB 2.0, Ethernet (RJ-45) |
Black Print Speed | 6 IPS |
Interface | USB |
Product Line | Zebra Z |
Printing Technology | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 4 inches per second |

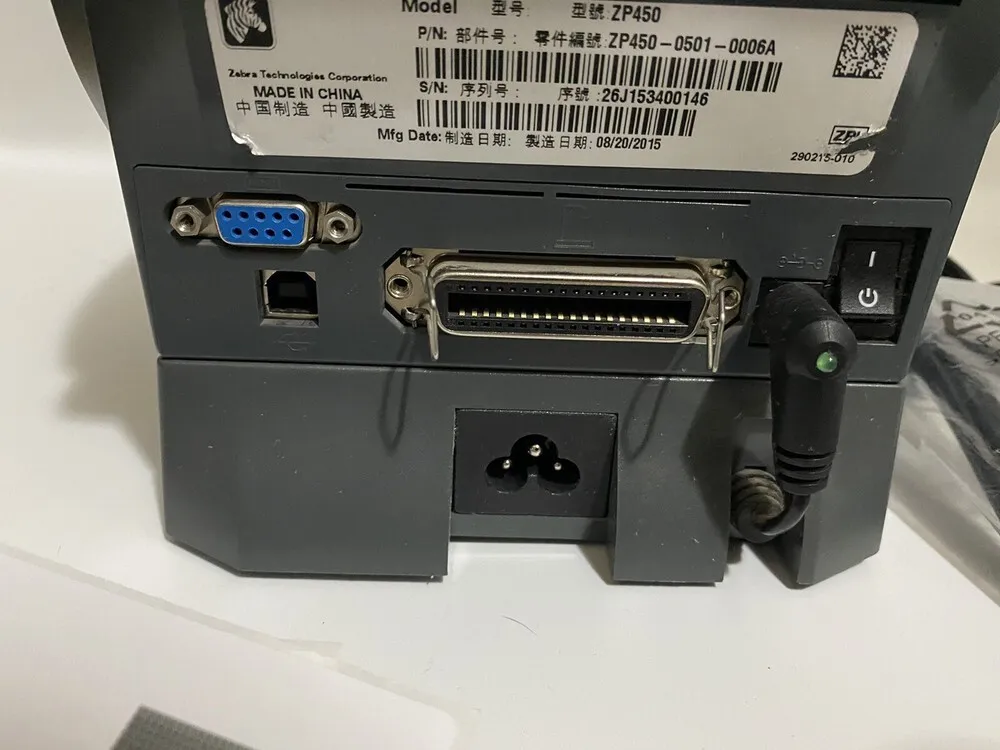

Interfaces | Parallel, Serial |
Programming Languages | ZPL, EPL |
Media Types | Direct Thermal Paper and Labels |

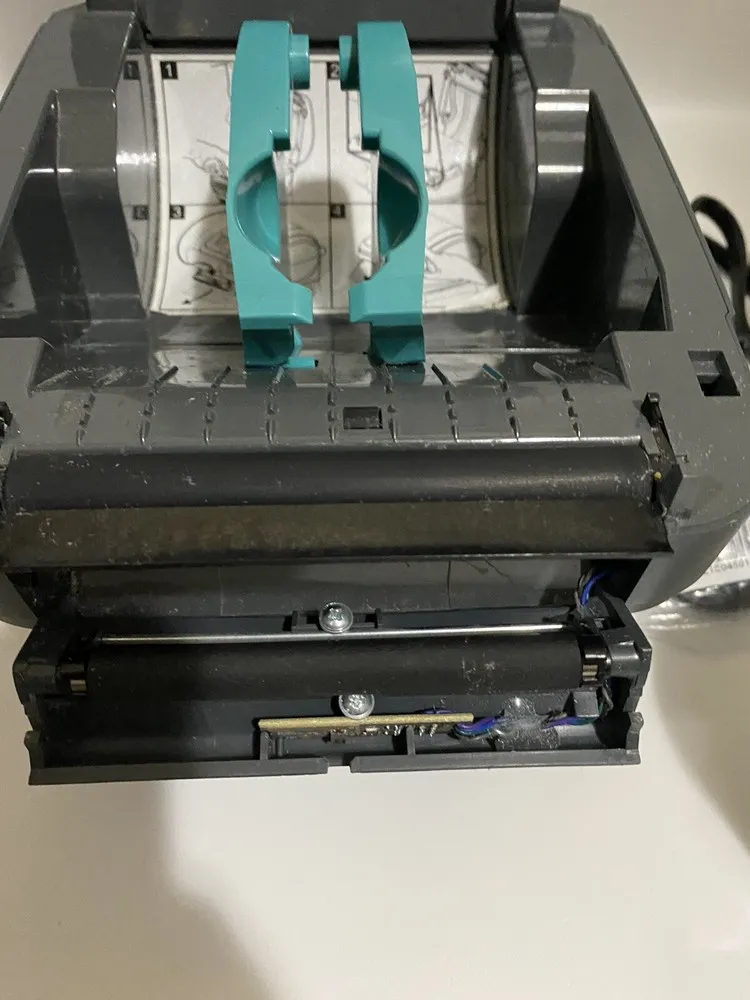

Media Handling | Roll or fan-fold media, adjustable media sensor |
Dimensions | 8.7 x 7.9 x 5.5 inches (221 x 201 x 140 mm) |
Weight | Approximately 4.4 lbs (2 kg) |
Power Supply | External power supply, 24 V DC |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Compatibility | Windows drivers, ZPL and EPL commands |

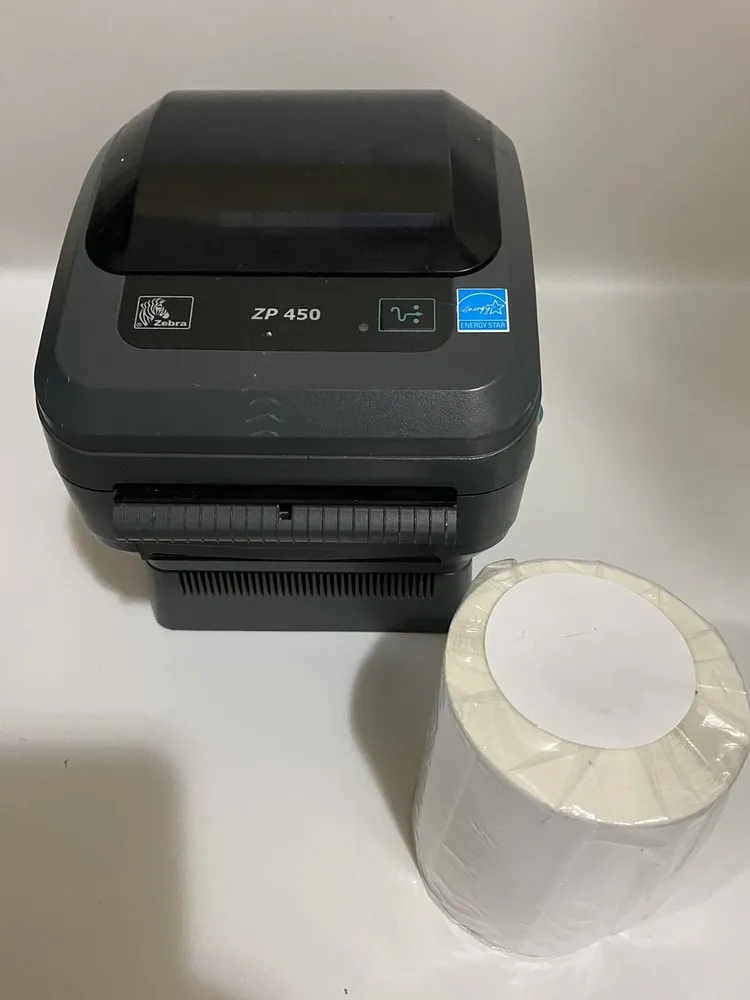

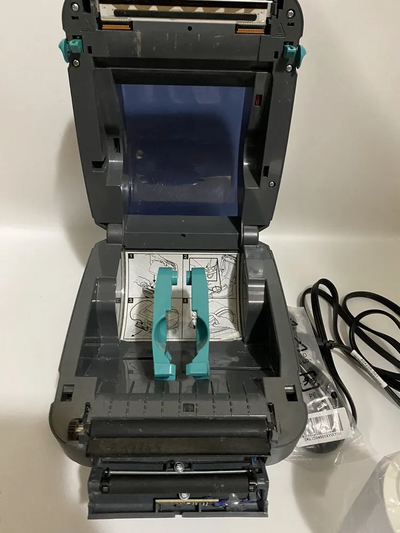

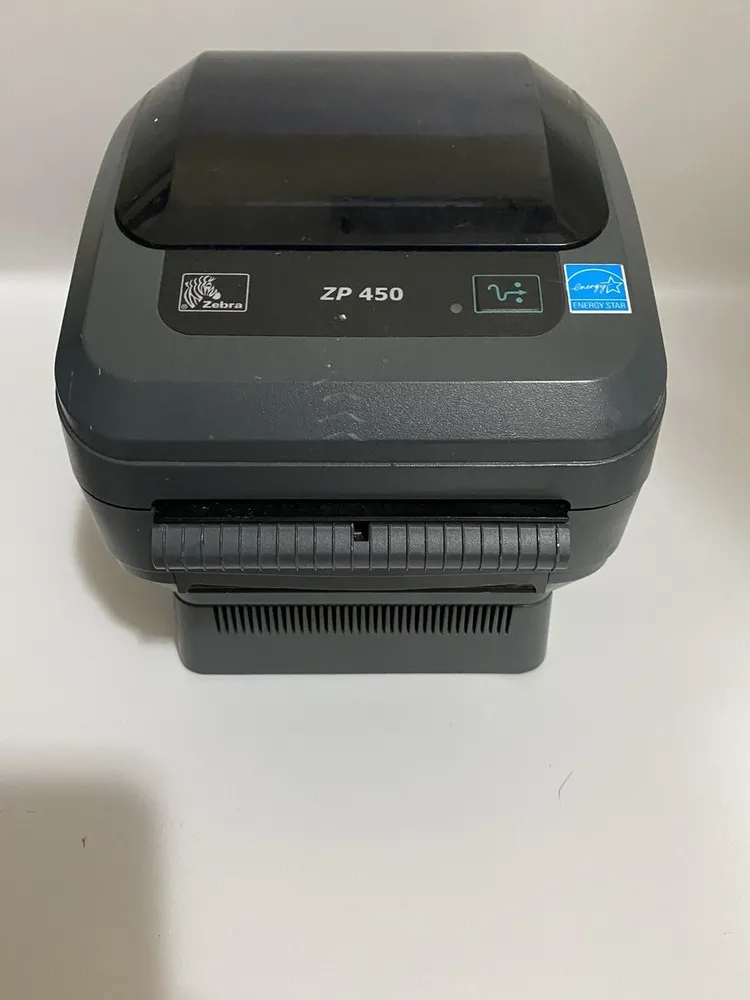

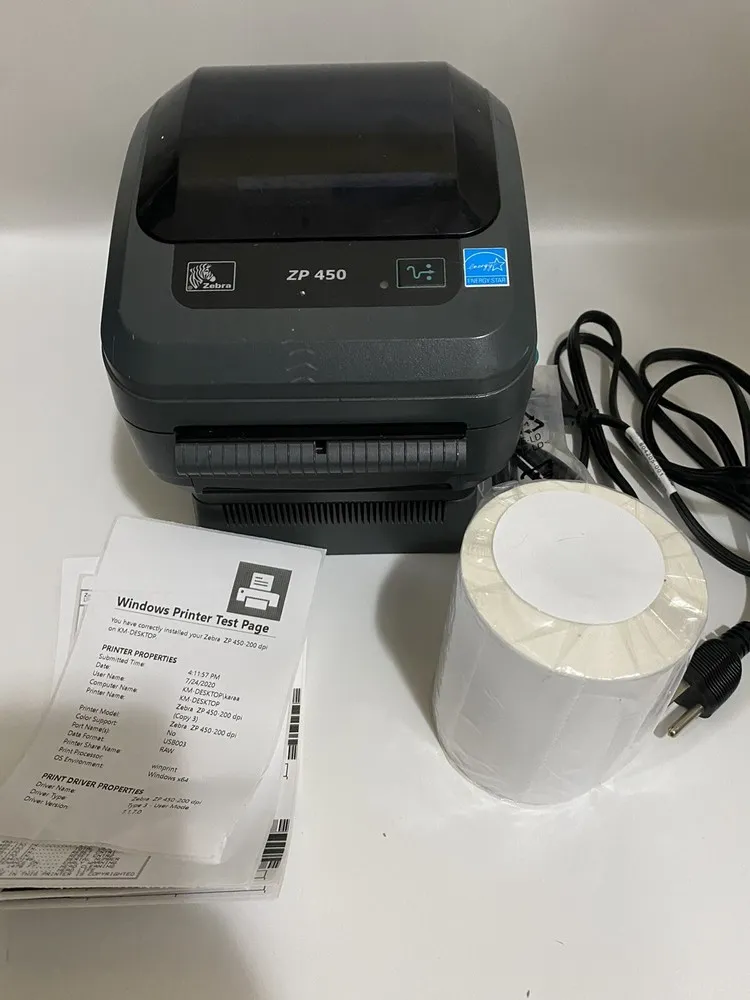

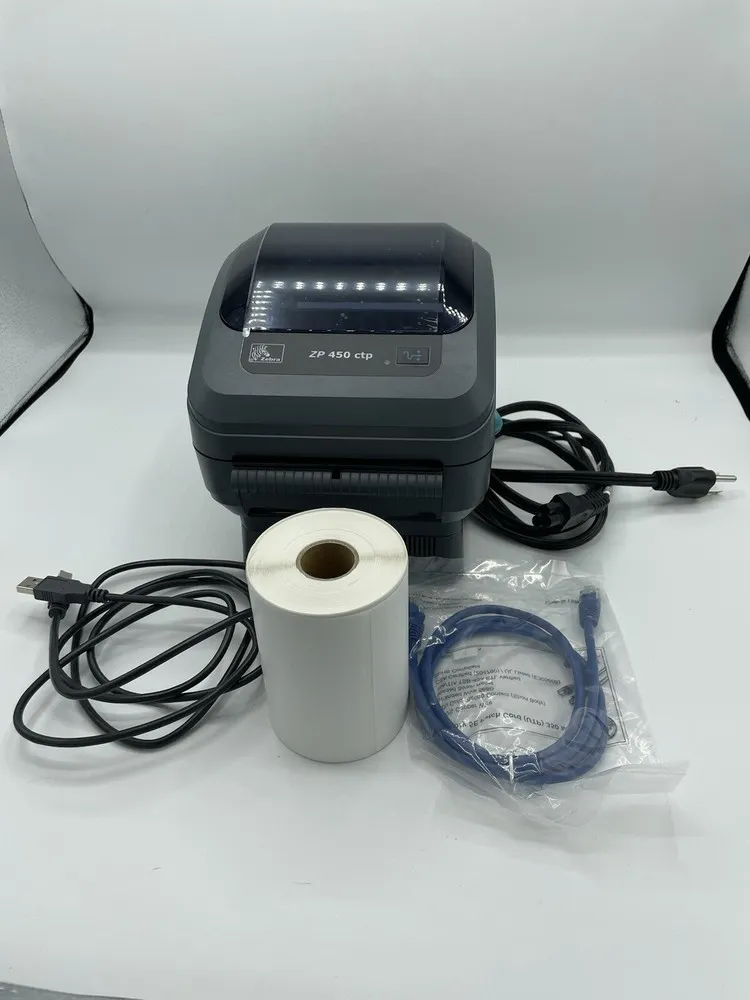

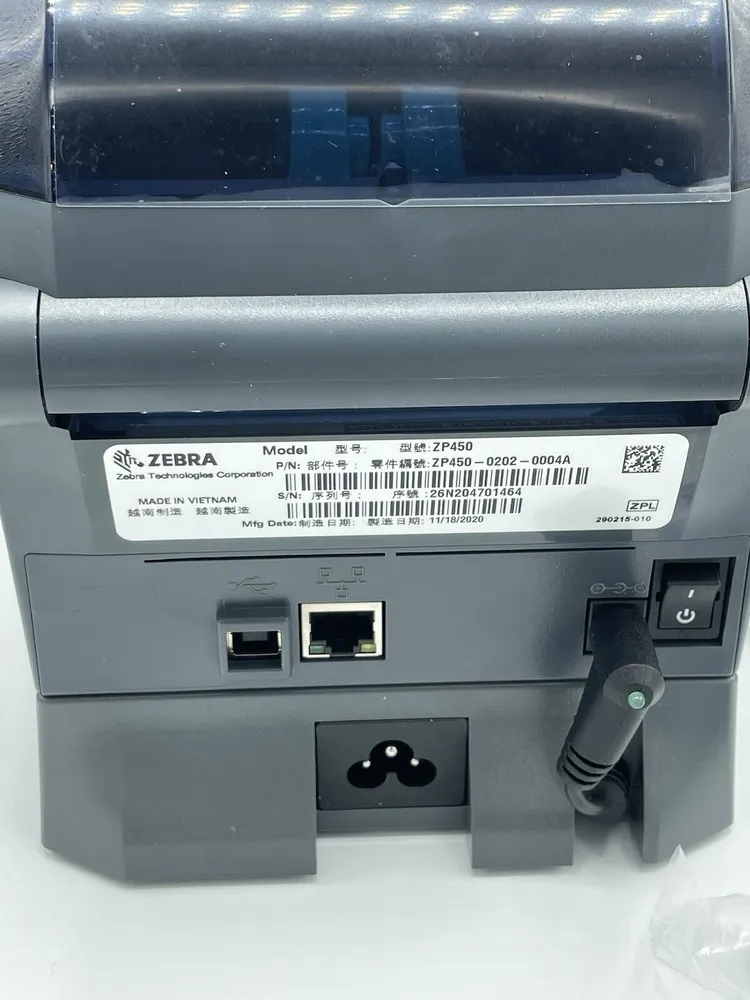

Images
Key Advantages
The Zebra ZP450 printer offers several notable advantages. Its direct thermal printing eliminates costs associated with ink and ribbon replacements, reducing operating expenses. The compact and lightweight form factor makes it suitable for space-constrained environments. It provides reliable print quality with 203 dpi resolution, ensuring barcode and text readability. Easy media loading saves time and minimizes errors during operation. Compatibility with industry-standard printing languages increases its flexibility across various software platforms. The inclusion of multiple connectivity options enables deployment in diverse IT infrastructures.
Limitations
Despite its strengths, the Zebra ZP450 has some limitations. The 203 dpi resolution may not meet the needs for high-definition graphics or very small fonts. It requires direct thermal media which is sensitive to heat and light, potentially reducing label longevity. The printer's connectivity options lack modern USB or Ethernet interfaces, limiting integration with newer devices. Print speed is moderate and may be insufficient for high-volume industrial printing demands. The device is discontinued and may encounter difficulties in sourcing replacement parts or technical support. Its software support does not extend to newer programming languages and firmware updates.
FAQ
What printing technology does the Zebra ZP450 use?
The Zebra ZP450 uses direct thermal printing technology that prints images by selectively heating thermal paper.
What is the maximum print width of the Zebra ZP450?
The maximum print width supported by the Zebra ZP450 is 4.09 inches (104 mm).
Which connectivity interfaces are available on the ZP450?
The ZP450 offers parallel and serial port connectivity options for integration with various systems.
Is the ZP450 printer still being manufactured?
No, the Zebra ZP450 has been discontinued and is no longer in production.
What programming languages does the ZP450 support?
The printer supports Zebra Programming Language (ZPL) and Eltron Programming Language (EPL) for control and formatting.
Can the ZP450 print color labels?
No, the ZP450 is a direct thermal printer and prints only in monochrome (black and white).
What types of media are compatible with the Zebra ZP450?
The printer supports direct thermal paper and label stocks compatible with direct thermal printing technology.
