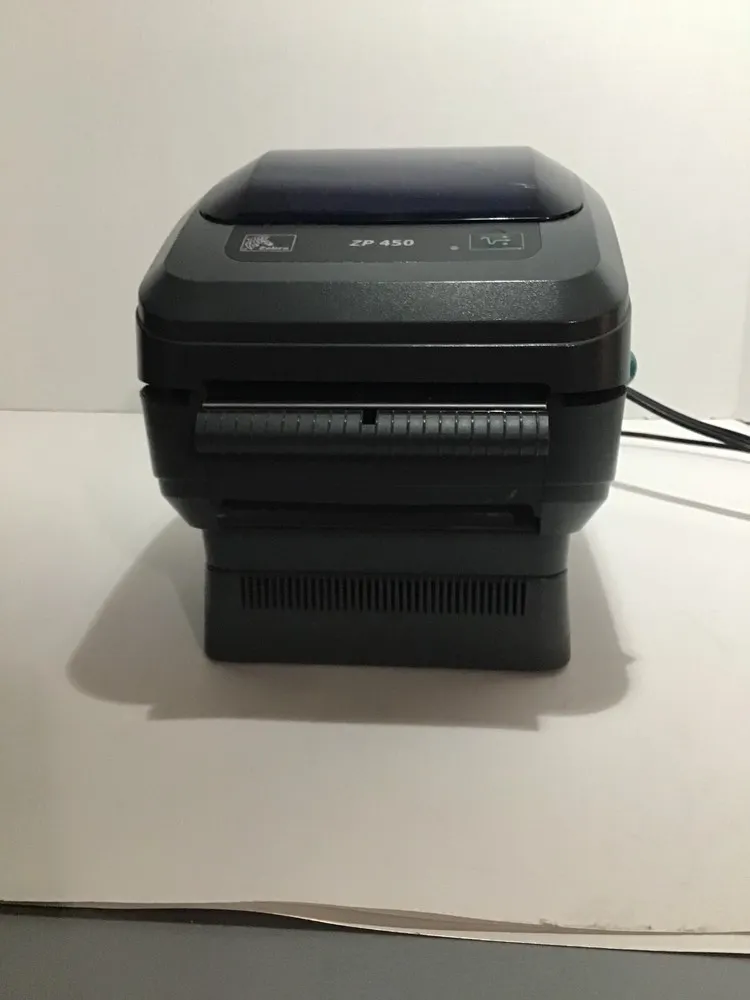

Zebra ZP 450
Brand | Zebra 2011 |
Model | ZP450, ZP450-0501-0006A |
Released Year | 2011 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra ZP450 is a thermal label printer designed primarily for office and light industrial environments, providing reliable direct thermal printing capabilities.
It supports print widths up to 4.1 inches with a maximum resolution of 203 dpi, delivering clear and sharp barcode and label printing.
The device includes a print speed of up to 4 inches per second, enabling efficient label production for various applications.
Connectivity options include USB and Serial interfaces, facilitating flexible integration with diverse systems.
The ZP450 supports a variety of label types including die-cut labels, continuous roll labels, and tags, providing adaptability for businesses with changing labeling needs.
Its compact design and straightforward media loading mechanism make it user-friendly and suitable for desktop environments with limited space.
Specifications
MPN | ZP450, ZP450-0501-0006A |
UPC | 0692618110181, 0760707028768, 0683193457709, 0760707028775, 0045005020004, 0692760630490 |
Model | ZP 450 |
Technology | Thermal |

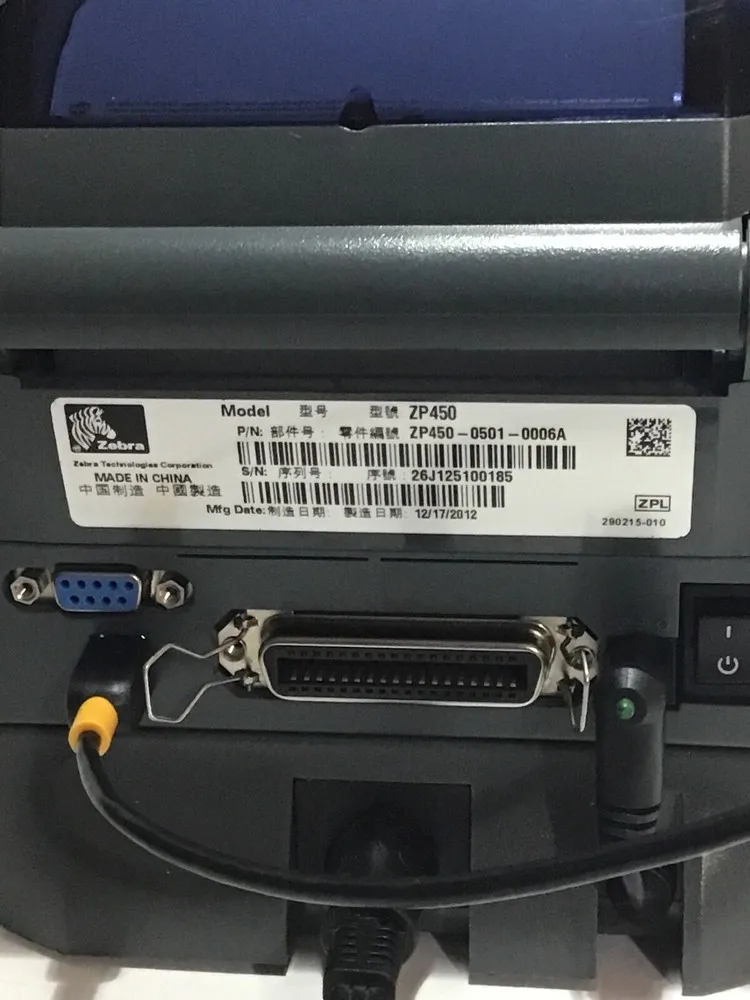

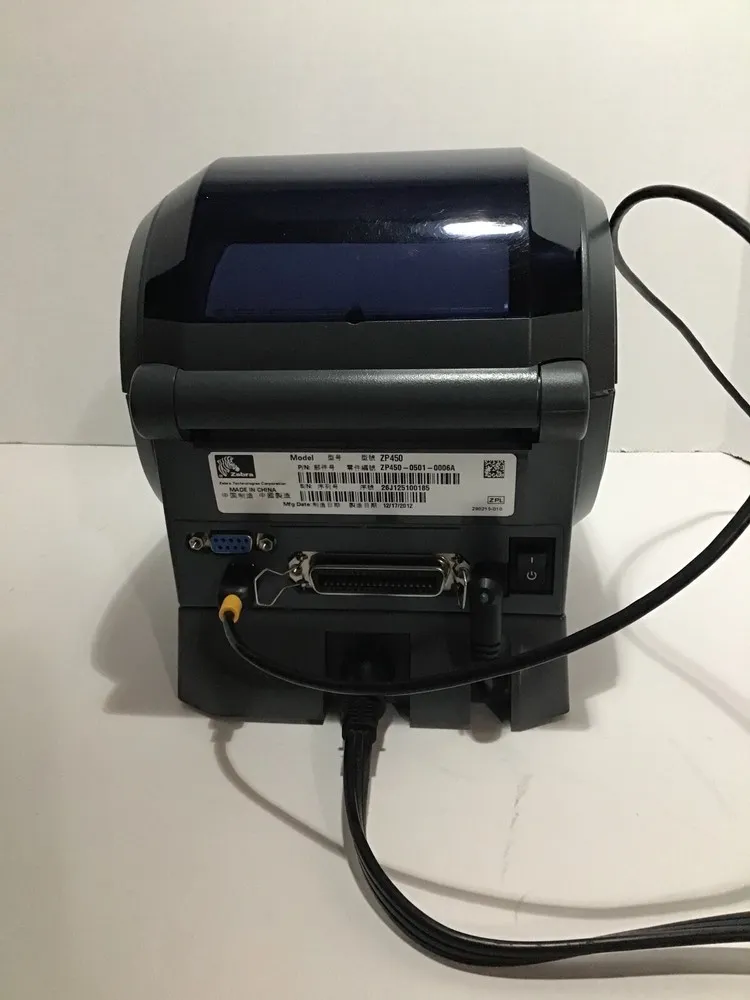

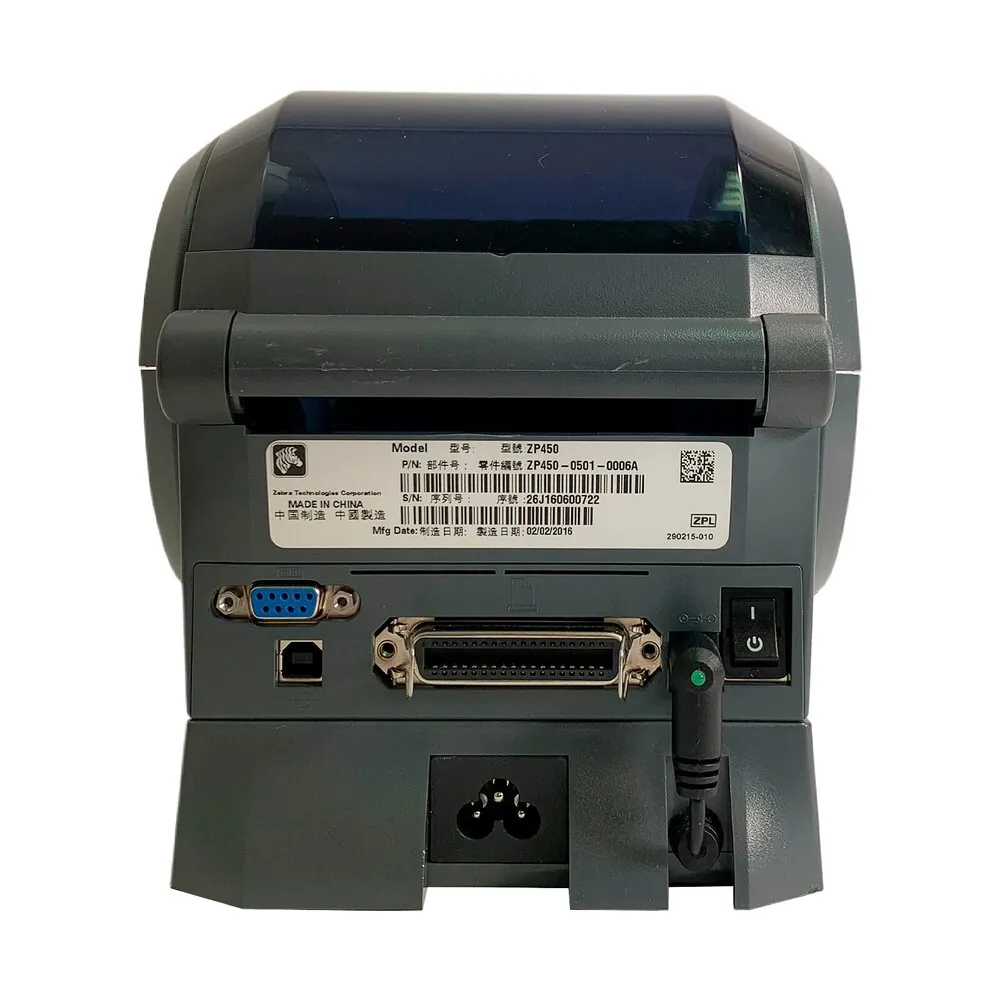

Connectivity | USB 2.0, RS-232 Serial |
Type | Label Printer |
Maximum Resolution | 203 x 600 DPI |
Black Print Speed | 5in./Sec |
Item Height | 7 in |
Item Width | 15 in |
Form Factor | Desktop |
MAX Resolution (Bw) | 203x600DPI |
Printer Type | Direct Thermal |
Print Width | 4.1 inches (104 mm) |
Print Speed | Up to 4 inches per second (ips) |
Print Resolution | 203 dots per inch (dpi) |
Memory | 8 MB SDRAM, 4 MB Flash |
Media Types Supported | Die-cut labels, continuous roll labels, tags |
Maximum Media Width | 4.25 inches (108 mm) |
Label Roll Diameter | 5.0 inches (127 mm) maximum |
Dimensions (WxDxH) | 6.8 x 8.5 x 6 inches (172 x 216 x 152 mm) |
Weight | 3.6 lbs (1.63 kg) |
Power Supply | External 24V DC power supply |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Programming Languages | ZPL, EPL |
Display | None (status LEDs only) |
Compatibility | Windows, Linux, Mac OS with appropriate drivers |
Images
Key Advantages
High Compatibility: Supports major barcode and label languages like EPL and ZPL for seamless printing operations.
Compact and User-Friendly: Small footprint and simple media loading enhance usability in constrained office spaces.
Reliable Performance: Consistent thermal print quality at decent speeds meets typical office labeling demands.
Versatile Media Handling: Accommodates multiple media types including labels and tags for diverse applications.
Flexible Connectivity: USB and Serial ports offer adaptability to various workstation setups.
Cost-Effective: Maintenance and operating costs are optimized for small to medium business usage.
Limitations
Resolution Constraint: 203 dpi resolution may limit the quality for highly detailed graphics or very small fonts.
Limited Connectivity Options: Absence of modern interfaces such as Ethernet or wireless limits integration in networked environments.
Direct Thermal Only: Cannot use thermal transfer ribbons, restricting label durability especially in harsh environments.
Print Speed: Moderate speed of 4 ips may be insufficient for high-volume industrial use.
No LCD Display: Lacks an on-device screen for status monitoring, relying on software feedback.
Discontinued Model: Technology is somewhat outdated with limited support and availability of parts.
FAQ
What type of printing technology does the Zebra ZP450 use?
The Zebra ZP450 uses direct thermal printing technology, which prints images by selectively heating thermal paper as it passes over the thermal print head.
What media widths and types does the ZP450 support?
It supports media widths up to 4.25 inches and works with die-cut labels, continuous rolls, and tags designed for direct thermal printing.
Can the ZP450 connect to modern networks?
No, it primarily offers USB and Serial connectivity options and does not support Ethernet or wireless networking.
Is the Zebra ZP450 still available and supported?
The Zebra ZP450 has been discontinued, so new units are no longer manufactured, and official support is limited.
What printing languages does the ZP450 support?
The printer supports Zebra Programming Language (ZPL) and Eltron Programming Language (EPL), which are common in barcode and label printing.
What is the maximum printing resolution of the Zebra ZP450?
The maximum print resolution is 203 dpi, which is suitable for general label printing but may not be adequate for fine graphics.
Does the printer support thermal transfer printing?
No, the ZP450 is a direct thermal printer only and does not support the use of thermal transfer ribbons.
