Zebra ZM600 (ZM600-2001-0000T)
Brand | Zebra 2005 |
Model | ZM600-2001-0000T |
Released Year | 2005 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra ZM600 is a rugged industrial label printer designed for high-volume printing environments in offices and manufacturing. It supports thermal transfer and direct thermal printing technologies, enabling sharp, durable barcode and label prints. With print resolutions of up to 203 dpi and a print width of 4.09 inches (104 mm), the ZM600 efficiently handles medium to wide label sizes. The printer uses Zebra's EPL and ZPL programming languages for versatile label formatting and easy integration into existing systems. Connectivity options include serial, parallel, and USB interfaces, facilitating compatibility with various legacy and modern equipment. Its robust metal frame construction ensures durability and reliability in demanding workspaces.
Specifications
Type | Label Printer |
Technology | Thermal |
Output Type | Black & White |

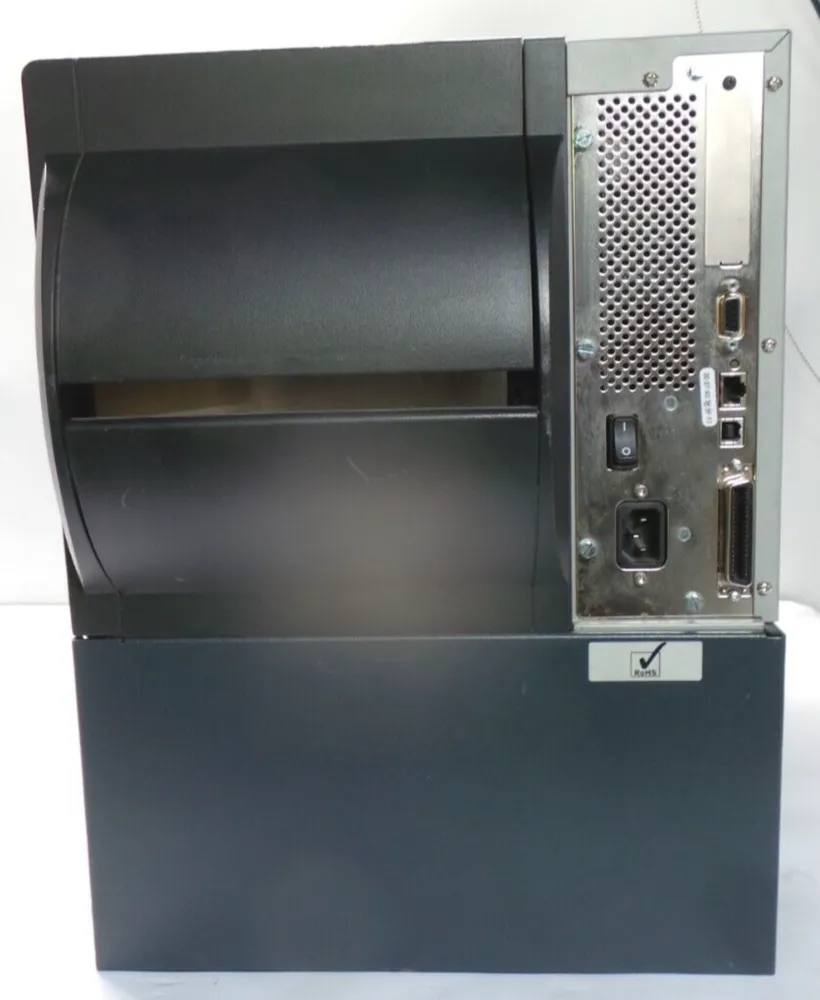

Connectivity | Serial, Parallel, USB 1.1 |
MPN | ZM600-2001-0000T |
Model | ZM600 (ZM600-2001-0000T) |
Form Factor | Desktop |
Max Resolution (Bw) | 203DPI |
Black Print Speed | 254mm/Sec |
Printer Type | Industrial Thermal Transfer/Direct Thermal Printer |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 6 inches per second |

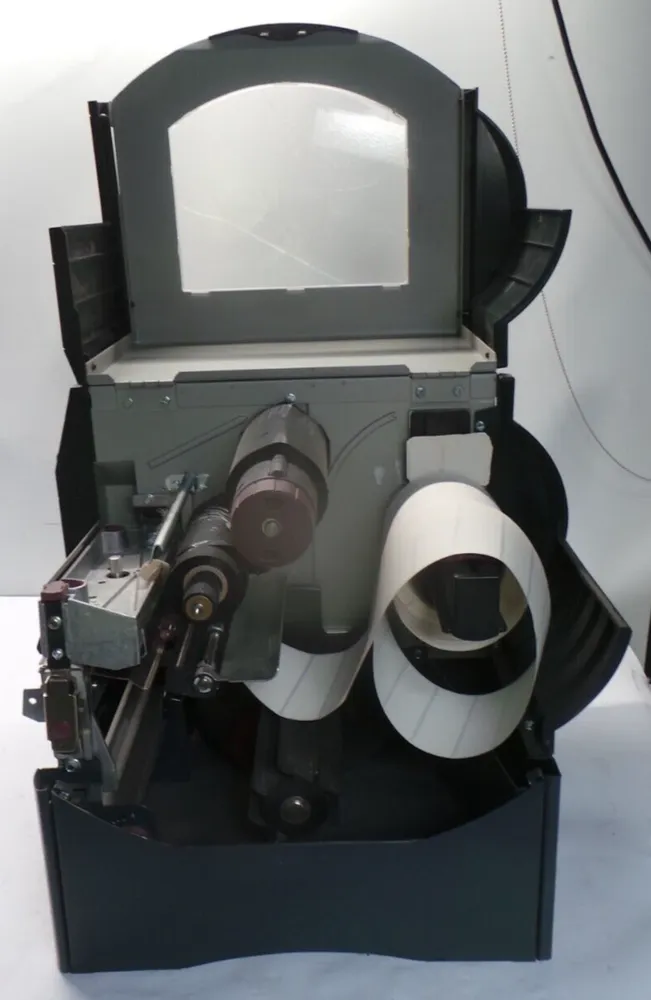

Media Types Supported | Roll-fed, die-cut, continuous, black mark, notch, tag stock |
Media Width | 4.25 inches (108 mm) max |
Media Roll Diameter | Up to 8.0 inches (203 mm) |
Memory | 8 MB SDRAM, 4 MB Flash |
Programming Languages | Zebra Programming Language (ZPL and EPL) |
Construction | Durable metal frame |
Display | Two-button interface with status LEDs |
Power Supply | External, 90-264 VAC, 48-62 Hz |
Dimensions (WxDxH) | 11.7 x 17.5 x 14.9 inches (297 x 445 x 379 mm) |
Weight | Approximately 30 lbs (13.6 kg) |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Humidity | 20% to 85% non-condensing |

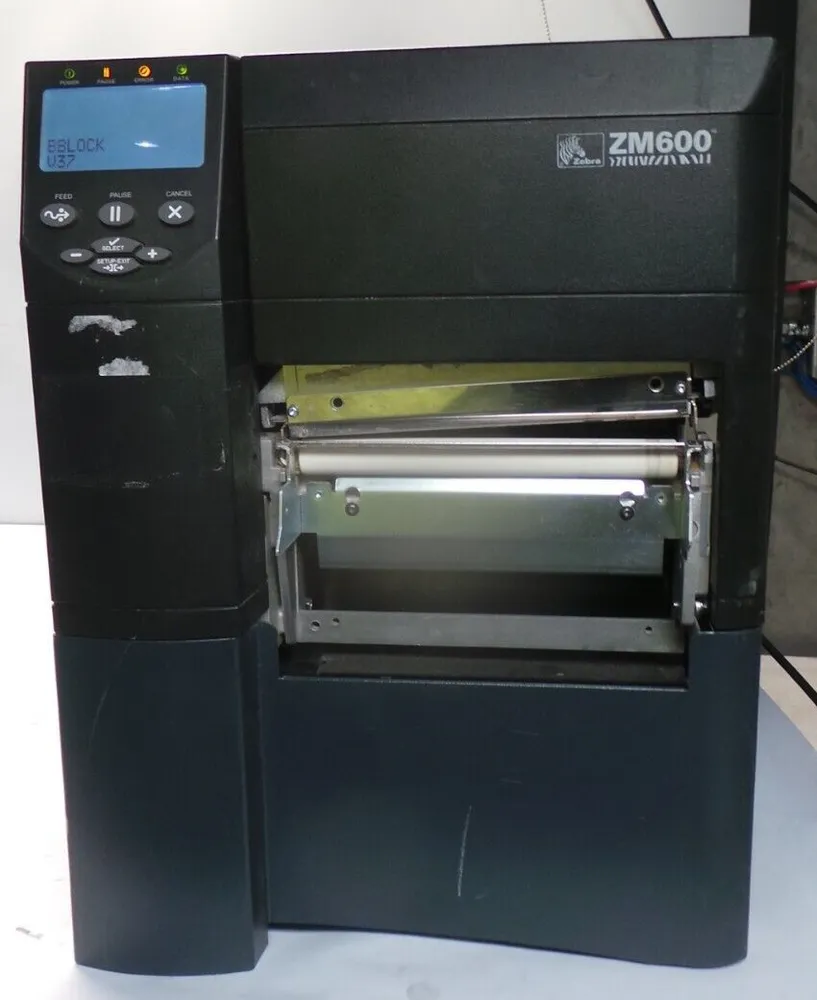

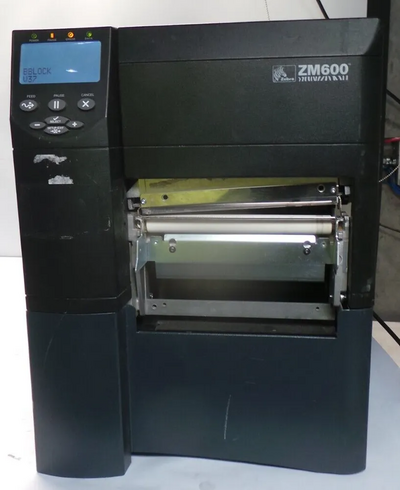

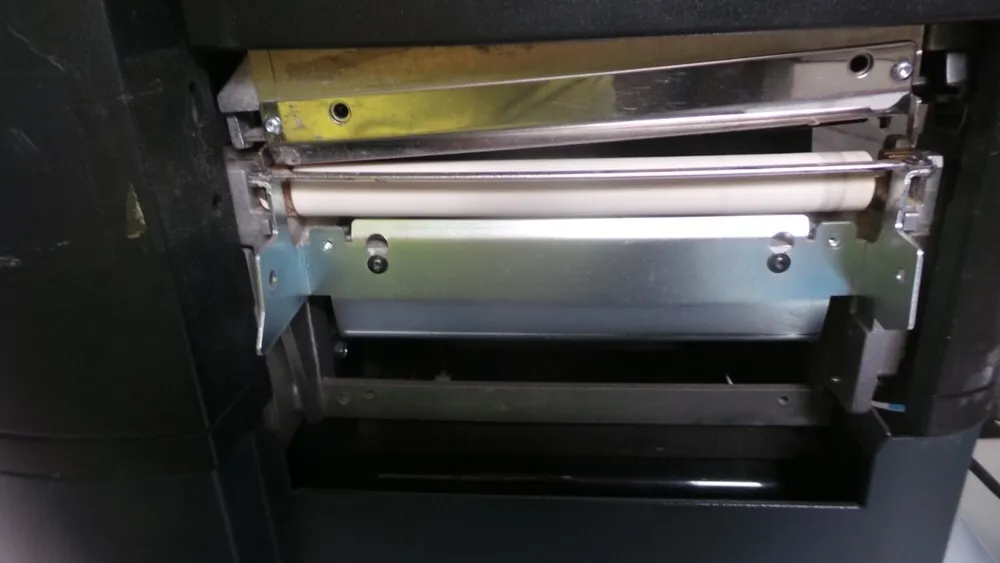

Images
Key Advantages
The ZM600's key advantages include its industrial-grade build quality that ensures longevity under heavy use. It offers a flexible media handling system supporting a wide range of label sizes and types, increasing versatility. High-speed printing up to 6 inches per second boosts productivity in busy office settings. Multiple connectivity options allow for seamless integration with legacy systems without additional adapters. The printer supports both thermal transfer and direct thermal printing, catering to different labeling requirements. User-friendly design features, such as a large media roll capacity and straightforward maintenance procedures, reduce downtime and operational costs.
Limitations
Despite its strengths, the ZM600 has some limitations. Its maximum print resolution of 203 dpi may not meet the needs for very fine or high-definition label prints. The physical size and weight make it less suitable for small or mobile office spaces. It lacks modern wireless connectivity options such as Wi-Fi or Bluetooth that newer printers offer. The printer's age may pose challenges in sourcing original replacement parts or accessories. It does not have a color display interface, limiting real-time feedback and ease of configuration. Firmware updates and advanced software features available in contemporary models are also limited in this unit.
FAQ
What type of printing technology does the Zebra ZM600 use?
The Zebra ZM600 supports both thermal transfer and direct thermal printing technologies, enabling durable and high-quality label printing.
What is the maximum print width of the ZM600 printer?
The maximum print width of the Zebra ZM600 is 4.09 inches (104 mm), suitable for a variety of label sizes.
Is the Zebra ZM600 still supported and in production?
No, the Zebra ZM600 has been discontinued, but support and parts may still be available through specialized vendors.
Does the ZM600 support modern connectivity options like Wi-Fi?
No, the ZM600 provides serial, parallel, and USB connectivity but does not include wireless options such as Wi-Fi or Bluetooth.
What programming languages are compatible with the ZM600 printer?
The ZM600 supports Zebra's EPL and ZPL programming languages for label design and printer control.
Can the ZM600 print in color?
No, the ZM600 is a monochrome thermal printer and does not support color printing.
What kind of maintenance is required for the Zebra ZM600?
Regular maintenance includes cleaning the printhead and platen roller, replacing worn parts, and ensuring the media path is clear to maintain print quality and reliability.
