Zebra T
| Brand | Zebra 2023 |
| Model | T |
| Released Year | 2023 |
| Type | Printers |
| Series | ZT230 |
| Item Weight | 23.2 pounds |
| Product Dimensions | 9.5 x 10.9 x 17 inches |
| Status | Discontinued |
Quick view
Overview

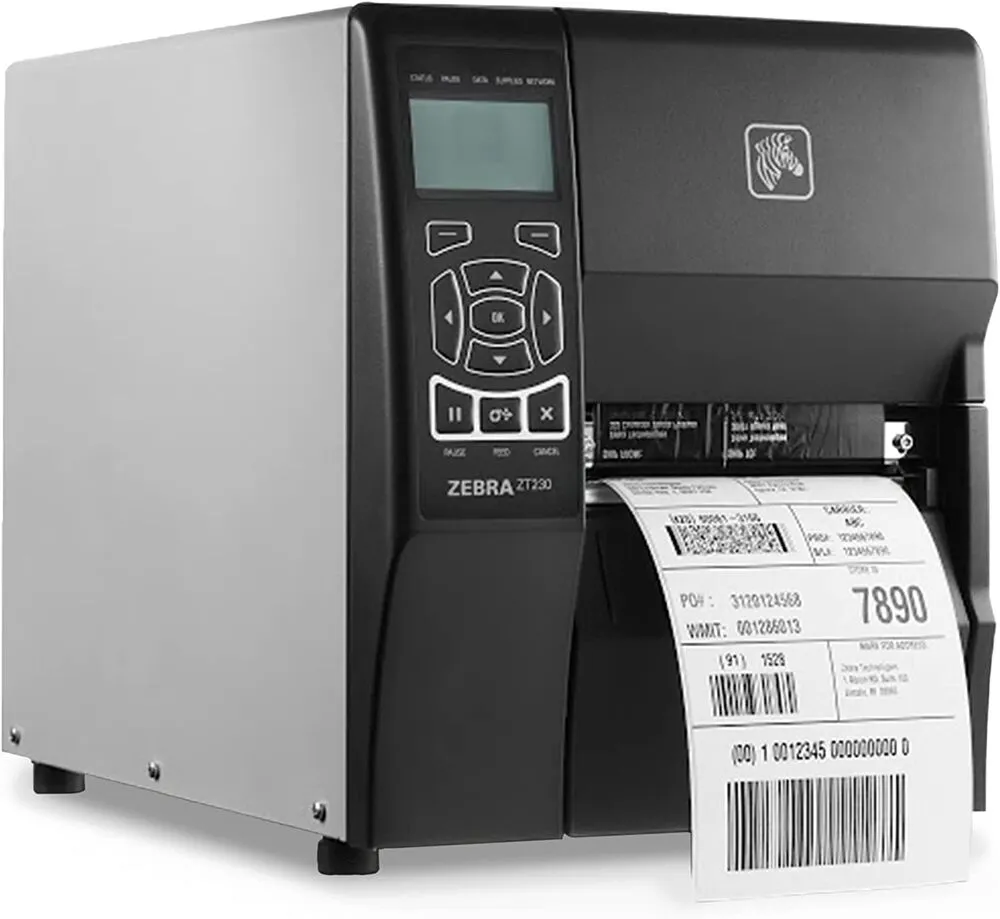

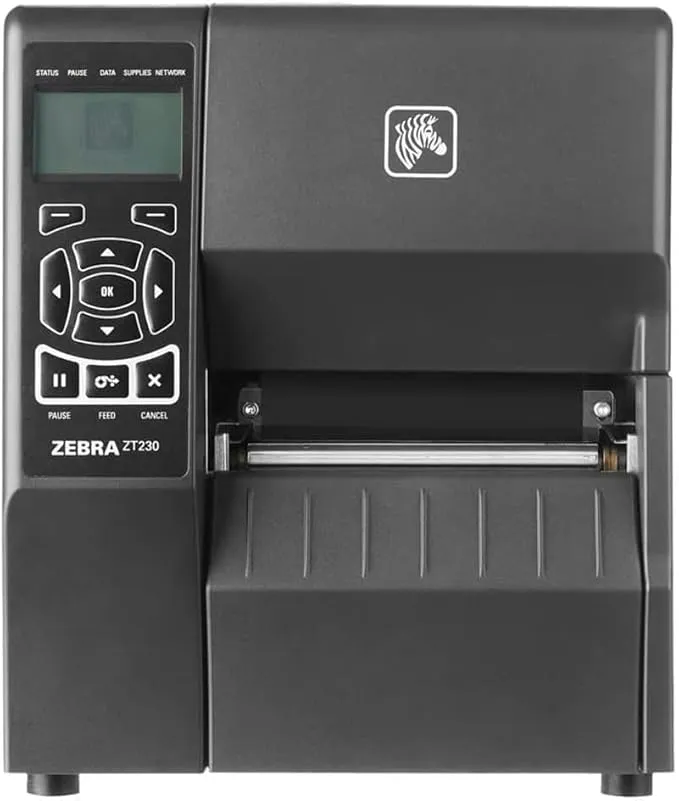

The Zebra ZT230 is an industrial label printer designed for medium-duty printing applications in logistics, manufacturing, and retail environments. It supports both direct thermal and thermal transfer printing technologies, allowing versatility in media options. Equipped with a 203 dpi resolution printhead, it delivers clear, high-quality barcode and text output. The device features an intuitive LCD display for easy status monitoring and configuration. Connectivity options include USB, Serial, and Ethernet interfaces, enabling flexible network integration. Its rugged metal frame ensures durability for extended operational use in demanding environments.
Specifications
| Max Input Sheet Capacity | 7 |
| Sheet Size | 4.09 inches |
| Maximum Black and White Print Resolution | 203 dpi |
| Warranty Type | Limited Warranty |
| Color Depth | 1 bpp |
| Dual-sided printing | No |
| Max copy resolution black-white | 203 dpi |
| Duplex | Manual |
| Ink Color | Black |
| Resolution | 203 x 203 DPI |
| Additional Printer functions | Print Only |
| Control Method | App |
| Total Ethernet Ports | 2 |
| Total USB Ports | 1 |
| UPC | 024606558901 |
| Memory Storage Capacity | 128 MB |
| Product Dimensions | 9.5 x 10.9 x 17 inches |
| Item Weight | 23.2 pounds |
| Item model number | T |
| Date First Available | April 18, 2023 |
| Manufacturer | ZEBRA |

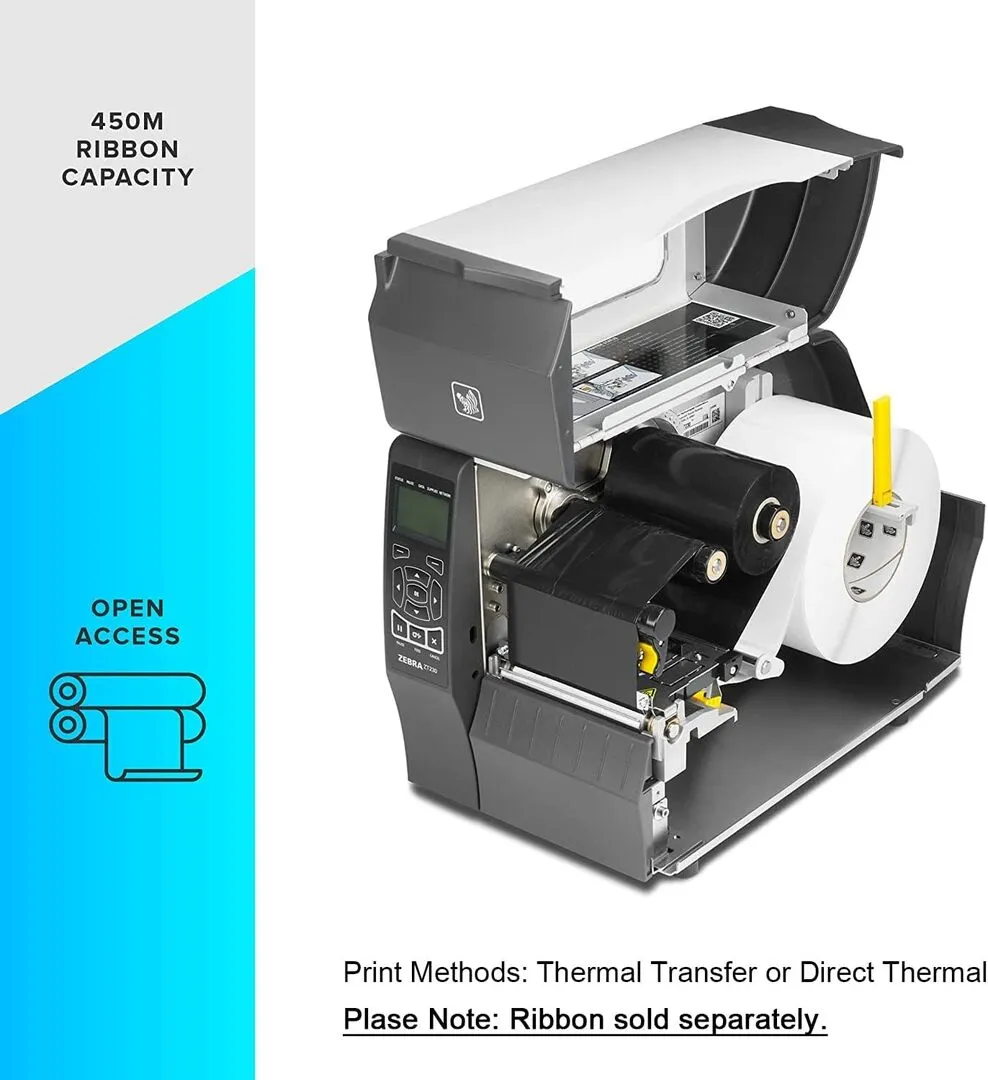

| Print Technology | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 6 inches per second |
| Maximum Print Width | 4.09 inches (104 mm) |
| Media Type | Continuous, die-cut, notch, black mark, tag stock, fan-fold, and more |
| Media Width | 0.75 to 4.5 inches (19 to 114 mm) |
| Media Thickness | 0.003 to 0.012 inches (0.08 to 0.30 mm) |
| Ribbon Type | Wax, wax/resin, resin ribbons |
| Ribbon Width | 1.57 to 4.33 inches (40 to 110 mm) |
| Ribbon Core Diameter | 1 inch (25.4 mm) |

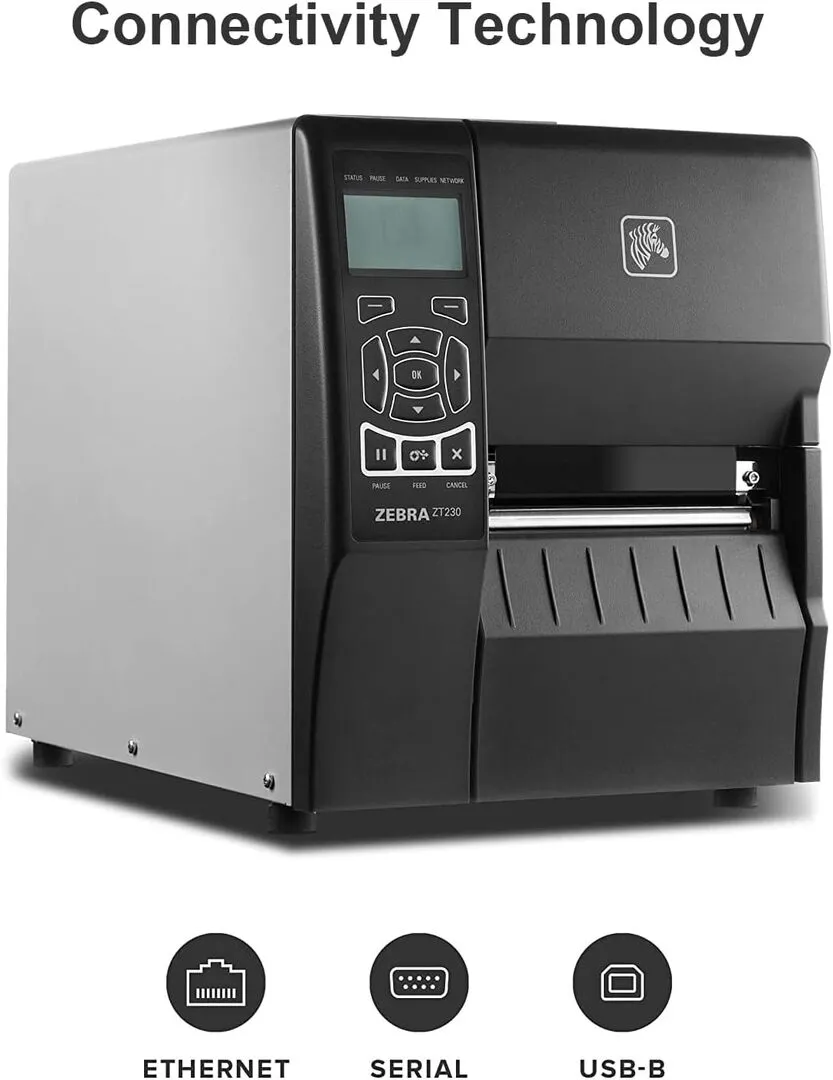

| Connectivity | USB 2.0, RS-232 Serial, 10/100 Ethernet |
| Display | Backlit LCD with 240 x 128 pixel resolution |
| Processor | 32-bit RISC processor |
| Memory | 64 MB SDRAM, 128 MB Flash memory |
| Physical Dimensions | 10.9 in (W) x 18 in (D) x 13.9 in (H) (277 mm x 457 mm x 353 mm) |
| Weight | Approximately 26 lbs (11.79 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | Internal, auto-ranging 100 - 240 VAC, 50-60 Hz |
| Certifications | CE, FCC Class A, UL |
| Durability Features | Metal frame construction, industrial design for rugged environments |
Images
Key Advantages
The Zebra ZT230 offers excellent print quality with 203 dpi resolution suitable for various labeling needs. Its dual printing modes support diverse materials, enhancing versatility. The user-friendly LCD interface simplifies printer management and diagnostics. Robust construction ensures reliable performance in industrial settings. Multiple connectivity options provide easy integration with existing systems. Energy-efficient design reduces operating costs and environmental impact.
Limitations
The print speed of the ZT230 is moderate, limiting throughput for high-volume tasks. The maximum print width of 4 inches may not accommodate larger labels. Some advanced features found in higher-end Zebra models are absent. Media compatibility may require specific ribbons and labels, impacting flexibility. The device does not support wireless connectivity out of the box. Its firmware updates require manual installation, which could be less convenient for some users.
FAQ
What printing technologies does the Zebra ZT230 support?
The Zebra ZT230 supports both direct thermal and thermal transfer printing technologies.
What is the maximum print resolution of the ZT230?
The printer offers a maximum print resolution of 203 dpi.
Is the Zebra ZT230 suitable for high-volume printing?
The ZT230 is designed for medium-duty printing; it may not meet the demands of very high-volume environments.
What connectivity options are available on the Zebra ZT230?
The printer includes USB, Serial, and Ethernet interfaces for network and peripheral connectivity.
Can I upgrade the firmware on the Zebra ZT230?
Yes, firmware upgrades are possible but must be performed manually by the user.
Is the Zebra ZT230 still in production?
No, the Zebra ZT230 has been discontinued.
Does the printer support wireless printing?
The ZT230 does not have built-in wireless capabilities.
