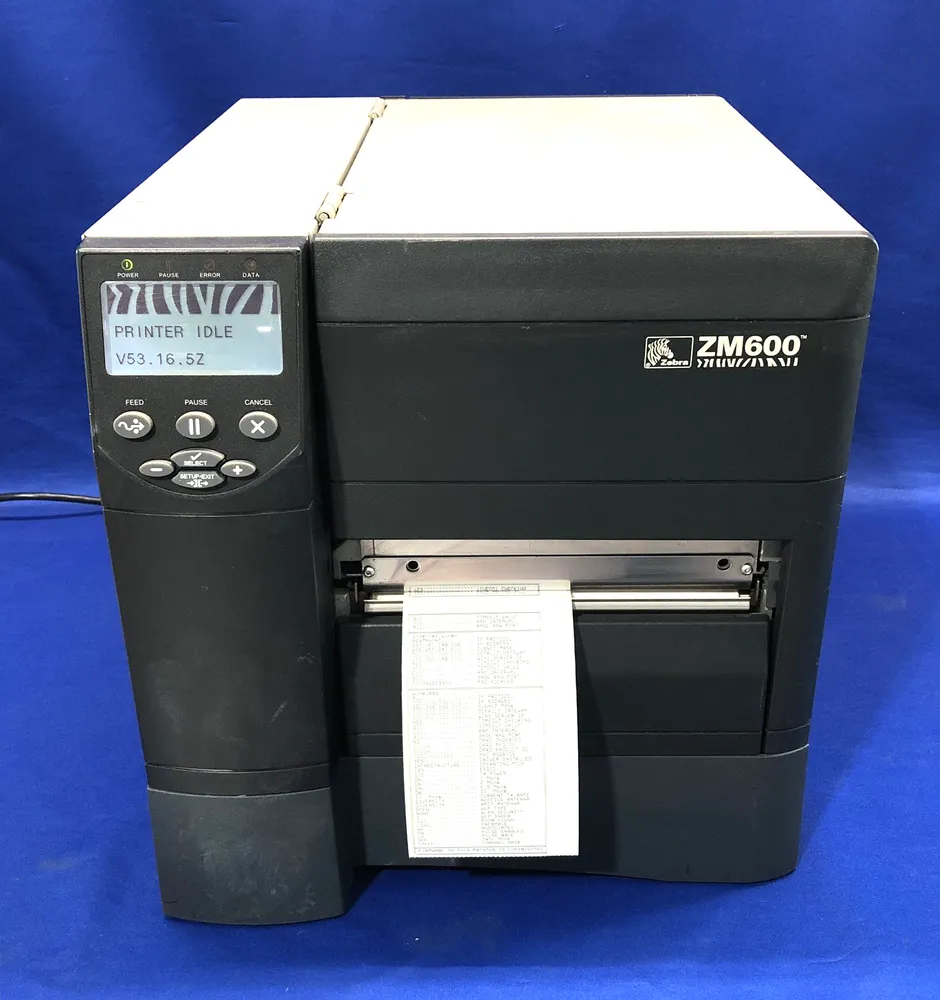

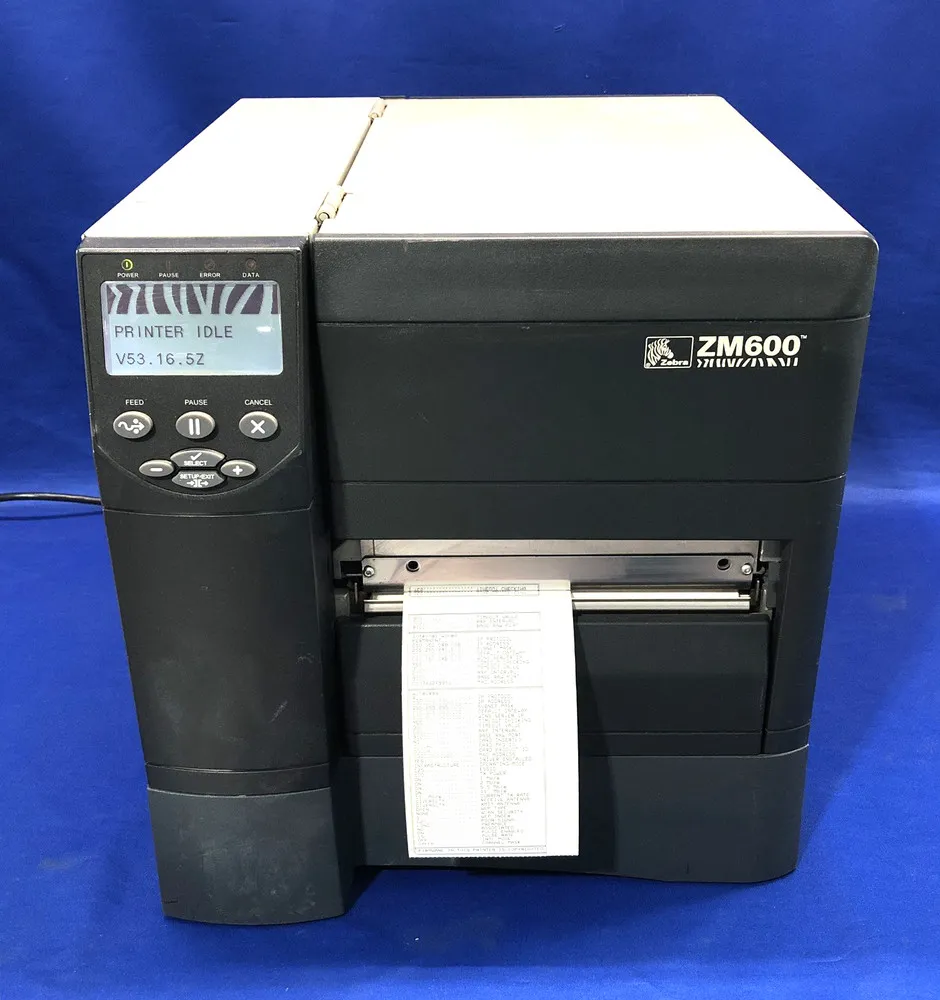

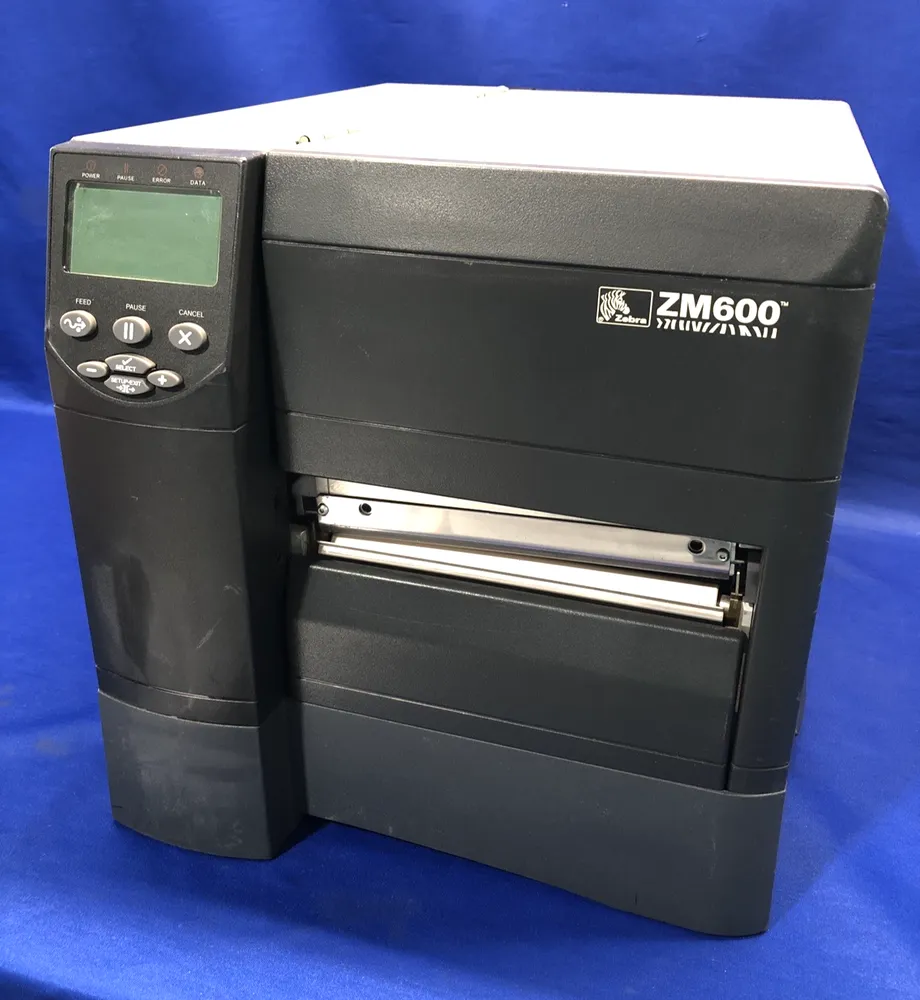

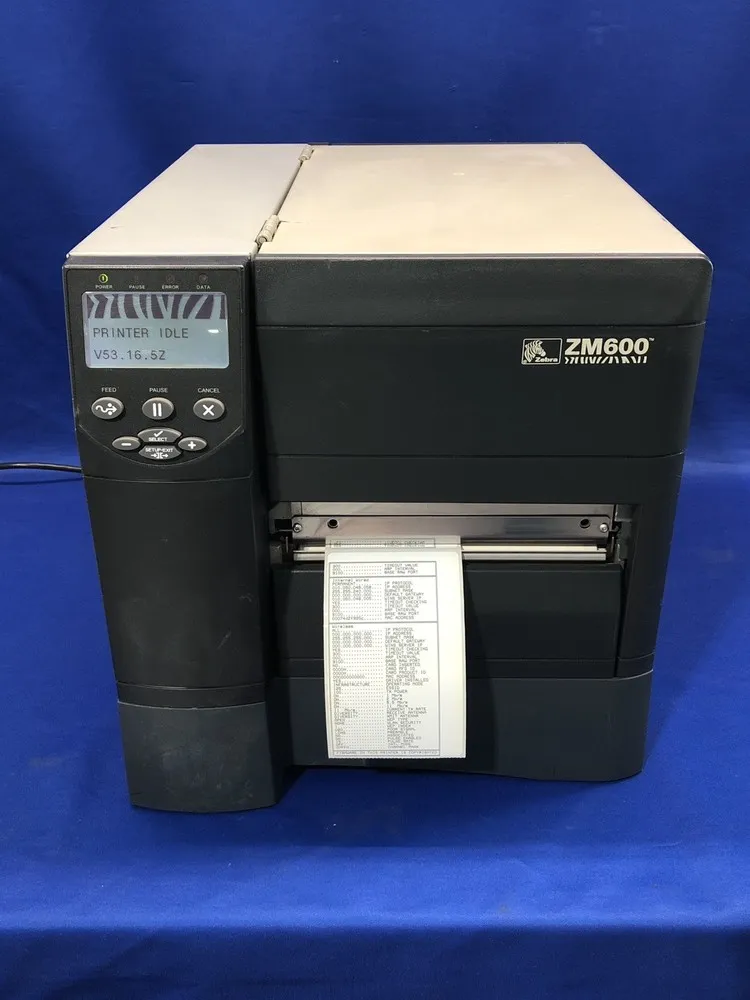

Zebra ZM600
Brand | Zebra 2005 |
Model | ZM600-2001-0100T |
Released Year | 2005 |
Type | Printers |
Series | Zm |
Status | Discontinued |
Quick view
Overview
The Zebra ZM600 is an industrial-grade thermal printer designed primarily for high-volume label printing applications in office and industrial environments. It features a 32-bit RISC processor ensuring efficient processing of print jobs and fast throughput. The printer supports direct thermal and thermal transfer printing, offering versatile media handling options with widths up to 6.6 inches. Connectivity options include parallel, serial, USB, and Ethernet interfaces to accommodate diverse networking needs. The device supports multiple barcode symbologies and scalable fonts with EZPL, ZPL, and EPL programming languages. Its rigid steel frame construction provides durability suited for continuous operation in demanding conditions.
Specifications
Manufacturer | Zebra Technologies |
Print Technology | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Max Print Width | 6.6 inches (168 mm) |
Max Print Speed | 10 inches per second (254 mm/s) |
Processor | 32-bit RISC |
Memory | 16 MB |
Connectivity | Ethernet (RJ-45), Parallel (IEEE 1284), Serial (RS-232), USB 2.0 |
Supported Languages | EZPL, ZPL, EPL |
Media Types | Roll-fed or fan-fold labels, tags, continuous roll stock |
Max Media Width | 7.1 inches |
Media Sensors | Reflective and transmissive |
Ribbon Types | Wax, wax/resin, resin |
Ribbon Length | Up to 450 meters |

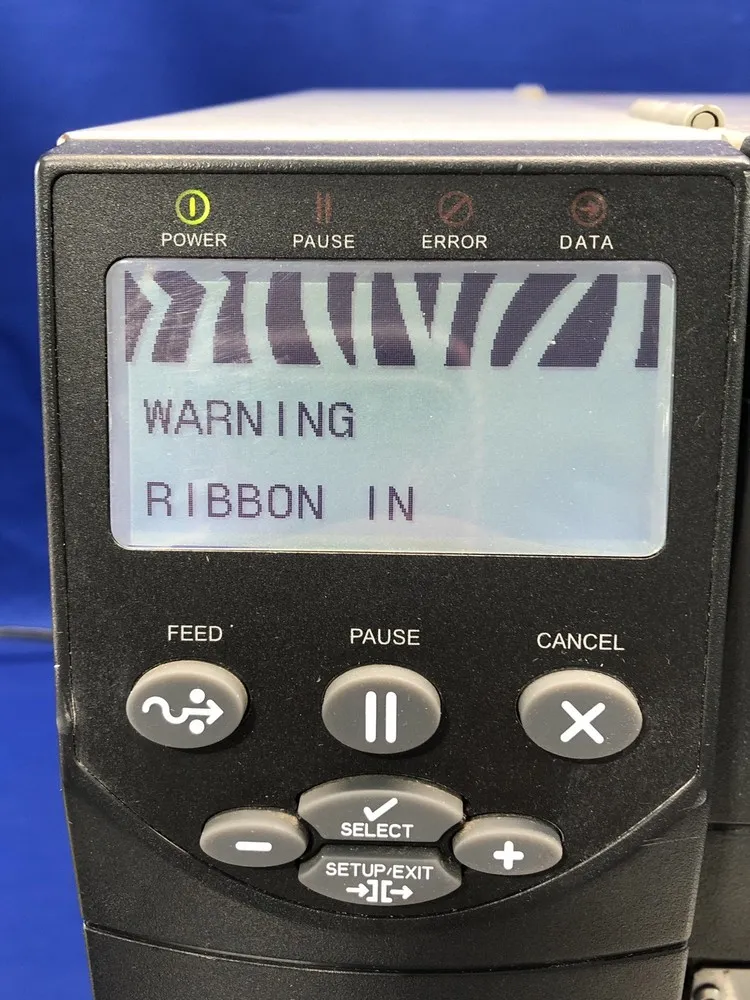

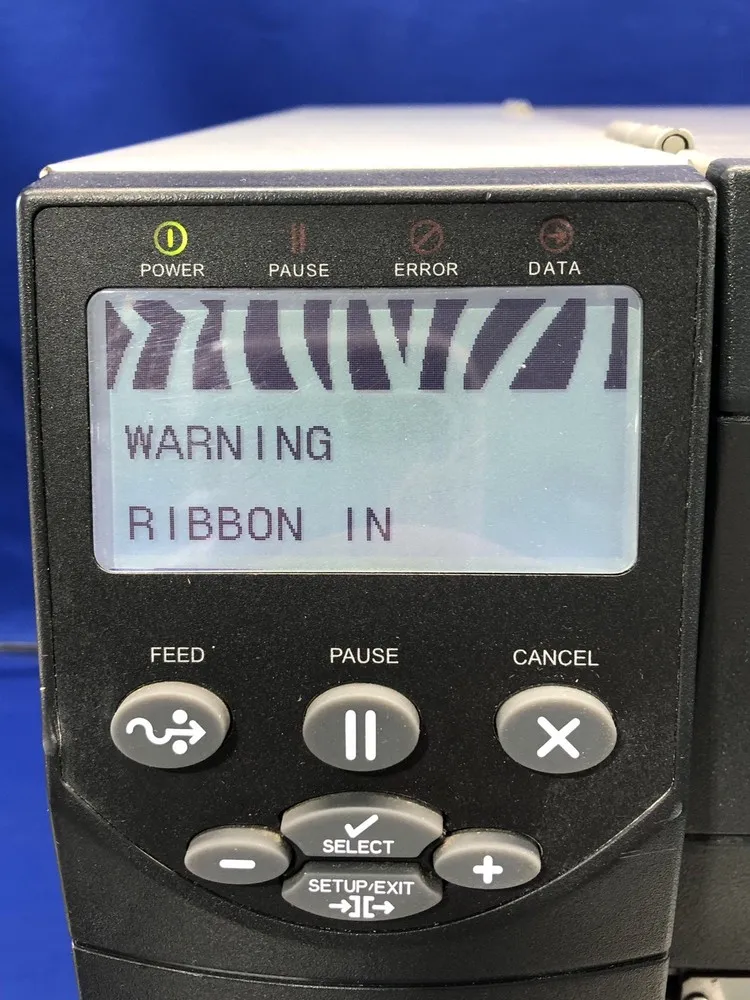

Display | 2-line LCD with backlight |
Power Supply | External 110-240 VAC |
Dimensions (WxDxH) | 11.5 x 17.5 x 15.5 inches (292 x 445 x 394 mm) |
Weight | 35 lbs (15.9 kg) |
Operating Temperature | 40°F to 104°F (4.4°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Operating Humidity | 10% to 90% non-condensing |
Input Type | Monochrome |
Output Type | Black & White |
MPN | ZM600-2001-0100T |
Item Length | 18.7 inch |
Supported Paper Size | A5 (148 x 210 mm), A6 (105 x 148 mm) |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Item Height | 13.3 inch |
Model | ZM600 |
Features | Networkable |
Country/Region of Manufacture | China |
Item Width | 10.9 inch |
Product Line | Zebra ZM |
Images
Key Advantages
The Zebra ZM600 offers high-speed printing up to 10 inches per second which is ideal for large volume tasks. Its broad media compatibility includes various label types, ribbons, and tag materials enhancing usability across different industries. The expandable memory and robust processor guarantee efficient management of complex label formats and graphics. Ethernet connectivity enables integration into modern networked office environments. User-friendly LCD interface assists in easy configuration and troubleshooting. The steel frame ensures the printer's durability for consistent long-term performance.
Limitations
The ZM600's relatively large footprint requires significant space which may not be suitable for small offices. Its noise level during operation can be considerable, making it less suitable for quiet office environments. The printer lacks built-in wireless capabilities, which could limit its flexibility in some network setups. Replacement ribbons and labels can be proprietary and may increase operating costs. The device does not support modern cloud printing protocols. Compared to newer models, the ZM600 may have slower processing speed and fewer advanced features.
FAQ
What printing technologies does the Zebra ZM600 support?
The ZM600 supports both direct thermal and thermal transfer printing methods.
What connectivity options are available on the ZM600?
It includes parallel, serial, USB, and Ethernet ports for flexible connectivity.
Can the ZM600 print wide labels?
Yes, it can print labels up to 6.6 inches in width.
Is the ZM600 still supported by Zebra?
No, the ZM600 has been discontinued and may no longer receive official support.
What are the key programming languages for this printer?
The printer supports EZPL, ZPL, and EPL label programming languages.
Does the ZM600 have a display for user interaction?
Yes, it features an LCD interface for configuration and status monitoring.
Are accessories and spare parts available for the ZM600?
While the printer is discontinued, some aftermarket parts and accessories may still be available.
