Zebra ZM400
Brand | Zebra 2005 |
Model | ZM40020010100, ZM400, ZM40020010100T |
Released Year | 2005 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview

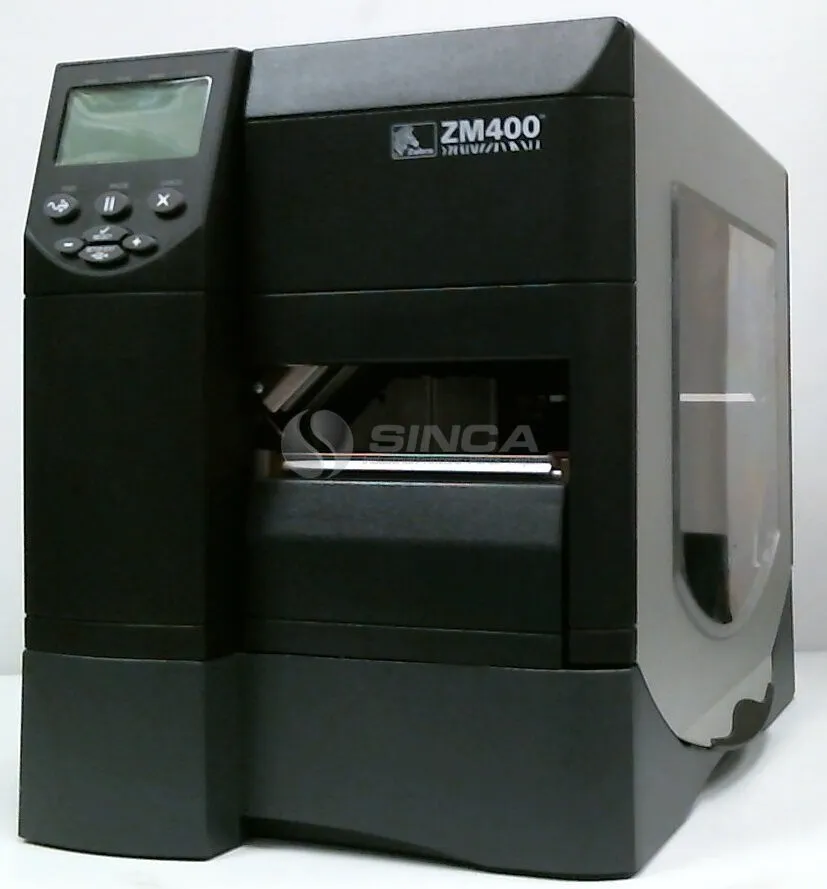

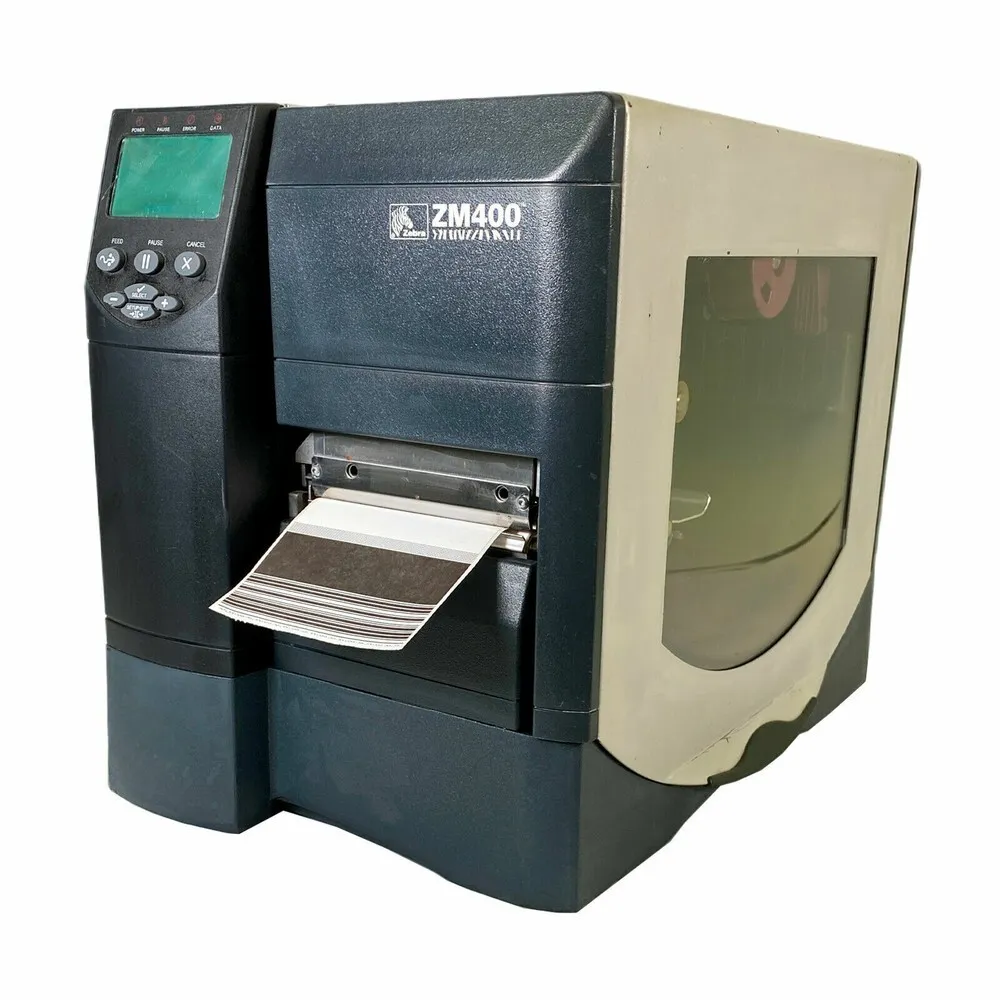

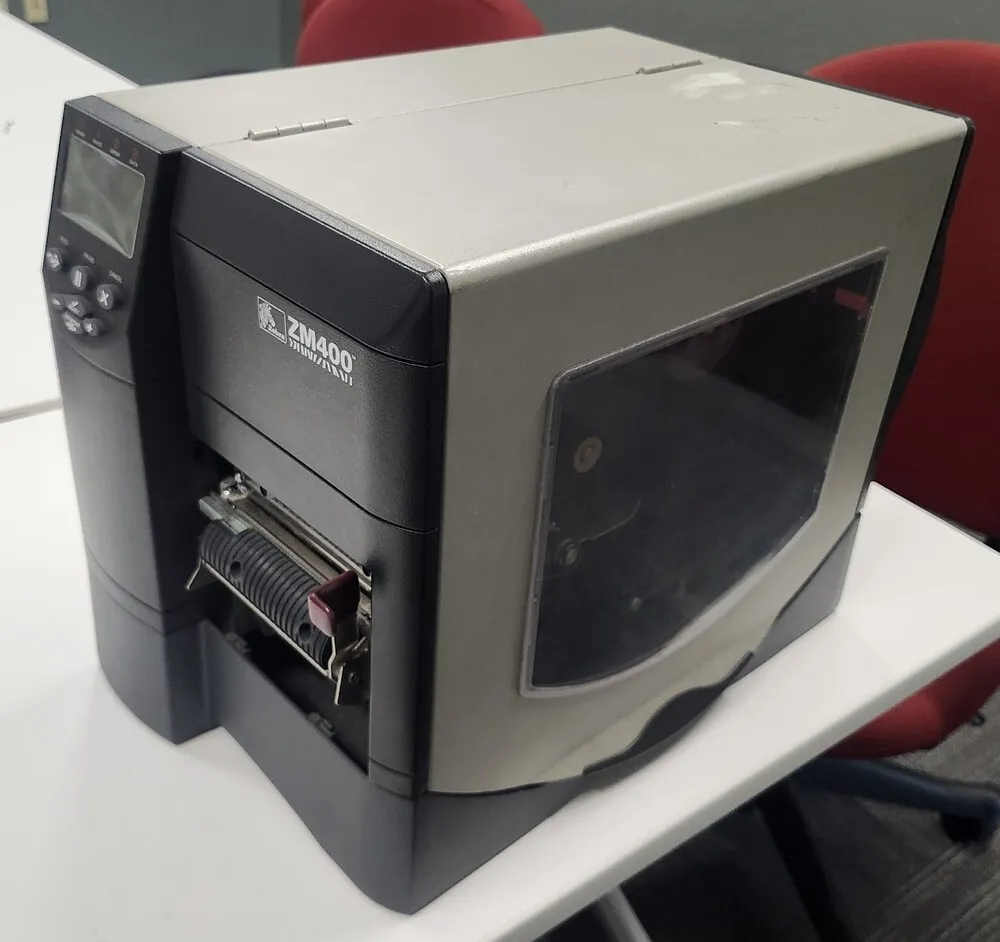

The Zebra ZM400 is a rugged industrial printer designed for high-volume barcode and label printing in demanding environments. It features a metal frame and construction to ensure durability and reliability. The printer supports multiple connectivity options including serial, parallel, and USB interfaces for versatile integration. It has a print resolution of 203 dpi or optionally 300 dpi to accommodate detailed label requirements. The ZM400 accommodates media widths up to 4.09 inches and supports a variety of media types such as continuous, die-cut, and fanfold labels. It incorporates an LCD screen and intuitive menu controls to simplify printer setup and operation.
Specifications
MPN | ZM40020010100, ZM400, ZM40020010100T |
Ean | 0714824807775, 0041114078479 |
GTIN | 0714824807775 |
UPC | 0714824807775 |
Model | ZM400 |
Memory | 8 MB DRAM, 4 MB Flash standard |
Technology | Thermal |

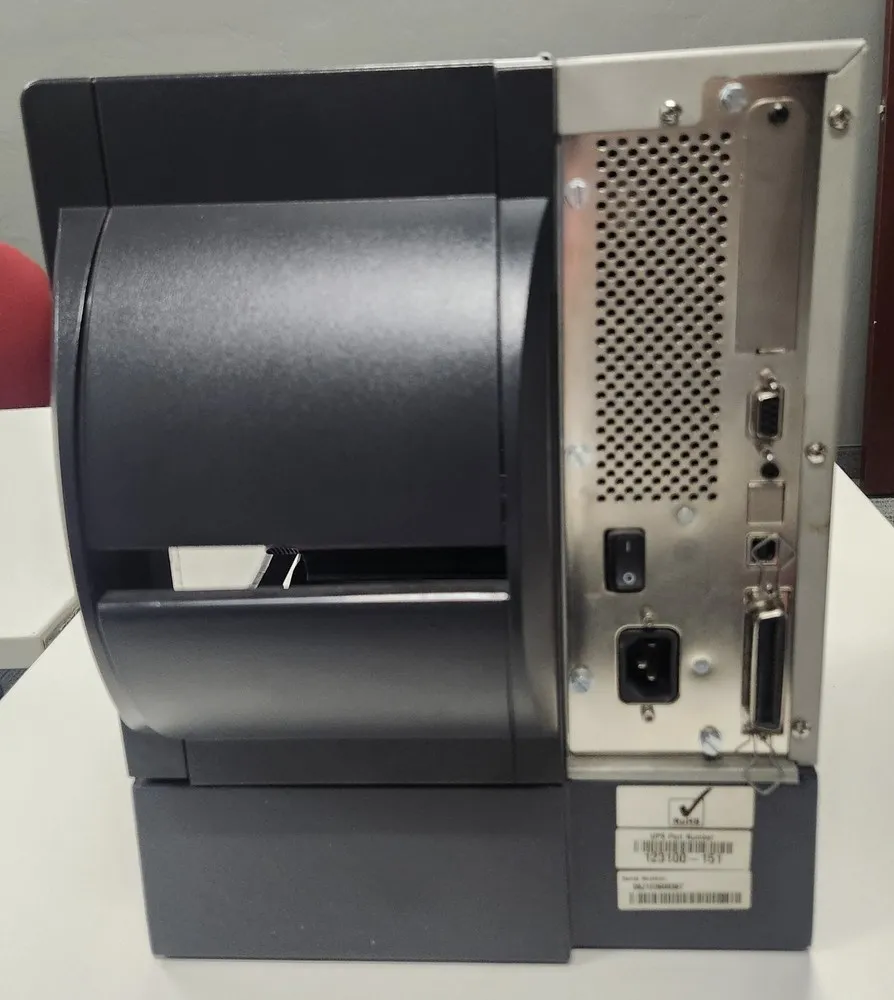

Connectivity | Serial RS232, Parallel, USB, optional Ethernet |
Output Type | Black & White |
Features | Networkable |
Type | Label Printer |
Product Line | Zebra Z |
Printer type | Industrial thermal transfer and direct thermal printer |
Print resolution | 203 dpi (8 dots/mm) standard, 300 dpi optional |
Print width | 4.09 inches (104 mm) maximum |
Print speed | Up to 10 inches per second at 203 dpi |
Media types | Continuous, die-cut, black mark, tag, fanfold, ticket |
Media width | 1.57 inches to 4.65 inches (40 mm to 118 mm) |
Media thickness | 0.0025 inches to 0.01 inches (0.0635 mm to 0.254 mm) |
Ribbon type | Ink-coated side out, wax, wax/resin, or resin ribbons |
Display | 16-character LCD display with keypad for configuration |
Dimensions | 10.2 x 19.7 x 15.5 inches (259 x 500 x 393 mm) |
Weight | Approx. 33 lbs (15 kg) |
Operating temperature | 40°F to 104°F (5°C to 40°C) |
Power supply | 120V or 240V, auto-sensing |

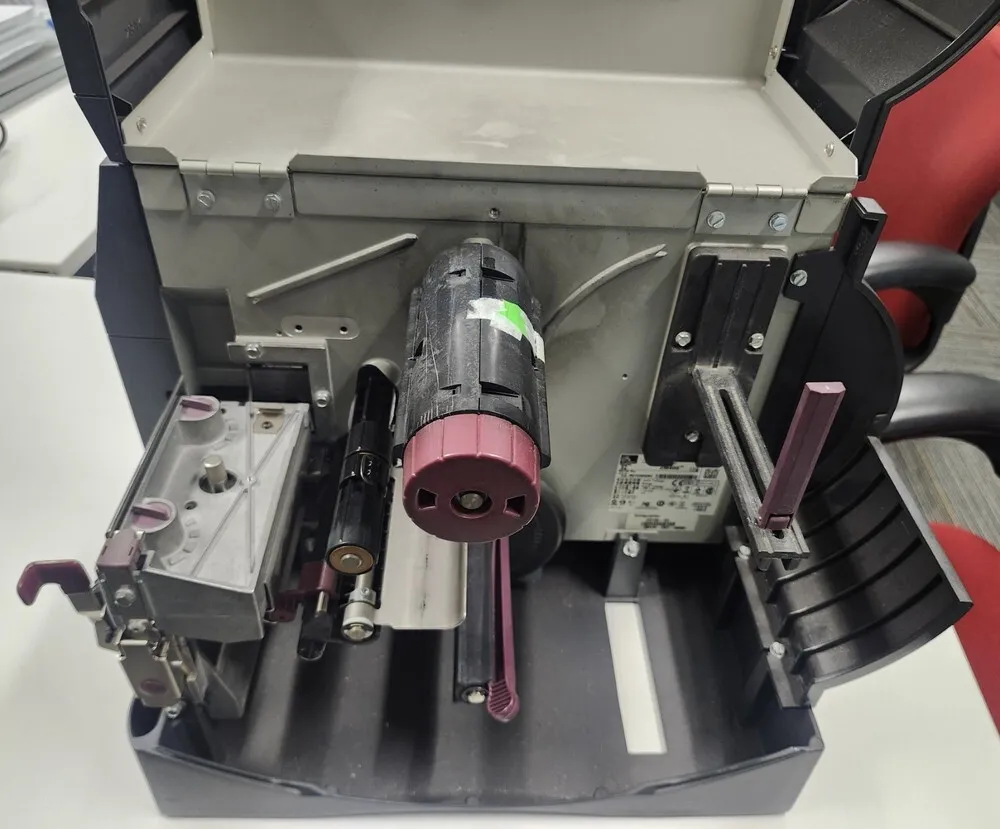

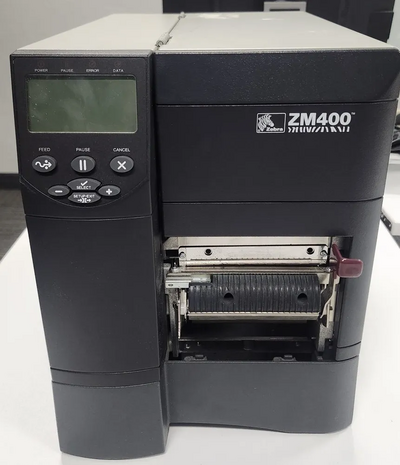

Images
Key Advantages
The ZM400 offers high throughput suitable for industrial volume printing applications. Its robust metal frame ensures long operational life even in harsh manufacturing or warehouse environments. Wide media compatibility makes it adaptable for various labeling needs from shipping to product identification. Multiple connectivity interfaces allow for seamless integration in different network setups. The printer's modular design simplifies maintenance and upgrading of components like printheads and platen rollers. Additionally, the ZM400 supports advanced barcode symbologies enhancing label versatility for complex logistics operations.
Limitations
Compared to newer models, the ZM400 lacks wireless connectivity options such as Bluetooth or Wi-Fi, limiting remote printing flexibility. Its LCD interface, while functional, is less advanced than color touchscreens found in modern printers. The weight and size of the printer are relatively bulky, reducing portability within a facility. Print speed and resolution options are limited compared to more recent Zebra industrial printers. Software compatibility may require legacy drivers for integration with modern operating systems. Moreover, replacement parts and service support may be less accessible due to the printer's discontinued status.
FAQ
What type of printer is the Zebra ZM400?
The Zebra ZM400 is an industrial label and barcode printer designed for high-volume printing.
What connectivity options does the ZM400 support?
It supports serial, parallel, and USB interfaces for flexible connectivity.
What is the maximum print resolution of the ZM400?
The printer supports a maximum print resolution of 300 dpi optionally.
Can the ZM400 print on different media types?
Yes, it supports continuous, die-cut, and fanfold labels among others.
Is the Zebra ZM400 still supported by Zebra?
No, the ZM400 is a discontinued model and may have limited support.
What is the maximum label width supported by the ZM400?
The ZM400 supports media widths up to 4.09 inches (104 mm).
Does the ZM400 have wireless printing capabilities?
No, the ZM400 does not have built-in wireless capabilities like Wi-Fi or Bluetooth.
