Zebra S600
| Brand | Zebra 2011 |
| Model | S600 |
| Released Year | 2011 |
| Type | Printers |
| Status | Discontinued |
Quick view
Overview

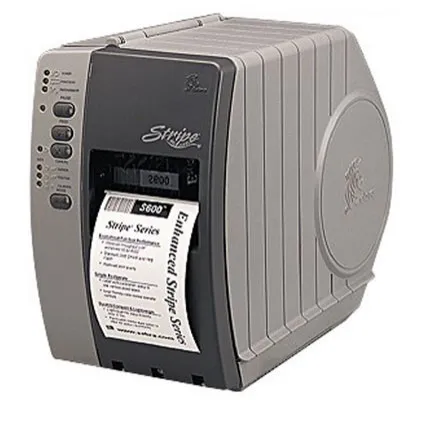

The Zebra S600 is an industrial thermal transfer printer engineered for mid-range volume barcode label printing. It features a print speed of up to 8 inches per second and a maximum print width of 4.09 inches, supporting high-resolution printing at 203 dpi for precise barcode and text output. The device utilizes a robust print mechanism combined with a powerful dual-motor system to ensure consistent, high-quality output in demanding industrial environments.
The printer supports a variety of media types and thicknesses, accommodating paper, synthetic, and label stock for versatility in printing applications. It integrates a user-friendly LCD interface for easy navigation and configuration, along with connectivity options including USB and serial ports for flexible installation. Its firmware supports multiple barcode symbologies and scalable fonts, enabling customization based on industry needs.
Specifications
| Type | Point of Sale Printer, Label Printer |
| Technology | Thermal |
| Output Type | Black & White |
| Connectivity | Serial (RS-232C) |
| MPN | S600 |
| Model | S600 |
| Weight | Approximately 14 kg |
| Depth | 17.02in |
| Height | 13in |
| Width | 8.27in |
| Platform | PC Products |
| Extend Printer Technology | Direct Thermal |
| Installed RAM | 2MB |
| Data Link Protocol | Ethernet |
| Color | White |
| Form Factor | Desktop, Point of Sale |
| Networking Type | Wireless Print Server (Optional), Wireless Network Adapter (Optional), 10/100basetx, Print Server |
| Media Type | Labels |
| Max Resolution (Bw) | 203DPI |
| Max Media Size | Roll 8in |
| Black Print Speed | 6in/Sec |
| Print Method | Thermal transfer and direct thermal |
| Maximum Print Width | 4.09 inches (104 mm) |
| Maximum Print Speed | 8 inches per second (203 mm/s) |
| Print Resolution | 203 dpi (8 dots/mm) |
| Media Types Supported | Paper, synthetic labels, tags, continuous and die-cut labels |
| Interface Options | USB 2.0, Serial RS-232 |
| Memory | Standard 8 MB SDRAM, 4 MB flash |
| Dimensions (W x D x H) | 280 mm x 432 mm x 330 mm (approximately) |
| Display | Backlit LCD and keypad for easy setup |
| Barcode Symbologies Supported | Code 39, Code 128, UPC, EAN, Interleaved 2 of 5, etc. |
| Power Supply | Internal power supply 100-240V AC, 50-60 Hz |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Images
Key Advantages
The Zebra S600 offers industrial-grade durability suited for continuous operation, reducing downtime in busy environments. Its print speed of up to 8 ips efficiently balances productivity and quality, suitable for logistics and manufacturing. The device’s compatibility with a wide array of media types allows extensive application flexibility. User-friendly interface and straightforward connectivity make it accessible to operators with minimal training. The high-resolution 203 dpi printing ensures clear, reliable barcode scanning performance. Additionally, the modular design facilitates easy maintenance and component replacement, enhancing serviceability.
Limitations
The Zebra S600 is limited to a maximum print width of 4.09 inches, which may not suit larger label requirements. Its resolution of 203 dpi, while adequate for many applications, does not support very high-detail graphics or small font sizes that higher dpi printers offer. Connectivity options are somewhat basic, lacking contemporary network interfaces such as Ethernet or Wi-Fi without add-ons. The printer’s industrial size and weight require adequate space and stability in the work area. It lacks some advanced automation features found in newer models, such as RFID encoding or integrated peelers. Support for newer barcode standards may require firmware updates or additional software.
FAQ
What type of printing technology does the Zebra S600 use?
The Zebra S600 uses thermal transfer and direct thermal printing technologies.
What is the maximum print resolution of the Zebra S600?
The maximum print resolution is 203 dpi (dots per inch).
What media sizes can the S600 handle?
It can handle label widths up to 4.09 inches and various media types including paper and synthetic labels.
Does the Zebra S600 support network connectivity?
By default, it includes USB and serial ports; however, Ethernet or Wi-Fi options may require additional modules.
Is the Zebra S600 still supported by the manufacturer?
The model has been discontinued but limited support and spare parts may still be available through Zebra.
What industries commonly use the Zebra S600?
It is commonly used in manufacturing, logistics, and healthcare for barcode labeling.
Can the Zebra S600 print color labels?
No, the S600 prints monochrome labels using thermal transfer ribbons.
