Zebra Zm400-3001-0000t
| Brand | Zebra 2010 |
| Model | ZM400-3001-0000T |
| Released Year | 2010 |
| Type | Printers |
| Series | Z |
| Status | Active |
Quick view
Overview

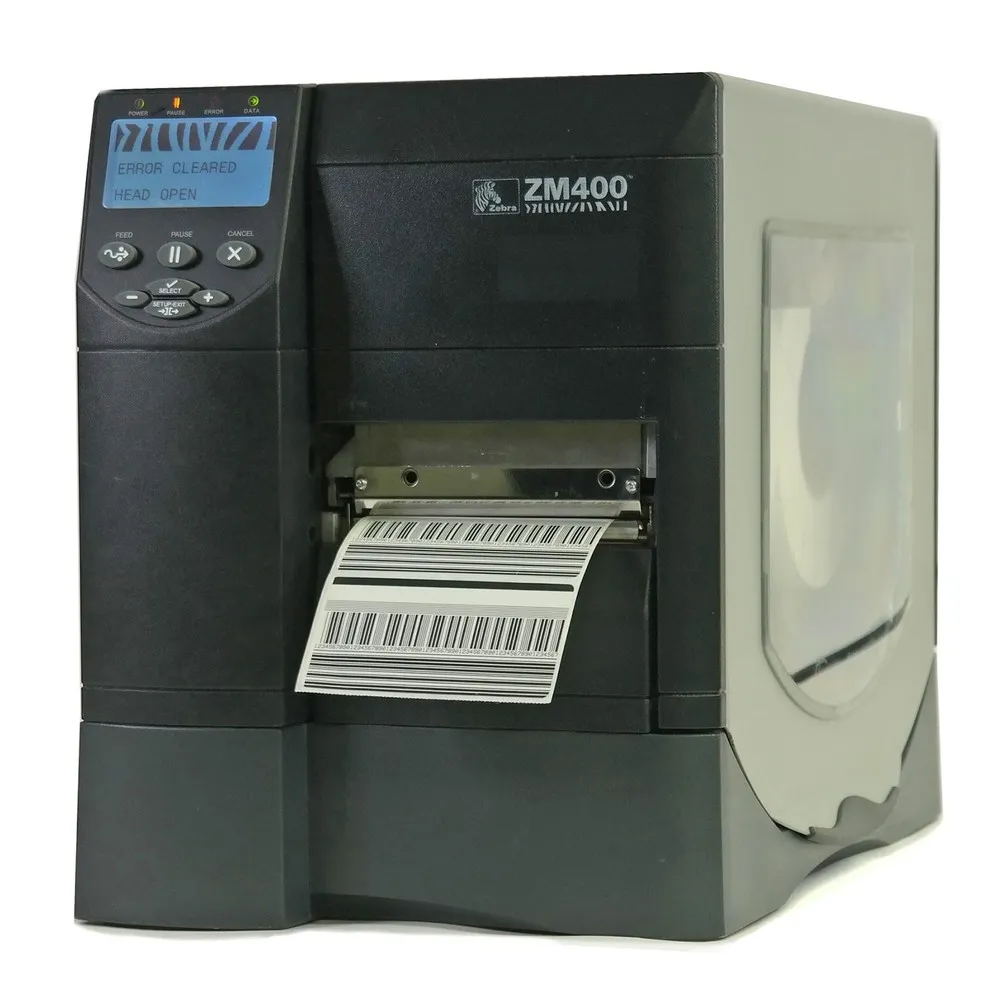

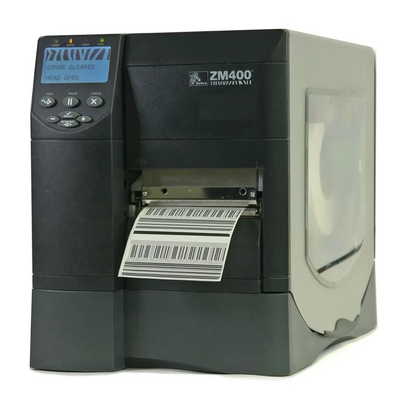

The Zebra ZM400-3001-0000T is an industrial thermal printer designed for high-volume printing environments. It utilizes both direct thermal and thermal transfer printing technologies, providing versatility in label media compatibility. The printer supports print widths up to 4.09 inches (104 mm) and print speeds up to 10 inches (254 mm) per second, making it suitable for fast and efficient labeling tasks.
It features a rugged metal frame designed for durability in demanding industrial settings. The ZM400 employs a 32-bit RISC processor to improve throughput and data processing speed. Connectivity options include serial, parallel, USB, and Ethernet interfaces to facilitate integration with existing systems.
The printer incorporates easy-to-use controls and diagnostics, including a graphical display and an intuitive menu system. It supports multiple barcode symbologies and font types for flexible label format design. Additionally, the printer supports RFID encoding capabilities for improved inventory management in compatible versions.
Specifications
| Black Print Speed | 8 ips |
| Supported Paper Size | Label Width: 4.25" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| UPC | 0732387102588 |
| Input Type | Monochrome |
| Type | Label Printer |
| Technology | Thermal |
| Memory | 8 MB SDRAM, 4 MB Flash |
| Output Type | Black & White |
| Maximum Resolution | 300 x 300 DPI |
| Model | Zebra ZM400-3001-0000T |
| Connectivity | Serial RS-232, parallel, USB 2.0, 10/100 Ethernet (optional) |
| MPN | ZM400-3001-0000T |
| Features | Networkable |
| Product Line | Zebra Z |
| Printer type | Industrial thermal transfer/direct thermal printer |
| Print resolution | 203 dpi (8 dots per mm) |
| Maximum print width | 4.09 inches (104 mm) |
| Maximum print speed | 10 inches per second (254 mm/s) |
| Processor | 32-bit RISC microprocessor |
| Media types | Roll-fed or fanfold labels, tags, continuous, black mark or die-cut media |
| Media width | 1.0 to 4.65 inches (25.4 to 118 mm) |
| Media thickness | 0.0025 to 0.01 inches (0.0635 to 0.254 mm) |
| Ribbon width | 1.57 to 4.33 inches (40 to 110 mm) |
| Ribbon length | Up to 450 meters |
| Dimensions (W x H x D) | 13.5 x 11.75 x 20.5 inches (343 x 298 x 521 mm) |
| Weight | 33 lbs (15 kg) |

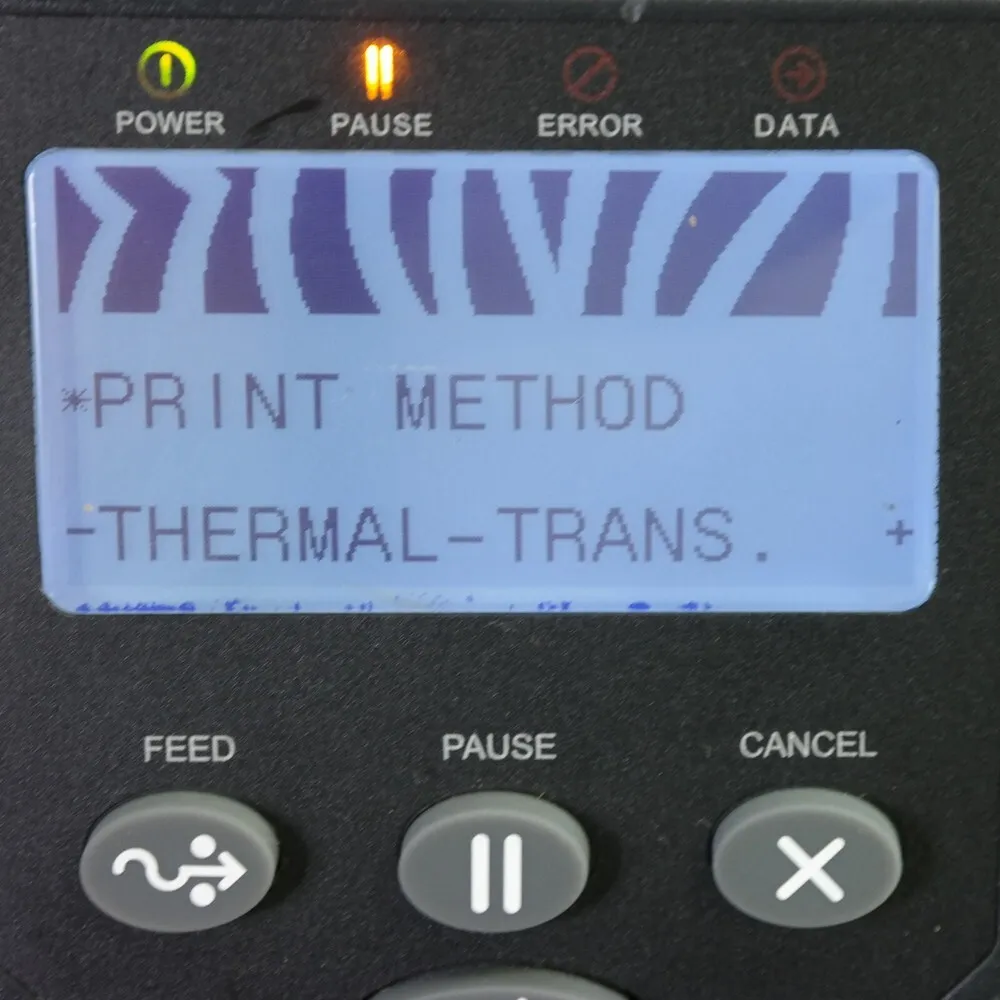

| Display | LCD graphical display with menu navigation |
| Supported barcode symbologies | Code 39, Code 128, EAN-13, UPC, Interleaved 2 of 5, QR Code, Data Matrix, and more |
| Operating temperature | 40°F to 105°F (4.4°C to 40.5°C) |
| Storage temperature | -40°F to 140°F (-40°C to 60°C) |
| Power | 100 to 240 VAC, 50-60 Hz auto-ranging |

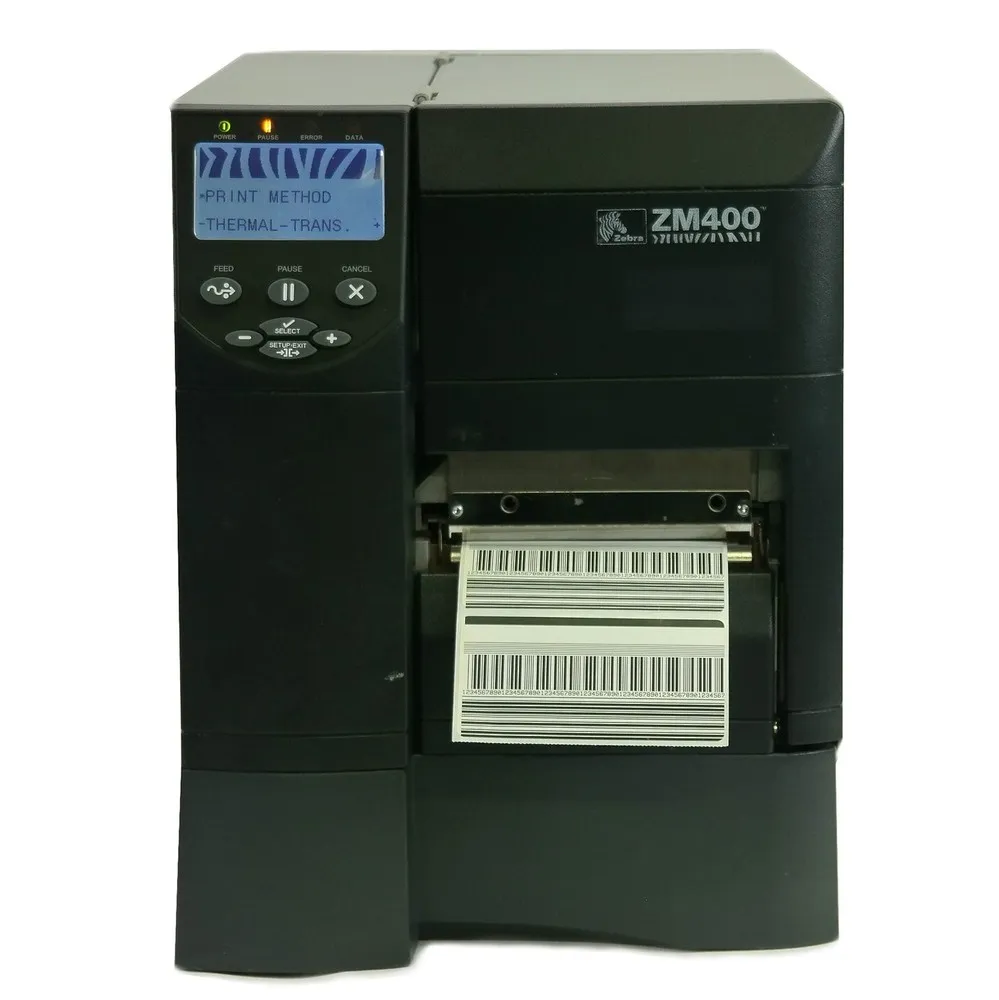

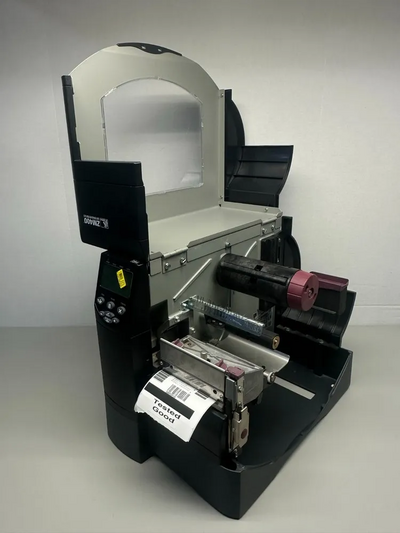

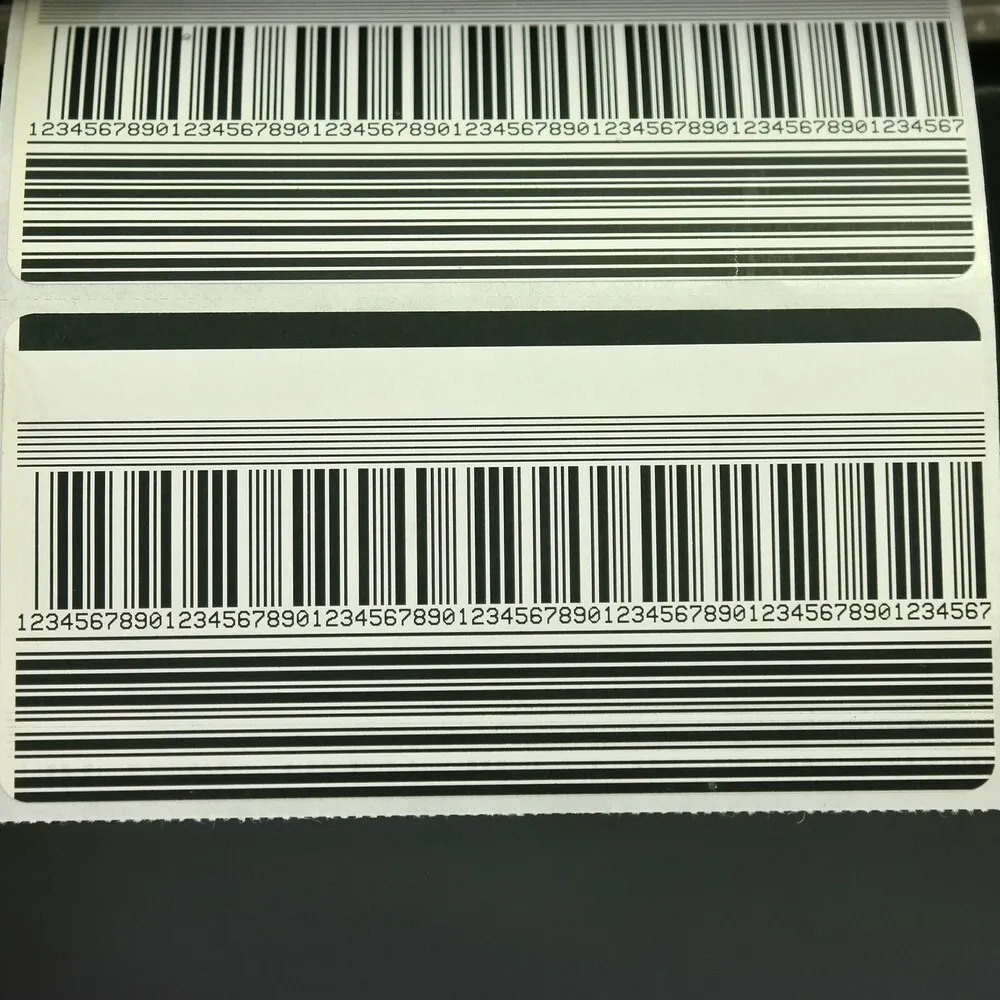

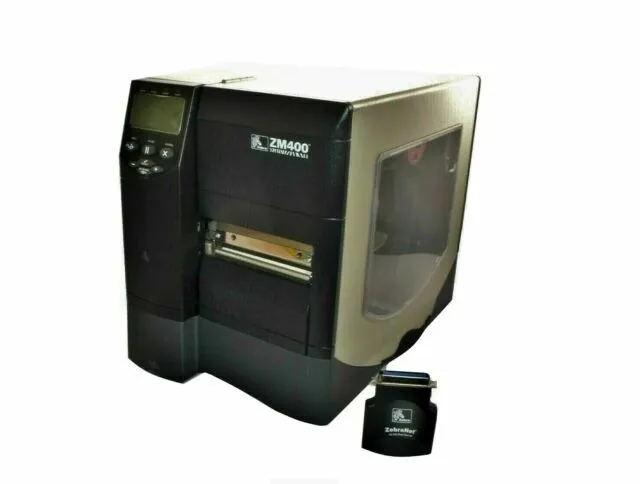

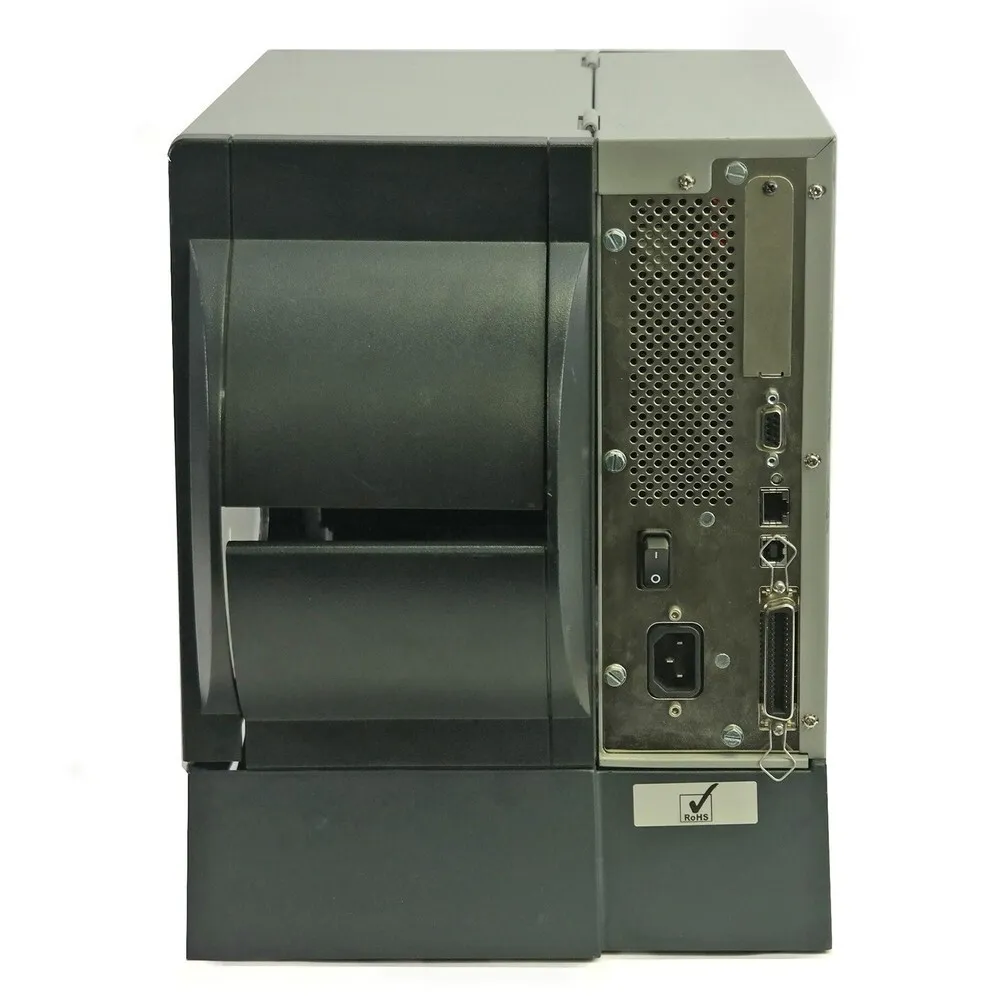

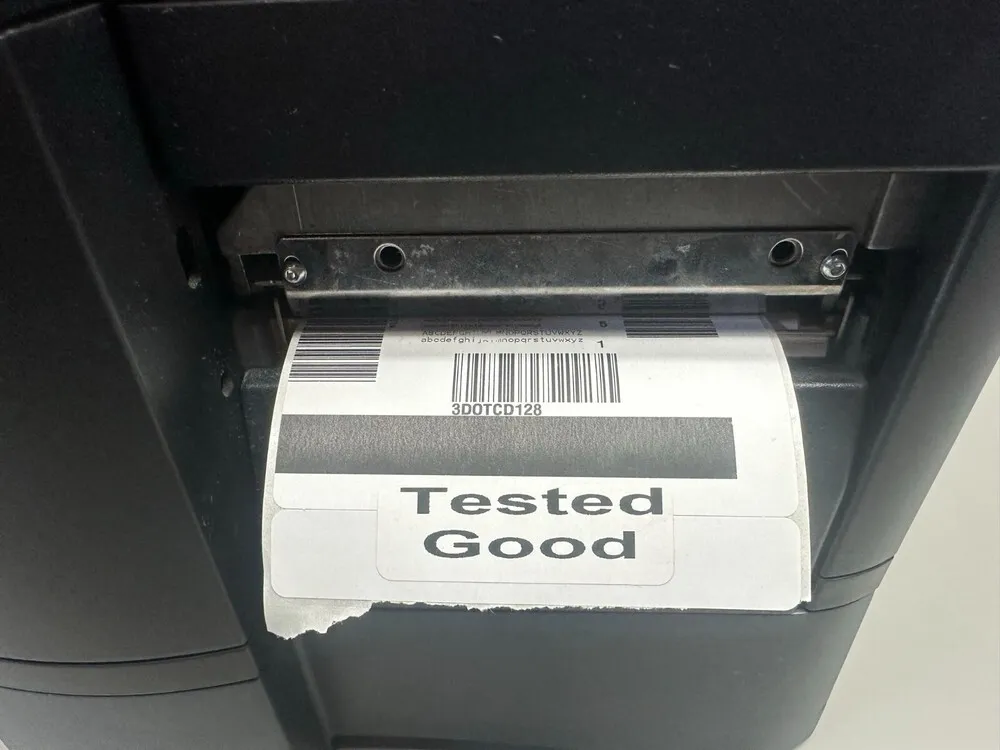

Images
Key Advantages
The Zebra ZM400-3001-0000T offers reliable performance in high-volume industrial environments with durable metal construction. Its versatile print technology supports a wide range of media types for various labeling needs. High print speeds enhance productivity without compromising print quality.
Multiple connectivity options increase its compatibility with diverse system setups. The intuitive user interface simplifies operation and reduces downtime. Additionally, optional RFID capabilities provide future-proofing for asset tracking.
Limitations
The printer is relatively large and heavy, making it less portable compared to desktop models. It requires a dedicated space and power source within industrial settings. The cost of media and ribbons may be higher due to its industrial-grade components.
Setup and configuration can demand technical expertise for optimal performance. Some models may not include RFID features unless specifically ordered. The device's firmware updates and maintenance require specialized knowledge.
FAQ
What printing technologies does the Zebra ZM400-3001-0000T support?
It supports both direct thermal and thermal transfer printing technologies, allowing flexibility in label media usage.
What is the maximum print width and speed of the ZM400-3001-0000T?
The printer can print up to 4.09 inches (104 mm) wide at speeds up to 10 inches (254 mm) per second.
Does this model support RFID encoding?
Some versions of the Zebra ZM400 support RFID encoding, but the 3001-0000T model should be verified for this feature specifically.
What connectivity options are available with this printer?
Standard interfaces include serial, parallel, USB, and Ethernet ports for flexible integration.
Is the Zebra ZM400 suitable for mobile printing?
No, the ZM400 is an industrial desktop printer designed for stationary installation in manufacturing or warehouse environments.
Are firmware updates user-friendly for this model?
Firmware updates usually require technical knowledge and proper procedures to avoid operational issues.
What types of media can the ZM400-3001-0000T handle?
The printer supports a variety of label materials and ribbon types compatible with thermal transfer or direct thermal printing methods.
