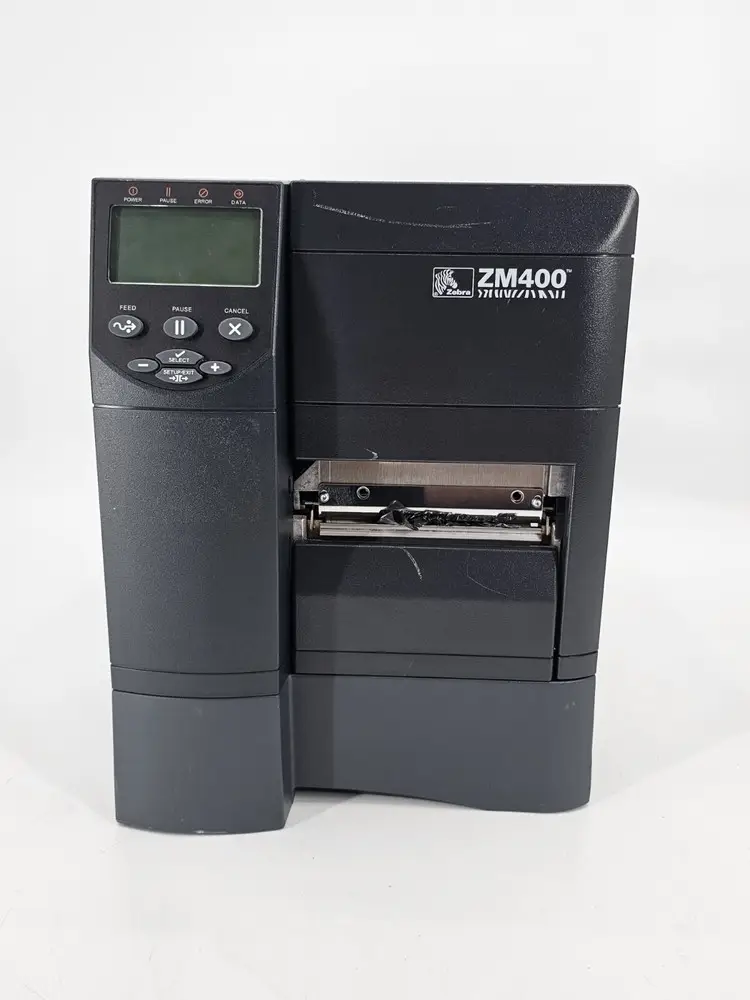

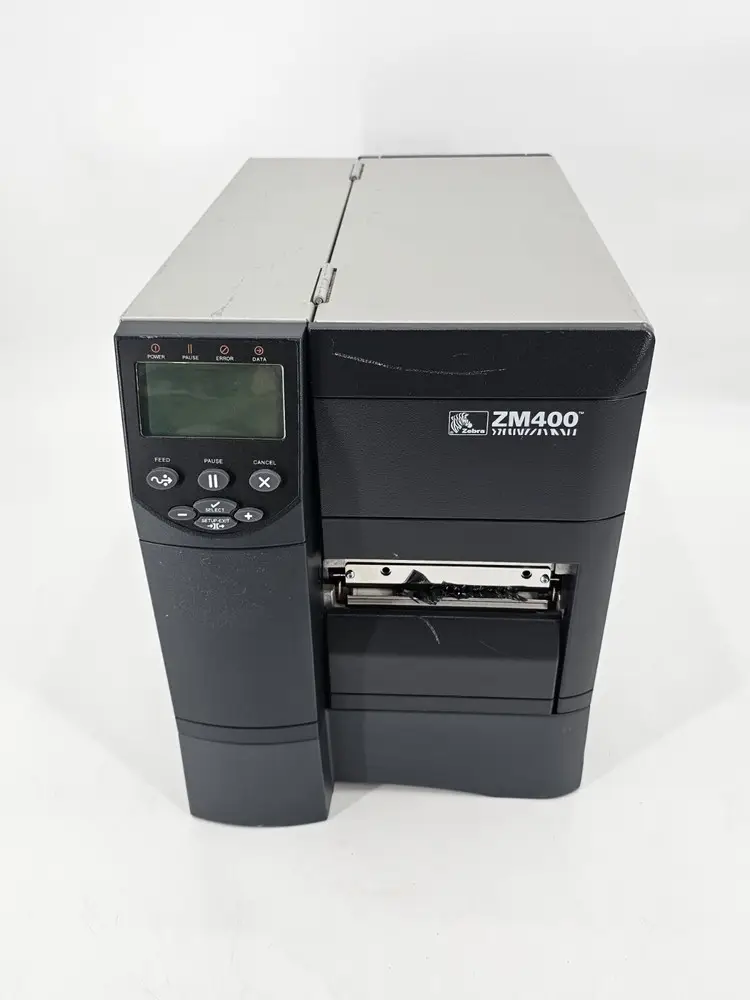

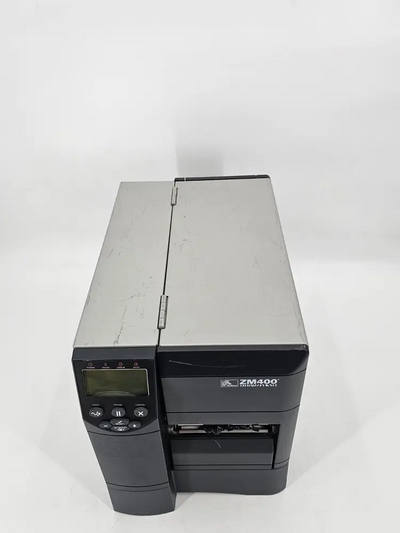

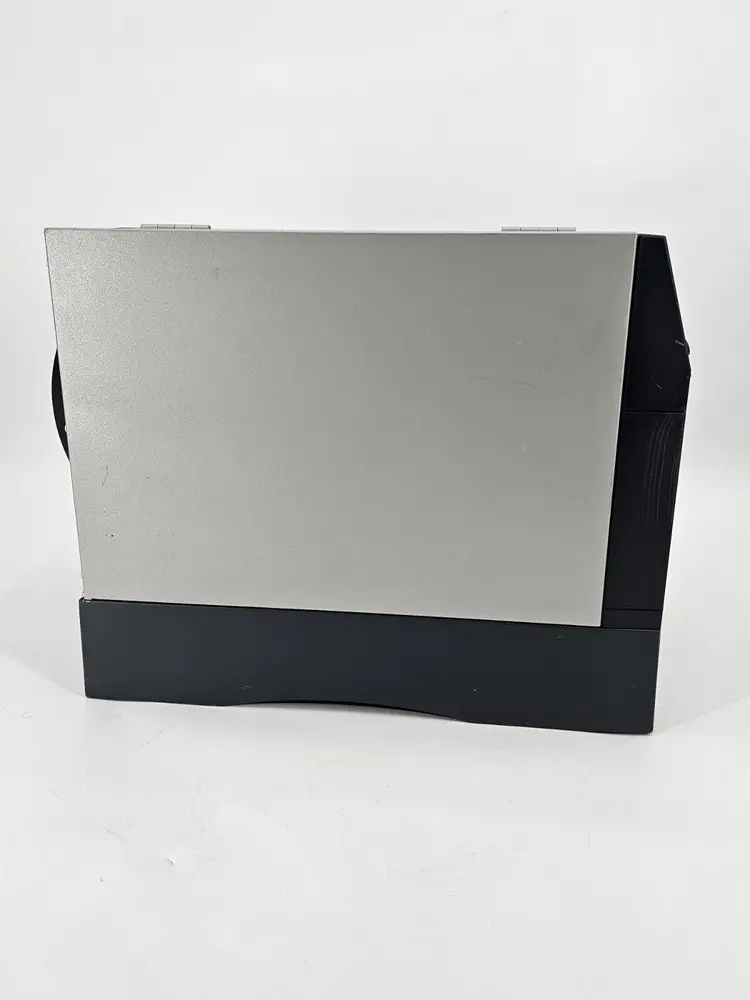

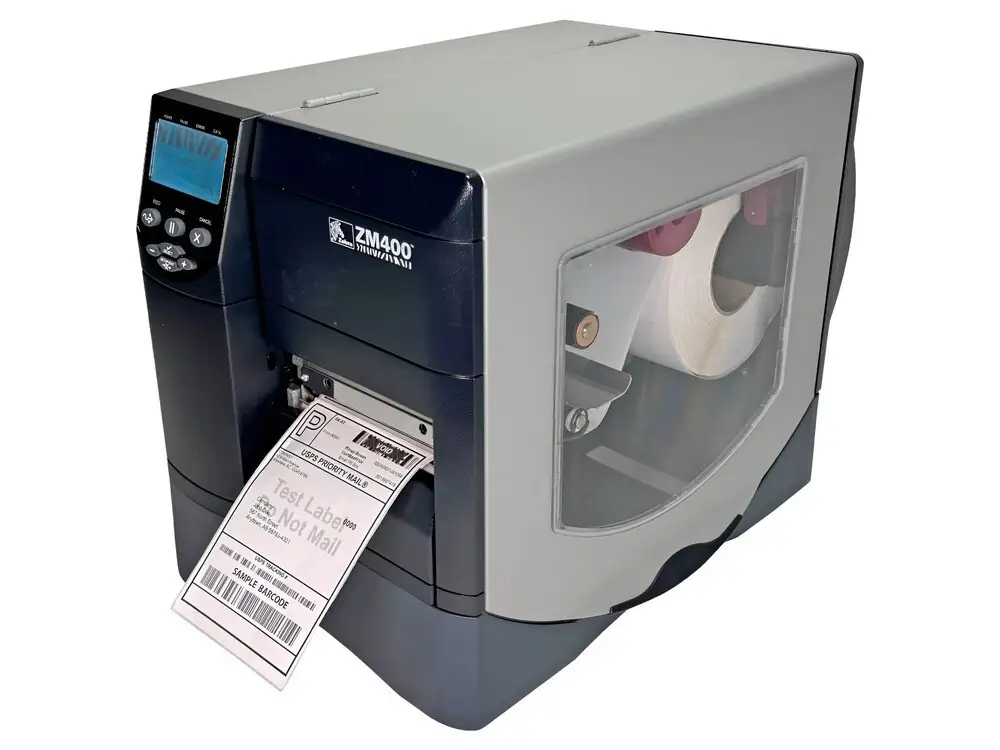

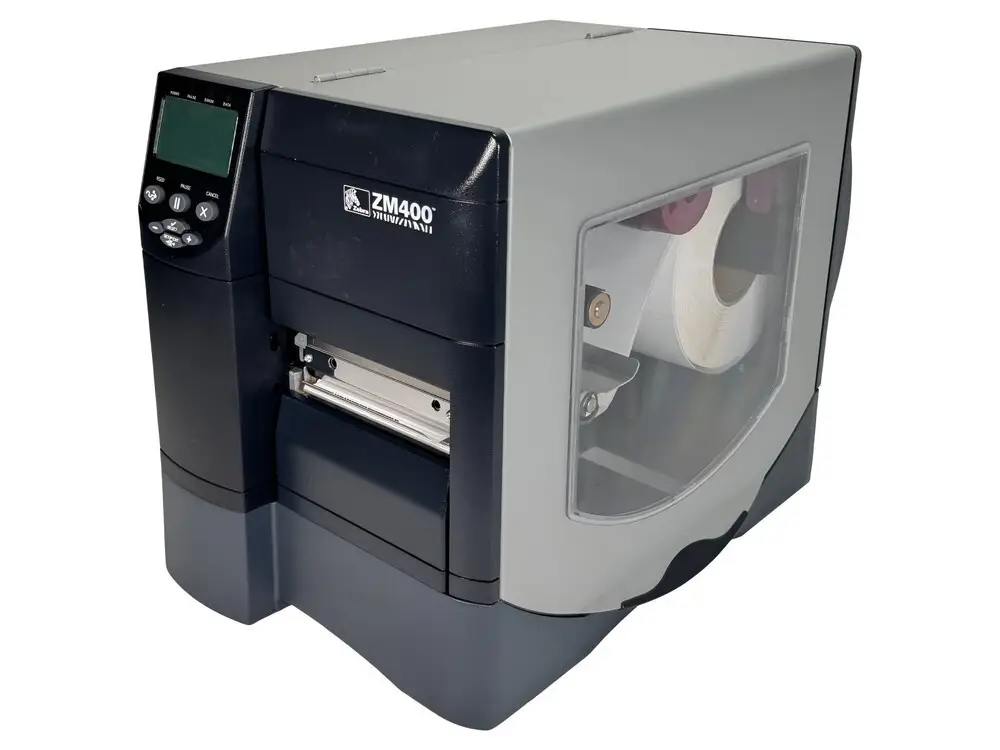

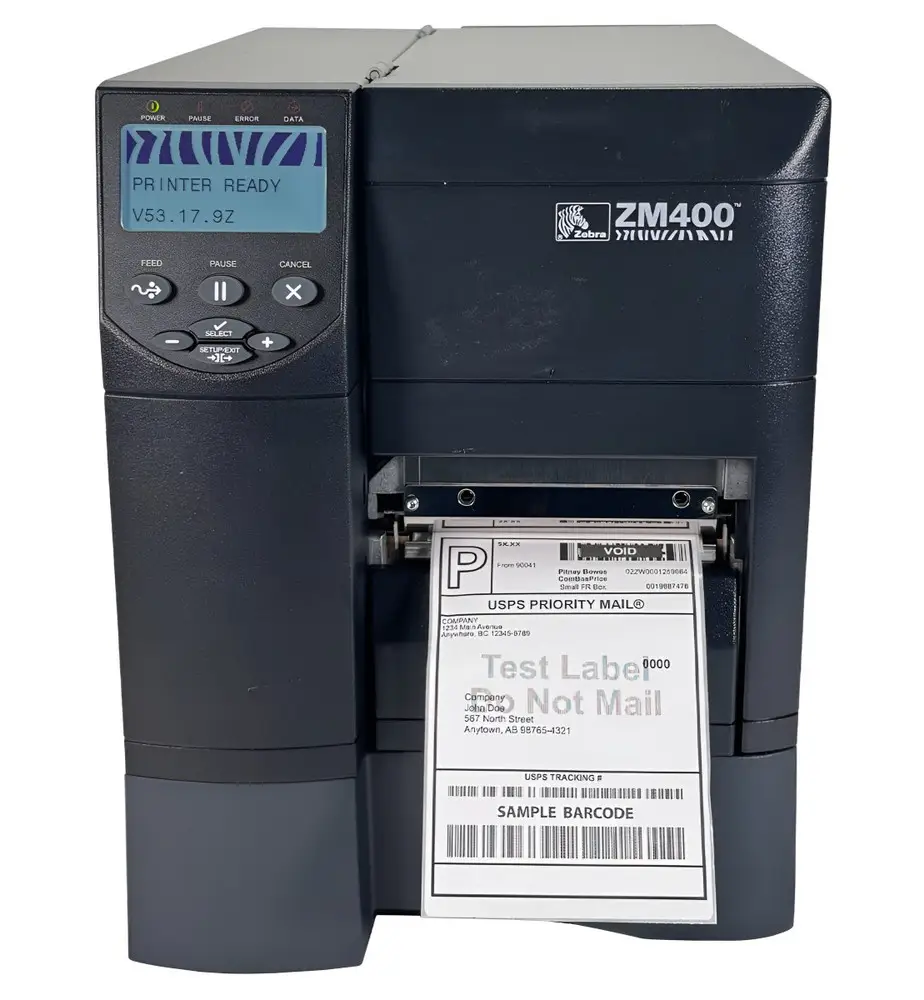

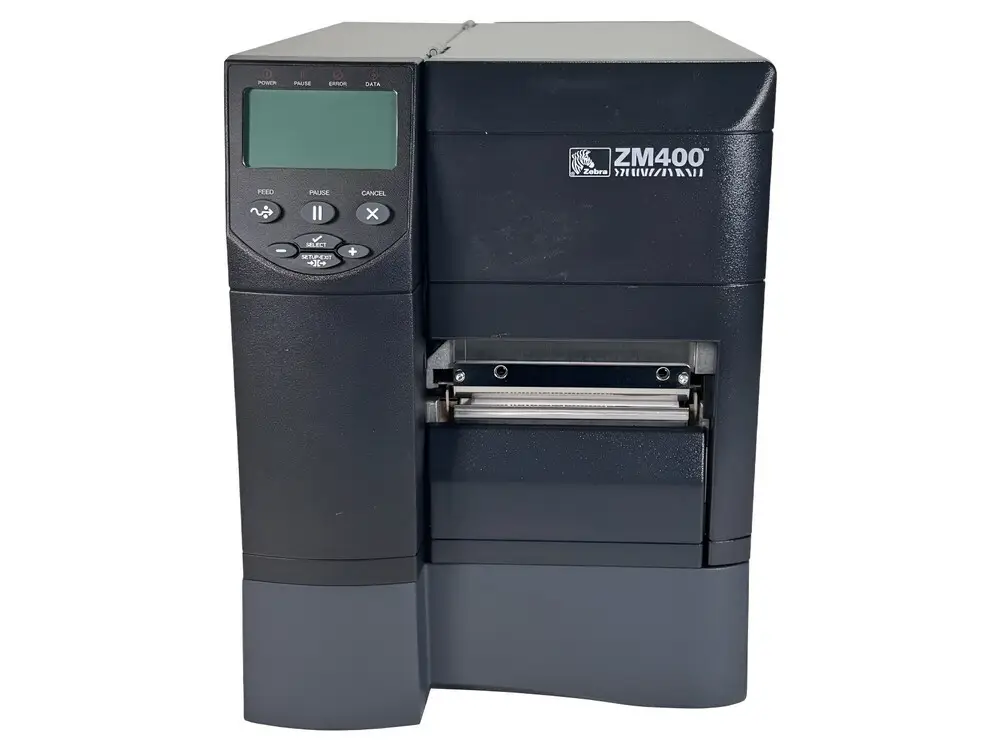

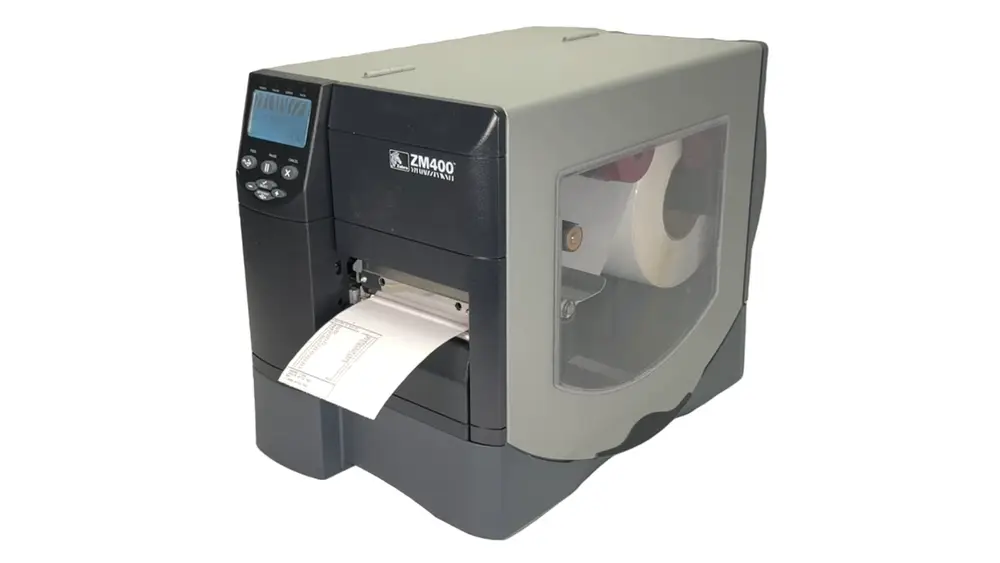

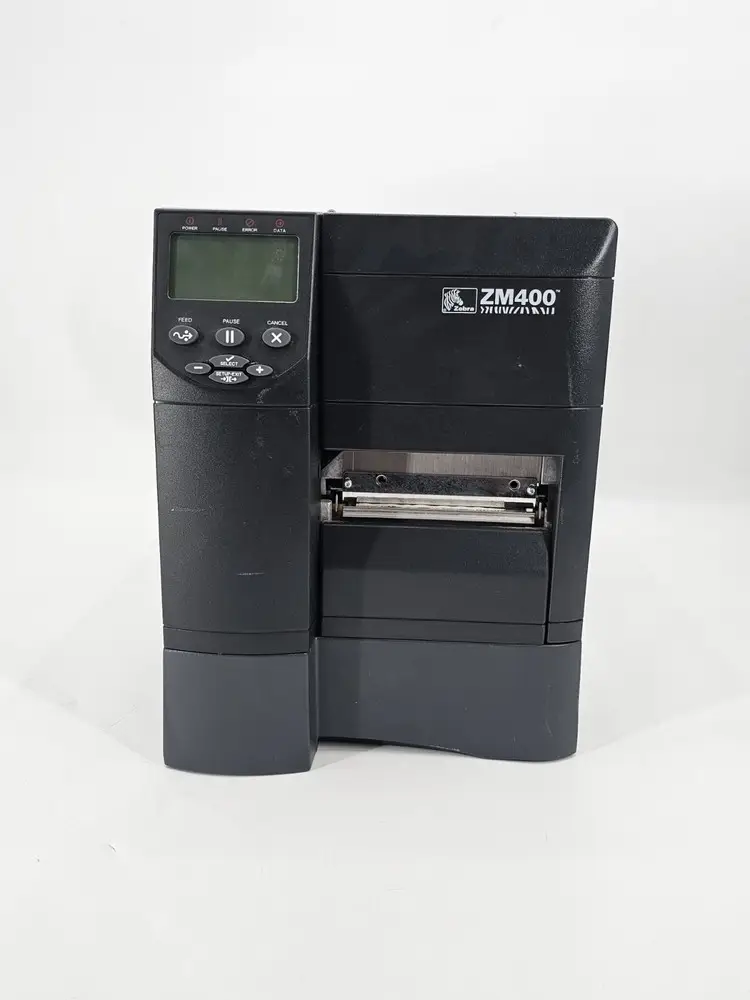

Zebra ZM400 image

Zebra ZM400

Quick information
Brand Zebra 2001
Model ZM400-2001-0100T, Network LAN, Barcode, Factory Industrial
Released Year 2001
Type Printers
Series Z
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Zebra ZM400 is an industrial-grade barcode printer engineered for high-volume label printing in factory and warehouse environments. It features a robust metal chassis designed for enduring heavy-duty use. The printer supports both thermal transfer and direct thermal printing methods, enabling versatile label production. Equipped with Network LAN connectivity, it facilitates efficient integration into existing networks for improved workflow. Resolution options typically include 203 dpi, allowing for crisp barcode and text output. The ZM400 offers a print width of up to 4 inches and incorporates expandable memory configurations for enhanced performance and storage capacity.

Specifications

Device Type Industrial Barcode Printer
Print Technology Thermal Transfer / Direct Thermal
Print Resolution 203 dpi
Maximum Print Width 4 inches (104 mm)

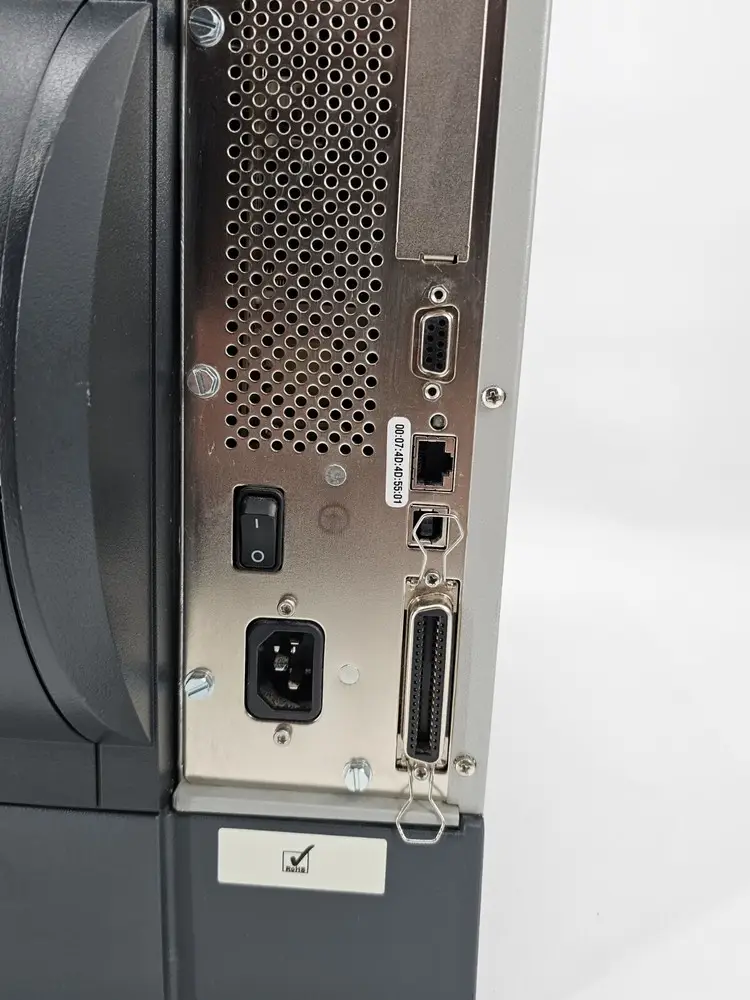

Connectivity Ethernet (RJ-45), Parallel (IEEE 1284), Serial (RS-232), USB
Memory 16 MB
Dimensions 16.1" H x 15.7" W x 22.4" D (408 mm x 399 mm x 570 mm)
Weight 30 lbs (13.6 kg)
Media Types Roll-fed, fan-fold, die-cut labels, tags, continuous media
Operating Temperature 40°F to 105°F (4.4°C to 40.5°C)
Power 100-240 VAC, 50-60 Hz
Interface Options Ethernet, RS-232, Centronics Parallel, USB (optional)

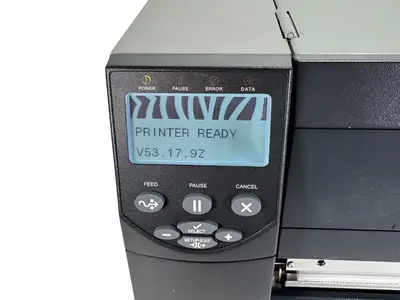

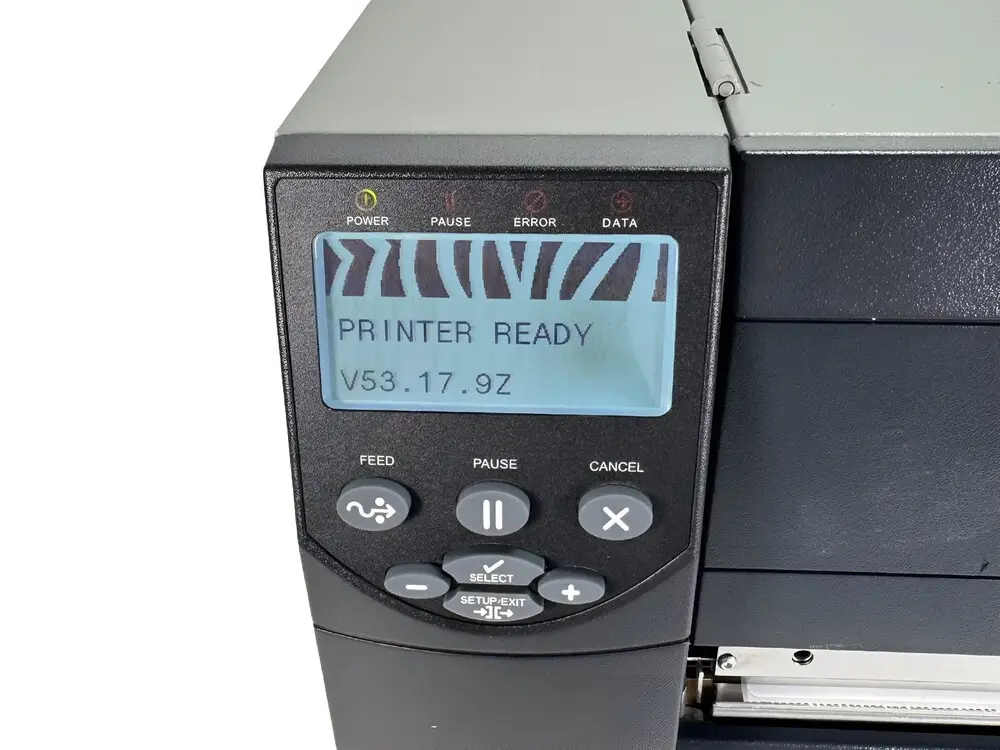

Display Backlit LCD control panel
Print Speed Up to 6 inches per second
Software Compatibility Zebra printer drivers, ZPL programming language support
Input Type Monochrome
Output Type Black & White
MPN ZM400-2001-0100T, Network LAN, Barcode, Factory Industrial
Supported Paper Size Max. Width: 4.25"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Printer Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZM400
Features Networkable
Black Print Speed 10 ppm
Product Line Zebra Z
UPC Does not apply

Key Advantages

The ZM400 excels with its durable build quality suitable for industrial applications. It offers reliable print performance with high-speed processing for demanding labeling requirements. Network LAN connectivity enables seamless integration into enterprise systems. Its dual printing modes (thermal transfer and direct thermal) increase versatility across label types. The user interface includes an intuitive control panel for easy operation and configuration. Additionally, the modular design supports accessories and part replacements that extend the printer’s lifecycle.

Limitations

The ZM400, being an older model, lacks modern connectivity options like Wi-Fi or Bluetooth. It is relatively bulky and heavy, limiting portability. The maximum print resolution of 203 dpi may not meet the needs for ultra-fine labels or detailed graphics. The printer requires proprietary Zebra ribbons and labels, which can be more costly compared to generic supplies. Firmware updates and technical support may be limited due to its discontinued status. Lastly, it does not support mobile printing protocols popular in newer devices.
