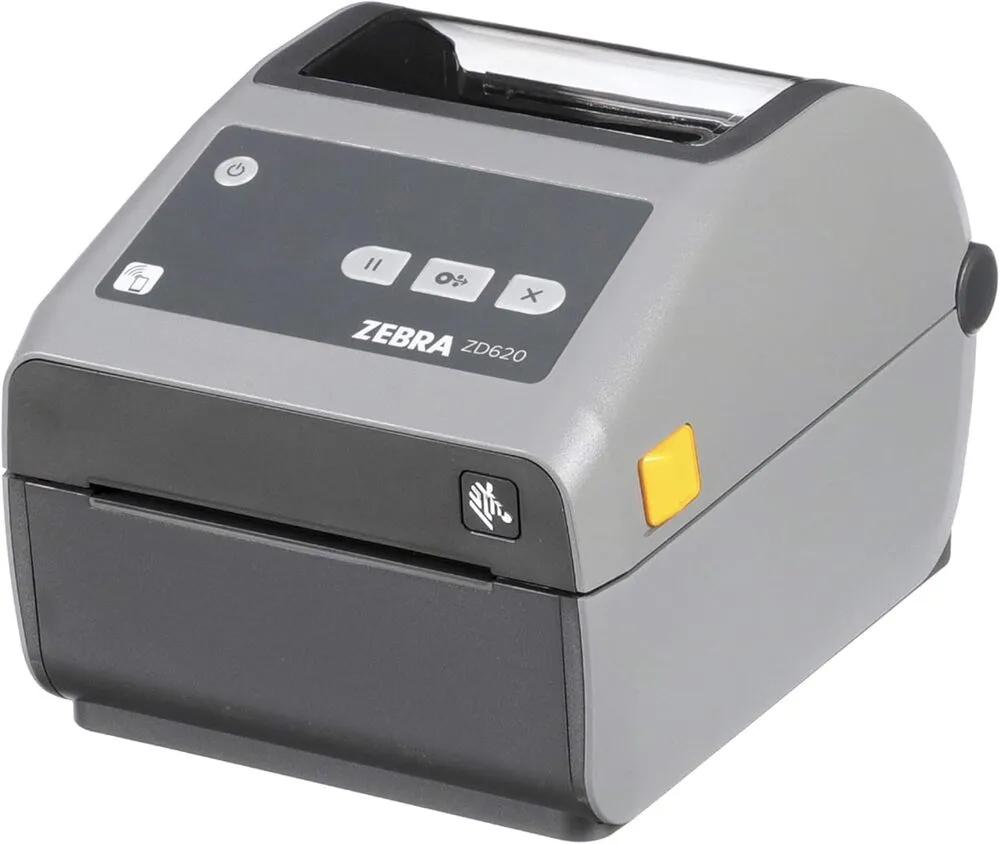

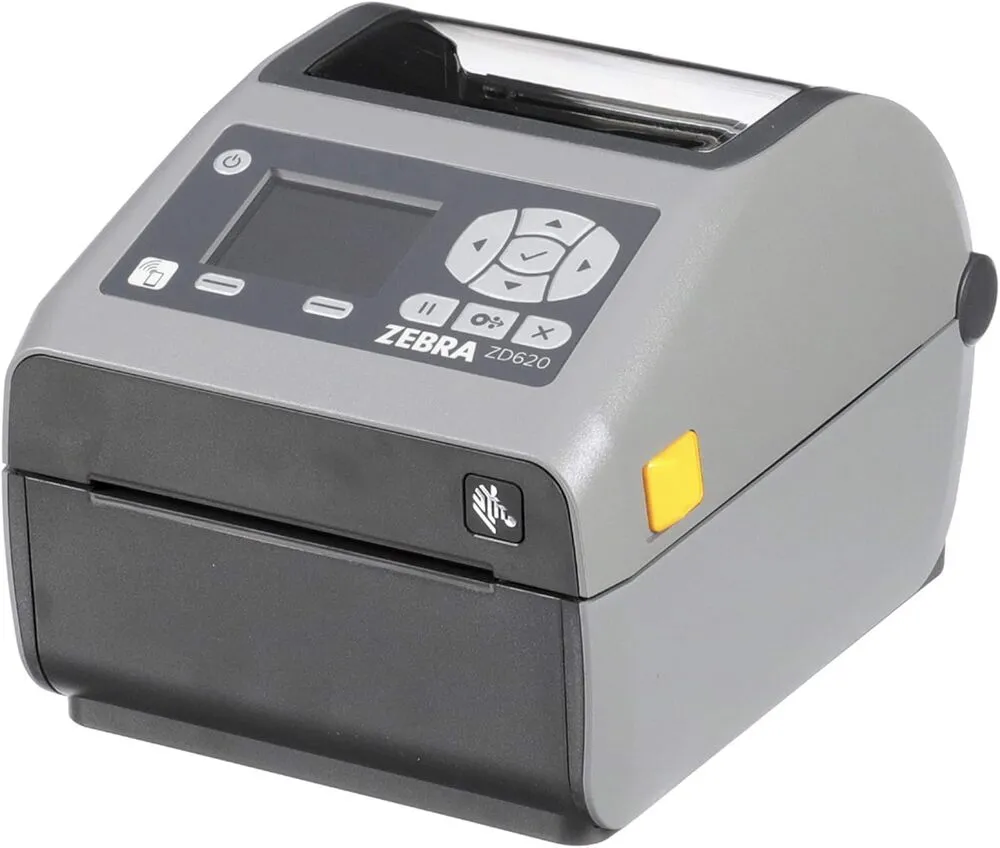

Zebra ZD620d image

Zebra ZD620d

Quick information
Brand Zebra 2020
Model ZD620d
Released Year 2020
Type Printers
Series 620
Item Weight 5.14 pounds

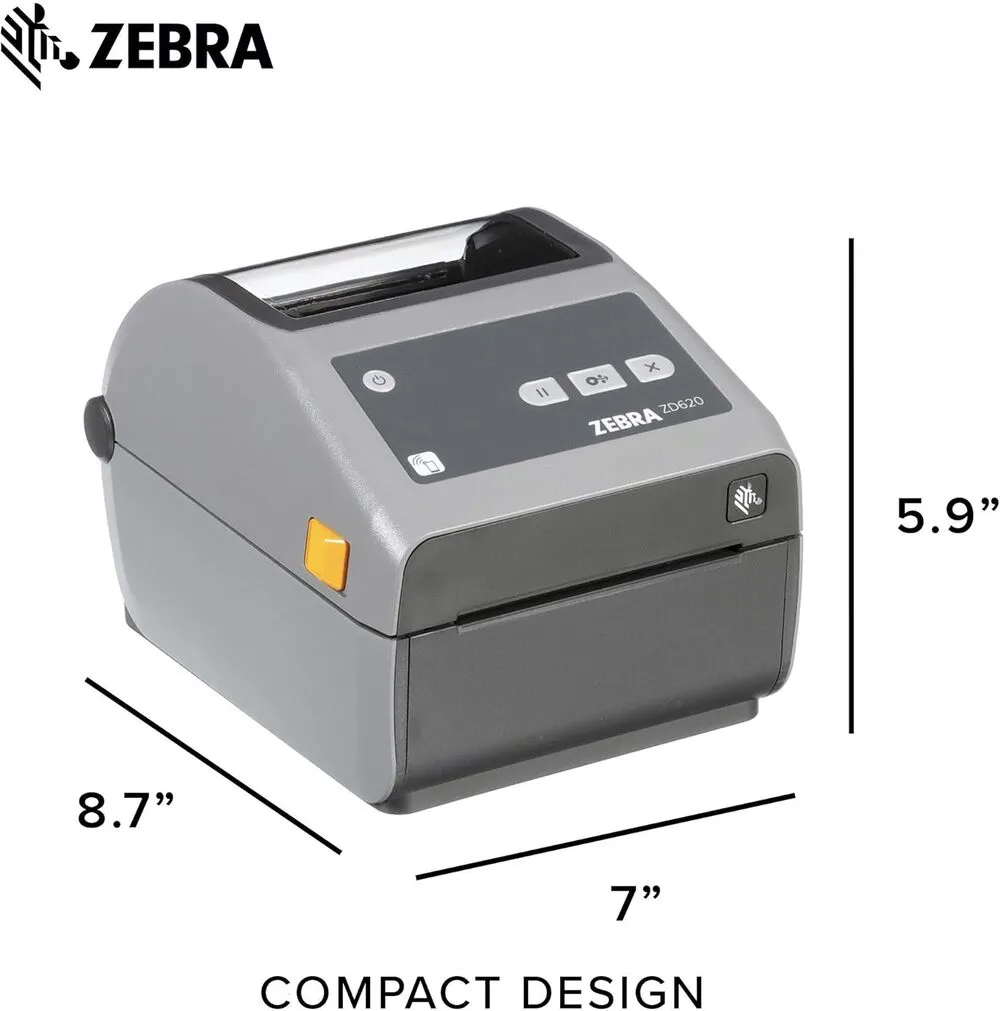

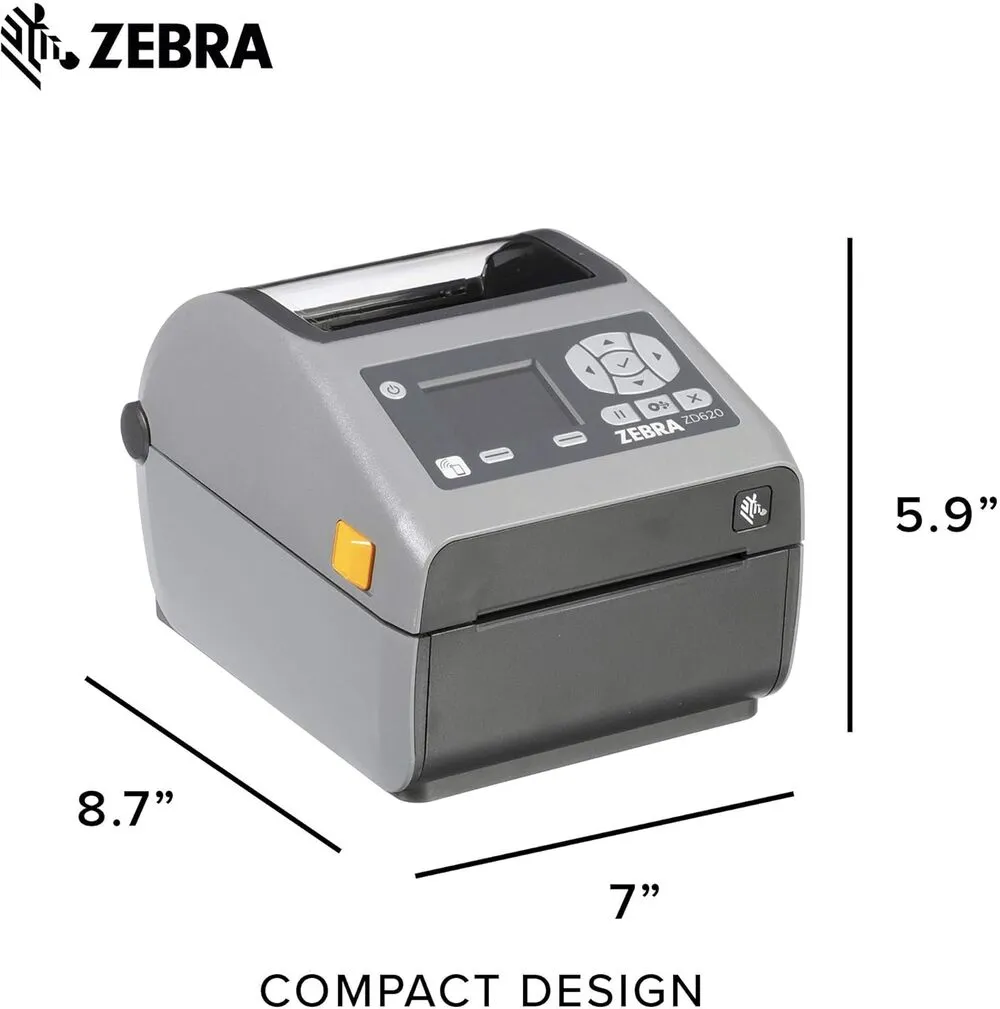

Product Dimensions 8.7 x 7 x 5.9 inches
Status Active
Quick view

Overview

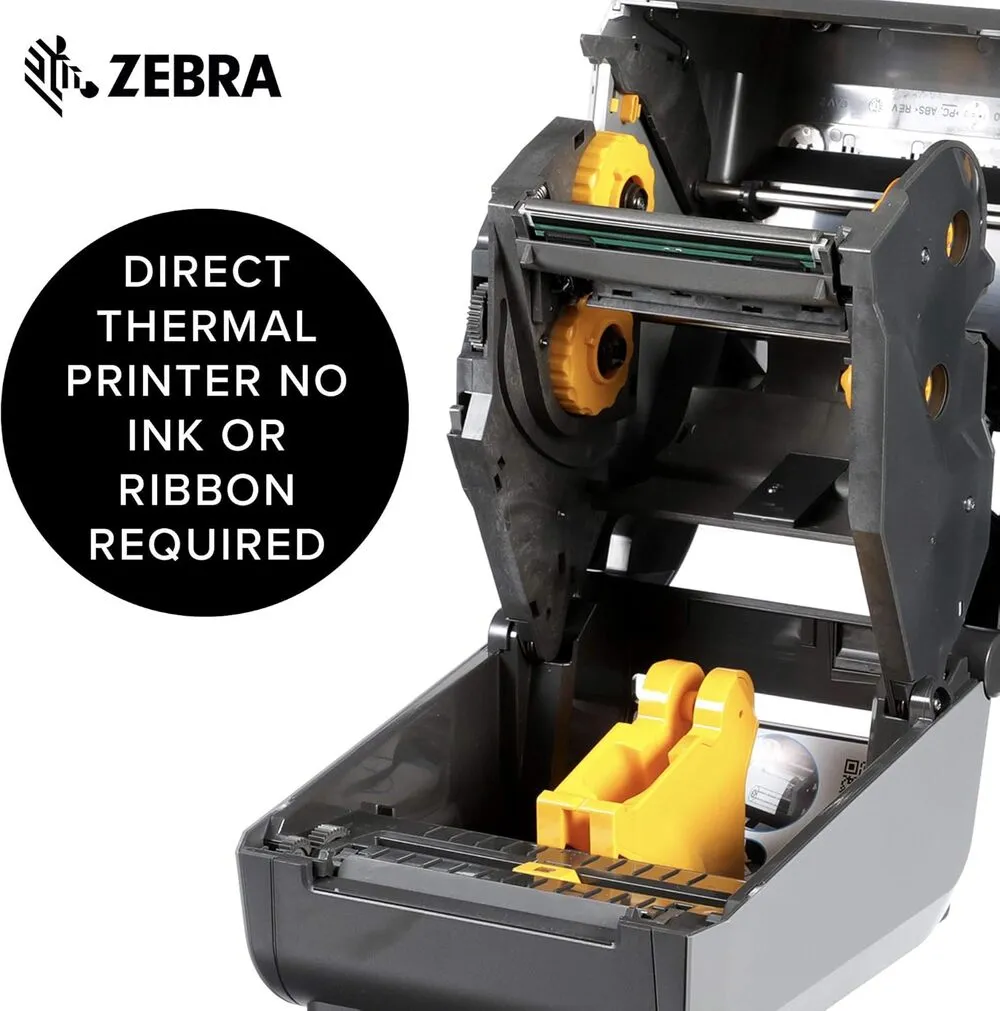

The Zebra ZD620d is a direct thermal desktop printer designed for fast and reliable printing in office and industrial settings. Featuring a high-speed processor and ample memory, it supports complex label formats and graphics with ease. The printer offers a 4-inch print width and a print speed of up to 8 inches per second, suitable for medium-volume barcode label printing. Connectivity options include USB, Ethernet, and optional Wi-Fi and Bluetooth for versatile integration. The ZD620d utilizes direct thermal printing technology, eliminating the need for ink or toner, thus reducing maintenance and operational costs. It integrates Zebra's Link-OS environment to enable easy device management and cloud connectivity through Zebra's native apps and APIs.

Specifications

Print media Labels
Compatible Devices PC
Sheet Size 4.25 inches
Maximum Black and White Print Resolution 203 dpi
Warranty Type 90 days limited warranty
Dual-sided printing No
Max copy resolution black-white 203 dpi
Duplex Automatic
Hardware Interface Bluetooth
Resolution 203 x 203 DPI
Additional Printer functions Print Only
Control Method Remote
Number of Drivers 1
Processor Count 1
Series Number 620
Total Ethernet Ports 1
Total USB Ports 1
UPC 753575090784
Product Dimensions 8.7 x 7 x 5.9 inches
Item Weight 5.14 pounds
Item model number ZD620d
Is Discontinued By Manufacturer No
Date First Available April 23, 2020
Manufacturer Zebra

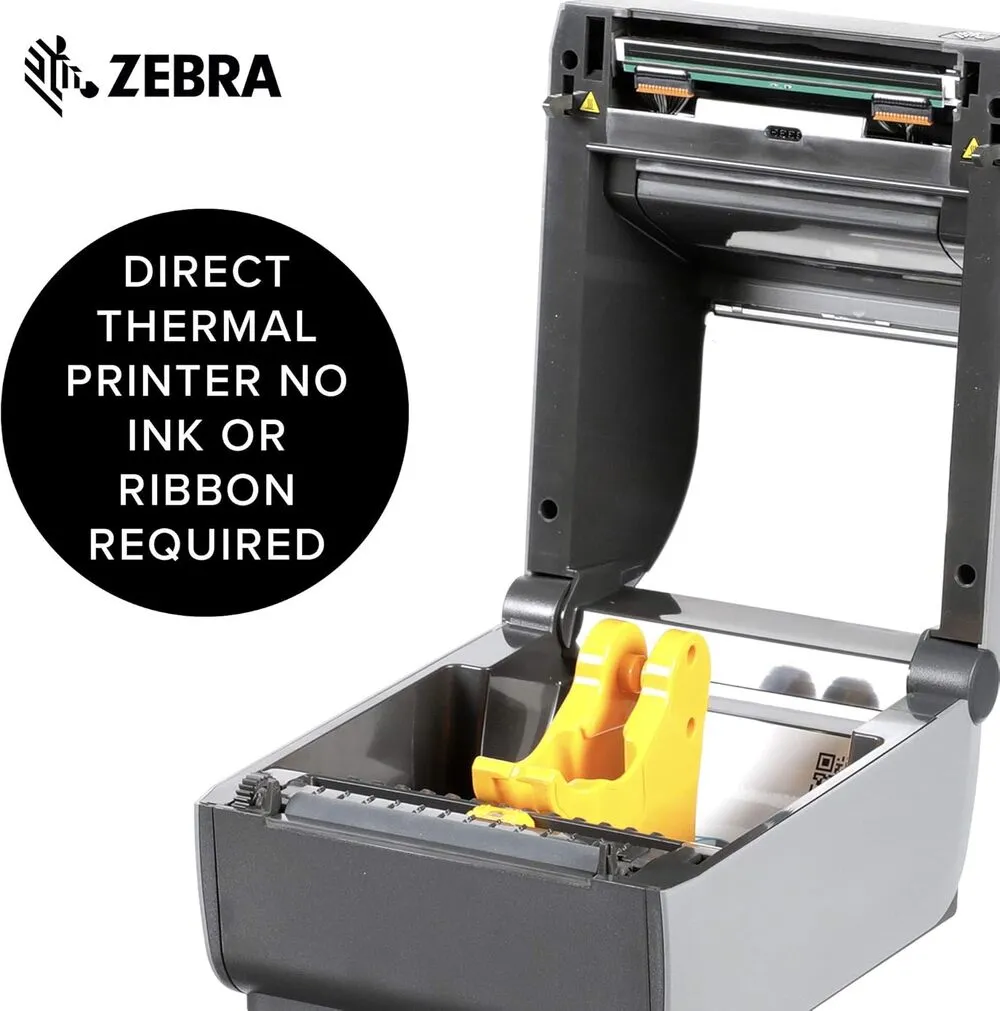

Printer Type Direct Thermal Desktop Printer

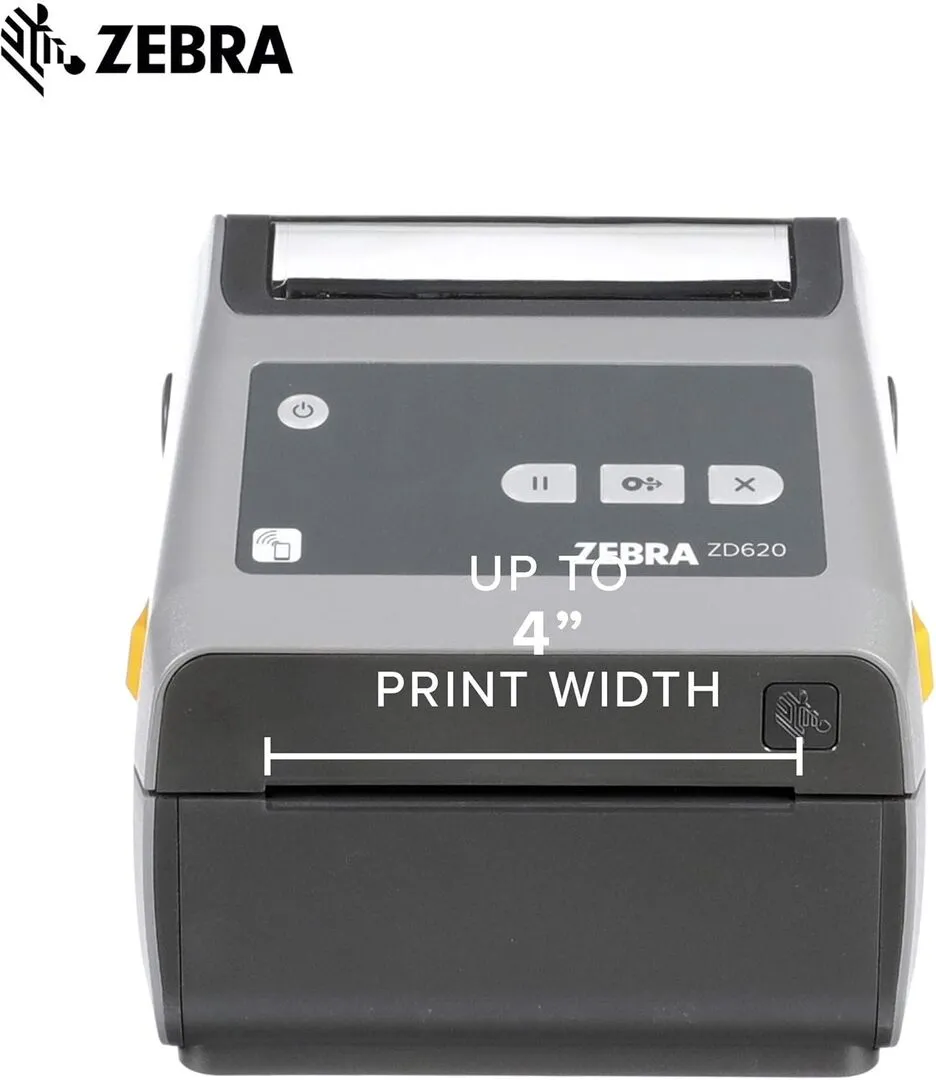

Print Width 4.09 inches (104 mm)

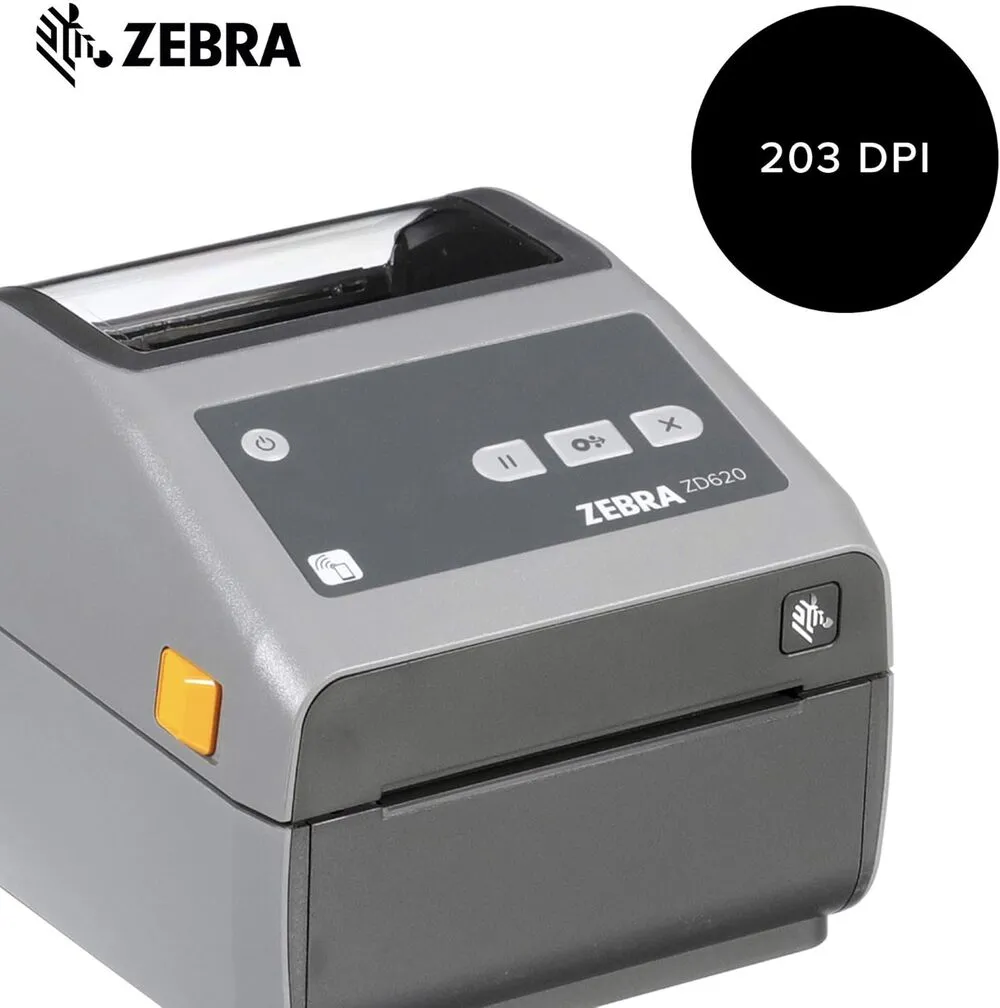

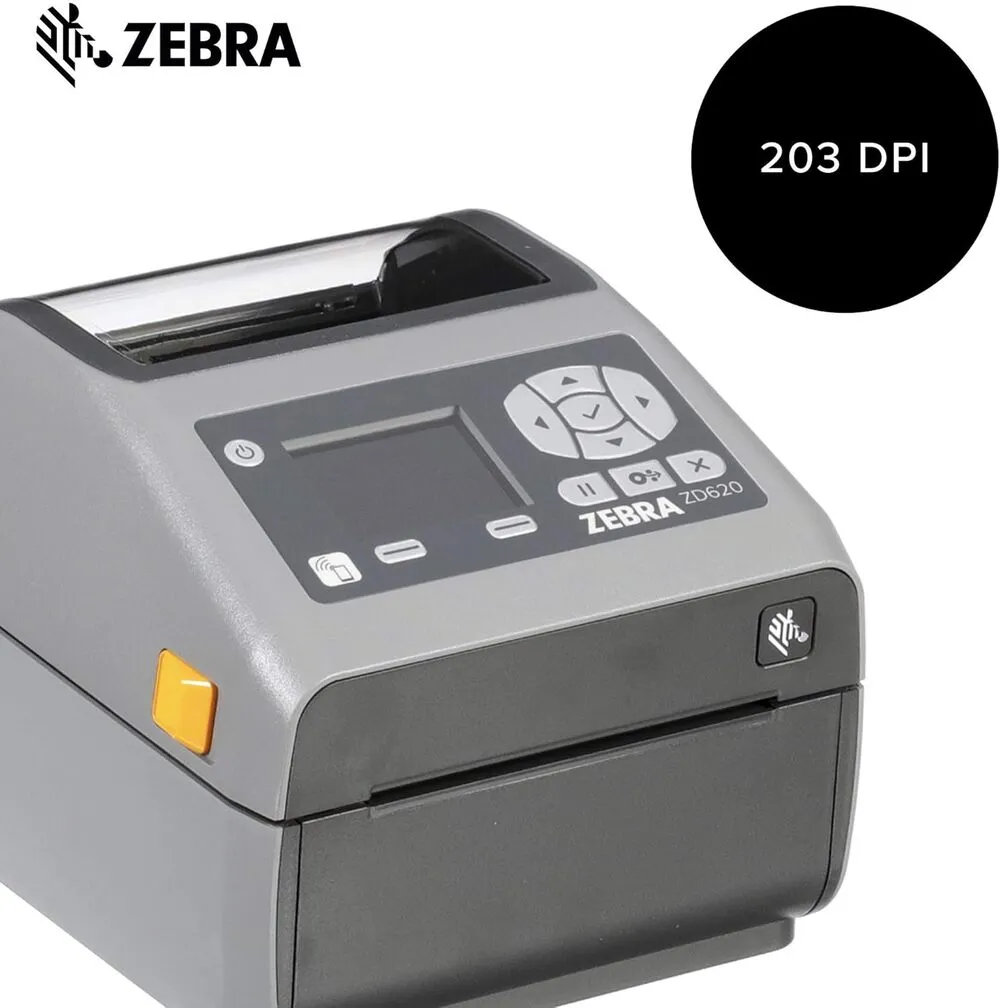

Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 8 inches per second
Processor 1 GHz 32-bit ARM processor
Memory 512 MB Flash, 256 MB SDRAM

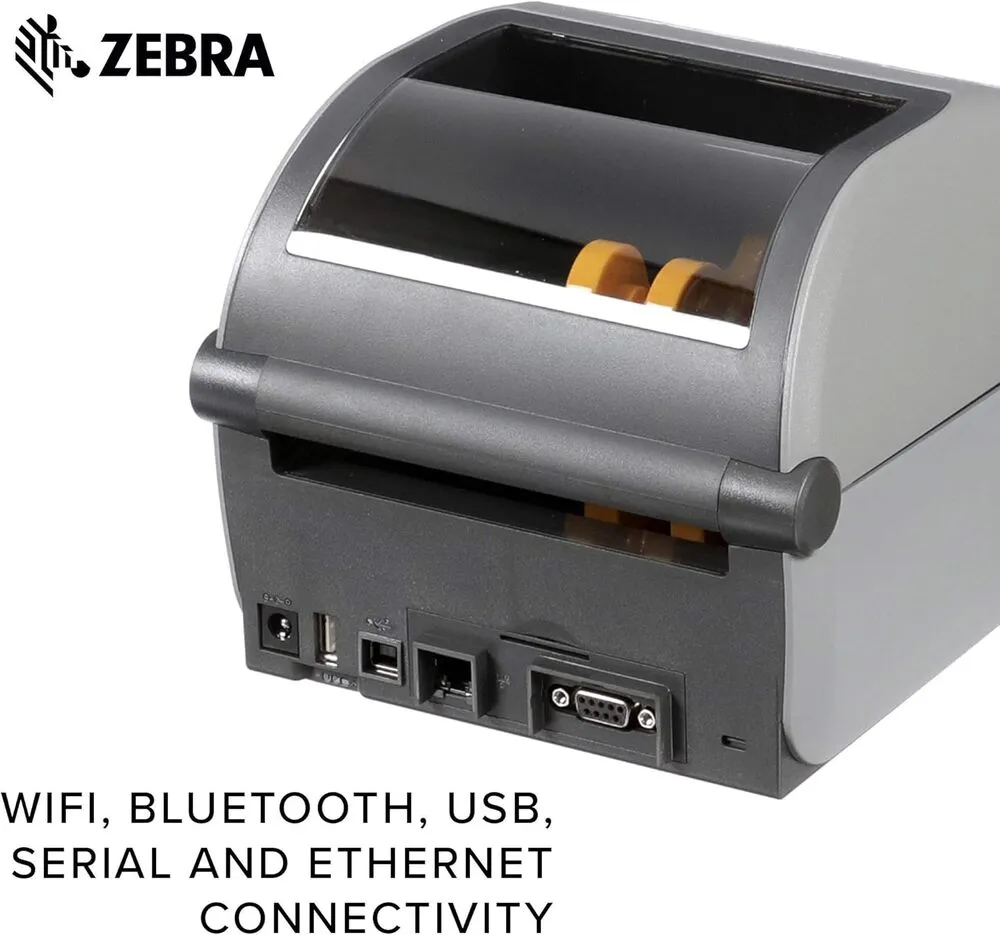

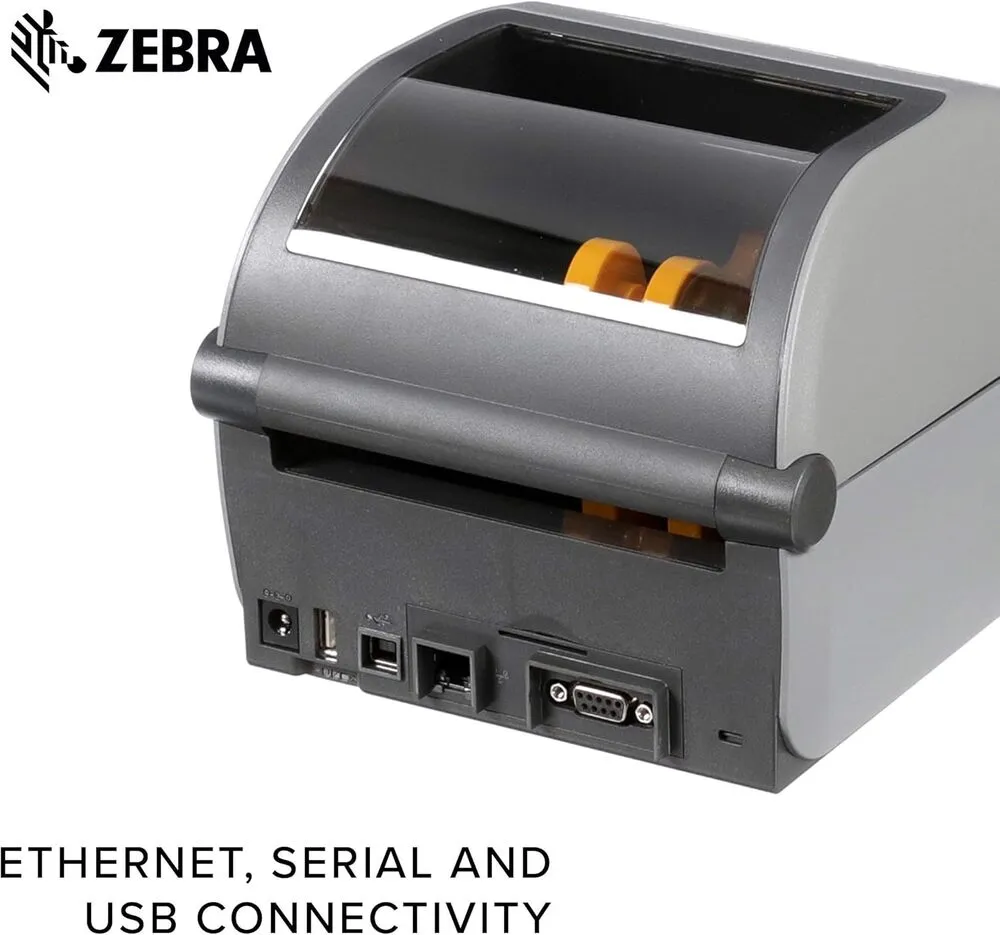

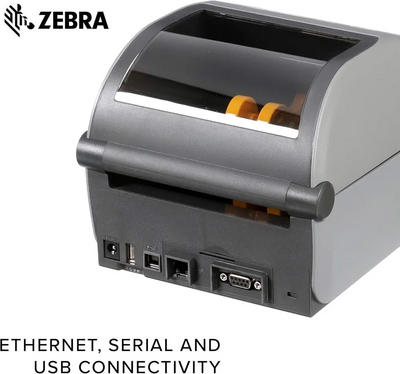

Connectivity USB 2.0, Ethernet 10/100, Optional Wi-Fi 802.11ac, Optional Bluetooth 4.1
Display Full-color LCD with intuitive menu
Media Types Supported Direct thermal labels, receipts, tags
Max Media Roll Diameter 5 inches (127 mm)
Media Width Range 0.75 inches to 4.65 inches (19 mm to 118 mm)
Power Supply Auto-ranging power supply, 100-240 VAC
Operating Temperature 40°F to 105°F (5°C to 40°C)
Dimensions 8.7 x 7.0 x 7.5 inches (221 x 178 x 191 mm)
Weight Approx. 3.6 lbs (1.64 kg)

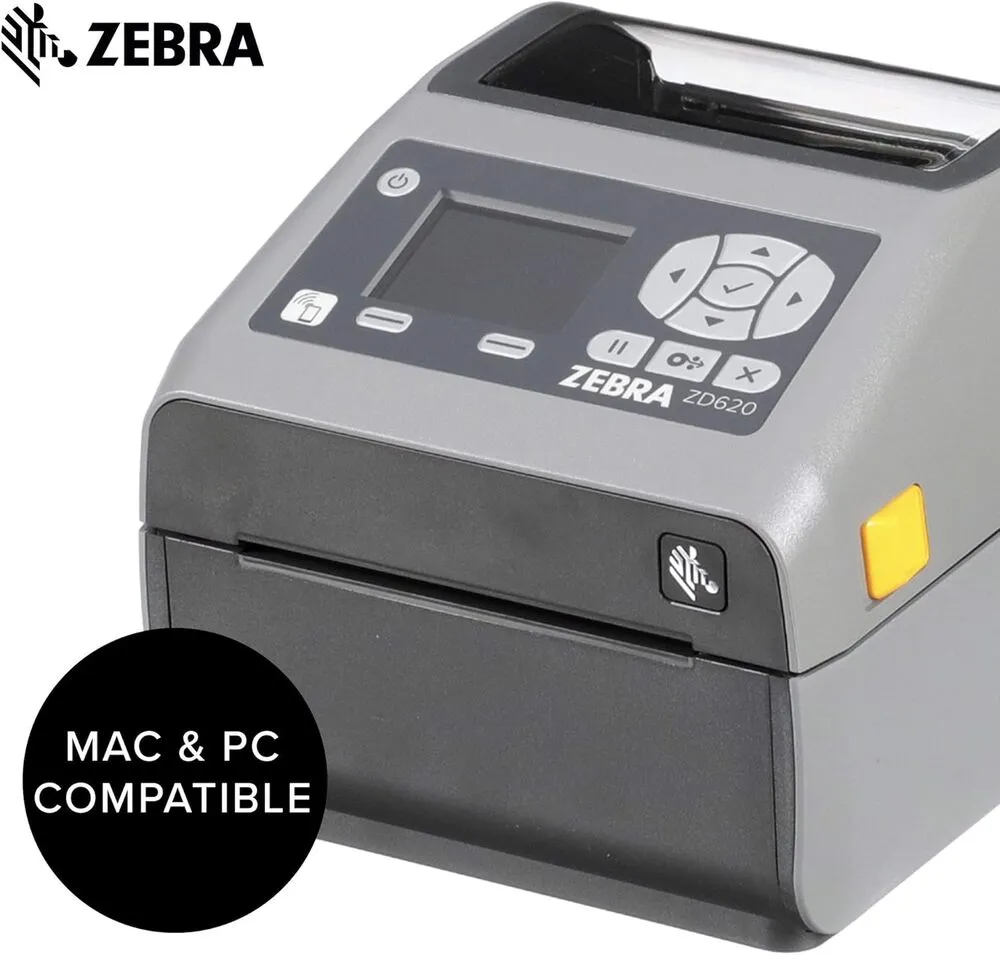

Operating System Support Windows, Mac OS, Linux via drivers and Zebra SDK
Link-OS Yes, supports Zebra's Link-OS for device management
Certifications FCC, CE, UL, CCC

Key Advantages

The ZD620d delivers superior print quality with 203 dpi resolution for crisp barcodes and text. Its user-friendly design includes a color LCD interface for straightforward status monitoring. The printer supports a wide variety of media types and sizes, enhancing its versatility for multiple labeling applications. Its fast print speed and responsive performance boost productivity in busy office settings. The device’s compact footprint saves valuable desk space without compromising functionality. Additionally, advanced connectivity options ensure seamless integration into existing IT environments, supporting both wired and wireless networks.

Limitations

As a direct thermal printer, the ZD620d's labels are susceptible to heat and light fading over time, which may limit long-term label durability. It does not support thermal transfer printing, which restricts compatibility with ribbon-based label applications. The printer's maximum print resolution is limited to 203 dpi on the direct thermal model, which may not satisfy very high-resolution printing needs. Some advanced connectivity options such as Wi-Fi and Bluetooth are optional, possibly requiring additional modules or purchases. Media capacity is somewhat limited compared to larger industrial printers, necessitating more frequent media changes in high-volume uses. The device may not be ideal for heavy-duty industrial environments due to its desktop form factor.
