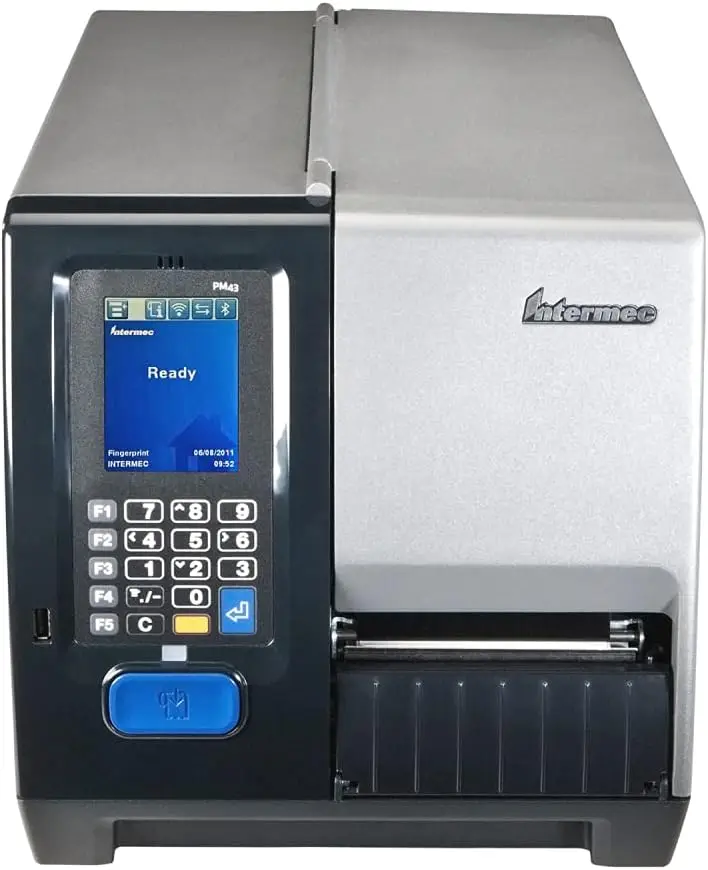

Honeywell International, Inc PM43A11000000201 image

Honeywell International, Inc PM43A11000000201

Quick information
Brand Honeywell International, Inc 2022
Model PM43A11000000201
Released Year 2022
Type Printers
Series PM43
Item Weight 1 pounds
Product Dimensions 15.6 x 17.4 x 24.1 inches
Status Active
Quick view

Overview

The Honeywell PM43 is a mid-range industrial printer engineered for reliable, high-performance label printing in warehouse, manufacturing, and distribution settings. It supports various printing technologies including direct thermal and thermal transfer methods. The printer is built with a durable metal frame and advanced printhead technology for consistent 4-inch wide labeling output. Connectivity options include USB, Ethernet, and optional Wi-Fi for versatile integration into existing office electronics environments. The system allows easy configuration through an embedded web server and supports multiple barcode symbologies for efficient asset tracking. Operating on Honeywell's Fingerprint markup language, the PM43 is compatible with many software environments, enhancing adaptability.

Specifications

Print Technology Direct Thermal and Thermal Transfer
Print Width 4 inches (104 mm)
Print Speed Up to 12 inches per second (305 mm/sec)
Resolution 203, 300, or 406 dpi options
Processor ARM Cortex-A8 1 GHz
Memory 512 MB RAM, 512 MB Flash
Connectivity USB 2.0, Ethernet 10/100 Mbps, Optional Wi-Fi
Supported Barcodes Code 39, Code 128, UPC, EAN, QR Code, Data Matrix, PDF417, and more
Operating Temperature 5°C to 40°C (41°F to 104°F)
Dimensions (W x D x H) 245 mm x 432 mm x 304 mm
Weight Approx. 9.5 kg
Display Graphical LCD with backlight
Firmware Fingerprint, Direct Protocol, IPL
Power Supply External power supply 100-240 VAC
Media Handling Roll-fed labels and tags, die-cut, continuous, fanfold
Warranty Standard 2-year limited warranty
Max Input Sheet Capacity 1000
Maximum Black and White Print Resolution 203 dpi
Warranty Type 90 days limited warranty
Dual-sided printing No
Max copy resolution black-white 203 dpi
Duplex Simplex
Hardware Interface Ethernet
Additional Printer functions Print Only
Control Method Touch
Specific Uses For Product Office
UPC 656942781936
Product Dimensions 15.6 x 17.4 x 24.1 inches
Item Weight 1 pounds
Item model number PM43A11000000201
Is Discontinued By Manufacturer No
Date First Available April 30, 2022
Manufacturer Honeywell International, Inc

Key Advantages

It offers robust build quality suited for industrial environments, ensuring long-term durability. The printer is designed for maintenance ease with tool-free printhead and platen roller replacement. High-speed printing capabilities improve operational efficiency in medium to high-volume applications. Flexible connectivity options enable seamless integration with enterprise systems. The device supports a broad range of media types and sizes, enhancing versatility. Energy-efficient components reduce overall power consumption, aligning with green office initiatives.

Limitations

The PM43 series primarily supports 4-inch wide labels, limiting print size options for broader applications. Initial setup may require technical knowledge, posing a barrier for users without printer configuration experience. The printer weight and size are substantial, making it less suitable for mobile or space-constrained environments. Optional features like Wi-Fi and integrated peelers add to the overall cost. Firmware updates and driver compatibility can vary depending on the operating system used. It lacks some advanced color printing capabilities common in non-industrial office printers.
