Intermec Technologies Corporation PM43A11NA0041201
| Brand | Intermec Technologies Corporation 2012 |
| Model | PM43A11NA0041201 |
| Released Year | 2012 |
| Type | Printers |
| Printing Technology | Direct Thermal / Thermal Transfer |
| Item Weight | 35 pounds |
| Status | Active |
Quick view
Overview

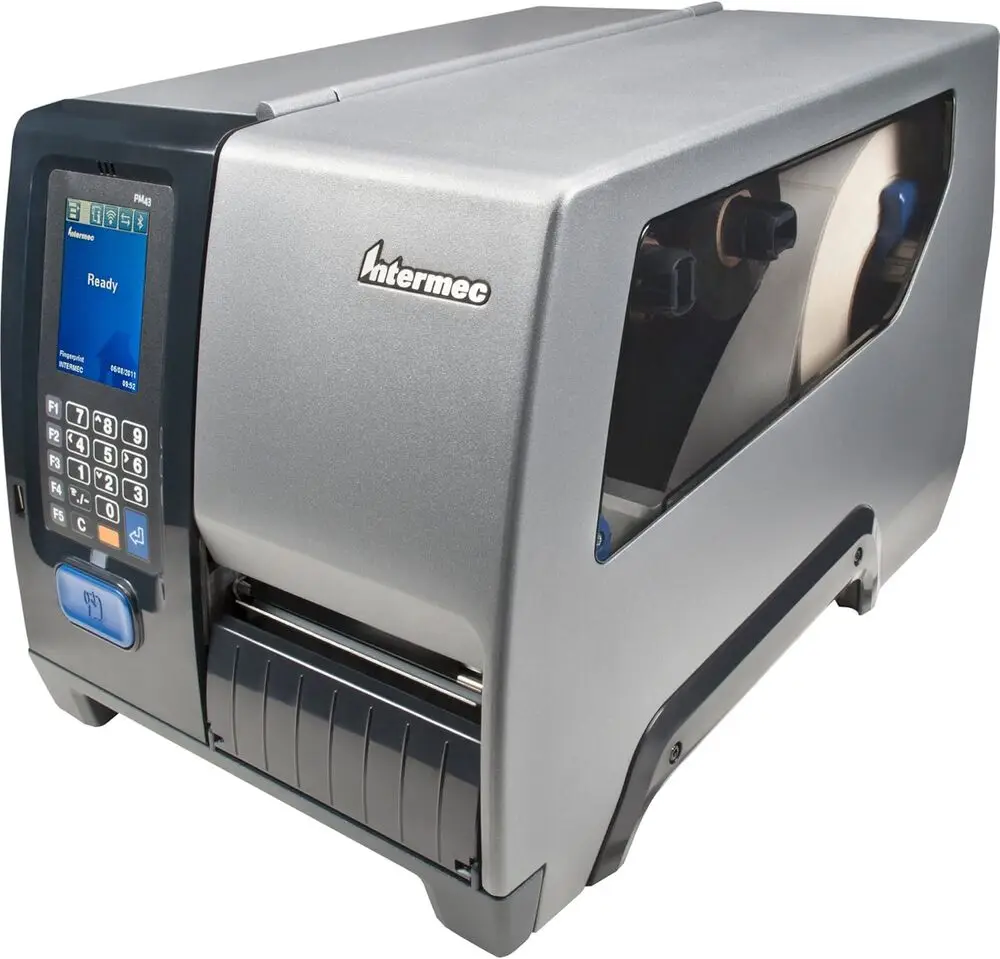

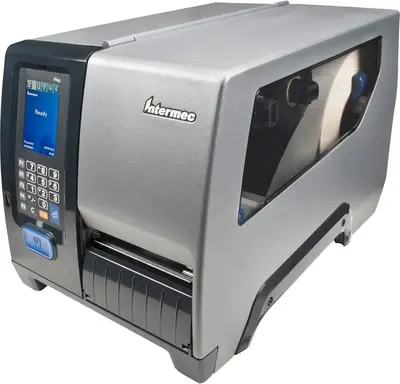

The Intermec PM43A11NA0041201 is an industrial-grade direct thermal and thermal transfer printer designed for high-performance office and warehouse environments.
It features a 32-bit ARM processor and offers a print resolution of 203 dpi (8 dots/mm) for clear barcode and label printing.
The printer supports printing speeds up to 6 ips (inches per second), enhancing productivity in demanding applications.
Connectivity options include USB, Ethernet, and optional Wifi, making integration into existing networks seamless.
Memory specifications include 256 MB DRAM and 512 MB flash, enabling extensive label format storage and fast processing of printing jobs.
The PM43 series architecture is built for easy media handling with an adjustable label roll holder and an automatic calibration mechanism.
Specifications
| Device Type | Industrial Thermal Printer |
| Printing Technology | Direct Thermal / Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Max Print Speed | 6 ips (inches per second) |
| Processor | 32-bit ARM CPU |
| Memory | 256 MB DRAM, 512 MB Flash |
| Connectivity | USB 2.0, Ethernet 10/100 Mbps, Optional Wifi |
| Media Types Supported | Continuous, Die-cut labels, Tags, Tickets |
| Media Width | 2 to 6.6 inches (approx. 51 to 168 mm) |
| Label Roll Capacity | 7 inch OD |
| Dimensions | Approximately 254 mm (W) x 408 mm (D) x 303 mm (H) |
| Weight | Approximately 8.2 kg |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Print media | Labels |
| Max Input Sheet Capacity | 100 |
| Compatible Devices | PC |
| Maximum Black and White Print Resolution | 203 dpi |
| Warranty Type | limited warranty |
| Dual-sided printing | No |
| Max copy resolution black-white | 203 dpi |
| Duplex | Simplex |
| Additional Printer functions | Print Only |
| Control Method | Touch |
| Processor Count | 1 |
| Series Number | 41201 |
| Total Ethernet Ports | 1 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| Specific Uses For Product | personal |
| Item Weight | 35 pounds |
| Item model number | PM43A11NA0041201 |
| Date First Available | August 6, 2012 |
| Manufacturer | Intermec Technologies Corporation |
Images
Key Advantages
The PM43A11NA0041201 offers robust construction suitable for industrial environments ensuring longevity and durability.
Its versatile connectivity options provide flexibility for integration into varied office electronic systems.
The printer's high printing speed and resolution balance quality and efficiency.
Easy-to-use media loading minimizes downtime during operation.
The supported wide range of label sizes and media types enhances adaptability for different applications.
Memory size allows complex label designs and increased operator productivity through stored formats.
Limitations
The print resolution is fixed at 203 dpi, which is lower compared to some industrial printers offering 300 dpi or higher, limiting ultra-fine graphic printing.
No built-in wireless capabilities are standard; Wifi requires optional hardware.
The device may be heavier and bulkier compared to desktop printers, making it less portable.
Firmware updates and advanced features may require proprietary software and support agreements.
Lack of native touchscreen interface requires external control or connection to computer systems for operation.
Discontinued or limited availability of spare parts might pose challenges for long-term maintenance.
FAQ
What printing technologies does the PM43A11NA0041201 support?
The printer supports both direct thermal and thermal transfer printing technologies.
What connectivity options are available?
It includes USB and Ethernet by default, with optional Wifi connectivity.
What is the maximum print speed of this device?
The printer can reach up to 6 inches per second printing speed.
What types of media can the PM43A11NA0041201 handle?
It supports various label sizes and types including continuous, die-cut labels, tags, and tickets.
Is this model still supported by the manufacturer?
As of the latest information, this model is not discontinued and continues to be supported.
What are the memory specifications of the printer?
It has 256 MB DRAM and 512 MB flash memory.
Does the device include a user-friendly interface?
The PM43 series does not have a built-in touchscreen; operation is typically managed via computer interface.
