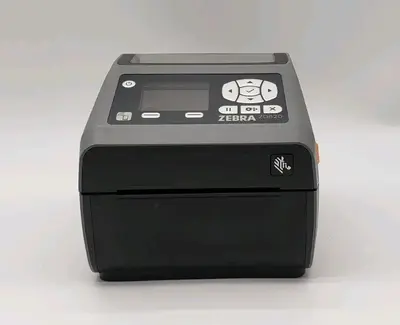

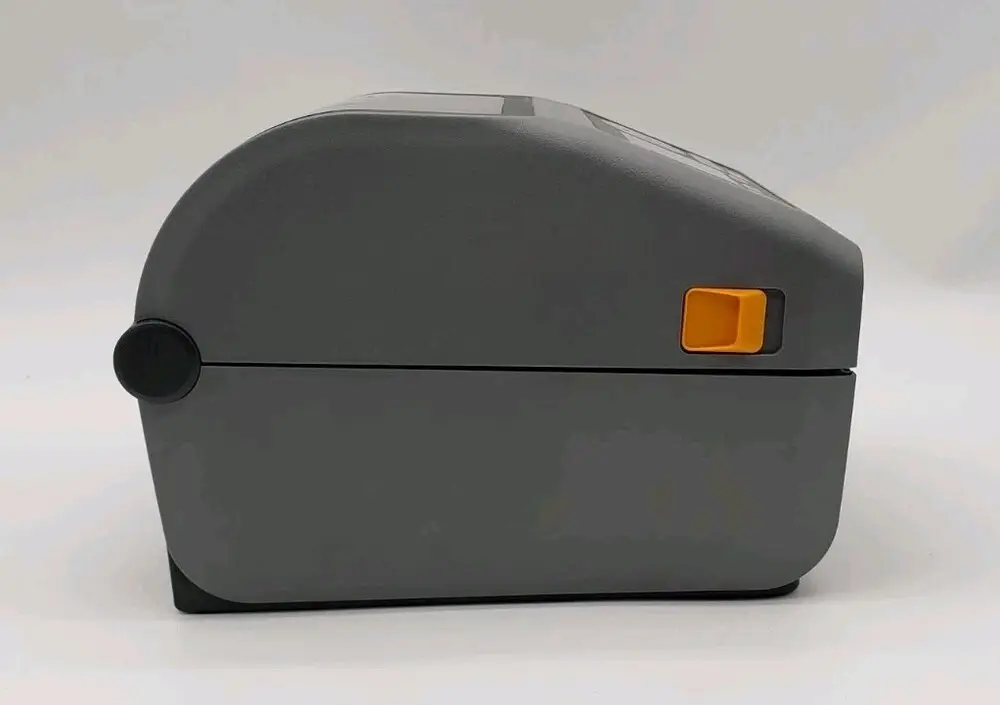

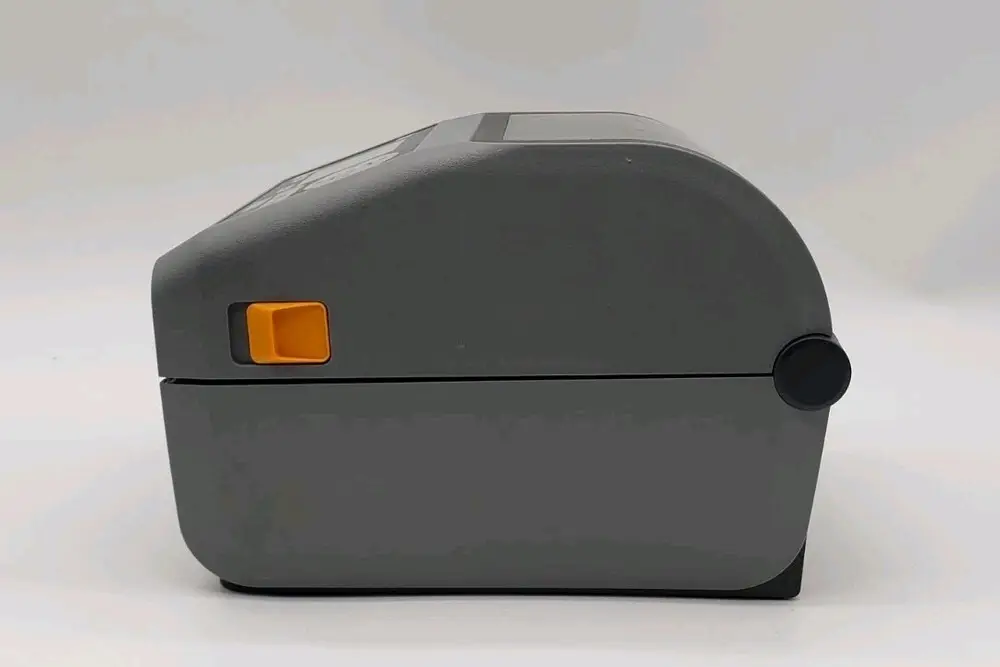

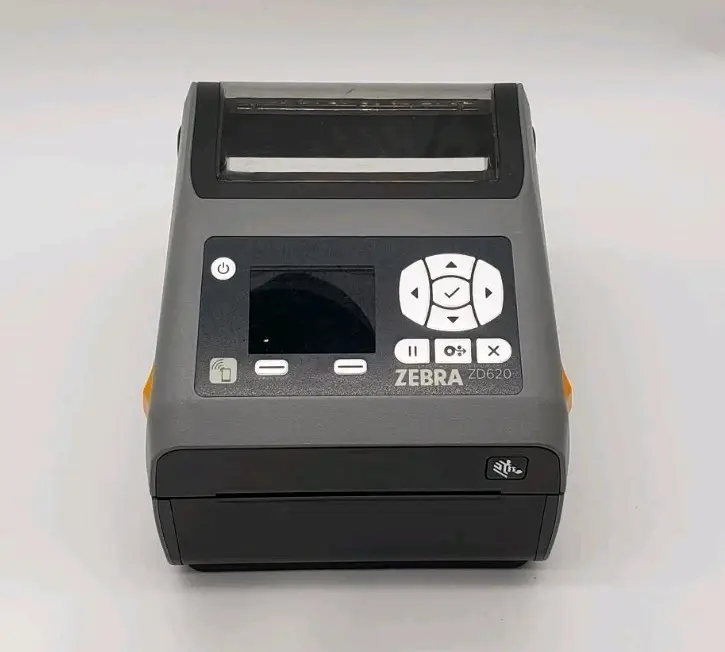

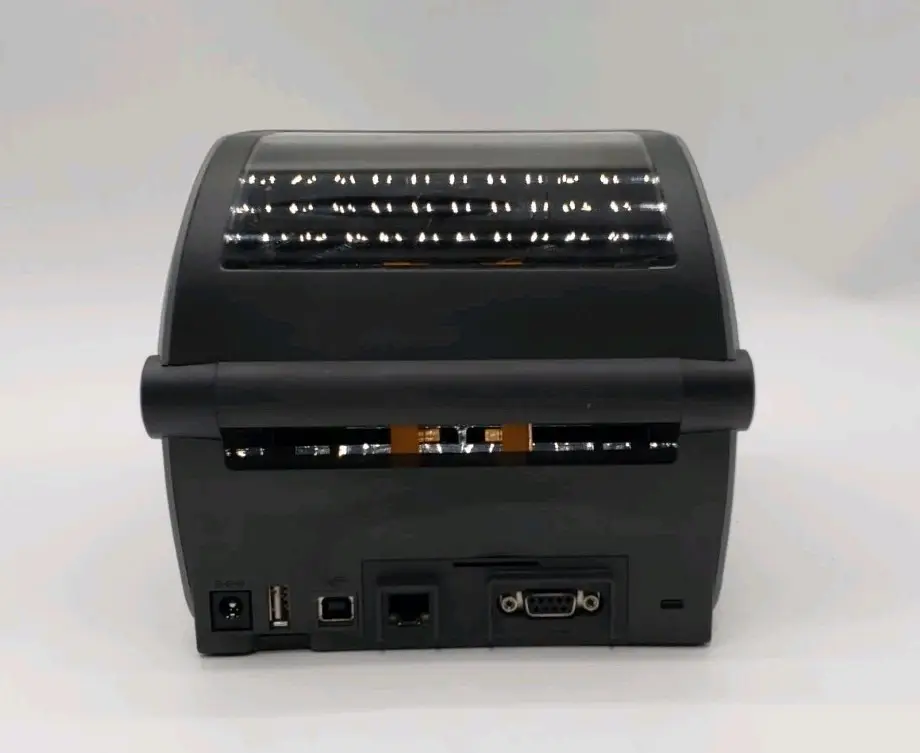

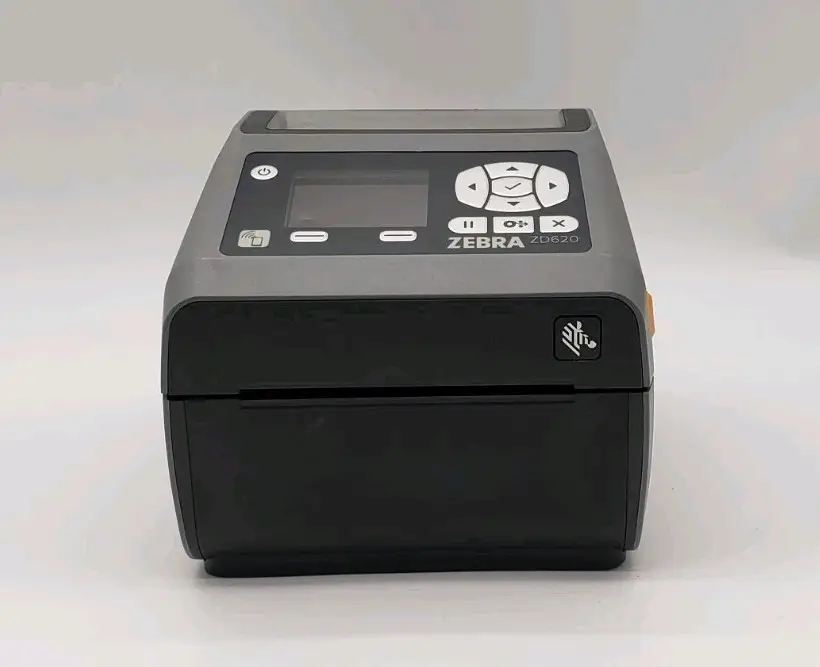

Zebra ZD620 image

Zebra ZD620

Quick information
Brand Zebra 2017
Model ZD62042T01F00EZ
Released Year 2017
Type Printers
Series Z
Status Active
Quick view
Full specs Images FAQ

Overview

The Zebra ZD620 is a direct thermal and thermal transfer printer designed for high-performance in office and industrial environments. It supports a print resolution of up to 203 dpi (8 dots/mm) or optional 300 dpi for detailed, high-quality labels. Connectivity options include USB, USB Host, Ethernet, Serial, and optional Wi-Fi and Bluetooth for flexible integration with various systems. The device features a color LCD interface for easy setup and monitoring. It is compatible with multiple barcode symbologies and supports a print width of up to 4.09 inches (104 mm). The ZD620 is designed with print speed up to 8 inches per second to ensure efficient label production.

Specifications

Printer Type Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm), optional 300 dpi
Maximum Print Width 4.09 inches (104 mm)
Maximum Print Speed Up to 8 ips (203 mm/sec)
Connectivity Cable, Bluetooth, USB 2.0
Display Color LCD graphical interface
Memory 512 MB
Supported Barcodes 1D and 2D symbologies including QR codes, DataMatrix
Operating System Compatibility Windows, Android, iOS
Dimensions 8.7 in (W) x 7.1 in (H) x 7.6 in (D)
Weight Approximately 4.6 lbs (2.1 kg)
Power Supply AC Adapter 100-240V
Label Roll Capacity Supports roll sizes up to 6.6 inches (168 mm) OD
Supported Scanning Sizes A0 (841 x 1189 mm)
Grayscale Depth 16 Bit
Color Depth 12 Bit
Item Height 7.6"
Image Sensor CCD
Scanning Resolution 300x300 DPI
Item Length 10.5"
Country/Region of Manufacture China
Item Width 8"
UPC 0751492929767, 0746477763894
Input Type Monochrome
Output Type Black & White
MPN ZD62042T01F00EZ
Supported Paper Size A6 (105 x 148 mm)
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZD620
Features Networkable
Black Print Speed 36 ppm
Product Line Zebra Z
GTIN 0751492929767

Key Advantages

The ZD620 printer offers fast print speeds, enhancing productivity in busy office settings. Its versatile connectivity options allow seamless integration across networks and platforms. The compact design fits easily into limited workspace environments. Modular accessories extend functionality, including RFID encoding capabilities. User-friendly interface with a color LCD simplifies configuration and maintenance tasks. Zebra's Link-OS environment enables easy device management and workflow applications.

Limitations

The device requires thermal labels or ribbon supplies, which can add ongoing operational costs. It may not be suitable for extremely high-volume industrial use compared to larger Zebra industrial printers. Some advanced connectivity options are only available on higher-end SKUs, which can increase cost. The printer could be less optimal for environments requiring printing of ultra-high-density labels beyond 300 dpi. Initial setup for network configurations might require technical expertise. Replacement parts and consumables need to be sourced appropriately to maintain performance.
