Zebra Zd620
Brand | Zebra 2017 |
Model | ZD62042-D01F00EZ |
Released Year | 2017 |
Type | Printers |
Series | 3D Systems ProJet |
Status | Active |
Quick view
Overview

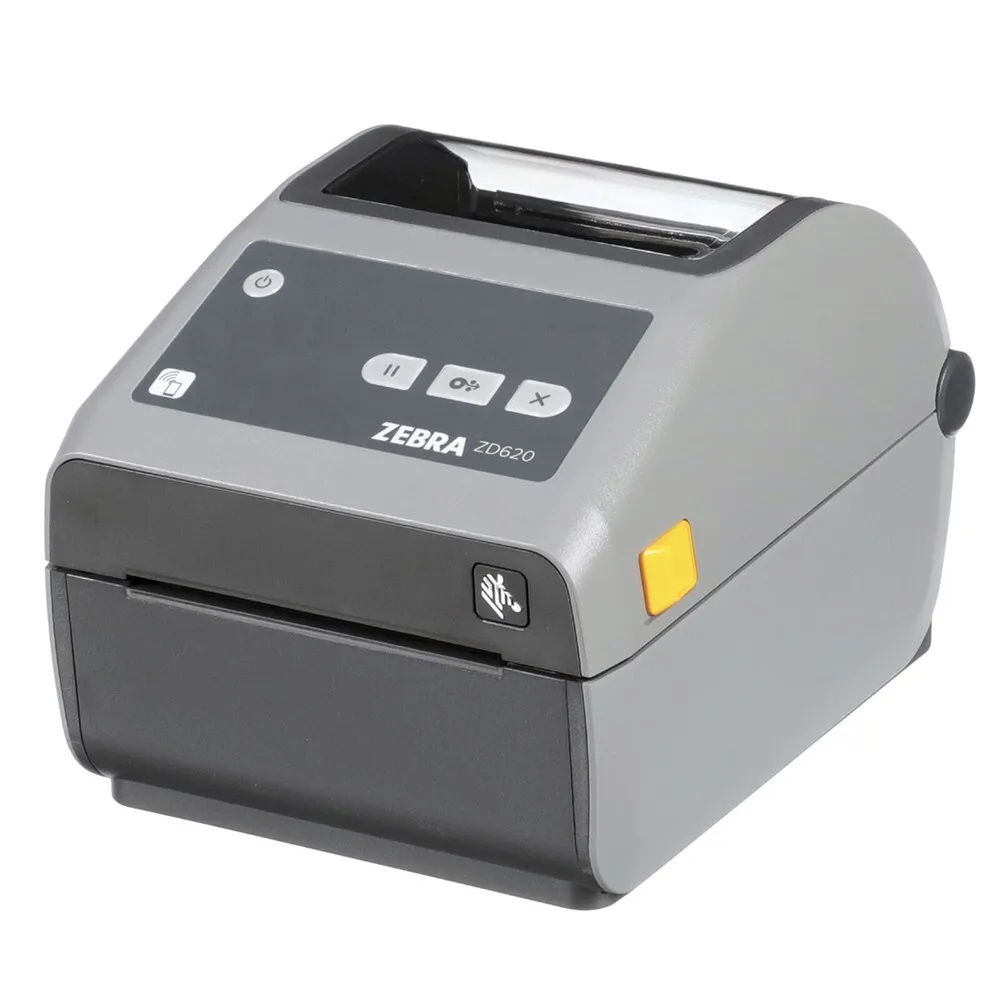

The Zebra ZD620 is a high-performance desktop label printer designed for office and industrial environments where precision and speed are critical. It features advanced printing technology capable of delivering high-resolution output up to 300 dpi. The printer supports both thermal transfer and direct thermal printing methods, enhancing versatility for a wide variety of label formats and materials. Its connectivity options include USB, Ethernet, Bluetooth, and optional Wi-Fi, facilitating seamless integration into existing networks and systems. The ZD620 is equipped with an intuitive color LCD interface, allowing ease of setup and real-time status monitoring. It also supports multiple printer languages including ZPL and EPL, ensuring compatibility with legacy applications.
Specifications
MPN | ZD62042-D01F00EZ |
UPC | 9773512533007 |
Model | Zebra ZD620 |
Memory | 256 MB SDRAM, 512 MB Flash |
Technology | Thermal |
Connectivity | USB 2.0, Ethernet, optional Wi-Fi, Bluetooth |
Output Type | Black & White |
Input Type | Monochrome |
Type | Label Printer |
Product Line | 3D Systems ProJet |
Item Height | 10 |
Weight | 5.9 lbs (2.7 kg) |
Printer type | Desktop thermal label printer |
Print resolution | 203 dpi (8 dots/mm), optionally 300 dpi |
Print speed | Up to 8 inches per second |
Print width | 4.09 inches (104 mm) |

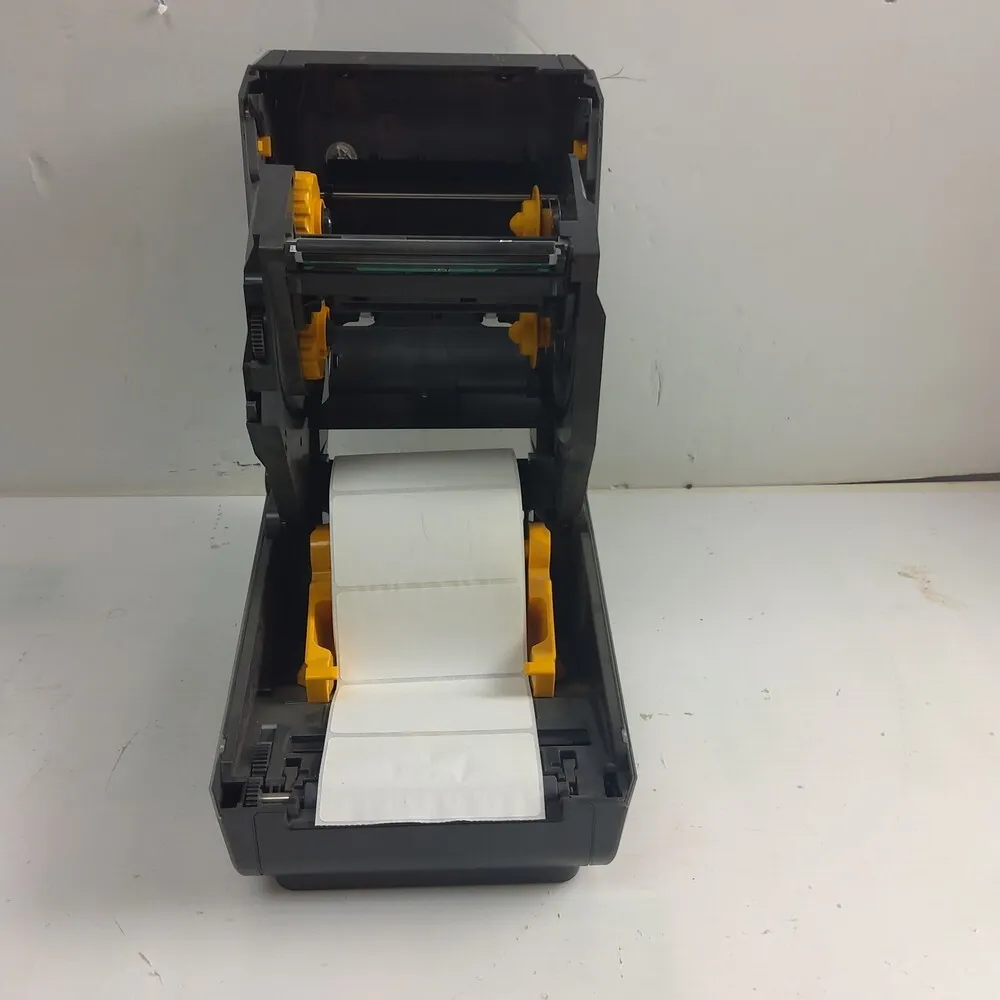

Media types supported | Roll-fed labels, tags, continuous media |

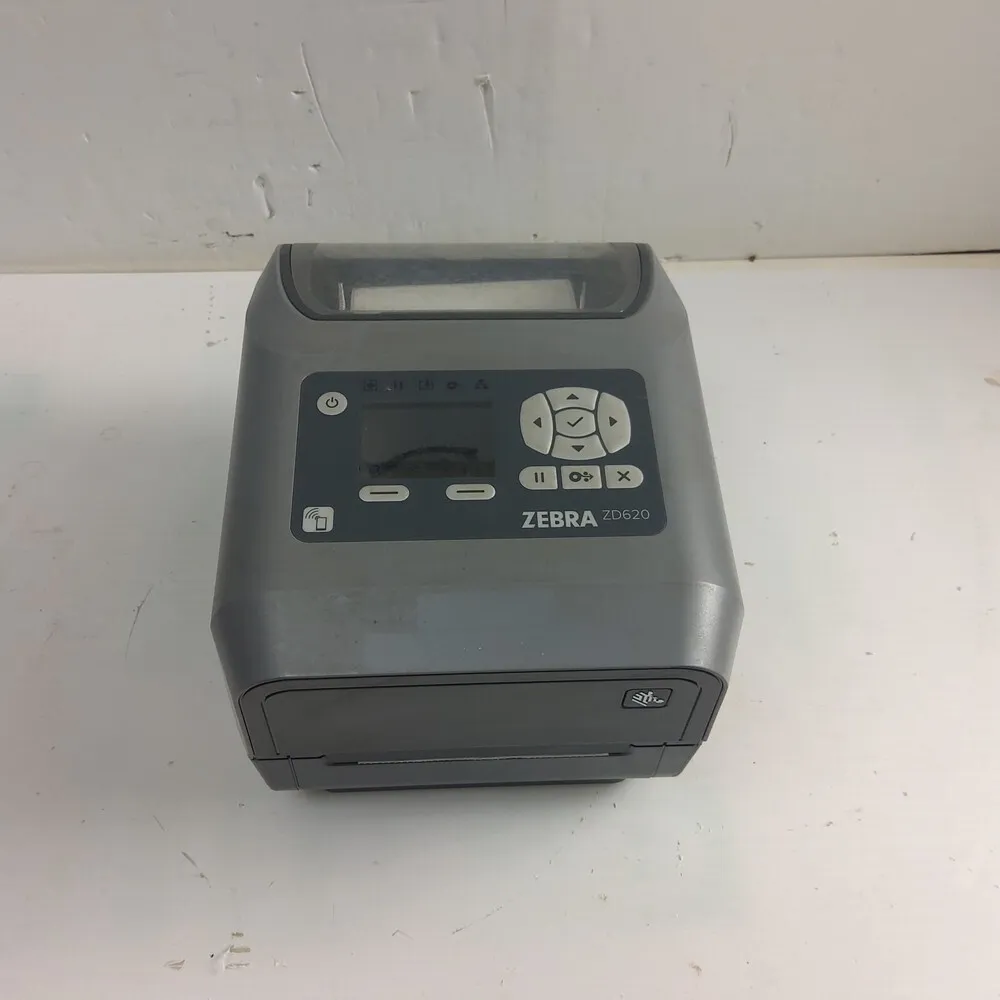

Display | Color LCD with user interface |
Printer languages | ZPL, EPL |
Dimensions | 8.7 x 7 x 5.9 inches (221 x 178 x 150 mm) |
Power supply | Auto-ranging external power supply, 100-240 VAC |
Operating temperature | 41°F to 104°F (5°C to 40°C) |
Software compatibility | Link-OS, Zebra Designer, SDKs |
Accessories | Peeler, cutter, additional communication interfaces |
Images
Key Advantages
The Zebra ZD620 offers rapid print speeds up to 8 inches per second, significantly improving workflow efficiency. Its modular design allows easy maintenance and upgrade options, such as adding peeler or cutter accessories. The printer's compact footprint suits environments with limited space without compromising performance. Additionally, it provides advanced connectivity options for flexible deployment in diverse IT infrastructures. The enhanced color LCD makes printer status and configuration more accessible for operators, reducing downtime. Lastly, the ZD620 supports Link-OS software platform enabling remote printer management and sophisticated device integration.
Limitations
While the ZD620 is optimized for office and light industrial use, its print width and speed may be insufficient for high-volume industrial label production. The initial cost is higher compared to basic desktop printers, which may be a barrier for some small businesses. Wireless connectivity options might require additional modules, increasing overall setup complexity and cost. The printer’s media handling is limited to roll-fed labels, which can restrict certain application types. Despite broad language support, some niche or proprietary label formats may not be fully compatible. Replacement parts and consumables specifically branded for Zebra ensure optimal performance but could have higher operational expenses.
FAQ
What types of printing technology does the Zebra ZD620 support?
The Zebra ZD620 supports both thermal transfer and direct thermal printing methods.
Can the Zebra ZD620 connect to wireless networks?
Yes, the printer supports optional Wi-Fi connectivity as well as Bluetooth for wireless network integration.
What is the maximum print resolution of the Zebra ZD620?
The printer can produce prints at resolutions up to 300 dpi.
Does the ZD620 support multiple printer command languages?
Yes, it supports ZPL and EPL printer languages for compatibility with various label printing applications.
Is the Zebra ZD620 printer still in production?
As of now, the Zebra ZD620 is an active product and has not been discontinued.
What interface options does the ZD620 provide for connectivity?
Standard interfaces include USB, Ethernet, with optional Bluetooth and Wi-Fi modules.
Can I manage the printer remotely?
Yes, the ZD620 supports the Link-OS operating system that allows remote management and monitoring.
