Zebra ZD4A043-D01E00EZ
| Brand | Zebra 2021 |
| Model | ZD4A043-D01E00EZ |
| Released Year | 2021 |
| Type | Printers |
| Series | ZD421 |
| Item Weight | 7 pounds |
| Product Dimensions | 12 x 10 x 10 inches |
| Status | Active |
Quick view
Overview

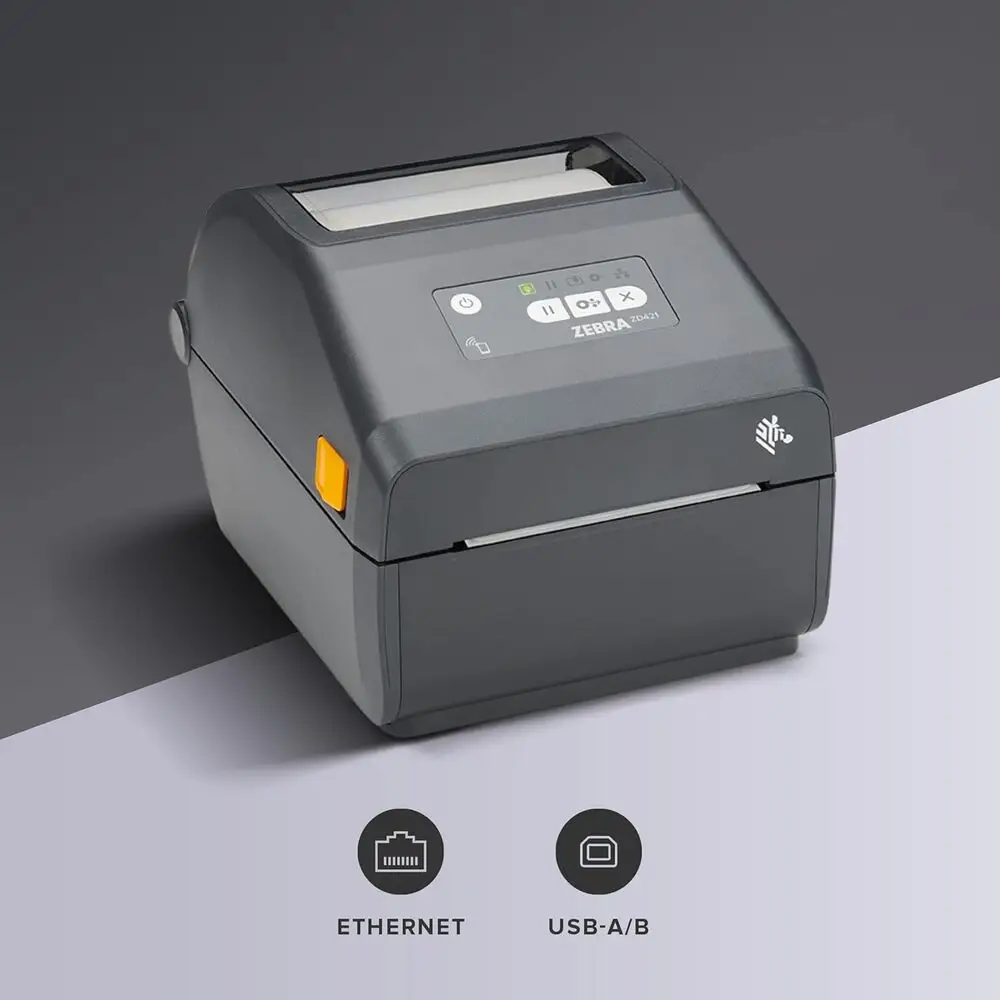

The Zebra ZD4A043-D01E00EZ, part of the ZD421 series, is a direct thermal and thermal transfer printer designed mainly for office and industrial labeling applications. It features a high-resolution printing mechanism with a maximum print width of 4.09 inches (104 mm) and supports print speeds up to 6 inches per second. Connectivity options include USB, Ethernet, and optional wireless interfaces, facilitating versatile integration in various office environments. The printer uses a reliable ARM processor to ensure consistent performance and fast processing of print jobs. It supports multiple barcode standards, graphics, and text formatting, making it suitable for complex office labeling needs. Its durable construction is optimized for medium-volume printing tasks, ensuring longevity and minimal maintenance requirements.
Specifications
| Print Method | Direct Thermal / Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Maximum Print Speed | 6 inches per second (152 mm/s) |
| Processor | ARM 32-bit RISC processor |
| Memory | 256 MB Flash; 128 MB SDRAM |
| Connectivity | USB 2.0, Ethernet 10/100, optional Bluetooth and Wi-Fi |
| Media Types | Continuous, die-cut, black mark, tag stock, fan-fold |
| Label Width | 0.585 inches to 4.65 inches (15 mm to 118 mm) |
| Media Roll Diameter | Up to 5 inches (127 mm) |
| Ribbon Type | Thermal transfer ribbons, capacity max 74 m |
| User Interface | Backlit LCD display with 6 buttons |
| Operating Temperature | Operating: 40°F to 105°F (4.4°C to 41°C) |
| Dimensions (W x D x H) | 8.7 x 7.6 x 6.7 inches (221 x 193 x 170 mm) |
| Weight | Approximately 4.6 lbs (2.1 kg) |
| Print media | Labels |
| Max Input Sheet Capacity | 24 |
| Max Copy Speed (Black & White) | 2 ppm |
| Compatible Devices | PC |
| Sheet Size | 4.25 inches |
| Maximum Black and White Print Resolution | 300 dpi |
| Warranty Type | 90 days limited warranty |
| Color Depth | 1 bpp |
| Dual-sided printing | No |
| Max copy resolution black-white | 300 dpi |
| Duplex | Simplex |
| Hardware Interface | USB |
| Ink Color | Black |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Output sheet capacity | 24 |
| Processor Count | 1 |
| Series Number | 421 |
| Total USB Ports | 1 |
| Specific Uses For Product | Office, Business |
| UPC | 656942876380 |
| Product Dimensions | 12 x 10 x 10 inches |
| Item Weight | 7 pounds |
| Item model number | ZD4A043-D01E00EZ |
| Date First Available | August 4, 2021 |
| Manufacturer | ZEBRA |
Images
Key Advantages
This printer from Zebra offers exceptional print quality with 203 dpi or optional higher resolution, ideal for precise barcode labels. It supports a broad range of media types and sizes, enhancing its adaptability in different office scenarios. The wide connectivity options including USB, Ethernet, and Bluetooth enable seamless integration with existing office networks. The device is equipped with an easy-to-use LCD screen for simplified operation and quick configuration changes. Energy-efficient design lowers operating costs while maintaining consistent output. Maintenance is straightforward due to its modular design and readily available replacement parts.
Limitations
The Zebra ZD4A043-D01E00EZ has limited native wireless connectivity which may require additional modules. Its maximum print speed, while adequate for many offices, might not meet the needs of high-volume production environments. The printer's thermal transfer ribbon capacity restricts continuous long-run printing without frequent ribbon changes. The device is primarily optimized for labels and is not intended for wide-format or color printing applications. Initial setup and driver installation may be complex for users without technical expertise. Certain advanced features are only accessible through proprietary software, limiting cross-platform flexibility.
FAQ
What type of printing technology does the Zebra ZD4A043-D01E00EZ use?
It uses both direct thermal and thermal transfer printing technologies, which allow for high-quality label output.
What is the maximum print resolution of this printer?
The maximum print resolution is 203 dpi, with optional upgrades available for more detailed output.
Which connectivity options are available for the ZD4A043-D01E00EZ?
The printer supports USB, Ethernet, and optionally Bluetooth and Wi-Fi connectivity.
Can this printer handle different types of label media?
Yes, it supports a wide variety of media types including continuous, die-cut, and black mark labels.
Is the Zebra ZD4A043-D01E00EZ suitable for high-volume printing?
It is designed for medium-volume printing; high-volume industrial needs may require more robust equipment.
Does this printer include a display for easy operation?
Yes, it includes an LCD display which facilitates simple operation and configuration.
Is the device still supported and not discontinued?
As of now, the Zebra ZD4A043-D01E00EZ is not discontinued and remains available.
