Zebra ZD421
Brand | Zebra 2018 |
Model | Ethernet Network, AC Adapter, zd421d, ZD4AH43-D01E00EZ, Healthcare, Hospital, Pharmacy |
Released Year | 2018 |
Type | Printers |
Series | Zd |
Status | Active |
Quick view
Overview
The Zebra ZD421 is a direct thermal and thermal transfer desktop printer designed for versatile office and healthcare environments. It supports Ethernet network connectivity which facilitates seamless integration into existing IT infrastructures. The printer features a 4-inch print width and a fast print speed of up to 6 inches per second. Equipped with an LCD graphic user interface, its operation is user-friendly and intuitive. The ZD421 supports a wide range of media types including labels, tags, and wristbands. It is engineered with energy-efficient electronics and a durable design to provide reliable printing for hospital, pharmacy, and healthcare applications.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 256 MB Flash; 128 MB SDRAM |
MPN | Ethernet Network, AC Adapter, zd421d, ZD4AH43-D01E00EZ, Healthcare, Hospital, Pharmacy |
Supported Paper Size | Max Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZD421 |
Connectivity | Ethernet, USB 2.0, Optional Bluetooth |
Features | Networkable, Portable |
Black Print Speed | 6 ips |
Product Line | Zebra ZD |
Printer Type | Direct Thermal and Thermal Transfer |
Print Width | 4 inches (104 mm) |
Print Speed | Up to 6 inches per second |

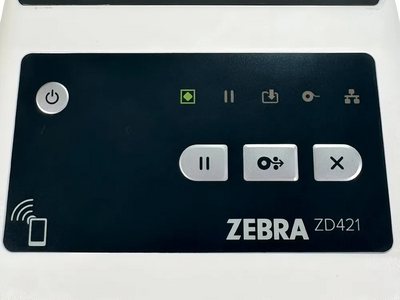

Display | 128 x 64 pixel LCD graphic user interface |
Power Supply | AC Adapter |
Media Types | Labels, Tags, Wristbands |
Resolution | 203 dpi (8 dots per mm) |
Dimensions | 7.4" W x 8" H x 7.6" D (188 mm x 203 mm x 193 mm) |
Weight | 4.15 lbs (1.88 kg) |
Operating Temperature | 40°F to 105°F (4.4°C to 41°C) |
Certifications | FDA 21 CFR Part 11 compliance support, IEC 60601-1 for healthcare |
Images
Key Advantages
The ZD421 offers multiple connectivity options including Ethernet, USB, and Bluetooth, providing flexible installation and integration. It supports various media formats and supplies, allowing for diverse label printing. The printer's tool-less printhead and platen roller replacement reduce downtime and simplify maintenance. Its compact design fits easily into limited spaces typical of healthcare and retail environments. The LCD user interface enhances operational ease with clear status and error messages. Additionally, it features energy-saving capabilities that help reduce operational costs.
Limitations
While the ZD421 supports Ethernet, it lacks built-in Wi-Fi connectivity, which may limit wireless flexibility. The printer is designed for low to medium volume printing and may not be suitable for high-volume industrial usage. Its maximum print width is limited to 4 inches, which might not accommodate wider label requirements. The thermal transfer capability requires ribbon consumption, adding to recurring supplies cost. Although compact, the printer's size might still be an issue in extremely tight workspaces. Firmware updates and advanced customization options require technical knowledge or support from Zebra resources.
FAQ
What types of connectivity does the Zebra ZD421 support?
The Zebra ZD421 supports Ethernet, USB, and optional Bluetooth connectivity enabling flexible integration options.
Is the Zebra ZD421 suitable for healthcare applications?
Yes, the ZD421 is designed specifically with healthcare compliance and applications in mind, including hospital and pharmacy label printing.
What media types can the ZD421 print on?
It can print on labels, tags, wristbands, and other media suitable for thermal and thermal transfer printing.
Does the ZD421 have wireless printing capability?
The standard ZD421 model does not include built-in Wi-Fi; however, Bluetooth is optionally available.
How easy is it to maintain the Zebra ZD421?
The printer features tool-less printhead and platen roller replacement, making it easy to maintain and reduce downtime.
What is the maximum print speed of the ZD421?
The maximum print speed is up to 6 inches per second.
Is the Zebra ZD421 still being supported by Zebra?
As of now, the Zebra ZD421 is not discontinued and continues to receive support and firmware updates.
