SATO CT412iTT
| Brand | SATO 2012 |
| Model | 305 dpi, WWCT54031 |
| Released Year | 2012 |
| Type | Printers |
| Series | Ct |
| Status | Active |
Quick view
Overview
The SATO CT412iTT is a thermal transfer printer designed for high-resolution printing applications at 305 dpi. It supports versatile media handling, including continuous, die-cut, and fanfold labels, with precise sensor calibration for consistent print quality. The device is equipped with a modular design enabling ease of maintenance and accessory upgrades. Networking options such as Ethernet and USB interfaces facilitate flexible connectivity within office environments. The printer utilizes advanced printhead technology to ensure longevity and sharp image reproduction, suitable for detailed labels and barcodes. Additionally, the CT412iTT incorporates a robust media control system for optimized ribbon usage and minimal waste.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 64 MB DRAM, 128 MB Flash |
| MPN | 305 dpi, WWCT54031 |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Supported Paper Size | Max. Label Width: 4.5" |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | CT412iTT |
| Connectivity | USB 2.0, Ethernet 10/100 Mbps |
| Features | Portable |
| Black Print Speed | 4 ips |
| Product Line | SATO CT |
| UPC | Does not apply |
| Print Method | Thermal transfer/Direct thermal |
| Print Resolution | 305 dpi (12 dots/mm) |
| Print Speed | Up to 6 inches per second |
| Print Width | Up to 4.1 inches (104 mm) |
| Media Types | Continuous, die-cut, black mark, fanfold labels and tags |
| Media Width | 0.98 to 4.65 inches (25 to 118 mm) |
| Ribbon Type | Wax, wax-resin, resin ribbons |
| Ribbon Width | 1.18 to 4.33 inches (30 to 110 mm) |
| Processor | 32-bit RISC CPU |
| Display | Backlit LCD with menu navigation |
| Power Supply | AC 100-240V, 50/60 Hz |
| Dimensions | 260 mm (W) x 436 mm (D) x 244 mm (H) |
| Weight | Approx. 8.5 kg |
| Supported Languages | SBPL, GDI, ZPL emulation |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 60°C |

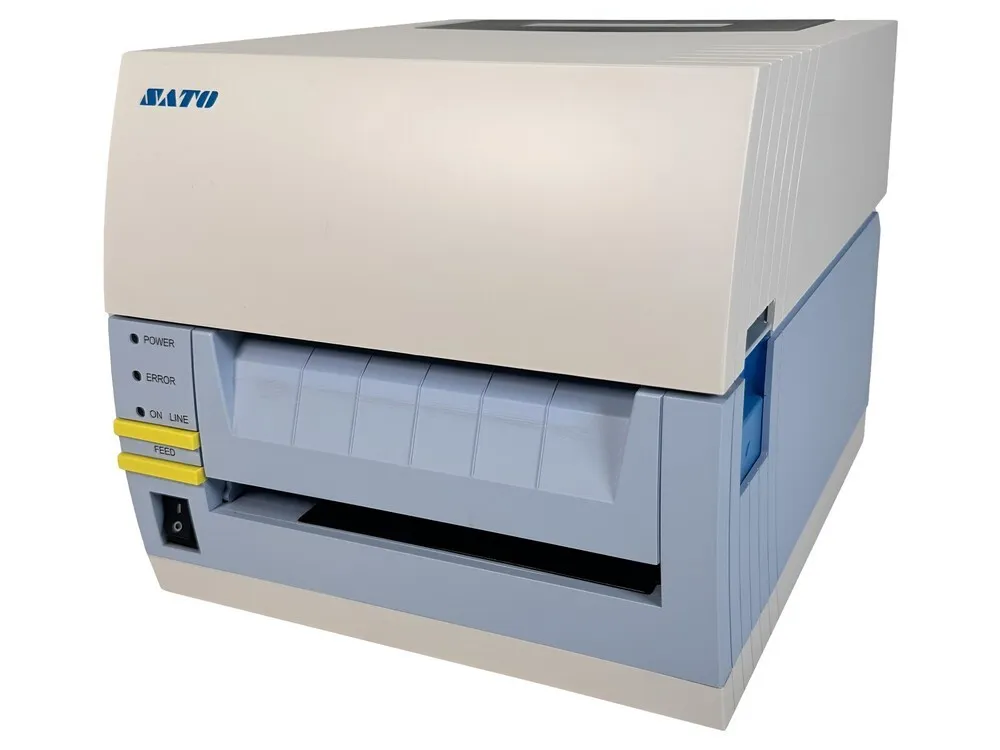

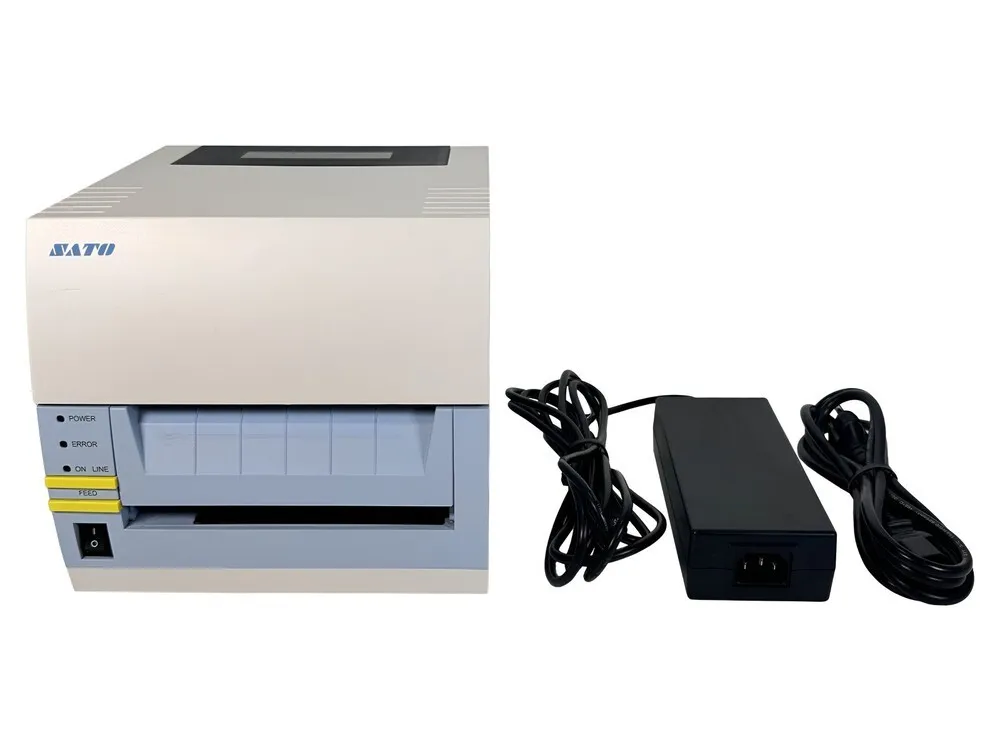

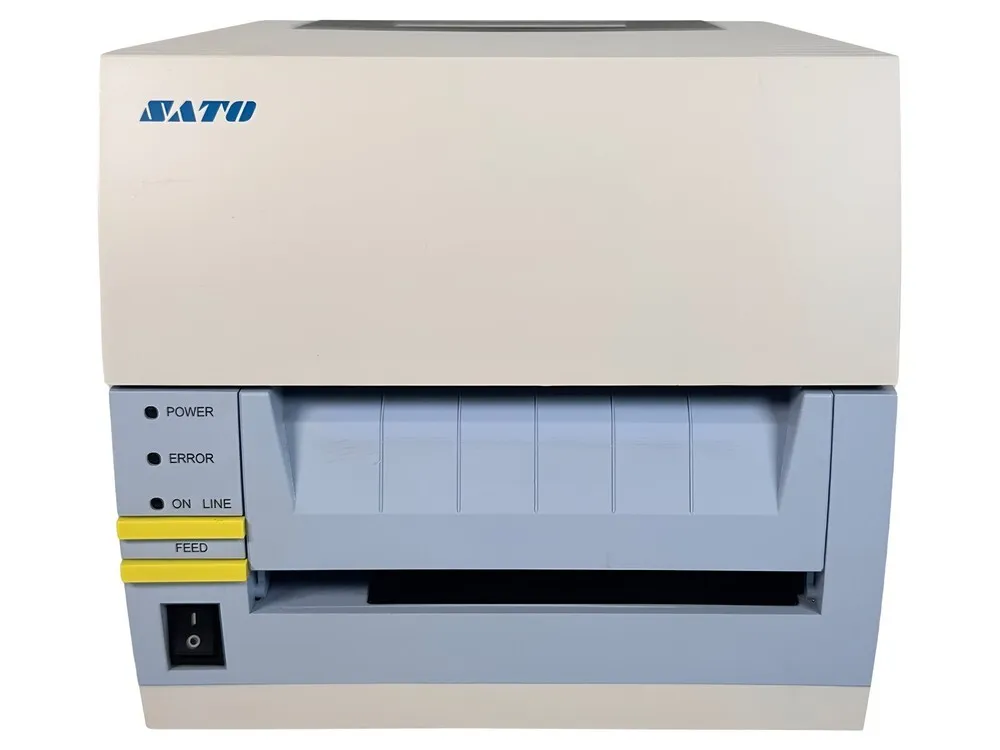

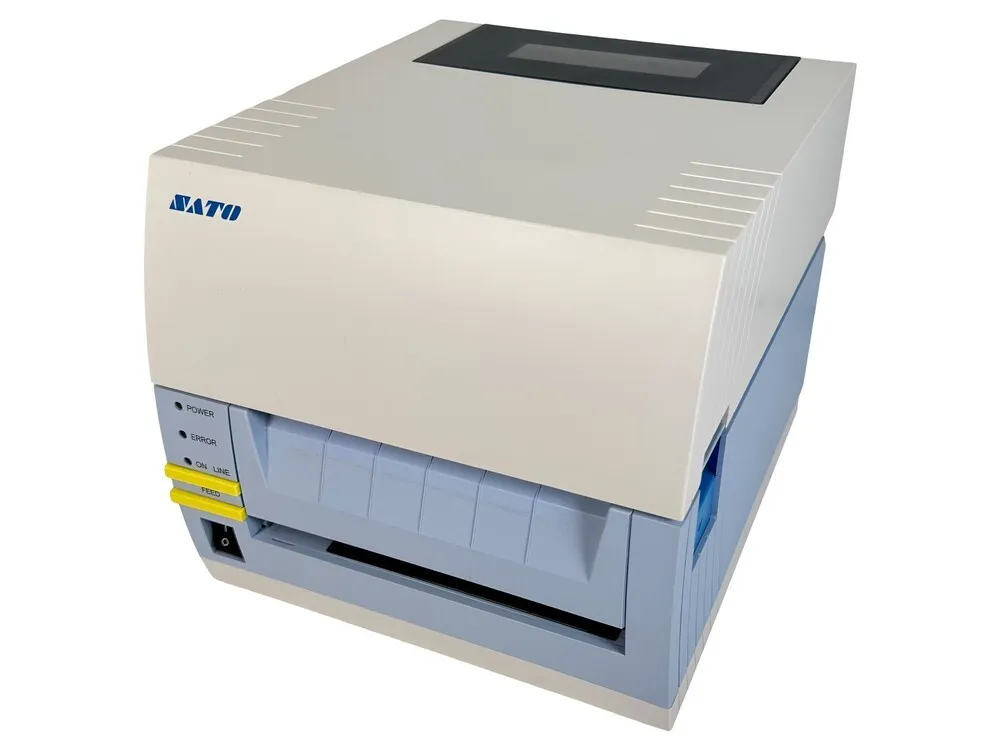

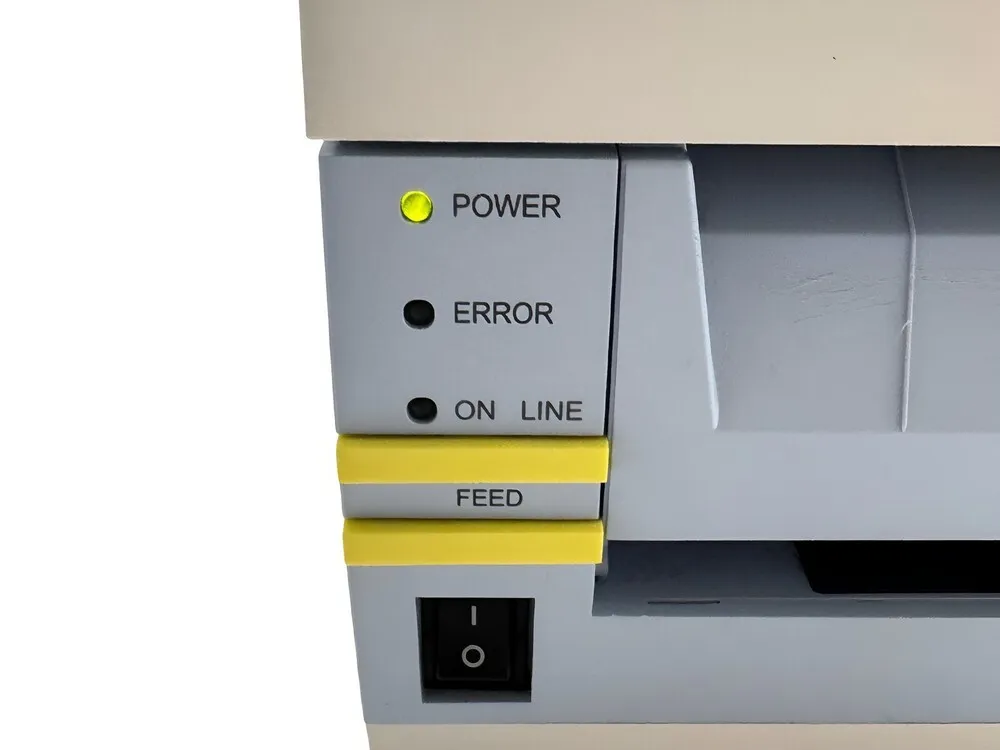

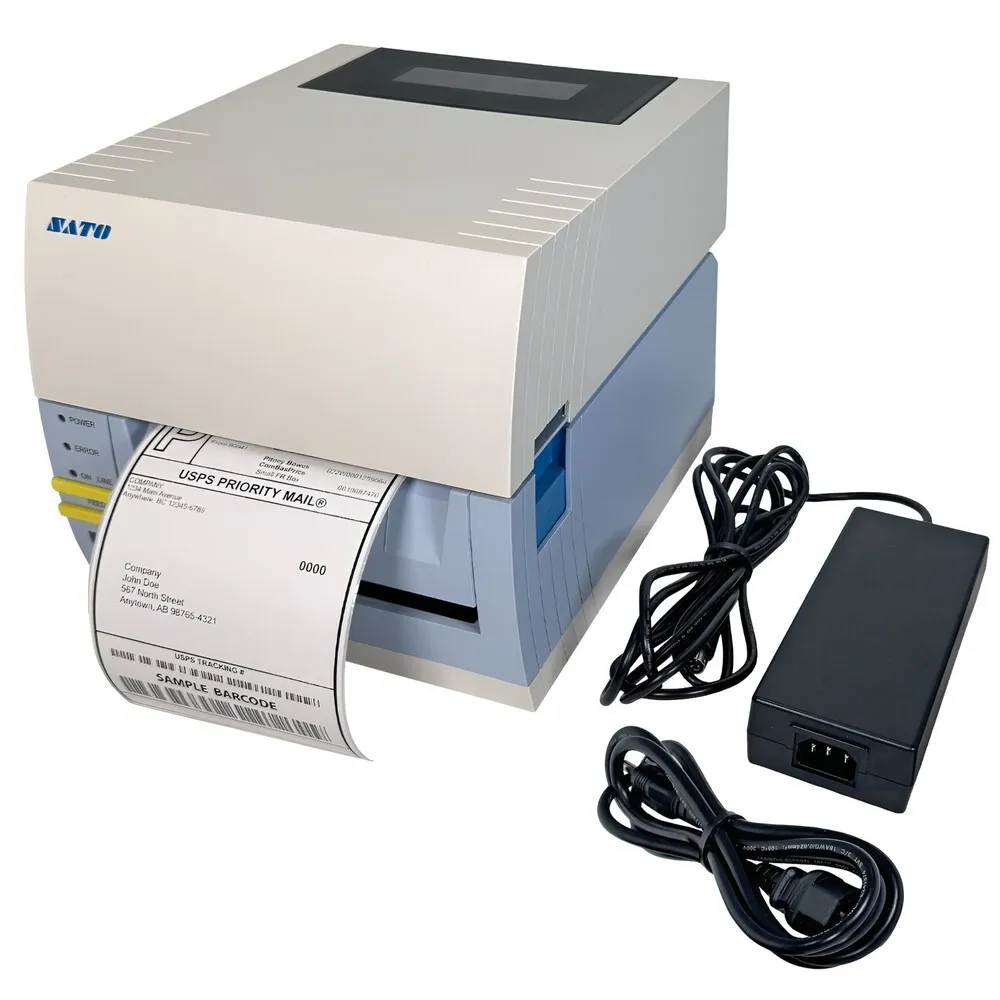

Images
Key Advantages
The SATO CT412iTT offers exceptional print resolution at 305 dpi, ensuring crisp and clear labels essential for professional applications. Its compact design saves valuable office space while maintaining high throughput capacity. The printer supports a wide range of label materials and sizes, delivering versatility in usage. User-friendly interface and LCD panel improve ease of operation and quick configuration adjustments. Durable construction and high-quality components contribute to the printer's reliability and long operational life. Furthermore, the device's modular components simplify routine maintenance and decrease downtime.
Limitations
Despite its strengths, the CT412iTT may have limitations handling extremely high-volume printing compared to industrial-class printers. The design focuses more on office environments, potentially limiting heavy industrial durability. Firmware updates may require manual intervention, which could be challenging for non-technical users. Some connectivity options, like wireless capabilities, are not standard and may need additional accessories. The initial cost of consumables like ribbons and specialized labels might be higher relative to simpler thermal printers. Lastly, the printer's complexity may present a learning curve for users unfamiliar with advanced thermal transfer technology.
FAQ
What type of printing technology does the CT412iTT use?
The SATO CT412iTT uses thermal transfer printing technology, which utilizes heat-sensitive ribbon to produce durable printed images.
What is the maximum print resolution of the CT412iTT?
The maximum print resolution of the CT412iTT is 305 dpi, suitable for high-detail barcode and label printing.
Which connectivity options are available on the CT412iTT?
Standard connectivity includes USB and Ethernet interfaces, providing flexibility for networked and standalone operations.
Can the CT412iTT handle different label sizes and types?
Yes, it supports various media formats such as continuous, die-cut, and fanfold labels, adaptable for diverse labeling needs.
Is the CT412iTT suitable for industrial heavy-duty printing?
While robust for office and moderate-duty use, it is not designed for heavy industrial printing volumes and environments.
Does the printer require specific maintenance procedures?
Routine maintenance involves cleaning the printhead and replacing ribbons and labels; the modular design aids easy servicing.
Is the CT412iTT still supported or discontinued?
As of now, the CT412iTT is not discontinued and continues to receive support from SATO.
