Zebra TLP2824 Plus image

Zebra TLP2824 Plus

Quick information
Brand Zebra 2005
Model Network LAN, AC Adapter, Ethernet, 282P-101520-000
Released Year 2005
Type Printers
Series Tlp
Status Discontinued
Quick view

Overview

The Zebra TLP2824 Plus is a compact thermal transfer and direct thermal label printer designed primarily for office and small business use. It features a print resolution of 203 dpi (8 dots/mm), suitable for crisp barcode and text printing on labels up to 2.3 inches wide. This model supports print speeds of up to 4 inches per second, balancing quality with efficiency for moderate volume printing needs. Equipped with a built-in Ethernet LAN interface (model 282P-101520-000), the printer facilitates easy integration into network environments for shared use. It supports multiple barcode symbologies and text font options, enhancing versatility across various labeling applications. The device is powered via an AC adapter, offering reliable power delivery and stable operation.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 2 MB Flash, 1 MB SDRAM
MPN Network LAN, AC Adapter, Ethernet, 282P-101520-000
Supported Paper Size Maximum Label Width: 2.36"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model TLP2824 Plus
Connectivity Ethernet LAN (Network), USB 1.1
Features Networkable, Portable
Black Print Speed 4 ips
Product Line Zebra TLP
UPC 014181985728
Print Method Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 2.3 inches (58 mm)
Print Speed Up to 4 inches per second (102 mm/s)

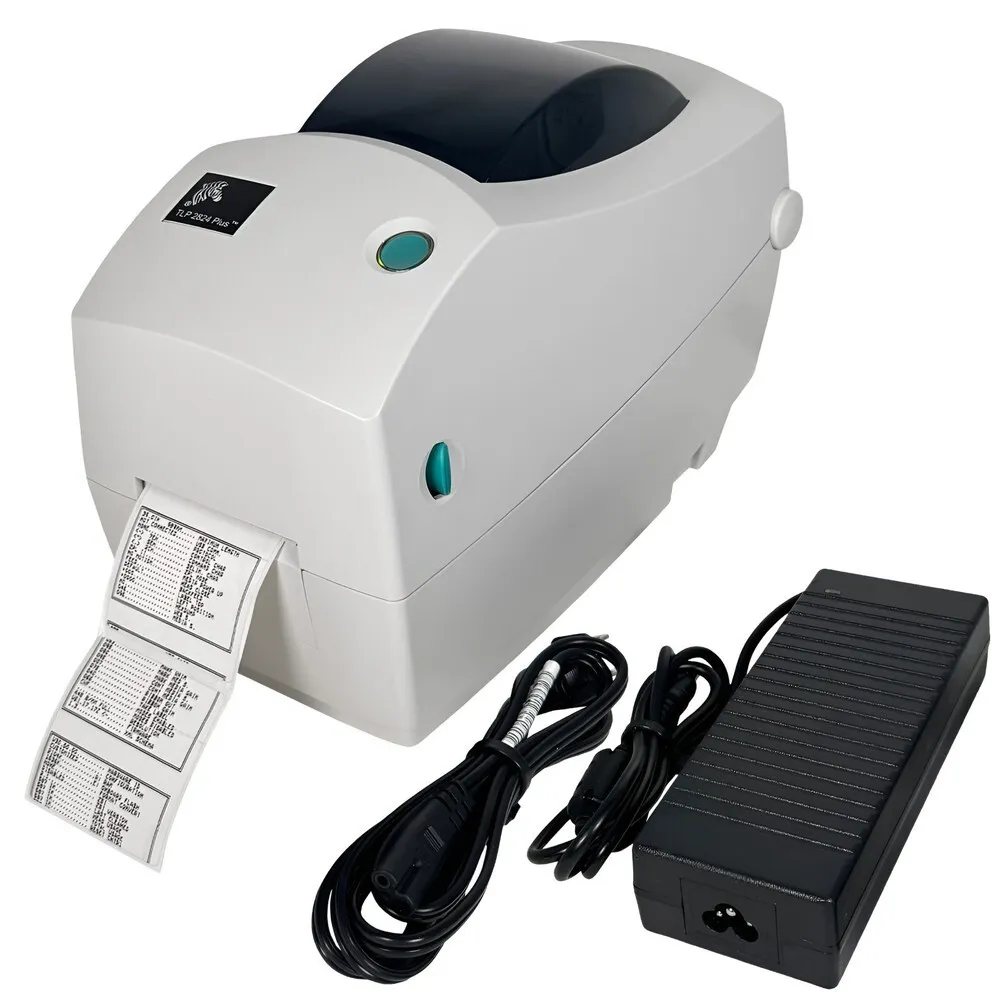

Power Supply External AC Adapter
Media Types Roll-fed labels, tags, continuous media
Barcode Symbologies Supported Code 39, Code 128, EAN-13, UPC-A, Interleaved 2 of 5, QR Code
Dimensions (WxDxH) 7.8 x 6.5 x 6.3 inches
Weight Approximately 4.4 lbs (2 kg)
Operating Temperature 41°F to 104°F (5°C to 40°C)

Key Advantages

The compact size of the TLP2824 Plus allows it to fit easily into small workspaces without sacrificing functionality. Network connectivity via Ethernet support enables effortless sharing among multiple users, increasing productivity. It offers both direct thermal and thermal transfer printing modes, providing flexibility with label media and durability of printed output. The print speed of 4 inches per second is efficient for typical office labeling tasks. Zebra's design includes easy media loading and low maintenance requirements, reducing downtime. Additionally, it supports a wide range of label types and sizes, catering to diverse office printing needs.

Limitations

The 203 dpi print resolution, while sufficient for common barcode and text labels, may not meet the need for high-resolution graphic printing. The maximum print width of 2.3 inches limits the printer to smaller label formats, which may not suit all applications. It lacks advanced wireless connectivity options such as Wi-Fi or Bluetooth, relying solely on Ethernet and USB. The printer's throughput is moderate, making it less ideal for very high volume or industrial-level print demands. Compatibility issues may arise with newer operating systems without updated drivers. Additionally, as technology advances, replacement parts and official support may become less accessible due to the model's discontinued status.
