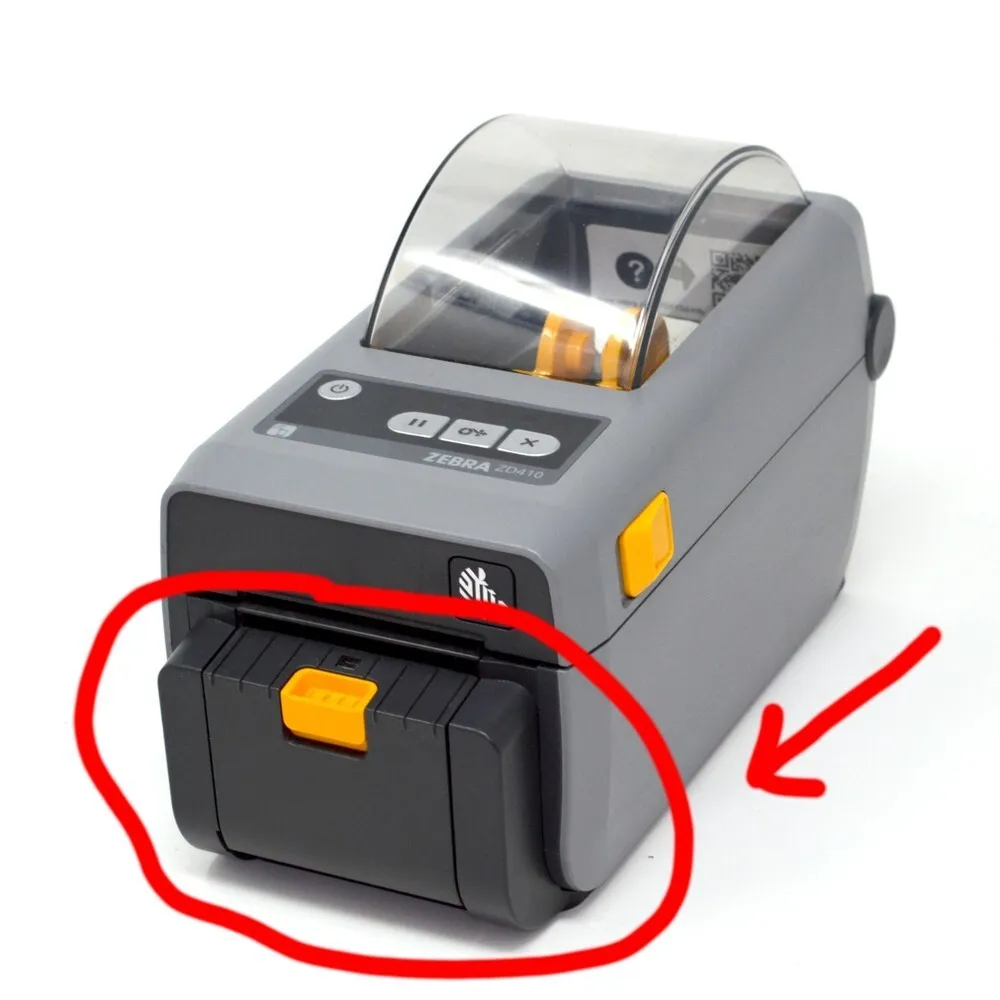

Zebra ZD410 image

Zebra ZD410

Quick information
Brand Zebra 2015
Model ZD41022D01000EZ, 1079903-021, ZD410
Released Year 2015
Type Printers
Series Z
Status Active
Quick view

Overview

The Zebra ZD410 is a compact direct thermal and thermal transfer printer that excels in printing labels, receipts, and tags with precision. It features a print resolution of 203 dpi, which enables sharp and clear print output suitable for various industrial applications. The device supports printing speeds up to 6 inches per second, ensuring efficient handling of medium-volume printing demands. Connectivity options include USB, Serial, Ethernet, and optional Bluetooth or Wi-Fi, allowing flexible integration into existing office environments. The ZD410 supports a wide variety of media widths up to 2.2 inches, making it versatile for diverse printing tasks. It also incorporates Link-OS environment support for ease of management and device connectivity.

Specifications

Input Type Monochrome
Output Type Black & White
MPN ZD41022D01000EZ, 1079903-021, ZD410
Item Length 4in.
Supported Paper Size Max size 2.36 in./60 mm
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Manufacturer Warranty 3 Months
Item Height 2in.
Model ZD410
Features Portable
Item Width 4.5in.
Product Line Zebra Z
Print Method Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm)
Max Print Speed 6 inches per second (152 mm/s)
Max Print Width 2.2 inches (56 mm)
Media Types Die-cut labels, continuous labels, receipt paper, tags
Media Width 0.625 inches to 2.36 inches (16 mm to 60 mm)
Media Thickness 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm)
Roll Diameter Maximum 2.6 inches (67 mm)
Processor 32-bit ARM Cortex R4
Memory 256 MB Flash, 128 MB SDRAM
Connectivity USB 2.0, Serial, Ethernet; optional Bluetooth 4.1 and Wi-Fi 802.11ac
Operating System Support Windows, Mac OS, Linux
Dimensions 4.6 in (W) x 7 in (H) x 6.9 in (D) / 117 mm x 178 mm x 175 mm
Weight 2.1 lbs (0.95 kg)
Power Supply External Universal Power Supply
Link-OS Environment Supported for centralized device management

Key Advantages

The Zebra ZD410 offers a compact form factor, ideal for limited space environments. It provides exceptional print quality with 203 dpi resolution at high speed. Connectivity versatility with multiple interfaces caters to broad deployment scenarios. The easy media loading mechanism reduces downtime and user errors. It supports robust printer management features via Link-OS for enhanced operational efficiency. Energy-efficient design minimizes power consumption during operation and standby modes.

Limitations

The ZD410’s maximum print width is limited to 2.2 inches, which may restrict some wide label applications. It is designed primarily for moderate volume printing and may not meet very high throughput industrial needs. The 203 dpi resolution, while adequate for most labels, is not suitable for ultra-fine detailed printing requirements. The printer’s media roll capacity is smaller compared to larger models, requiring more frequent media changes. Some connectivity options such as Bluetooth and Wi-Fi are optional add-ons rather than standard. Its direct thermal printing mode is sensitive to environmental factors like heat and light, potentially affecting label longevity.
