Zebra Z4M
| Brand | Zebra 2004 |
| Model | Z4M00-3001-0000, business, warehouse |
| Released Year | 2004 |
| Type | Printers |
| Series | Z |
| Status | Discontinued |
Quick view
Overview

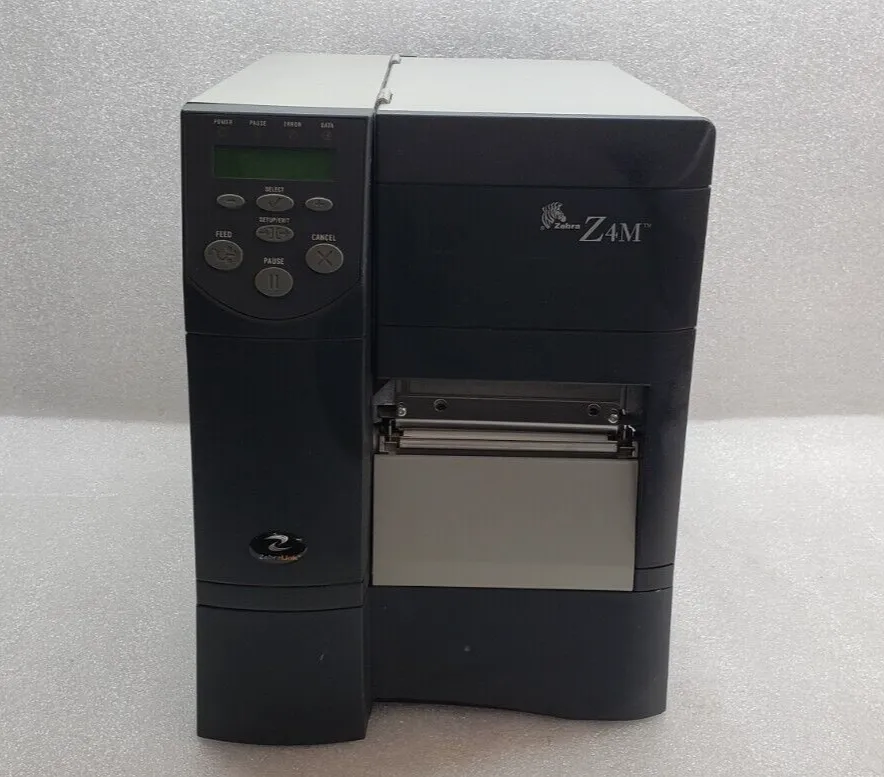

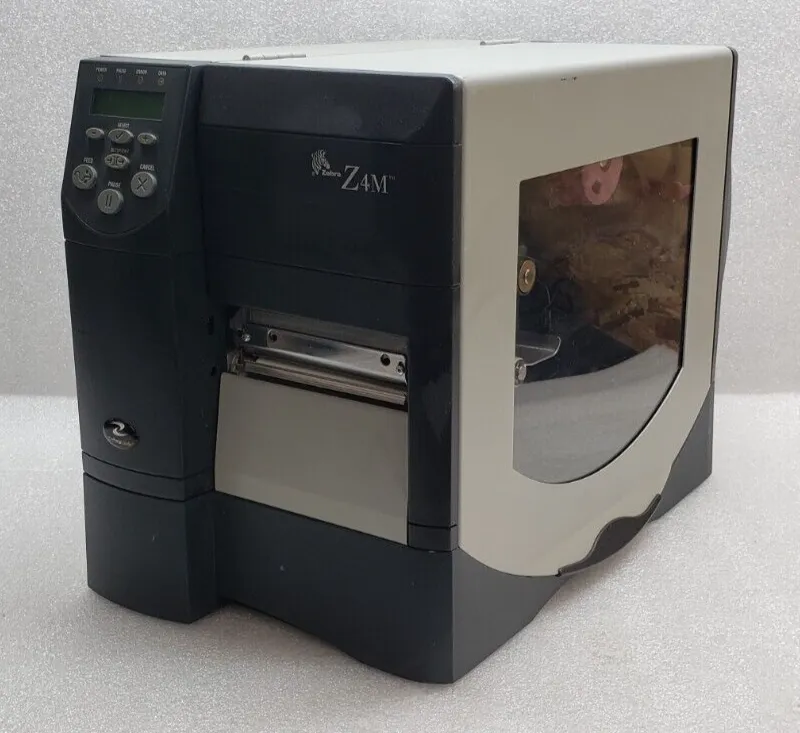

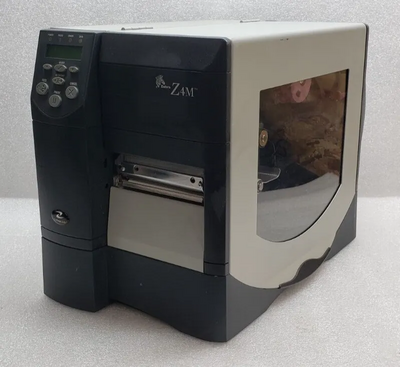

The Zebra Z4M is an industrial-grade thermal printer designed primarily for high-volume label printing in business and warehouse environments. It supports both direct thermal and thermal transfer printing technologies, allowing versatile media compatibility. The printer operates at a maximum print speed of up to 10 inches per second with a maximum print resolution of 203 dpi for clear and readable output. Equipped with a 4.25-inch print width, it accommodates a wide range of label sizes. Connectivity options typically include serial, parallel, and USB interfaces, with optional network connectivity available. The device's robust metal construction ensures durability and reliability in demanding industrial settings.
Specifications
| Supported Scanning Sizes | -- |
| Input Type | Monochrome |
| Grayscale Depth | -- |
| Color Depth | -- |
| Output Type | Black & White |
| Memory | Standard 8 MB DRAM, 4 MB Flash |
| MPN | Z4M00-3001-0000, business, warehouse |
| Supported Paper Size | Max Label Width: 4.25" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Manufacturer Warranty | -- |
| Image Sensor | -- |
| Model | Z4M |

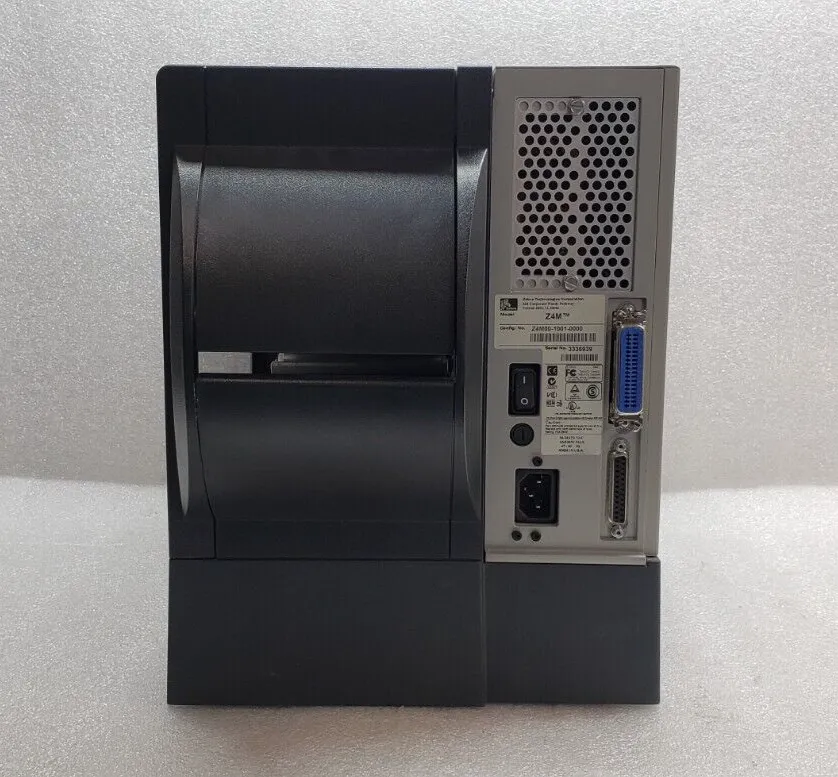

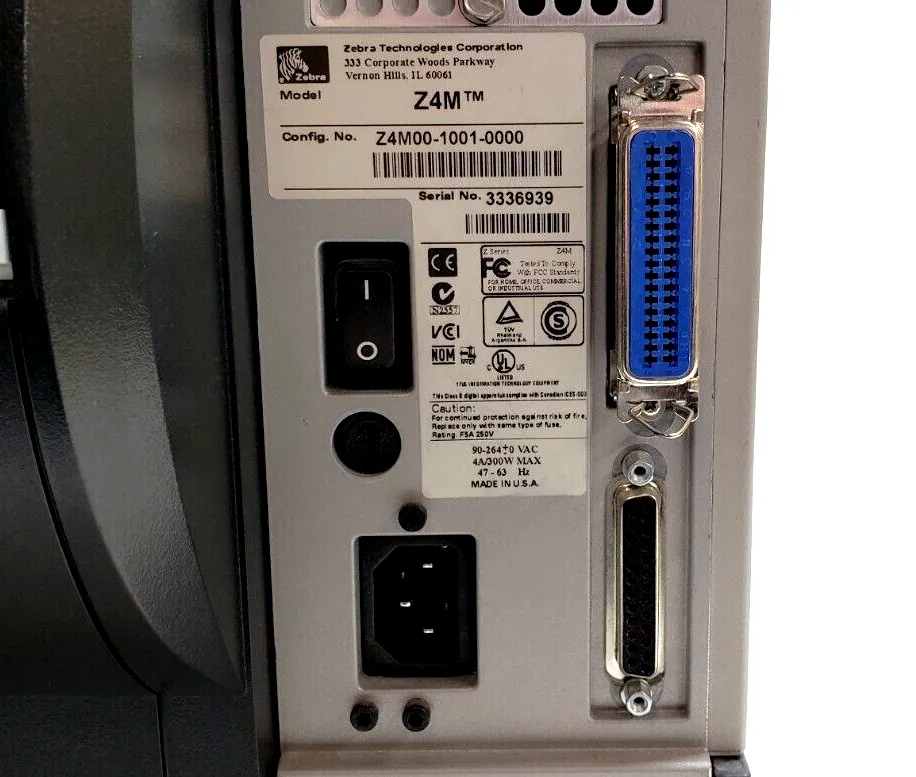

| Connectivity | Serial RS-232, Parallel, USB, optional Ethernet |
| Features | UPS Firmware |
| Scanning Resolution | -- |
| Black Print Speed | 10 ips Print Speed |
| Product Line | Zebra Z |
| UPC | Does not apply |
| Printer Type | Industrial Thermal Printer |

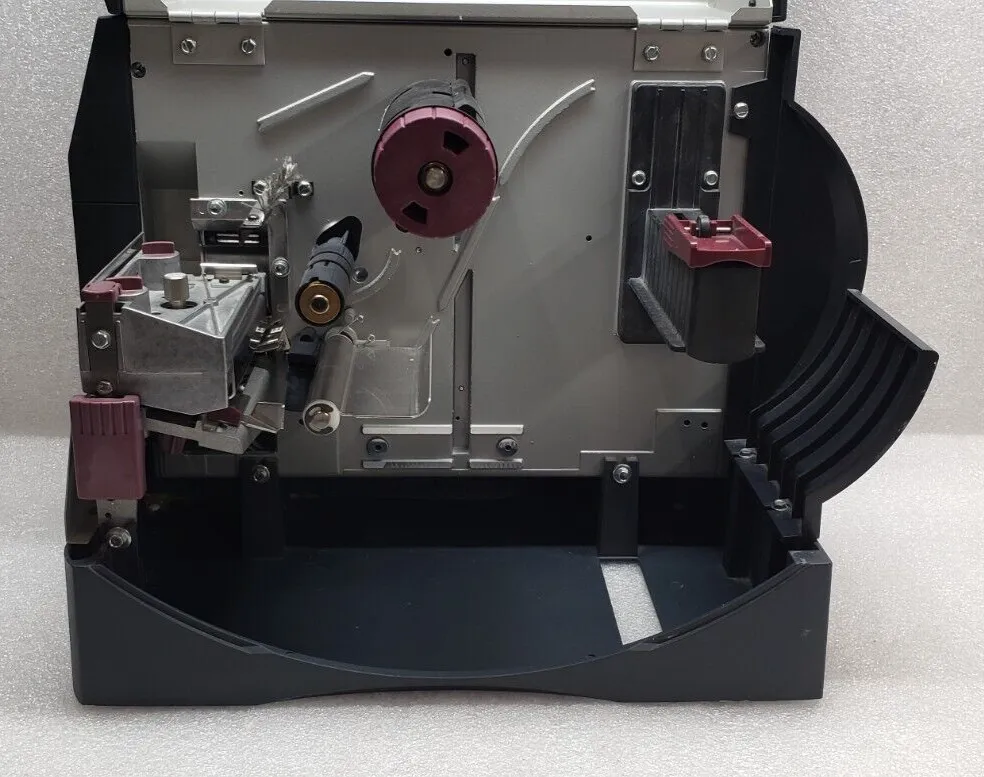

| Print Method | Direct thermal and thermal transfer |
| Maximum Print Width | 4.25 inches (108 mm) |
| Maximum Print Speed | 10 inches per second (254 mm/s) |
| Print Resolution | 203 dpi (8 dots/mm) |
| Media Type | Labels, tags, continuous, black mark |
| Media Width | 1 inch to 4.5 inches (25.4 mm to 114 mm) |
| Media Thickness | 0.0023 inches to 0.01 inches (0.058 mm to 0.25 mm) |
| Ribbon Type | Wax, resin, wax/resin |
| Ribbon Width | 1 inch to 4.33 inches (25.4 mm to 110 mm) |
| Ribbon Length | Up to 450 meters |
| Dimensions (WxHxD) | 11.9 x 14 x 21 inches (302 x 356 x 533 mm) |
| Weight | 43 lbs (19.5 kg) |
| Display | Backlit LCD with control keys |
| Power | Auto-ranging power supply (90–264 VAC) |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | 20% to 85% non-condensing |
| Warranty | One-year limited warranty |
Images
Key Advantages
The Zebra Z4M offers exceptional print speed, speeding up label production and increasing efficiency. Its dual printing modes (direct thermal and thermal transfer) provide flexibility to meet diverse labeling needs. The industrial-grade metal frame contributes to its longevity under harsh working conditions. It supports various media types and sizes, enhancing versatility for multiple applications. The printer's user-friendly interface and clear display simplify operation and maintenance. Additionally, it features replaceable printheads and easy media loading mechanisms to minimize downtime.
Limitations
The Z4M’s maximum print resolution of 203 dpi may not suffice for applications requiring very high-resolution labels or small barcodes. While the printer supports various connectivity options, modern wireless or advanced networking features may be limited or require additional modules. Its industrial size and weight could make it less suitable for small or space-constrained offices. Consumable costs, including ribbons and labels, might be higher compared to desktop models. The device may lack some advanced software integration features found in more recent printers. Finally, as it has been discontinued, availability of replacement parts and manufacturer support could be limited.
FAQ
What printing technologies does the Zebra Z4M support?
The Zebra Z4M supports both direct thermal and thermal transfer printing, allowing it to print on a variety of label materials.
What is the maximum print speed of the Z4M printer?
The printer can reach a maximum print speed of up to 10 inches per second.
What print resolution does the Zebra Z4M offer?
The Z4M provides a print resolution of 203 dots per inch (dpi).
Is the Zebra Z4M still available for purchase?
The Zebra Z4M has been discontinued, so it may only be available through third-party sellers or as used/refurbished units.
What types of connectivity does the Z4M support?
Standard connectivity includes serial, parallel, and USB interfaces, with optional network connectivity modules available.
Can the Z4M printer handle large label sizes?
Yes, it supports a maximum print width of 4.25 inches, suitable for many industrial label formats.
How durable is the Zebra Z4M printer for industrial use?
It features a metal construction designed to withstand the rigors of industrial and warehouse environments.
