Zebra Z4M Plus
| Brand | Zebra 2006 |
| Model | Z4M00-2001-0020, Network LAN, Ethernet |
| Released Year | 2006 |
| Type | Printers |
| Series | Z |
| Printing technology | Direct Thermal & Thermal Transfer |
| Status | Discontinued |
Quick view
Overview

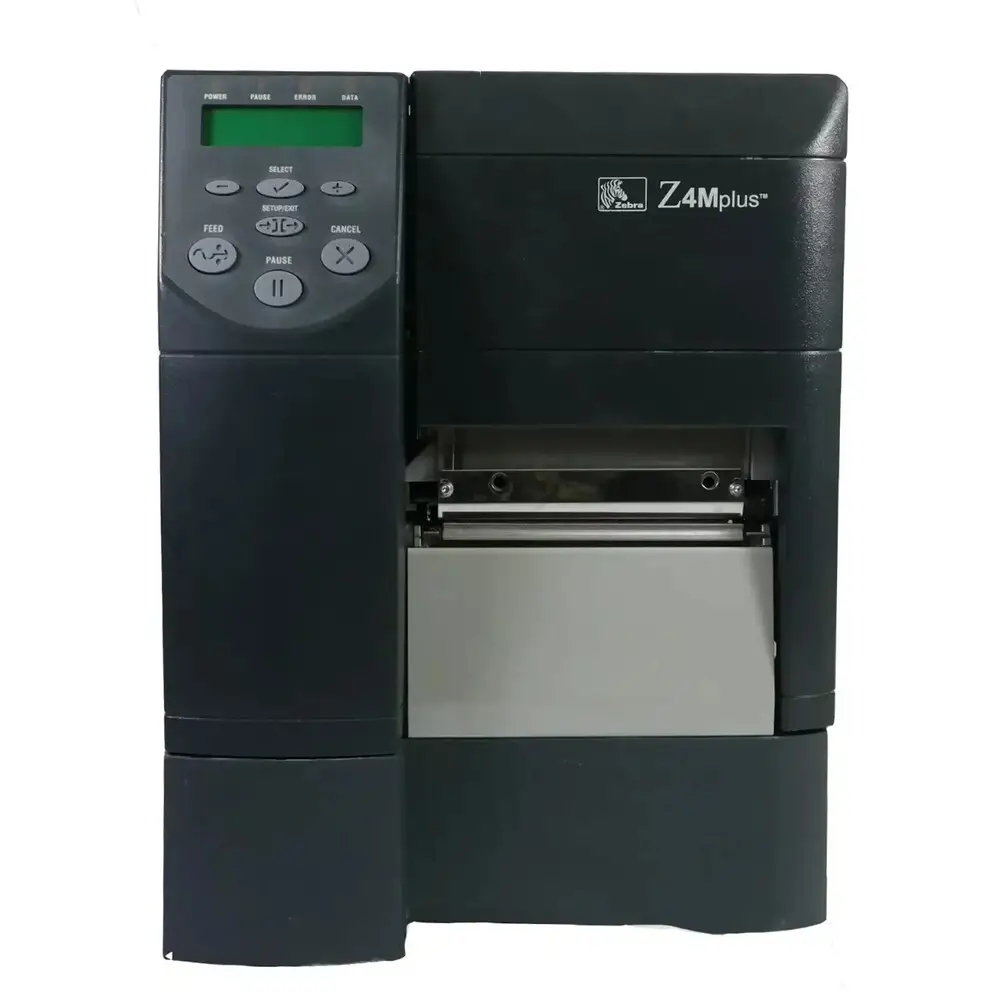

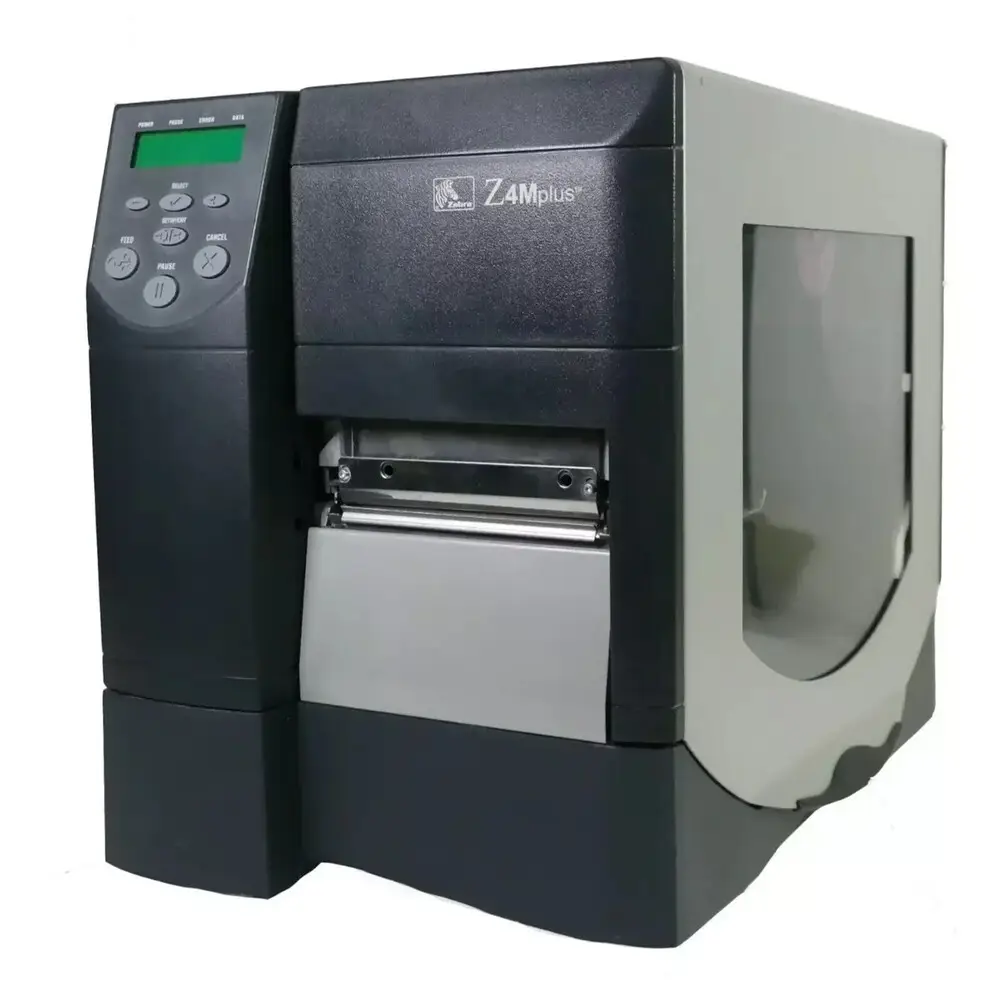

The Zebra Z4M Plus is an industrial thermal printer designed for high-volume label and barcode printing in office and manufacturing environments. It features a robust metal frame construction to withstand heavy-duty applications and continuous operation. The printer supports both direct thermal and thermal transfer printing methods, providing flexibility with various label stocks.
Equipped with Ethernet LAN connectivity, the Z4M Plus enables seamless integration into networked environments for efficient printing management. It offers a 203 dpi or 300 dpi print resolution option, depending on configuration, ensuring clear and precise label output. The printer supports paper widths up to 4 inches and can accommodate both roll-fed and fanfold media formats.
The control panel includes an LCD display for status monitoring and navigation through menu options. It also supports multiple programming languages such as EPL and ZPL for versatile printer command capabilities. The Z4M Plus includes expanded memory to handle complex label formats and large print jobs efficiently.
Specifications
| Device type | Industrial Thermal Printer |
| Printing technology | Direct Thermal & Thermal Transfer |
| Print resolution | 203 dpi standard, optional 300 dpi |
| Print width | Up to 4 inches (104 mm) |
| Print speed | Up to 6 inches per second |
| Connectivity | Serial (RS-232 DB9), Ethernet (RJ-45) |
| Memory | 8 MB |
| Display | 16-character LCD |
| Media types | Labels, tags, continuous paper, fanfold media |
| Media handling | Roll-fed or fanfold |
| Dimensions (W x H x D) | 10.4 x 9.1 x 17 inches (264 x 230 x 432 mm) |
| Weight | Approximately 18 lbs (8.2 kg) |
| Power supply | External power supply, 90-264 VAC |
| Operating temperature | 40°F to 105°F (5°C to 40°C) |
| Input Type | Monochrome |
| Output Type | Black & White |
| MPN | Z4M00-2001-0020, Network LAN, Ethernet |
| Max. Resolution | 203 dpi |
| Supported Paper Size | Maximum Label Width: 4.5" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Printer Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | Z4M Plus |
| Features | Zebra Firmware, Networkable |
| Black Print Speed | Up to 600 inch/min |
| Country/Region of Manufacture | United States |
| Product Line | Zebra Z |
| UPC | Does not apply |
Images
Key Advantages
Reliable Heavy-Duty Construction: Metal frame design ensures durability and longevity in industrial environments.
Flexible Connectivity Options: Includes Ethernet LAN support for networked printing and easy device integration.
High-Quality Printing: Offers 203 dpi or optional 300 dpi resolution for precise label output.
Versatile Media Handling: Supports various media types including labels, tags, and continuous paper, with widths up to 4 inches.
Multiple Printer Languages: Compatible with EPL and ZPL programming languages to fit diverse software ecosystems.
User-Friendly Interface: LCD control panel simplifies printer operation and status checks.
Limitations
Discontinued Model: The Z4M Plus has been discontinued and replaced by newer printer models with updated features.
Limited Speed Compared to Newer Models: Printing speed may be slower than modern industrial printers.
No Wireless Connectivity: Lacks Wi-Fi or Bluetooth options, limiting mobile or wireless printing capabilities.
Relatively Larger Footprint: Industrial-grade size may not fit compact office environments easily.
Basic Display: The LCD display is simple and may not provide advanced diagnostics or troubleshooting features found in newer devices.
Firmware Updates: May have limited firmware update support, impacting security and feature enhancements over time.
FAQ
What types of printing does the Zebra Z4M Plus support?
The Zebra Z4M Plus supports both direct thermal and thermal transfer printing methods, allowing it to print on a variety of label and tag materials.
Does the Z4M Plus support network connectivity?
Yes, it includes Ethernet LAN connectivity to enable integration with networked office and industrial environments.
What is the maximum print resolution of the Z4M Plus?
The printer offers either 203 dpi as standard or an optional 300 dpi print resolution for higher quality output.
Is the Z4M Plus still available for purchase?
No, the Z4M Plus has been discontinued and replaced by newer models in Zebra's product line.
What programmable languages are compatible with the Z4M Plus?
It supports both Zebra Programming Language (ZPL) and Eltron Programming Language (EPL), making it compatible with various printing systems.
What media widths can the Z4M Plus handle?
The printer supports media widths of up to 4 inches, suitable for many standard label and tag sizes.
Does the printer support wireless printing?
No, the Z4M Plus does not include wireless capabilities such as Wi-Fi or Bluetooth.
