Zebra TLP3844-Z
Brand | Zebra 2005 |
Model | 384Z-10300-0001, 305 Dpi, TLP 3844-Z |
Released Year | 2005 |
Type | Printers |
Series | Tlp |
Status | Discontinued |
Quick view
Overview
The Zebra TLP3844-Z is a direct thermal and thermal transfer label printer designed for mid-volume printing tasks in office and industrial environments.
This printer model supports a print resolution of 305 dots per inch (DPI), delivering high-quality and precise label output suitable for barcode, text, and graphic printing.
Equipped with a 4-inch print width capability, the TLP3844-Z accommodates a wide variety of label sizes to serve multiple applications.
The printer integrates standard connectivity options such as serial and parallel ports, with optional USB and Ethernet to fit various communication requirements.
The device uses a Zebra programming language known as EPL (Eltron Programming Language) and ZPL (Zebra Programming Language), allowing versatile and efficient label format creation.
This model supports multiple media types including continuous, die-cut, black mark, and notch media, enhancing flexibility in label printing operations.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 2 MB DRAM, 4 MB Flash ROM |
MPN | 384Z-10300-0001, 305 Dpi, TLP 3844-Z |
Supported Paper Size | Maximum Label Width: 4.25" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 300 x 300 DPI |
Model | TLP3844-Z |
Connectivity | Standard serial and parallel ports; optional USB and Ethernet |
Features | Portable |
Black Print Speed | 4 ips |
Country/Region of Manufacture | United States |
Product Line | Zebra TLP |
Print Technology | Thermal transfer and direct thermal |
Print Resolution | 305 dpi (12 dots/mm) |
Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 4 inches per second |
Processor | 32-bit RISC |
Media Types | Continuous, die-cut, black mark, notch |
Media Width | 0.75 inches to 4.65 inches (19 mm to 118 mm) |
Media Thickness | 0.003 inches to 0.010 inches (0.08 mm to 0.25 mm) |
Ribbon Types | Wax, wax/resin, resin (thermal transfer) |
Programming Languages | ZPL, EPL |
Dimensions | 9.5 x 7.9 x 8.7 inches (241 x 201 x 221 mm) |
Weight | Approx. 7.7 lbs (3.5 kg) |
Power Supply | External 100-240 VAC adapter |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |

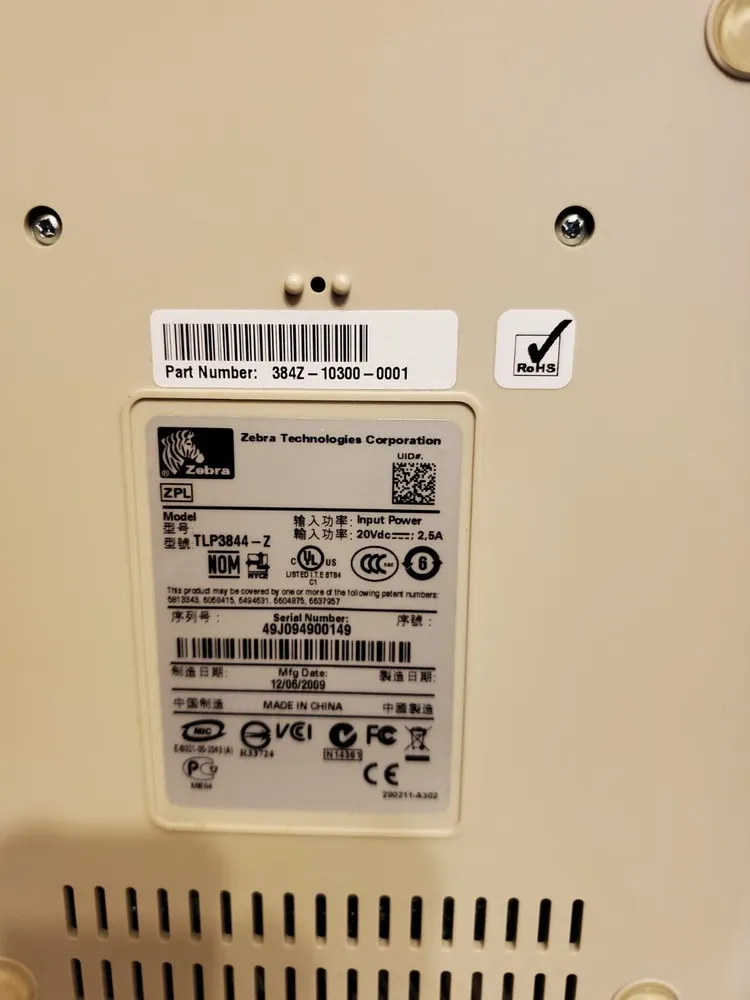

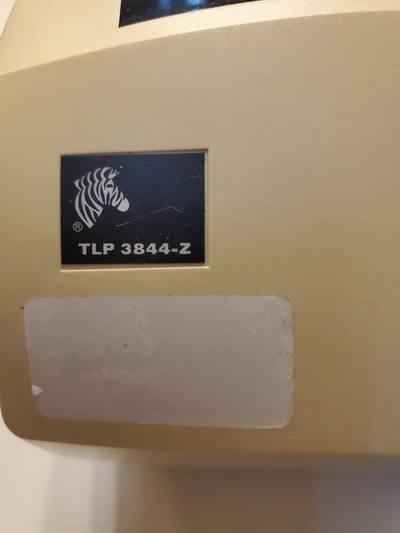

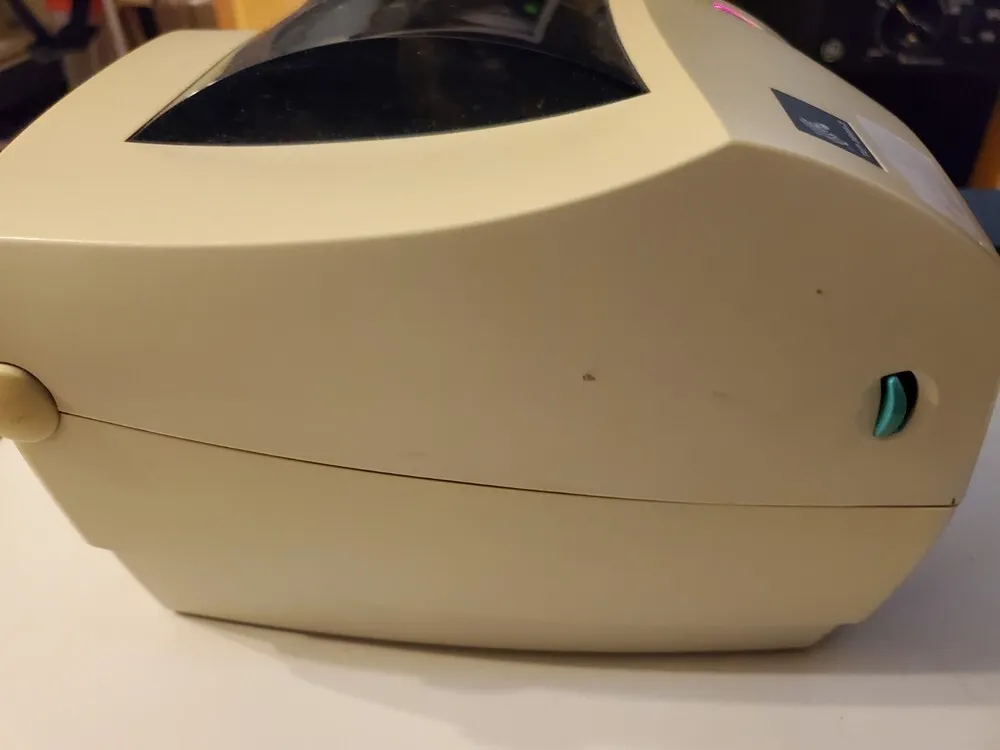

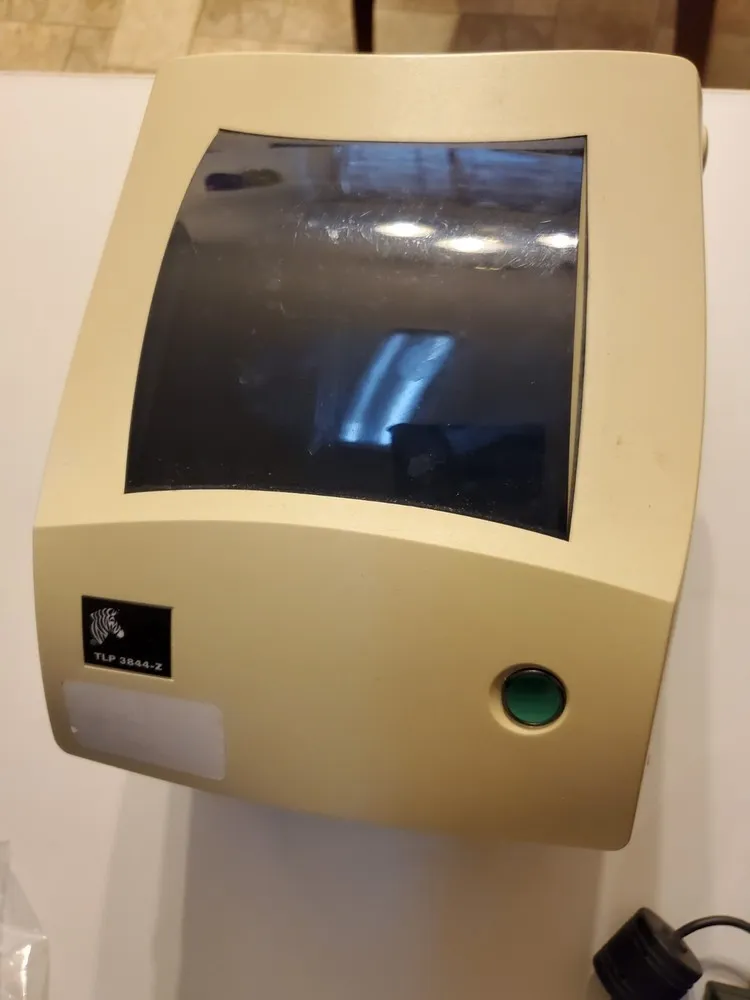

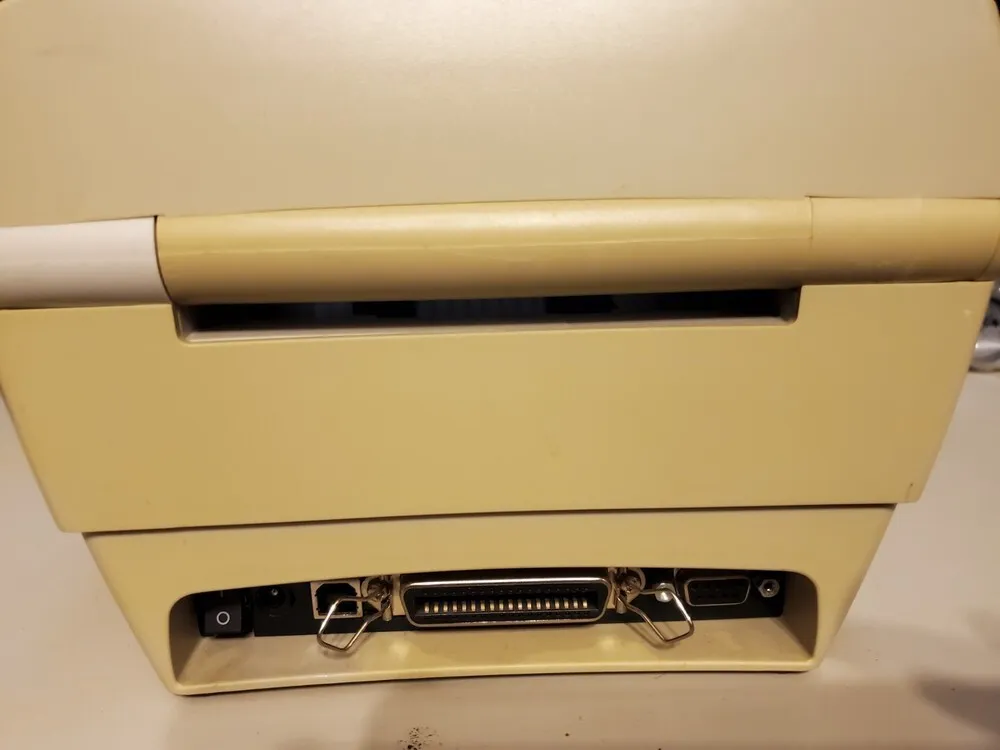

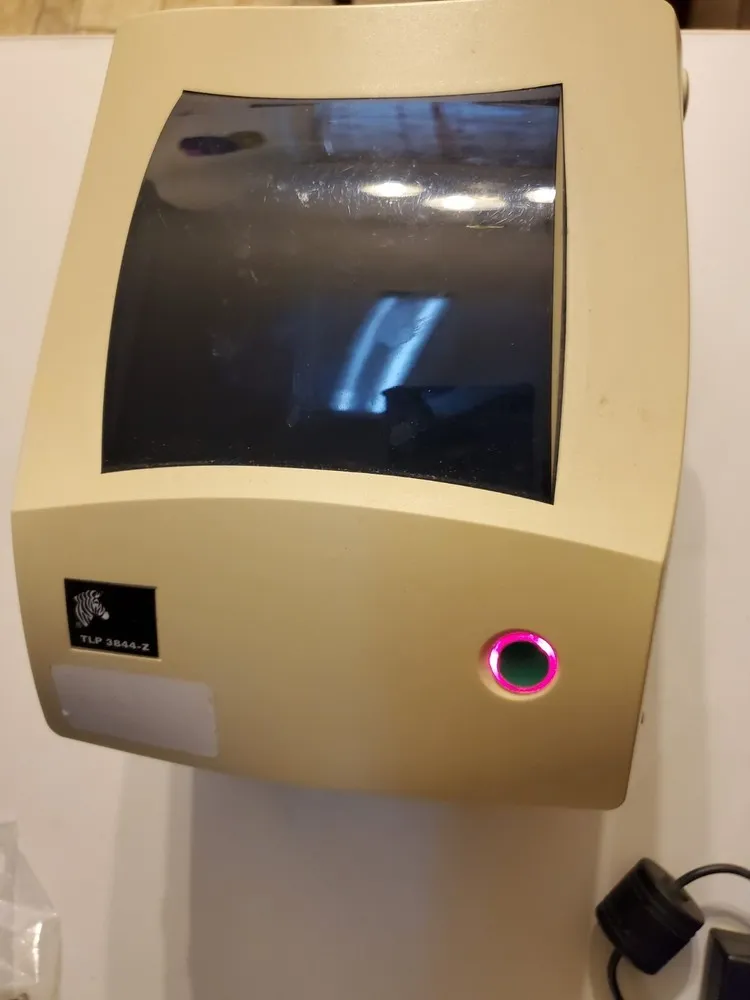

Images
Key Advantages
The high 305 dpi print resolution ensures sharp and clear labels, ideal for small barcodes and detailed graphics.
Flexible media compatibility reduces the need for multiple printers for different label types.
Robust construction and reliable performance suit industrial and office environments requiring consistent uptime.
User-friendly interface with easy loading mechanisms minimizes operator downtime and training requirements.
Supports a variety of connectivity options expanding integration into existing IT infrastructure.
Comprehensive driver and software support help streamline label design and printing workflows.
Limitations
The printer is limited to a maximum print width of 4 inches, which may not suffice for larger label requirements.
Relatively slower print speed compared to newer models may impact high-volume printing efficiency.
Lacks built-in wireless connectivity which is common in modern printers for flexible deployment.
The device is comparatively bulky and heavier than compact contemporary printers.
Uses proprietary consumables which can be costlier and less readily available.
Firmware and software updates may be limited due to the age of the model, potentially affecting compatibility with latest operating systems.
FAQ
What types of labels can the Zebra TLP3844-Z print?
The TLP3844-Z supports continuous, die-cut, black mark, and notch media types for versatile label printing.
What interfaces does the TLP3844-Z provide?
Standard models offer serial and parallel ports, with options for USB and Ethernet connectivity.
Is the Zebra TLP3844-Z still supported by Zebra?
No, the TLP3844-Z has been discontinued and may have limited official support.
What is the maximum print resolution for this printer?
The printer supports a maximum print resolution of 305 DPI.
Can the TLP3844-Z print in color?
No, it is a monochrome thermal printer designed for black and white label printing.
Is the TLP3844-Z compatible with modern operating systems?
With proper drivers, it can function on many systems, but driver support may be limited for the newest operating system versions.
What programming languages does the printer support?
It supports Zebra Programming Language (ZPL) and Eltron Programming Language (EPL) for label formatting.
