ZEBRA TECHNOLOGIES VTI, INC. ZD421
Brand | ZEBRA TECHNOLOGIES VTI, INC. 2022 |
Model | ZD421 |
Released Year | 2022 |
Type | Printers |
Series | ZD421 |
Item Weight | 3.6 pounds |
Product Dimensions | 13.93 x 11.18 x 10.39 inches |
Status | Active |
Quick view
Overview

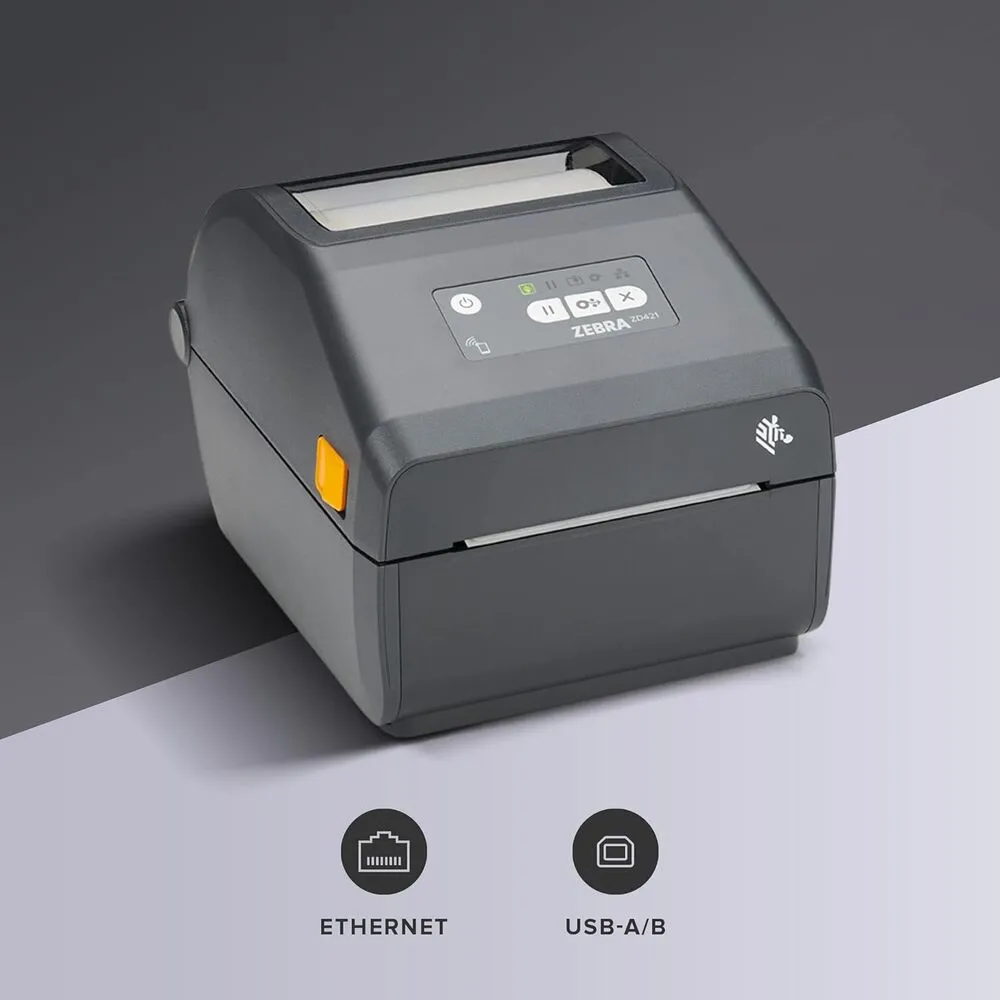

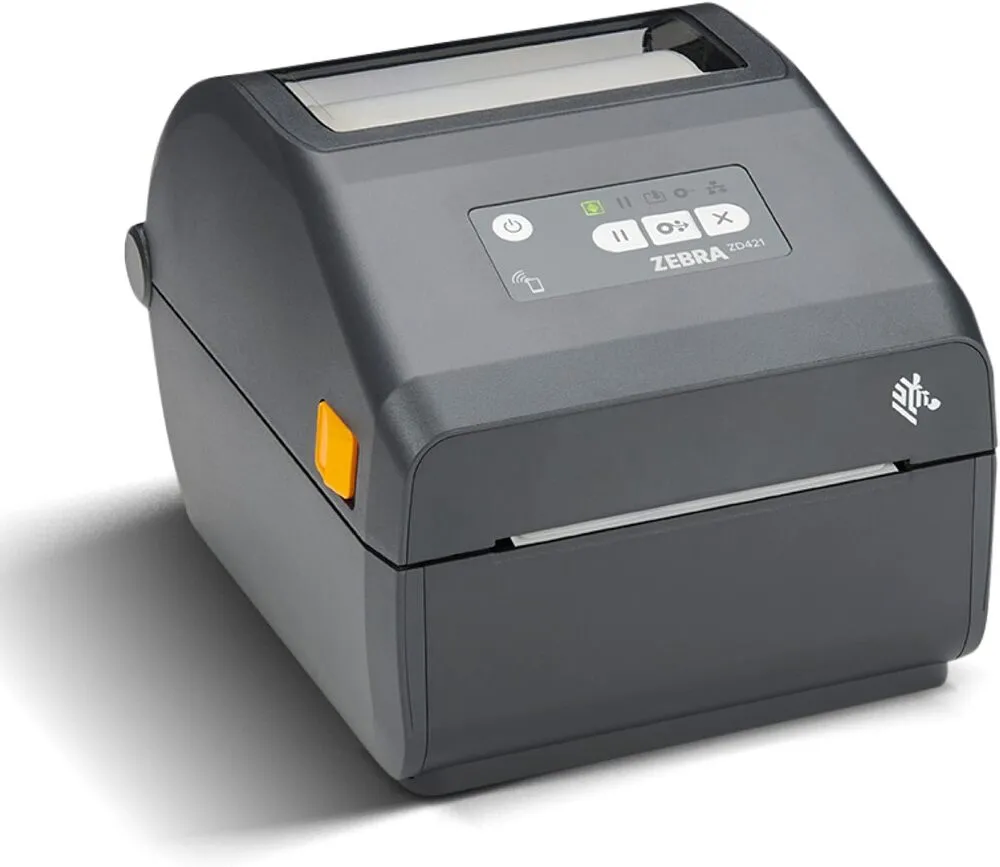

The Zebra ZD421 is a desktop thermal printer designed for office and light industrial use. It offers direct thermal printing technology with print speeds up to 6 inches per second, supporting high-quality label and tag printing. Equipped with a 203 dpi or optional 300 dpi print resolution, it is capable of producing detailed and crisp barcode labels and receipts. The printer supports multiple connectivity options including USB, serial, Bluetooth, and Wi-Fi, allowing flexible integration in various environments. Its rugged design includes a large color LCD touch display, making operation and monitoring user-friendly. Additionally, the ZD421 supports multiple media types such as continuous, die-cut labels, receipt paper, and tags, enhancing its versatility for different printing needs.
Specifications
Included Components | Printer |
Print media | Labels |
Max Input Sheet Capacity | 150 |
Compatible Devices | PC |
Sheet Size | 4 inches |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | 90 days limited warranty |
Dual-sided printing | No |
Max copy resolution black-white | 203 dpi |
Duplex | Simplex |
Hardware Interface | USB |
Ink Color | Black |
Resolution | 203 x 203 DPI |
Additional Printer functions | Print Only |
Control Method | Remote |
Number of Drivers | 2 |
Processor Count | 1 |
Series Number | 421 |
Total Ethernet Ports | 1 |
Number of USB 2 Ports | 1 |
Total USB Ports | 1 |
UPC | 657768190896 657768190452 |
Printer Ink Type | No Ink |
Memory Storage Capacity | 64 MB |
Product Dimensions | 13.93 x 11.18 x 10.39 inches |
Item Weight | 3.6 pounds |
Item model number | ZD421 |
Date First Available | November 28, 2022 |
Manufacturer | ZEBRA TECHNOLOGIES VTI, INC. |
Print Method | Direct Thermal |
Print Resolution | 203 dpi standard, 300 dpi optional |
Print Speed | Up to 6 inches per second |
Maximum Print Width | 4.09 inches (104 mm) |
Media Types | Continuous, die-cut labels, receipt paper, tags |
Connectivity | USB 2.0, Serial, Bluetooth (optional), Wi-Fi (optional) |
Display | Color LCD touch display |
Memory | 256 MB Flash, 128 MB SDRAM standard |
Dimensions | 8.6" W x 7.5" H x 8.0" D (219 mm x 191 mm x 203 mm) |
Weight | Approx. 4.85 lbs (2.2 kg) |
Operating Temperature | 40°F to 105°F (5°C to 41°C) |
Power Supply | External 100-240VAC 50-60Hz |
Emulations | ZPL, EPL, XML |
Sensors | Media sensor, ribbon sensor (ribbon sensor applicable with thermal transfer) |
Images
Key Advantages
The ZD421 offers versatile connectivity including USB, serial, Bluetooth, and optional Wi-Fi for easy integration. It features high-quality printing with 203 dpi standard and optional 300 dpi resolution supporting detailed label output. The printer is designed with a large, full-color LCD touch display for intuitive control. Its ability to handle diverse media types including labels, tags, and receipt paper adds operational flexibility. The compact desktop form factor combined with rugged build quality makes it suitable for light industrial environments. Enhanced printer management and configuration through Zebra's setup utilities streamline deployment and maintenance.
Limitations
The ZD421 is primarily optimized for direct thermal printing and does not support thermal transfer without additional accessories. Its print width is limited to 4 inches, which may be insufficient for wider label applications. Although it offers optional wireless connectivity, the base model requires purchase of additional modules for Wi-Fi or Bluetooth features. It is a desktop-class printer and may not be suitable for very high-volume industrial printing environments. The media capacity is relatively moderate compared to larger industrial printers, limiting continuous printing durations. Some advanced features available in industrial series models are not present.
FAQ
What printing technology does the Zebra ZD421 use?
The Zebra ZD421 uses direct thermal printing technology, which does not require ink or toner but prints by applying heat to special thermal paper.
Does the ZD421 support wireless connectivity?
Yes, the ZD421 supports optional Wi-Fi and Bluetooth connectivity modules that can be added to enable wireless printing capabilities.
What is the maximum print speed of the ZD421?
The maximum print speed of the Zebra ZD421 printer is up to 6 inches per second.
Can the ZD421 handle different types of media?
Yes, the ZD421 supports various media types including continuous labels, die-cut labels, receipt paper, and tags.
Is the Zebra ZD421 suitable for high-volume industrial printing?
The ZD421 is designed for desktop and light industrial use and is not intended for very high-volume printing environments.
What is the maximum print resolution of the ZD421?
The printer offers a standard print resolution of 203 dpi, with an optional 300 dpi model for higher resolution needs.
Does the ZD421 have a display for user interaction?
Yes, the ZD421 includes a large color LCD touch display that simplifies configuration and monitoring.
